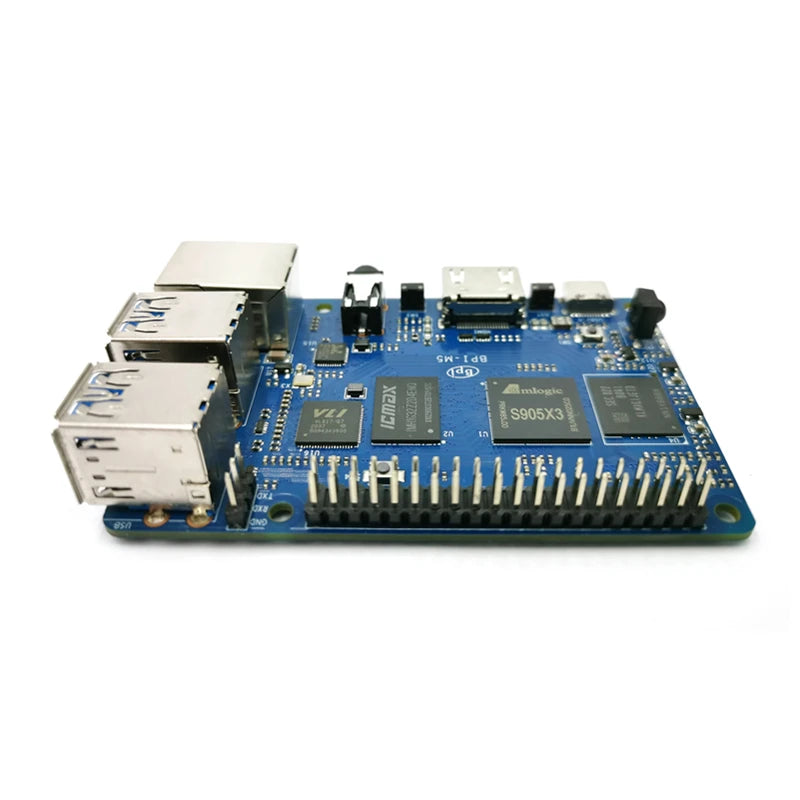

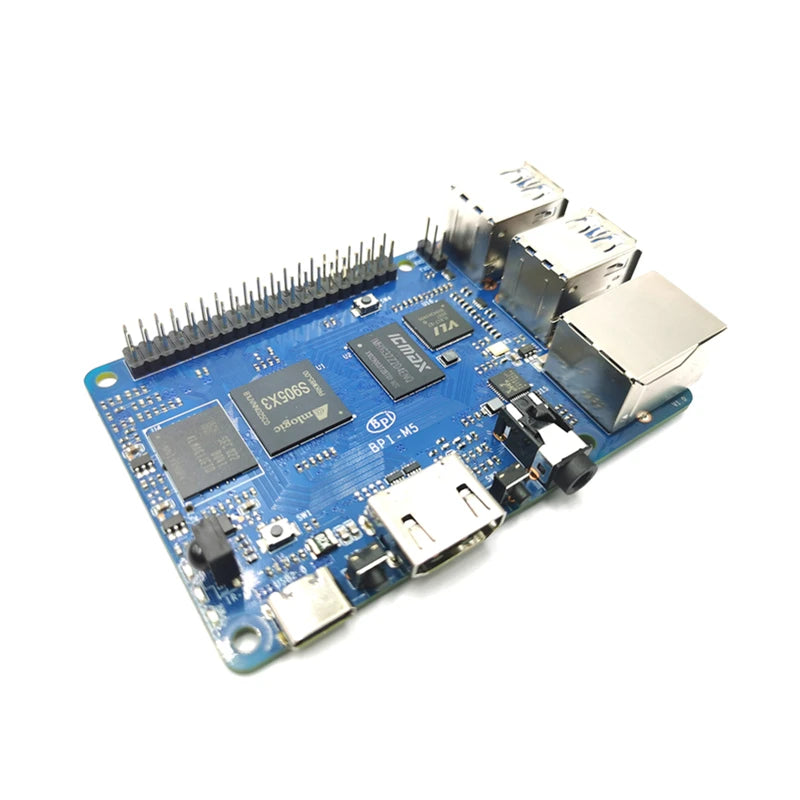

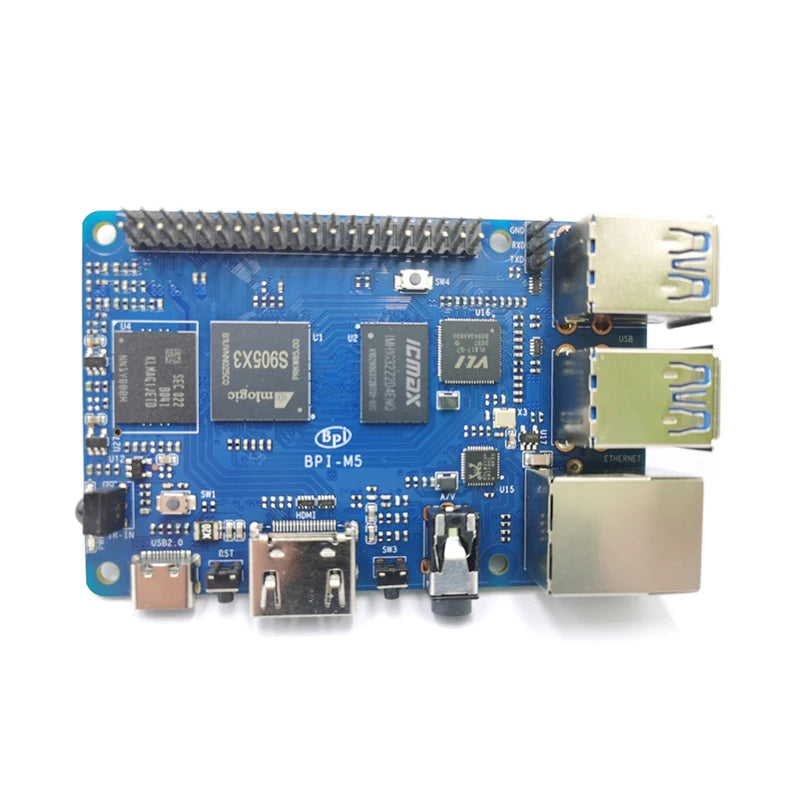

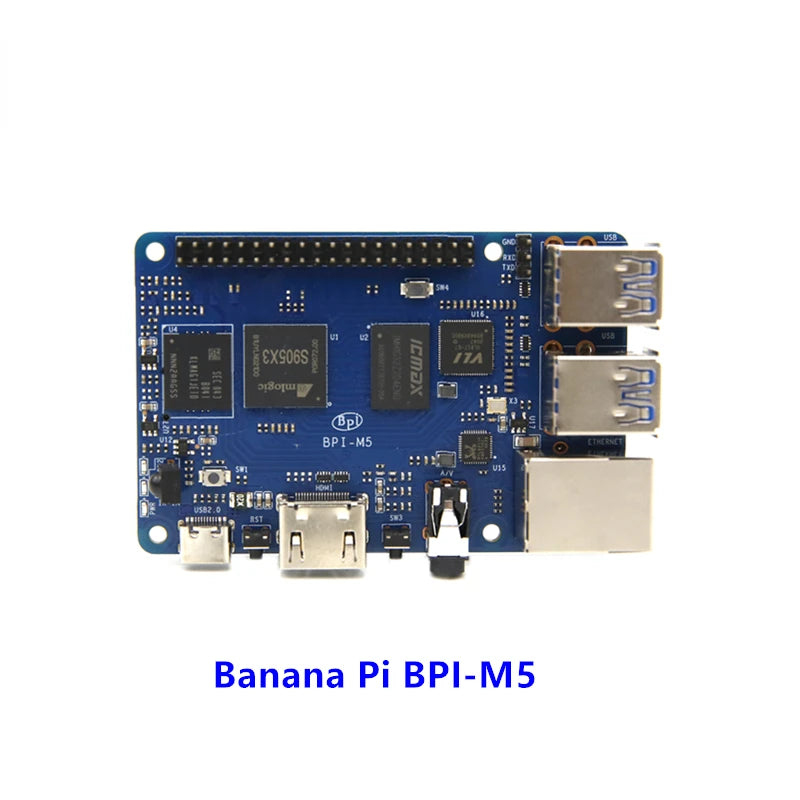

Banana Pi BPI-M5
Banana Pi BPI-M5 is a new generation of single board computer design with Amlogic S905X3 quad-core Cortex-A55 (2.0xxGHz) processor. MP2 GPU (650Mhz). Supports 4GB LPDDR4 and 16G eMMC onboard storage. It has 4 USB 3.0 ports and 1 Gigabit Ethernet port. The 905X3 is the latest 8K smart home audio and video chip under Amlogic. It adopts four 64-bit ARM A55 architecture CPU chips, integrates G31 graphics processor, supports 8K video decoding and 8K video output, and runs the open Android 9.0 system and Linux system.
Main feature:
-
Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz) Processor
Mali-G31 GPU Graphics Processor
4GB LPDDR4 memory
16GB eMMC onboard storage.
4 USB 3.0 ports
1 GbE Gigabit Ethernet port
HDMI output -

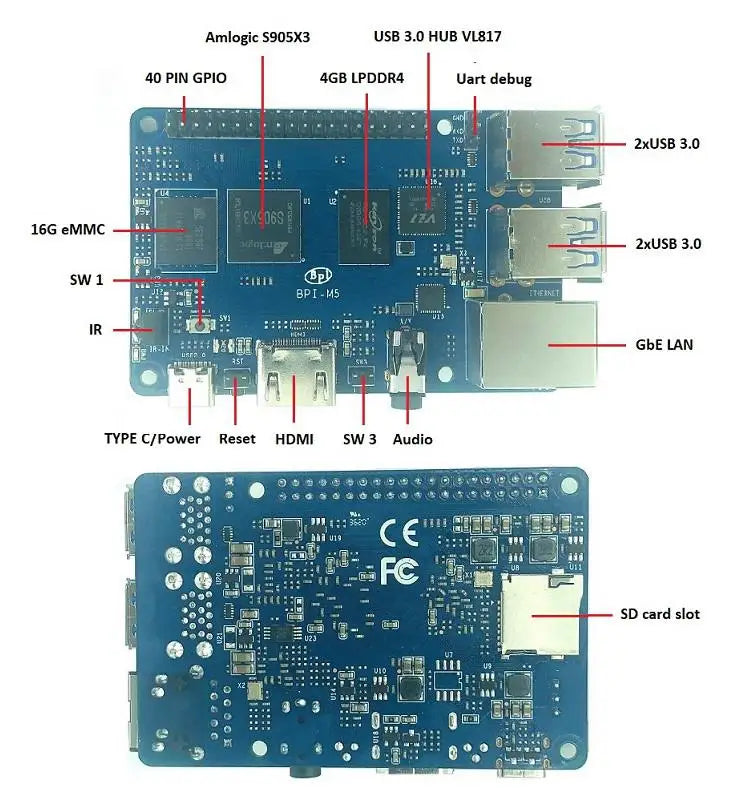

Hardware information
- Interface parameters:
Hardware Spec Sheet
CPU
Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz)
GPU
Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)
Memory
4 GB LPDDR4
Storage
MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB
Network
10/100/1000 Mbit/s Ethernet
Video Output(s)
1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID)
Audio Output(s)
3.5mm jack and 1 x HDMI digital output
USB ports
USB 3.0 PORT (x4)
GPIO
40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM
Switches
Reset, Power and U-boot
LED
Power Status and Activity status
Power Source
5 volt @3A via Micro USB (TYPE C)
Size & Weight
92x60mm, 48g
OS
Android and Linux
-
BPI-M5 VS Odroid C4 VS RPI 4
Banana Pi BPI-M5
Odroid C4
Raspberry Pi 4
Processor
Amlogic S905X3 Quad-Core Cortex-A55 ARMv8.2-A 64-bit 1.5GHz
Amlogic S905X3 Quad-Core Cortex-A55 ARMv8.2-A 64-bit 1.5GHz
Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
GPU
Mali-G31 MP2 GPU
Mali-G31 MP2 GPU
Broadcom VideoCore VI
RAM
4GB LPDDR4
DDR4 memory (4GiB)
2GB, 4GB or 8GB LPDDR4-3200 SDRAM
Storage
micro SD card slot & 16GB eMMC flash on board
micro SD card slot , non EMMC
micro SD card slot, non EMMC
Network
GbE ,Optional WiFi USB dongle
GbE
GbE, 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, BT 5.0, BLE
Video Output
1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID)
1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID)
2 × micro-HDMI 2.0
Audio Output
3.5mm jack and 1 x HDMI digital output
N/A
3.5 mm analogue audio-video jack
DSI
N/A
N/A
2-lane MIPI DSI display port
CSI
N/A
N/A
2-lane MIPI CSI camera port
USB
USB 3.0 x 4 TYPE C
USB 3.0 x 4, 1 x Micro USB 2.0 port (OTG)
2 USB 3.0 ports; 2 USB 2.0 ports;
Power
5 volt @3A via Micro USB (TYPE C)
1 x DC power jack (Outer diameter : 5.5mm, inner diameter : 2.1mm)
5V DC via USB-C connector (minimum 3A*)
IR
Yes
Yes
N/A
GPIO
40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND).
40 x GPIO pins
40-pin GPIO header, populated
Button
Reset, user and U-boot
N/A
N/A
LED
Power Status and Activity status
Power Status and Activity status
Power Status and Activity status
Dimensions & weight
85x56mm, 48g
88 mm × 58 mm × 19.5 mm, 46 g
Linux Support
Linux & Android
Linux & Android
Linux & Android
GPIO PIN
BPI-M5 40PIN GPIO (CON2)
GPIO Pin Name
Default Function
Function2
Function3
CON1-P01
VCC-3V3
CON1-P02
VCC5V
CON1-P03
GPIOX_17
I2C_M2_SDA
CON1-P04
VCC5V
CON1-P05
GPIOX_18
I2C_M2_SCL
CON1-P06
GND
CON1-P07
GPIOX_5 SDIO_CMD
CON1-P08
GPIOX_12
UART_A_TX
CON1-P09
GND
CON1-P10
GPIOX_13
UART_A_RX
CON1-P11
GPIOX_3 SDIO_D3
CON1-P12
GPIOAO_8
TDMB_SCLK
CON1-P13
GPIOX_4 SDIO_CLK
CON1-P14
GND
CON1-P15
GPIOX_7 PWM_F
CON1-P16
GPIOX_0 SDIO_D0
CON1-P17
VCC-3V3
CON1-P18
GPIOX_1 SDIO_D1
CON1-P19
GPIOX_8 PCM_DIN
CON1-P20
GND
CON1-P21
GPIOX_9 PCM_DOUT
CON1-P22
GPIOX_2 SDIO_D2
CON1-P23
GPIOX_11
PCM_CLK
CON1-P24
GPIOX_10
PCM_SYNC
CON1-P25
GND
CON1-P26
GPIOX_16
PWM_E
CON1-P27
GPIOA_14
I2C_M3_SDA
CON1-P28
GPIOA_15
I2C_M3_SCL
CON1-P29
GPIOX_14
UART_A_CTS
CON1-P30
GND
CON1-P31
GPIOX_15
UART_A_RTS
CON1-P32
GPIOX_19
PWM_B
CON1-P33
GPIOX_6 PWM_A
CON1-P34
GND
CON1-P35
GPIOAO_7
TDMB_FS
CON1-P36
GPIOH_5 SPDIF_IN
CON1-P37
GPIOAO_7
I2S_MCLK
CON1-P38
GPIOAO_10
TDMB_DIN
SPDIF_OUT
CON1-P39
GND
CON1-P40
GPIOAO_4
TDMB_DOUT
CON2-P1
GND
CON2-P2
UART0-RX
CON2-P3
UART0-TX
