Custom AV4075 Brand Intel ALTERA FPGA Development Board Cyclone IV Video Image Processing Input/Output Custom PCB 8149b pcba Manufacturer

Custom AV4075 Brand Intel ALTERA FPGA Development Board Cyclone IV Video Image Processing Input/Output Custom PCB 8149b pcba Manufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out

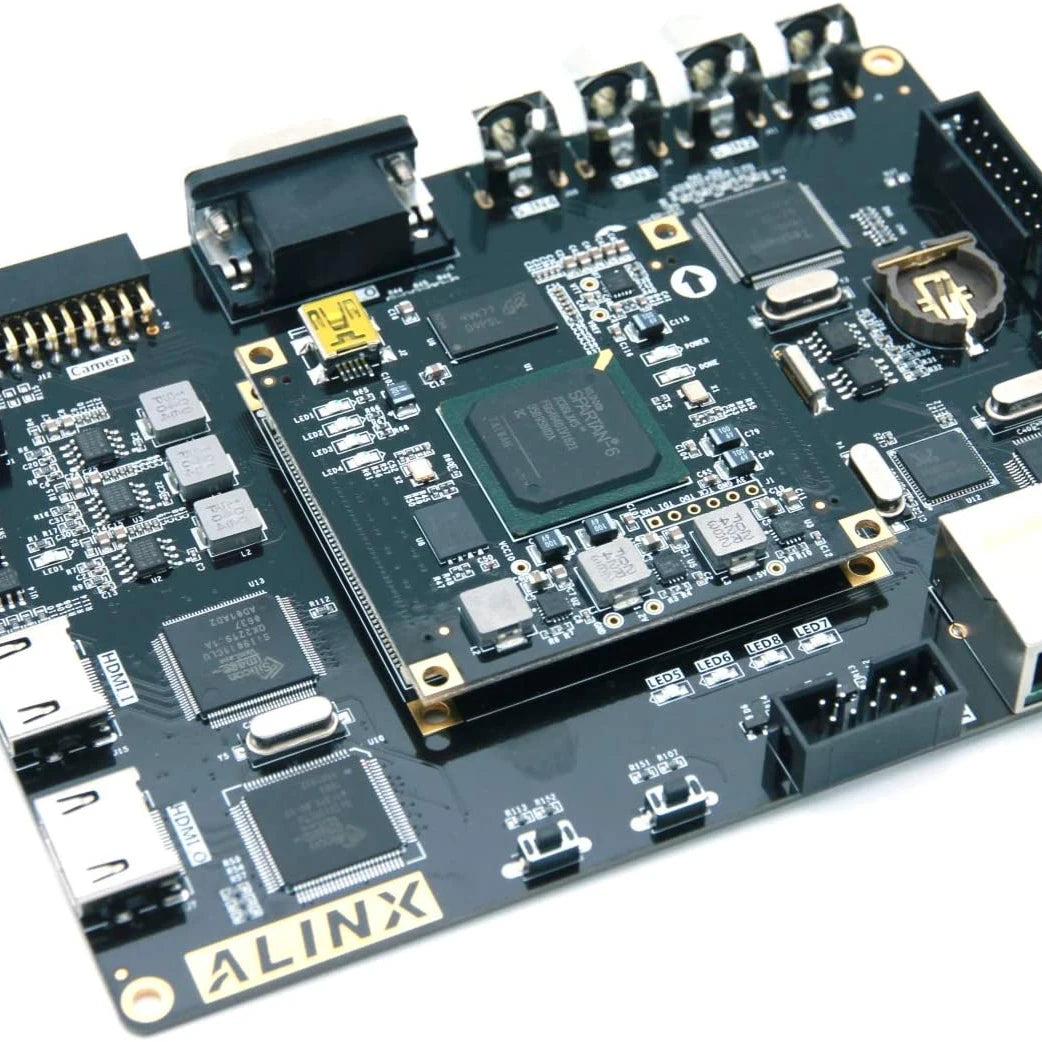

AV4075 Brand Intel ALTERA FPGA Development Board Cyclone IV Video Image Processing HDMI Input/Output

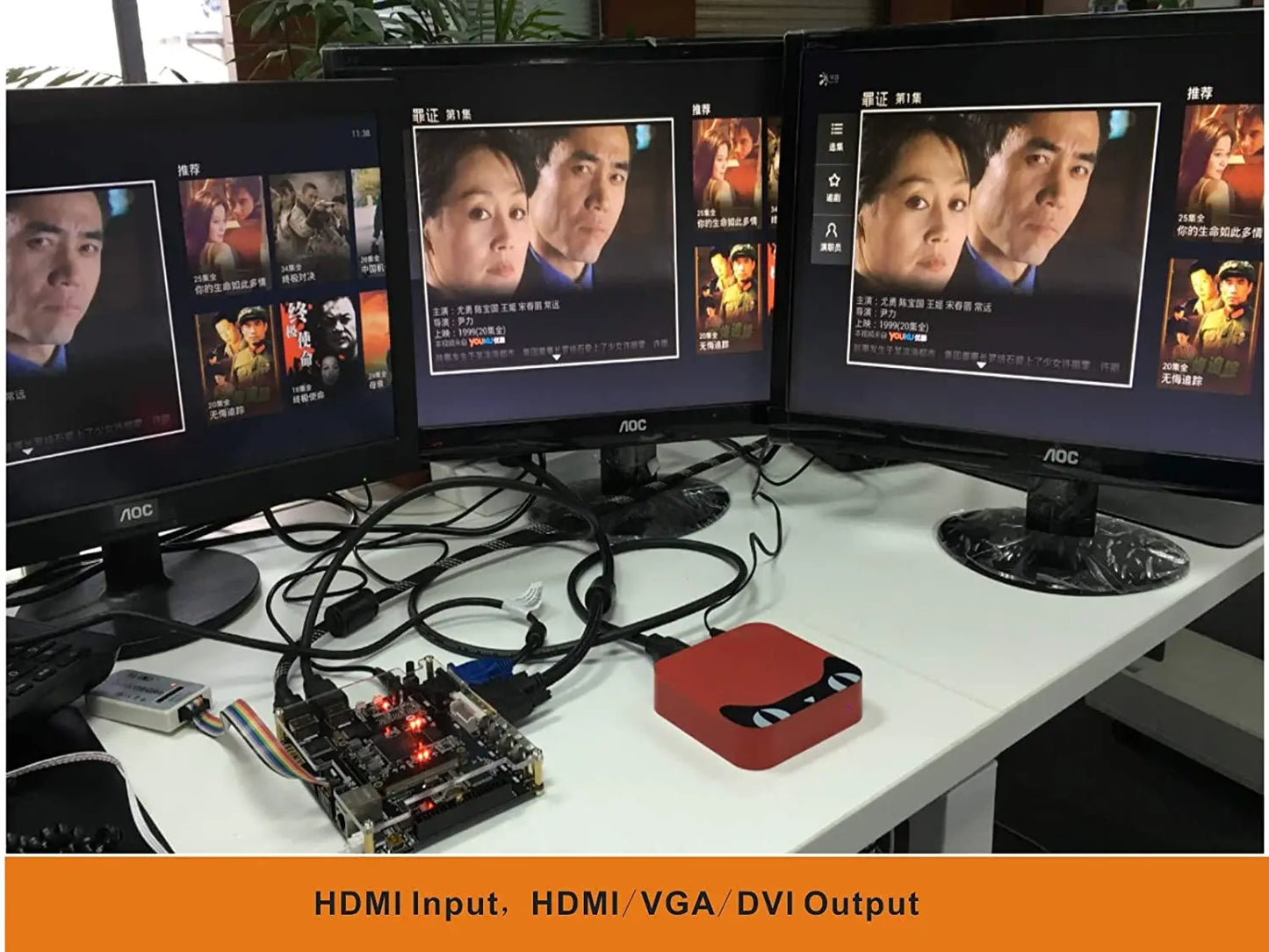

FPGA Video Image Processing Board,Professional FPGA Development Board. FPGA: ALTERA Cyclone IV EP4CE75F23C8, 64*32bit DDR2 memory,126M 9K RAM HDMI Input/ HDMI Output/ VGA Output/ Gigabit Ethernet/ CMOS Camera Interface/ ARM SWD Debug Interface/ FPGA JTAG Debug Interface Provide schematic in PDF, instruction manual and VHDL examples

Product description

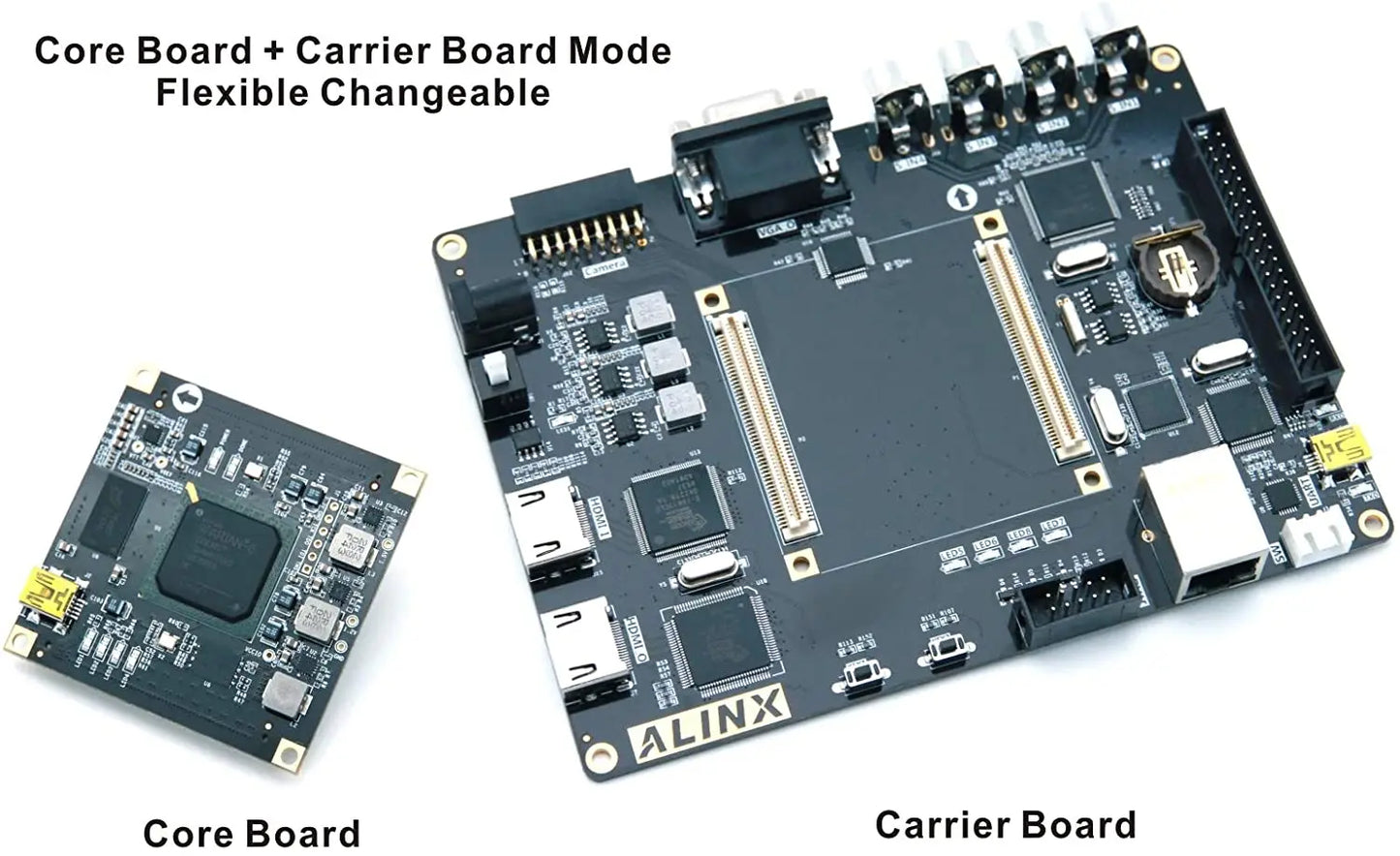

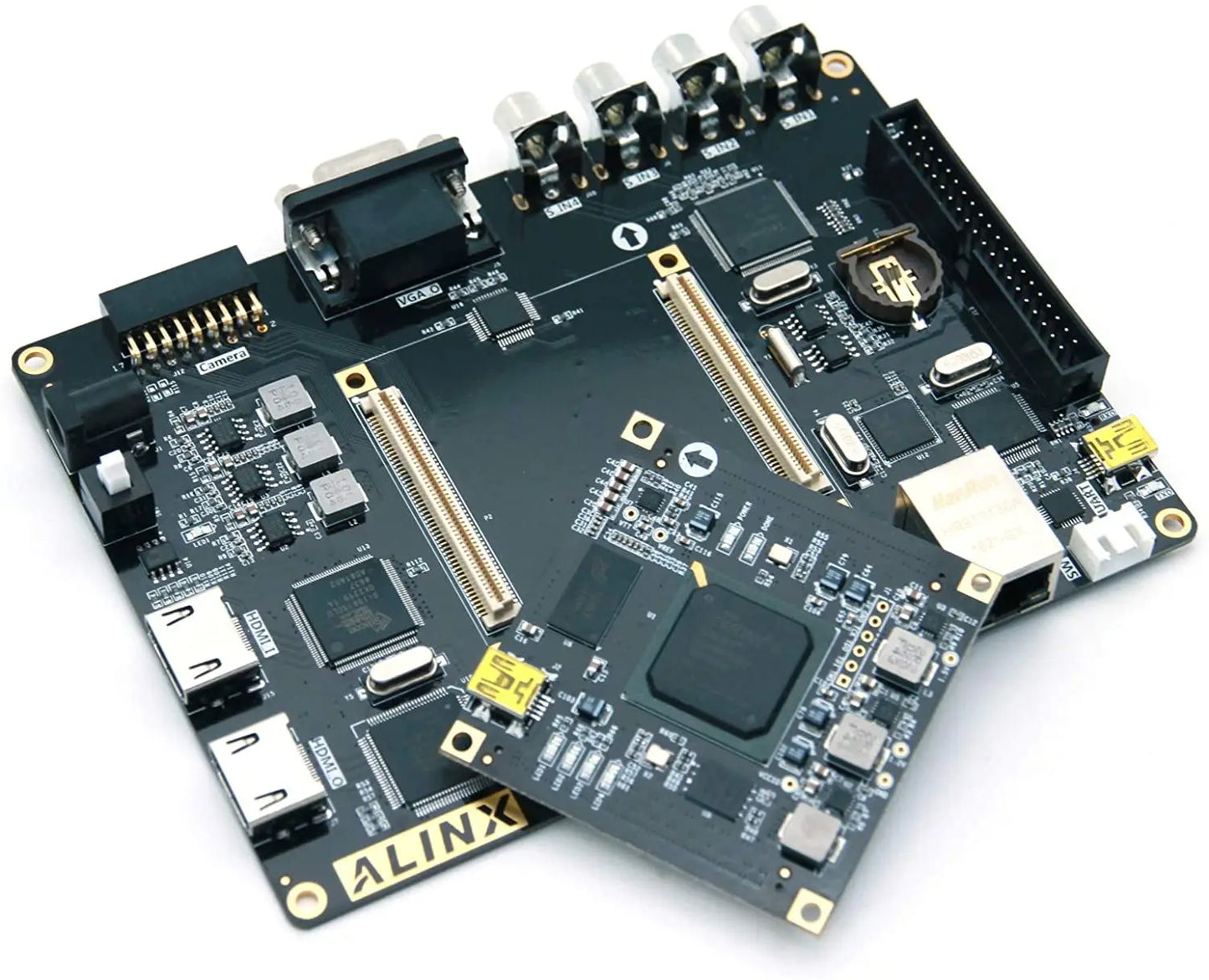

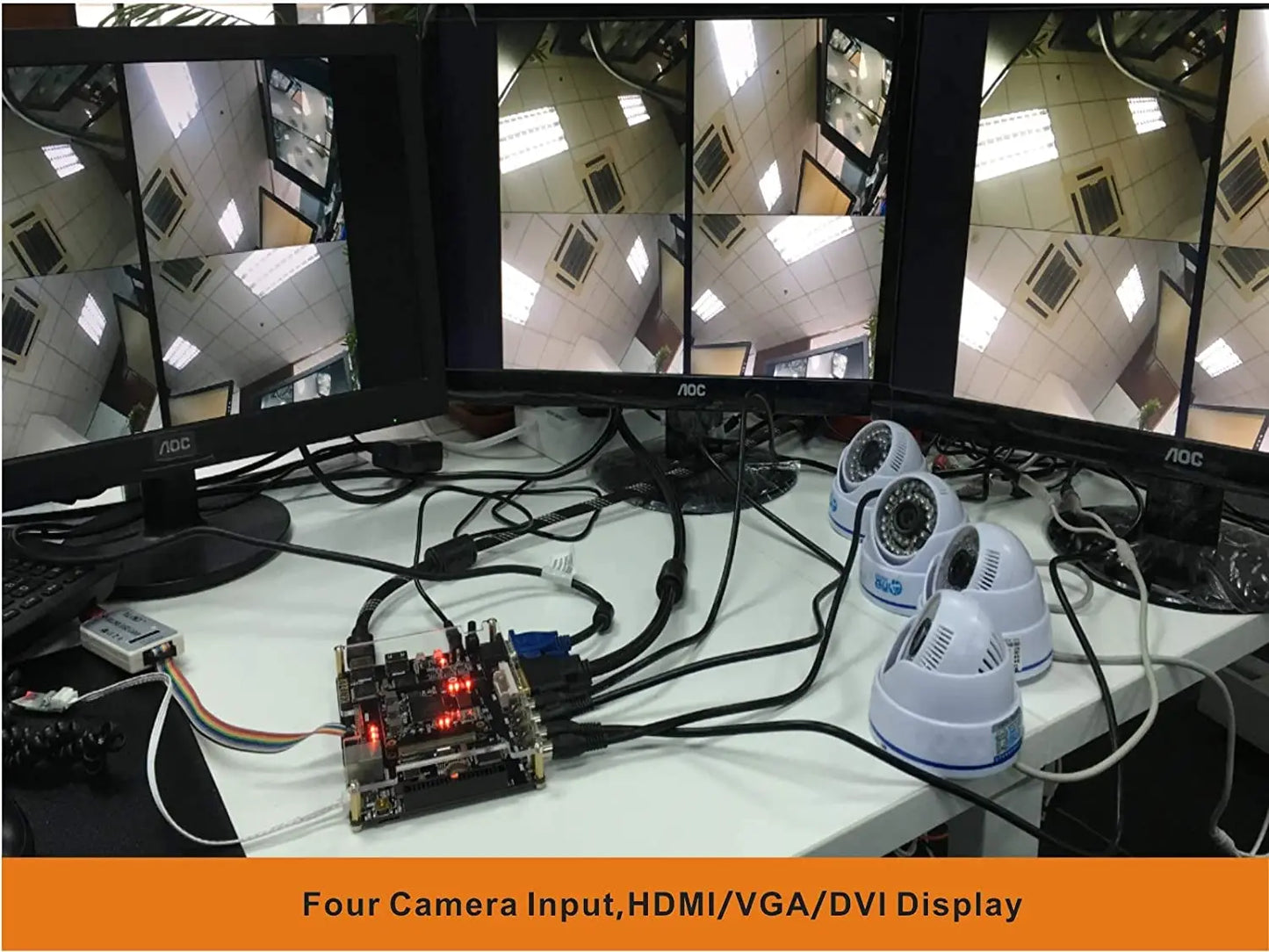

The AV4075 board comprised FPGA core board and expansion boards, two high-speed 100-pins connectors are used to connect between the core board and the expansion board. The core board is a minimal system which mainly consisted of FPGA chipset, DDR3 and QSPI FLASH Features of FPGA Development Board AV4075 FPGA Device ALTERA EP4CE60F23C8 75408 Logic Elements 200 Embedded 18×18 Multipliers Memory 64*32bit DDR2 memory. 305M 9K RAM Communication HDMI Input HDMI Output Board USB to Serial Port 10/100/1000 Ethernet, Camera Module Connector 4 Ports AV input, 720*576 FPGA JTAG Debugging connector ARM SWD Debugging connector Connectors 40pin Expansion Headers (it can connect 4.3' LCD module, ADDA module, Audio module etc.); Display VGA Connector Other RTC DS1302 Develop software: Quartus II 12.1

PCB-



 Welcome Customize Order!
