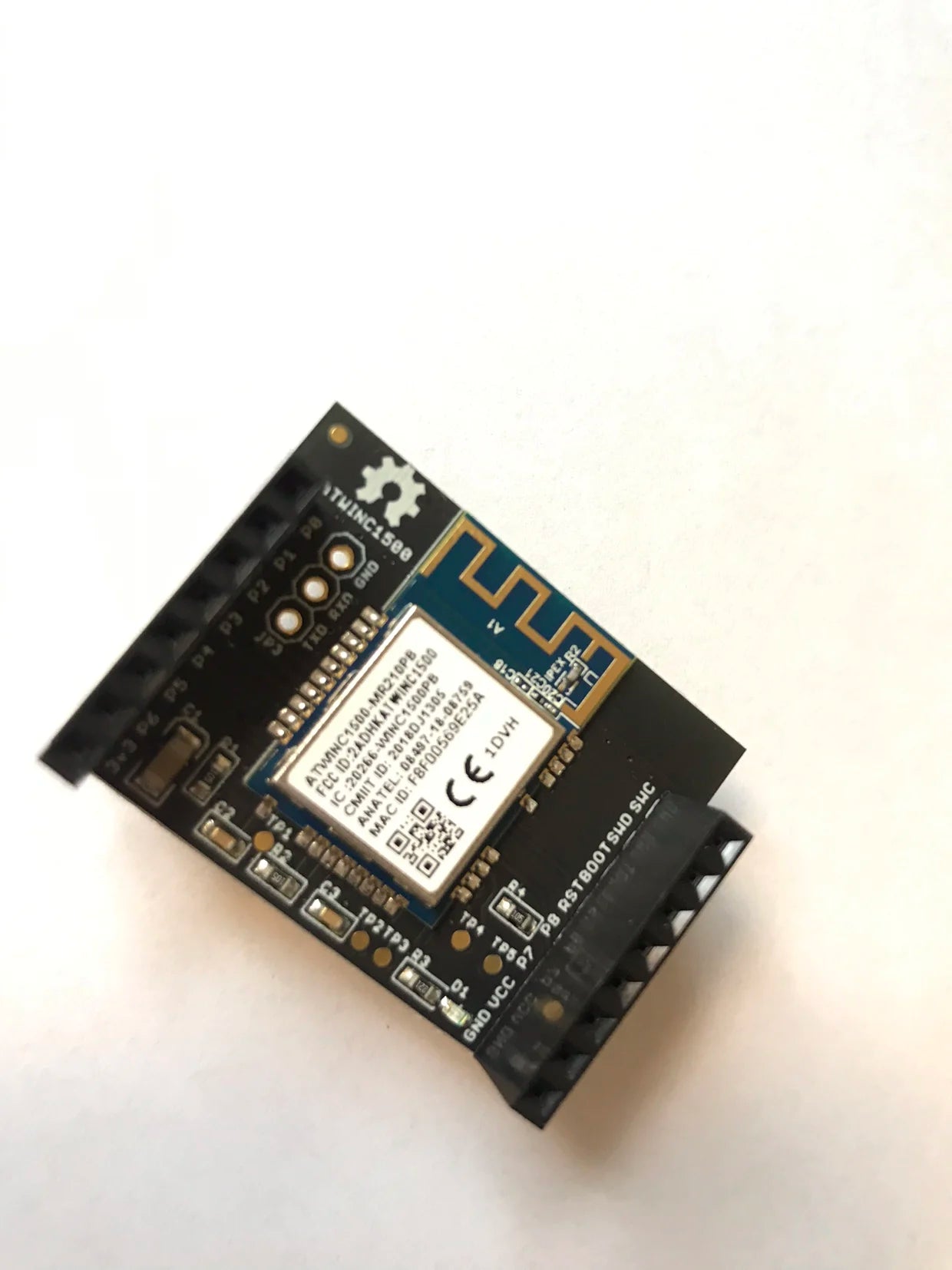

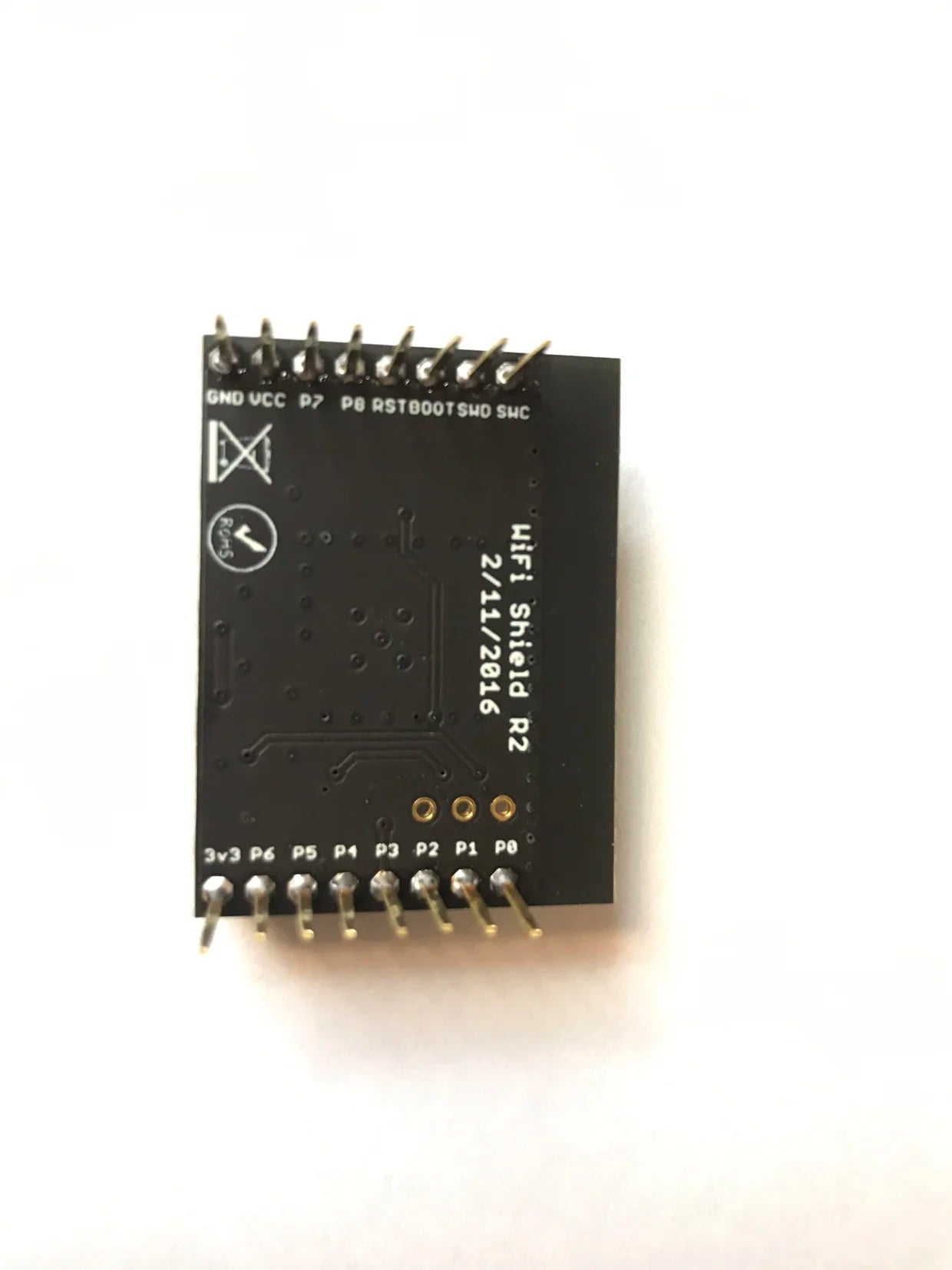

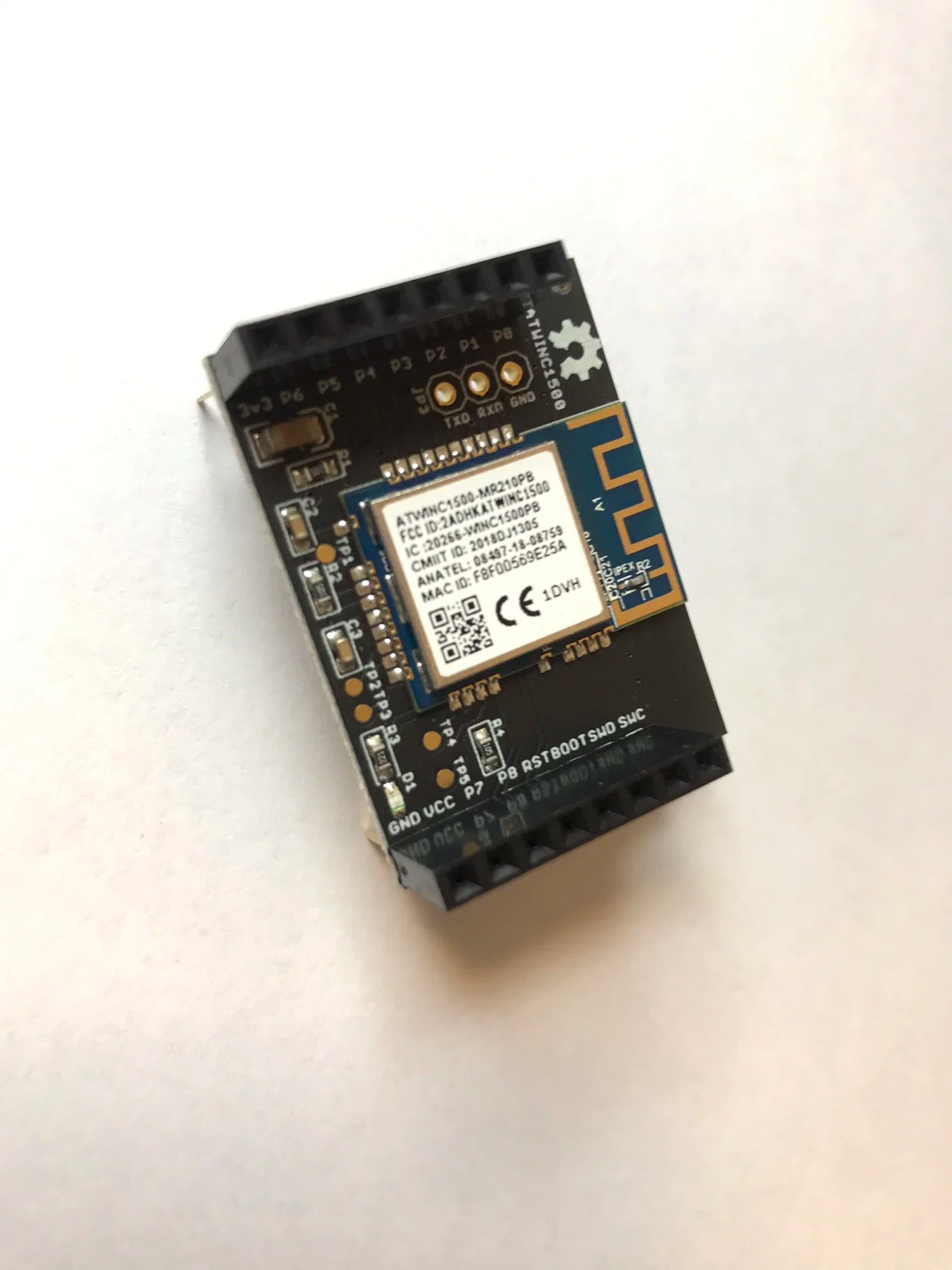

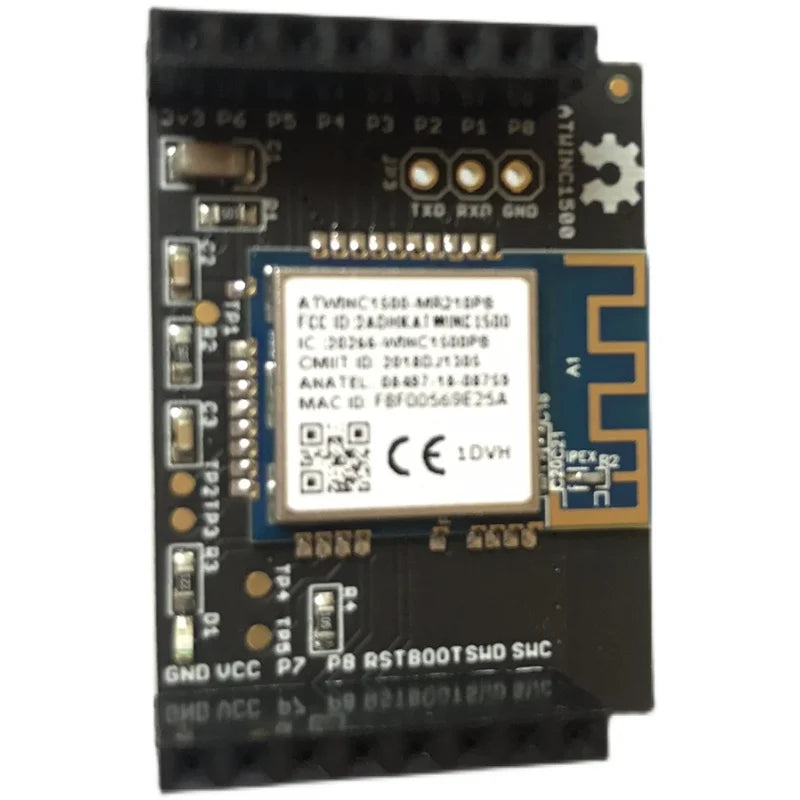

Custom Custom ATWINC1500 WIFI expansion board network transmission module Manufacturer

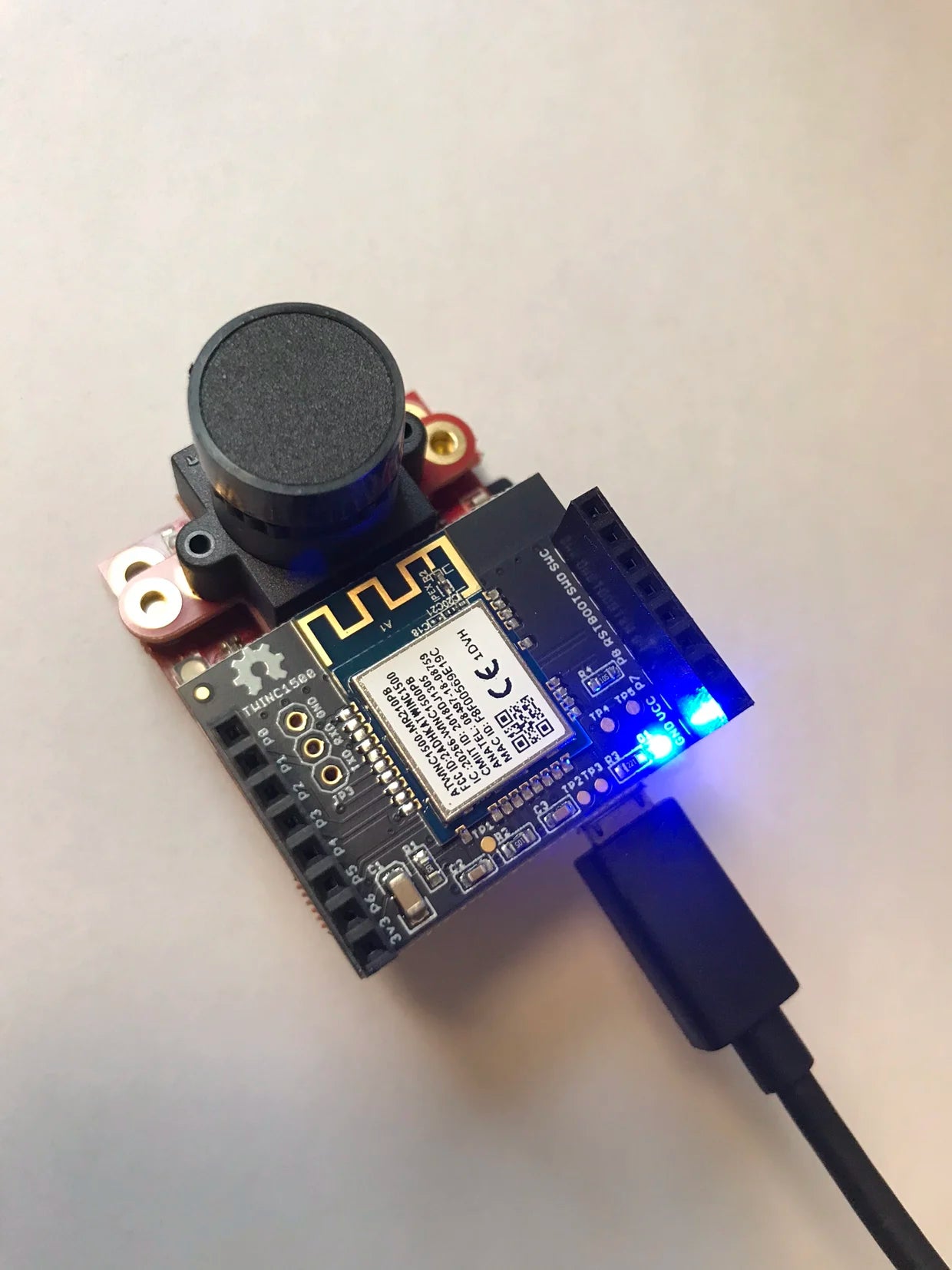

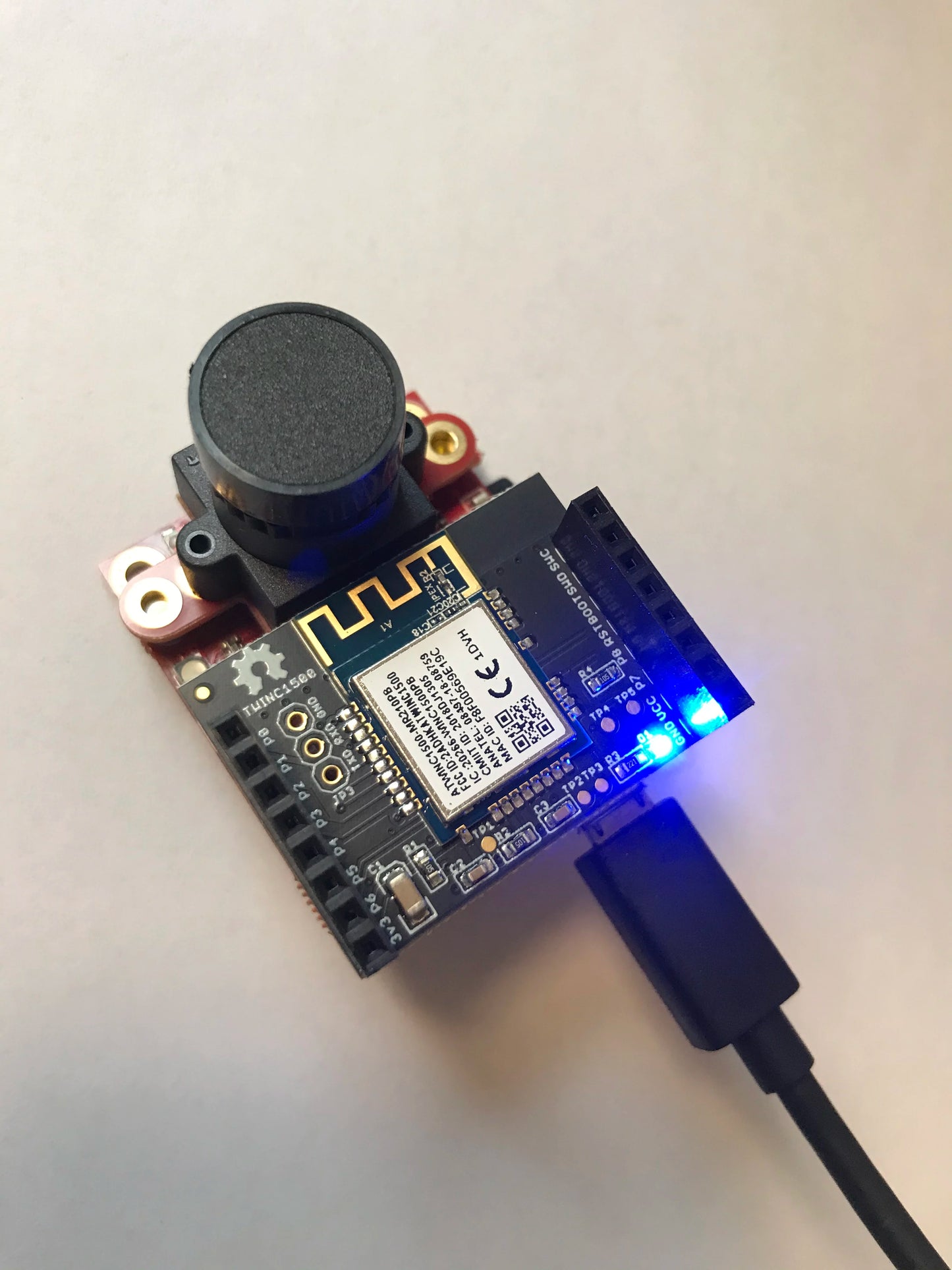

This WiFi expansion board allows your MV Cam to connect to the Internet. It integrates an ATWINC 1500FCC certified WiFi module that can stream video at a rate of up to 48Mbps. Your MV camera can control this WiFi module using the firmware built-in network module.

Power consumption

• leisure:80 mA @ 3.3V (180 mA w/Cam)

• Work:100 mA @ 3.3V (220 mA w/Cam)

speed

• IEEE802.11b (up to 11 Mbps)

• IEEE802.11g (up to 48 Mbps)

• IEEE 802.11n (up to 48 Mbps)

safety

• IEEE 802.11 WEP

• IEEE 802.11 WPA

• IEEE 802.11 WPA2

Temperature range

• Storage: -40°C to 85°C

• Operating temperature: -40°C to 85°C

• Weight: 7g

• Length: 36mm

• Width: 27mm

• Height: 20mm

Shipping List

• MV Cam WiFi Expansion Board x 1
