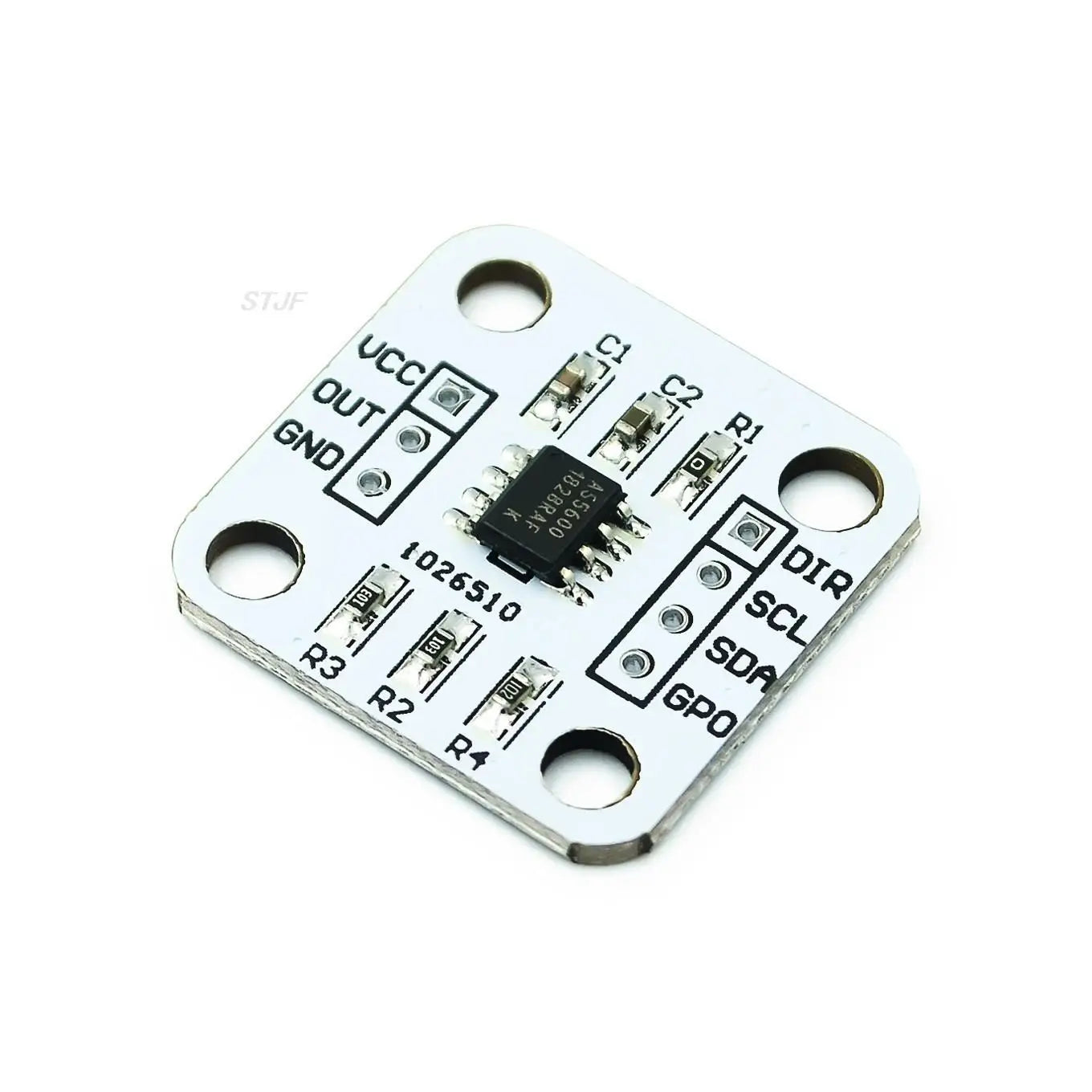

Custom AS5600 magnetic encoder magnetic induction angle measurement sensor module 12bit high precision
Custom AS5600 magnetic encoder magnetic induction angle measurement sensor module 12bit high precision
Regular price
$1.26 USD
Regular price
$5.26 USD
Sale price
$1.26 USD
Unit price
per
Couldn't load pickup availability
data

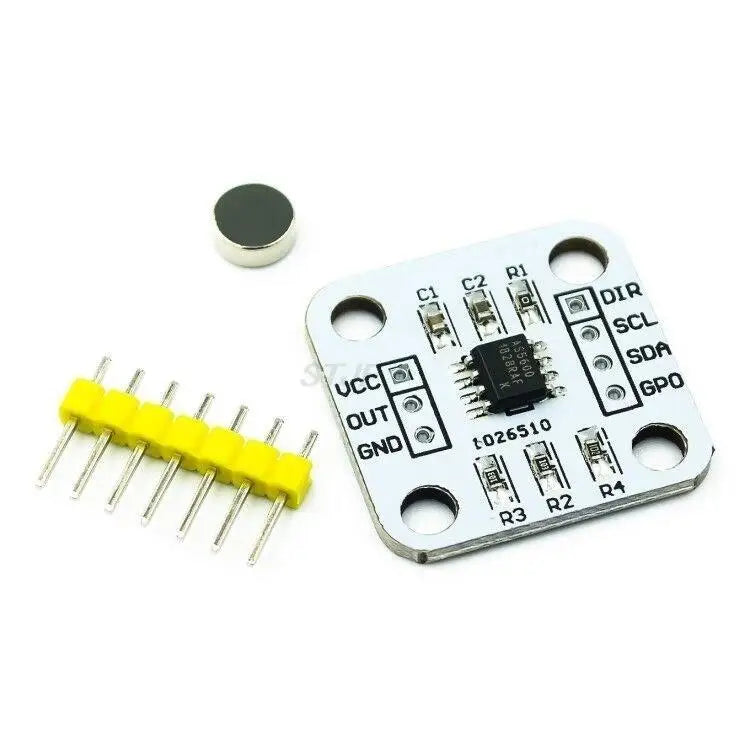

The magnets have been corrected and you can rest assured to buy
Product features:
Non-contact magnetic induction Angle measurement module.
High precision, multiple output modes: IIC, PWM, voltage, etc.
Electrical parameters:
High precision, multiple output modes: IIC, PWM, voltage, etc.
Electrical parameters:

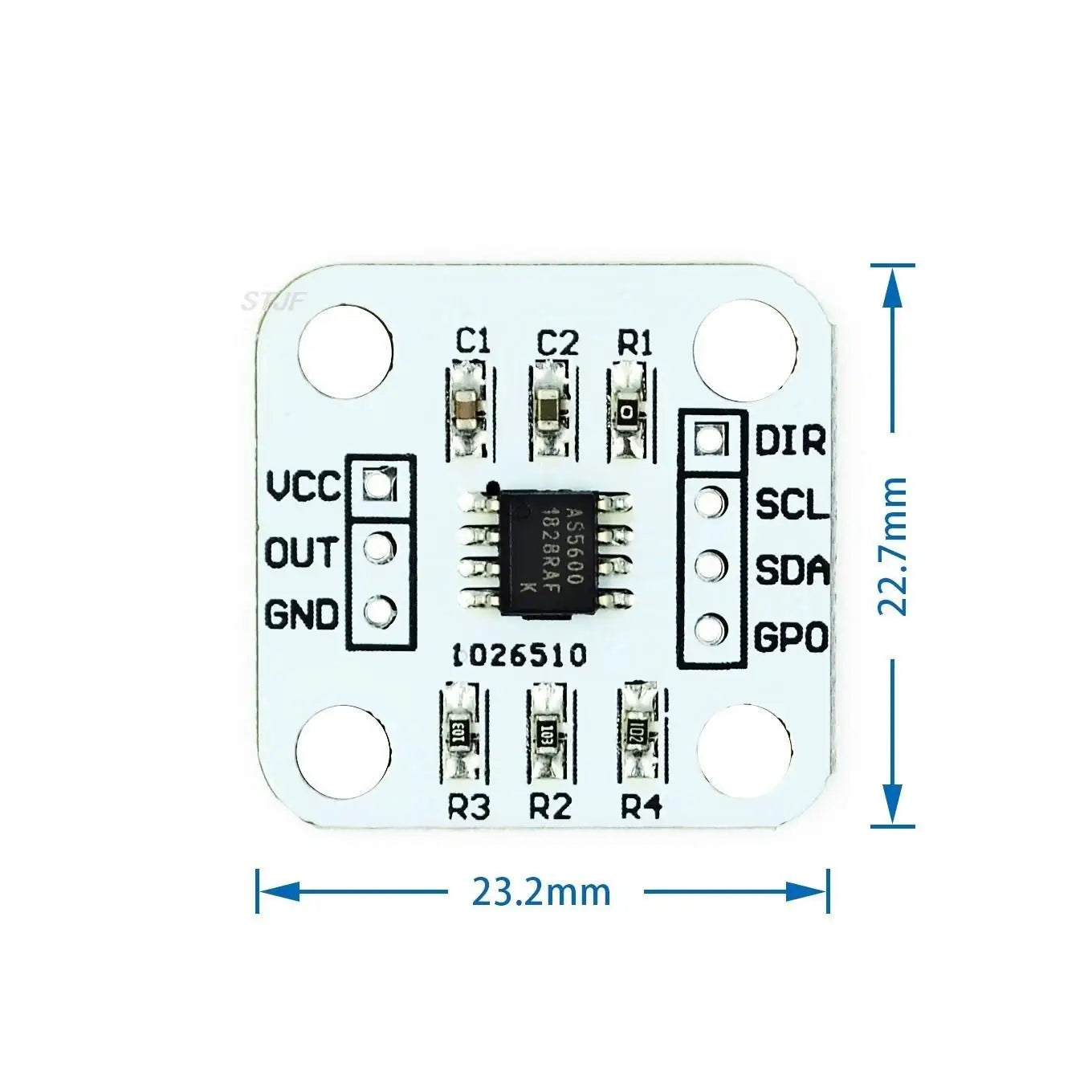

VCC: 3.3 V
GND: Power source
Out:PWM/ analog voltage output
DIR: direction of rotation (ground = clockwise value increased; Connect to VCC= clockwise value decrease)
SCL:IIC communication clock line
SDA:IIC communication data cable
GPO: Mode selection (internal pull-up, ground = programming mode B)
