Custom Arducam Mini NoIR 16MP IMX519 Camera Module for Raspberry Pi Zero/Zero2 Manufacturer

Description

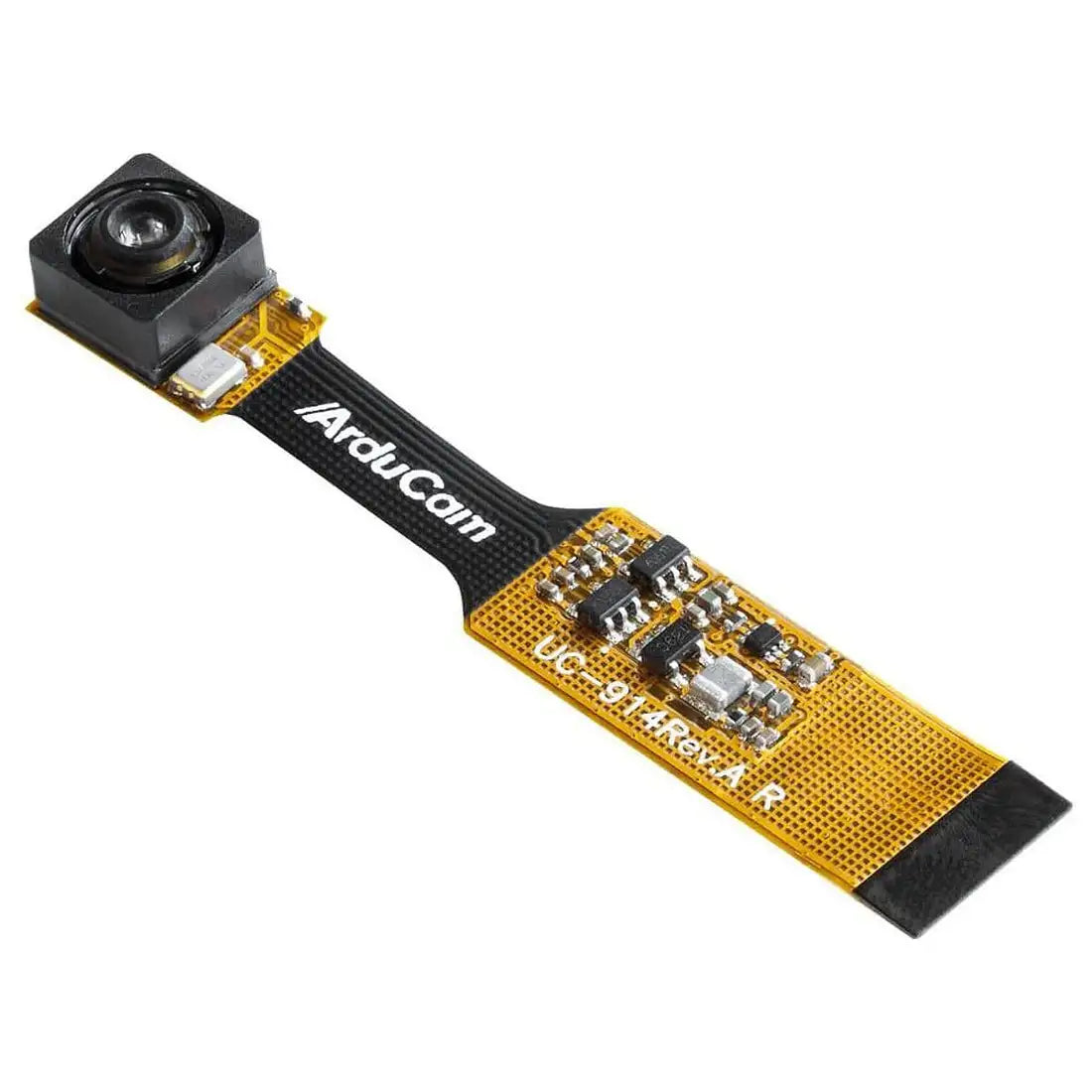

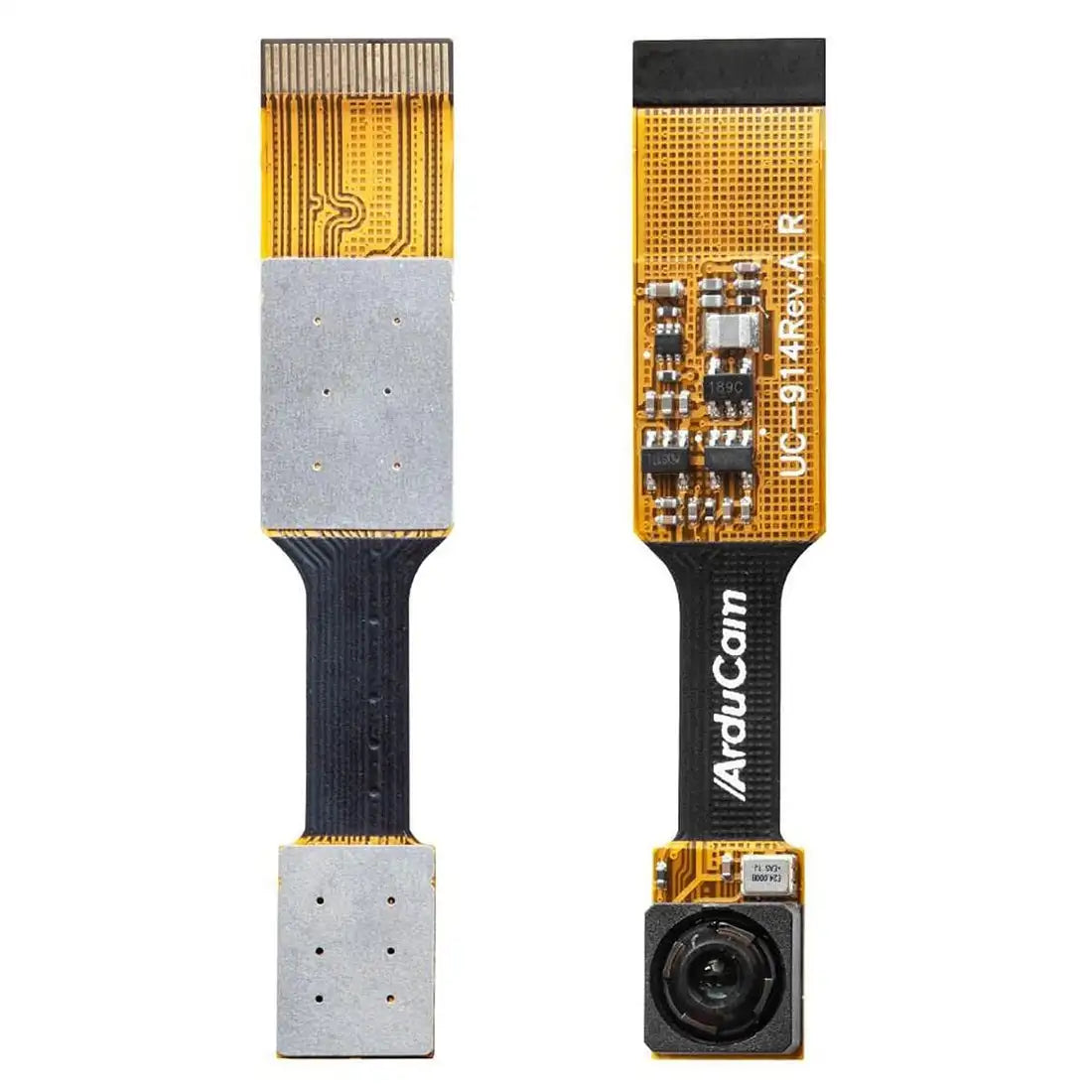

Compatible with the smaller CSI connector on the Raspberry Pi Zero , this compact NoIR camera module offers an impressive 16MP via its Sony IMX519 sensor offering a pixel resolution of 4656 x 3496, twice as high as the v2 camera and 40% higher than the HQ camera!

Whilst our 5MP ZeroCam NoIR  is ideal for those wanting to undertake night photography on a budget, if you're looking for more megapixels for your compact Pi Zero project, this is just the job!

This camera module uses a Sony IMX519 sensor with an F/1.75 80° FOV lens, capable of 1080p@30FPS or 720@60FPS video. The camera has no IR filter, meaning it's great for low-light night photography with IR LED  light flooding onto the target.

Please make sure you are running a recent version of Raspberry Pi OS (January 28th 2022 or later releases, Debian version:11(Bullseye)) and using the libcamera library. Driver installation is required - please see the user manual for more information.

Specification

Camera

• Sensor Sony IMX519 stacked, back-illuminated sensor

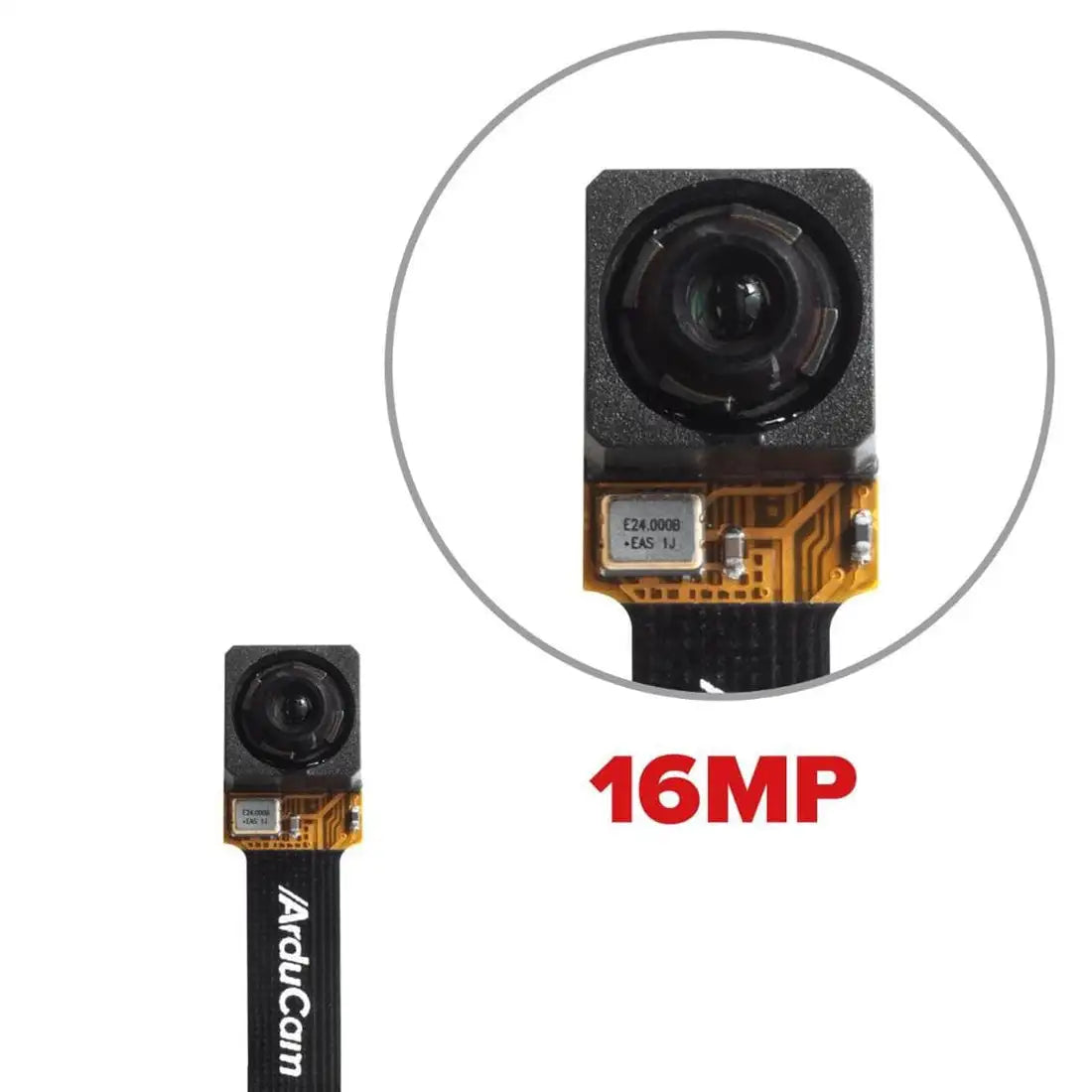

• 16 Megapixels

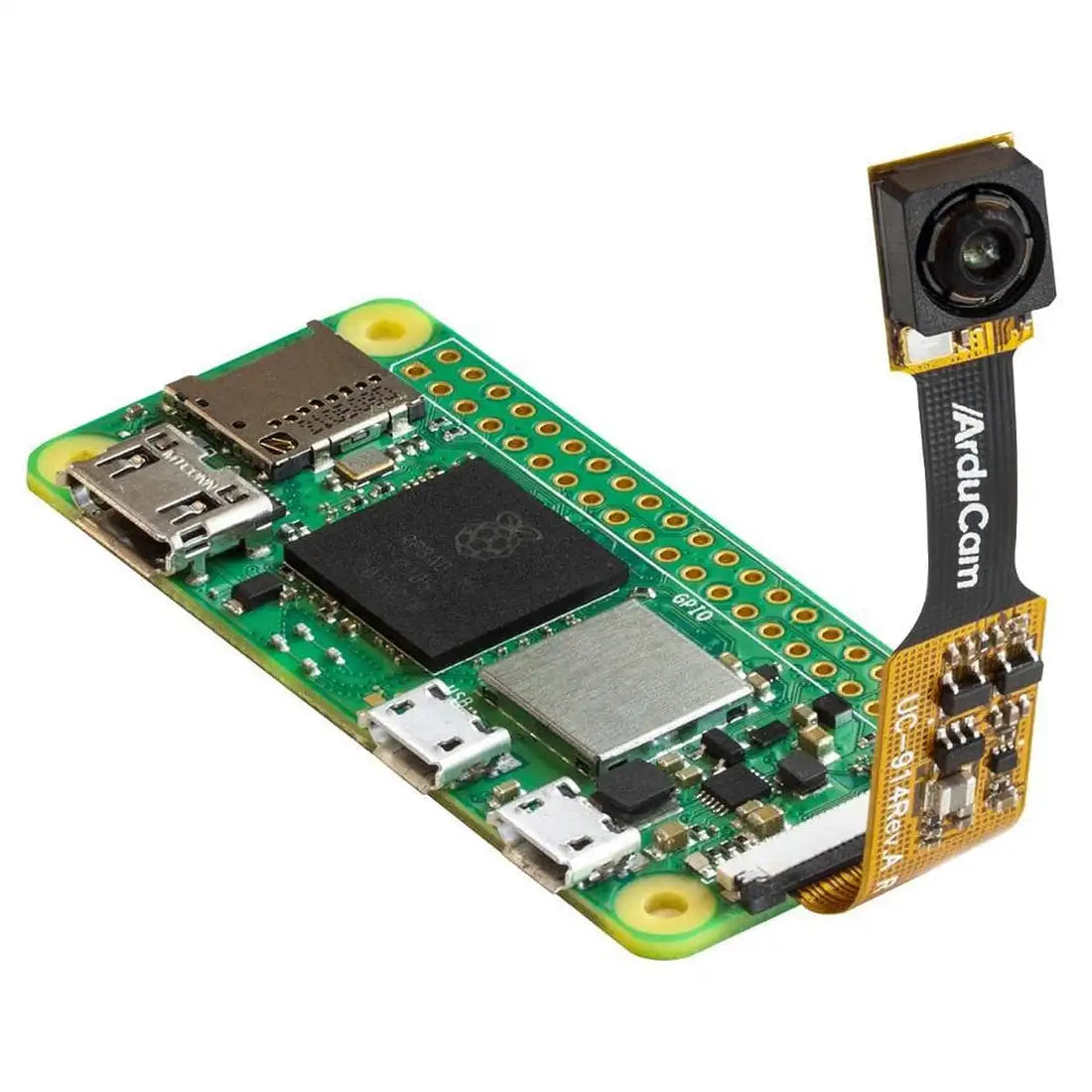

• Compatible with Raspberry Pi Zero

• Optical size: 1/2.534"

• Resolution: 16MP 4656x3496

• Output RAW10/8, COMP8

• Pixel size: 1.22µm*1.22µm

• Video Modes: 1080p@30fps, 720p@60fps

• Linux integration: V4L2 driver available

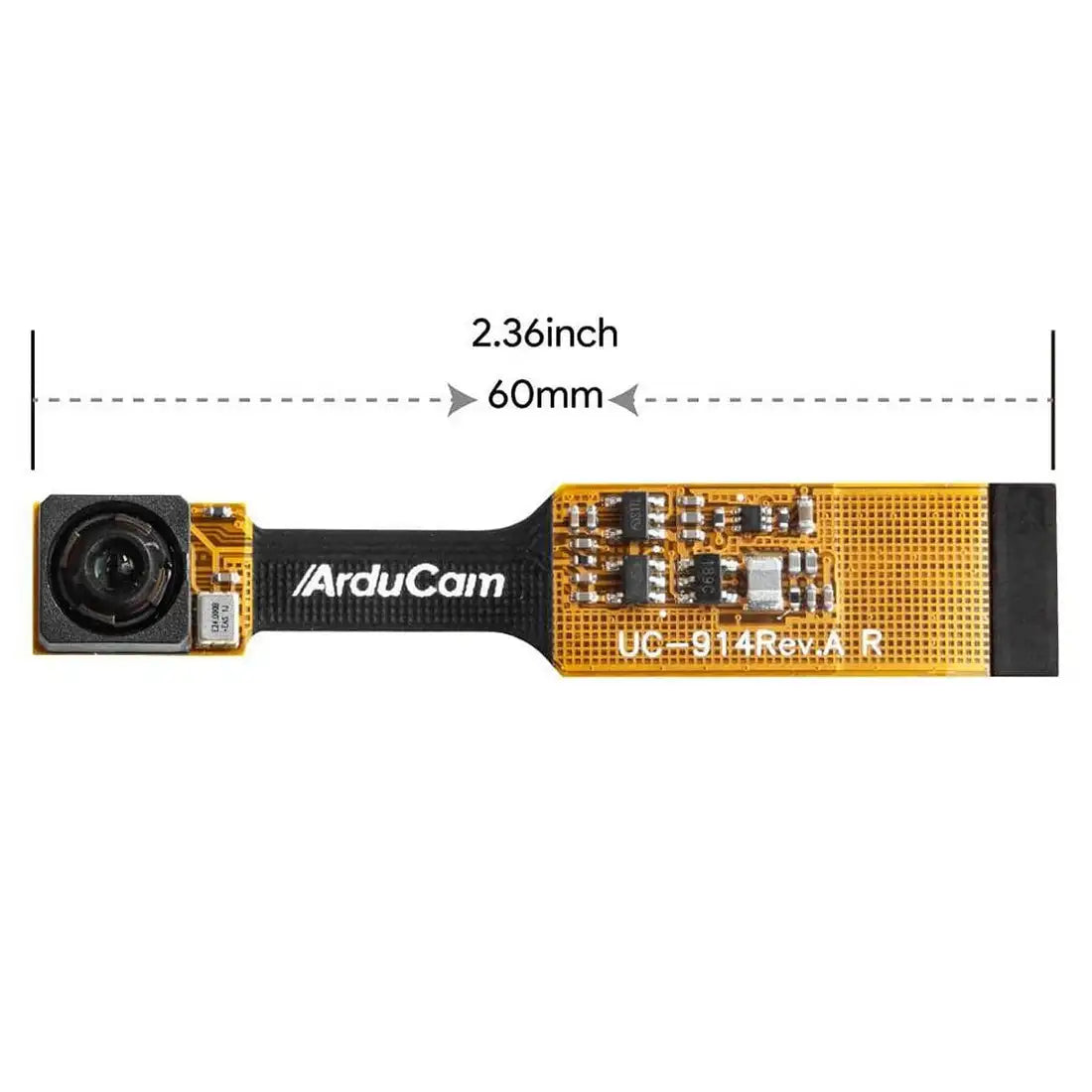

• Ribbon Cable Length: 60mm

Lens

• Field of View (FOV): 80°(H)

• Lens: f/1.75; EFL: 4.28

• IR Filter: Without IR filter (NoIR), sensitive to IR light

• Resources

• Product manual

• Package Contents

• 1x 60mm 16MP NoIR Camera Module for Pi Zero

Note: Raspberry Pi Zero/zero2 not included
