Custom Custom AMG8833 serial port infrared temperature measurement dot matrix sensor 8*8 thermal imager module Manufacturer
Custom Custom AMG8833 serial port infrared temperature measurement dot matrix sensor 8*8 thermal imager module Manufacturer
Regular price
$100.00 USD
Regular price
$0.00 USD
Sale price
$100.00 USD
Unit price
/
per
Couldn't load pickup availability

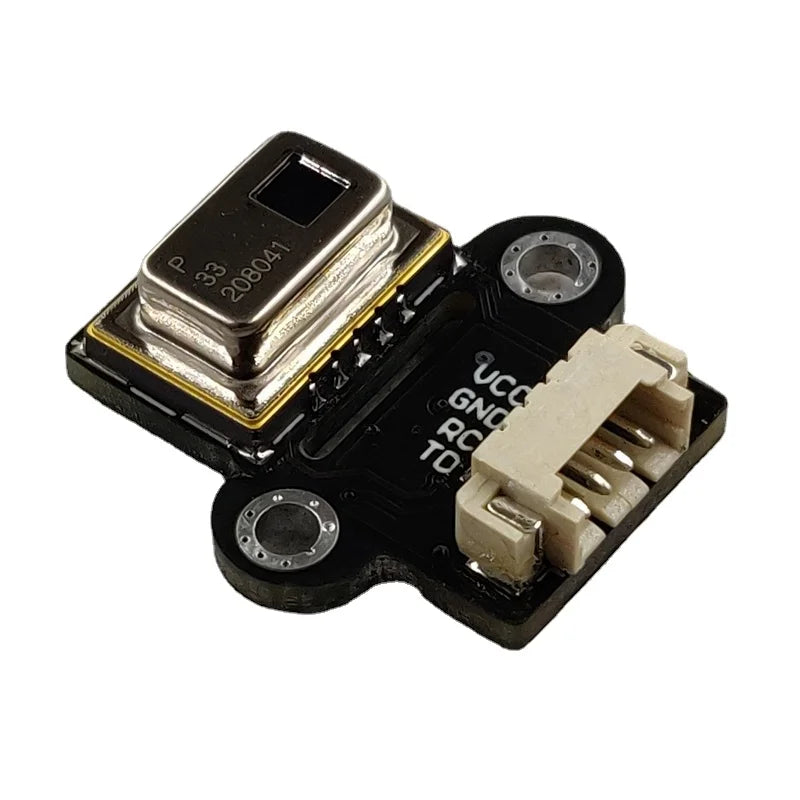

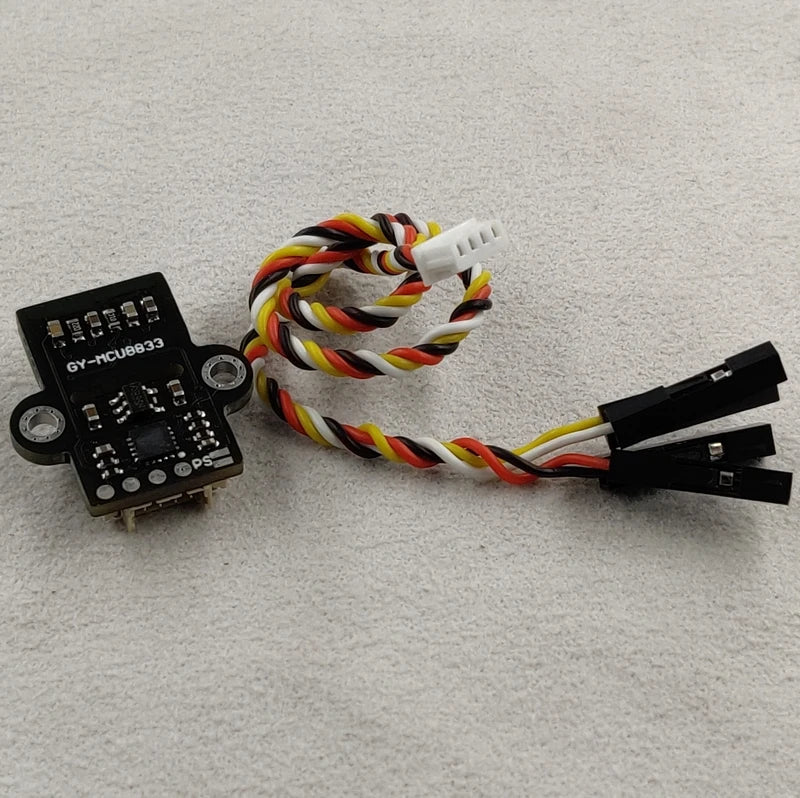

GY-MCU8833 dot matrix temperature measurement number 8*8=64
·Ambient temperature 0-----80 degrees
·Target temperature range 0----80 degrees
·Temperature measurement accuracy ±2.5 degrees
·The temperature measurement resolution is 0.25 degrees
·Field of view angle 60 x 60
·Working voltage 3-5v
·Working current 10ma
application
●Non-contact temperature measurement
●Office energy saving (air conditioning/lighting control)
●Digital Signage
●Automatic door/elevator
●Static and dynamic continuous detection of whether there are people
Features

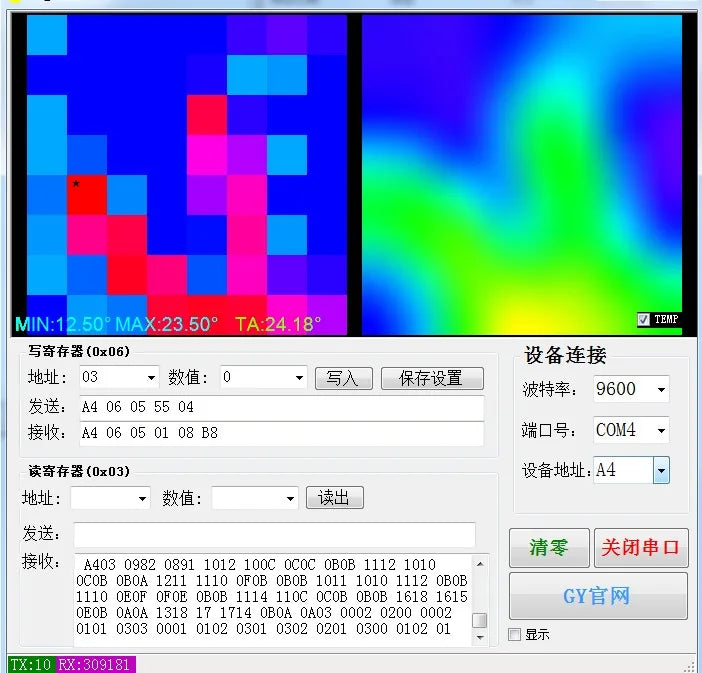

Provide upper computer software to directly display temperature imaging graphics.
Provide arduino, stm32, 51 microcontroller serial port i2c to read the code. I2C can change the device address, and multiple sensors are connected to the bus.
The module contains a single-chip microcomputer, the serial port directly outputs 64 temperature data, and the USB to ttl directly connects to the computer to view the data. Due to the small number of dots and low resolution, the imaging effect can only see the outline.
·Ambient temperature 0-----80 degrees
·Target temperature range 0----80 degrees
·Temperature measurement accuracy ±2.5 degrees
·The temperature measurement resolution is 0.25 degrees
·Field of view angle 60 x 60
·Working voltage 3-5v
·Working current 10ma
application
●Non-contact temperature measurement
●Office energy saving (air conditioning/lighting control)
●Digital Signage
●Automatic door/elevator
●Static and dynamic continuous detection of whether there are people
Features
Provide upper computer software to directly display temperature imaging graphics.
Provide arduino, stm32, 51 microcontroller serial port i2c to read the code. I2C can change the device address, and multiple sensors are connected to the bus.
The module contains a single-chip microcomputer, the serial port directly outputs 64 temperature data, and the USB to ttl directly connects to the computer to view the data. Due to the small number of dots and low resolution, the imaging effect can only see the outline.
:
:
