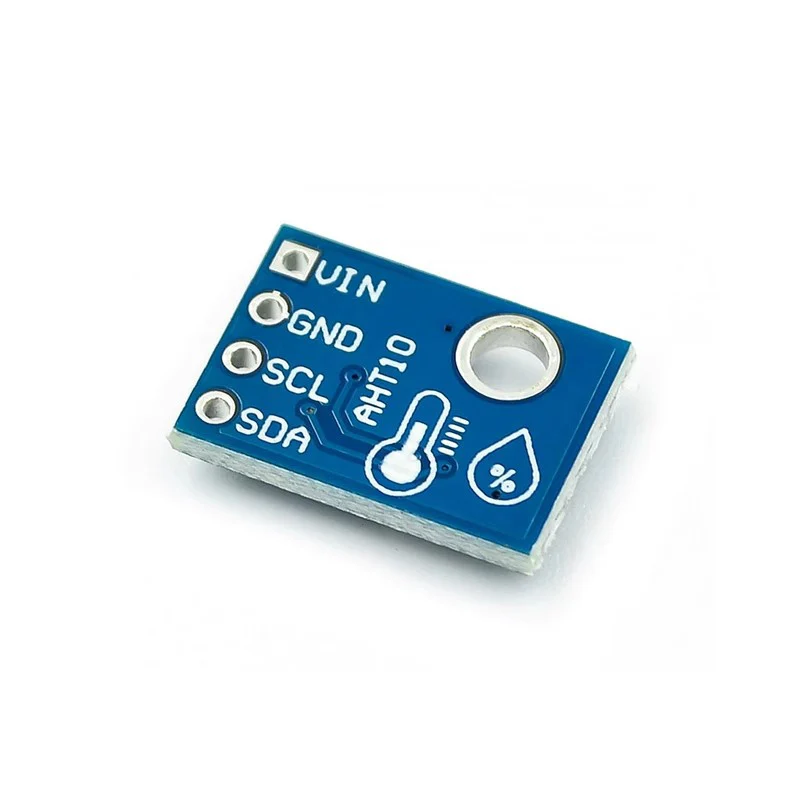

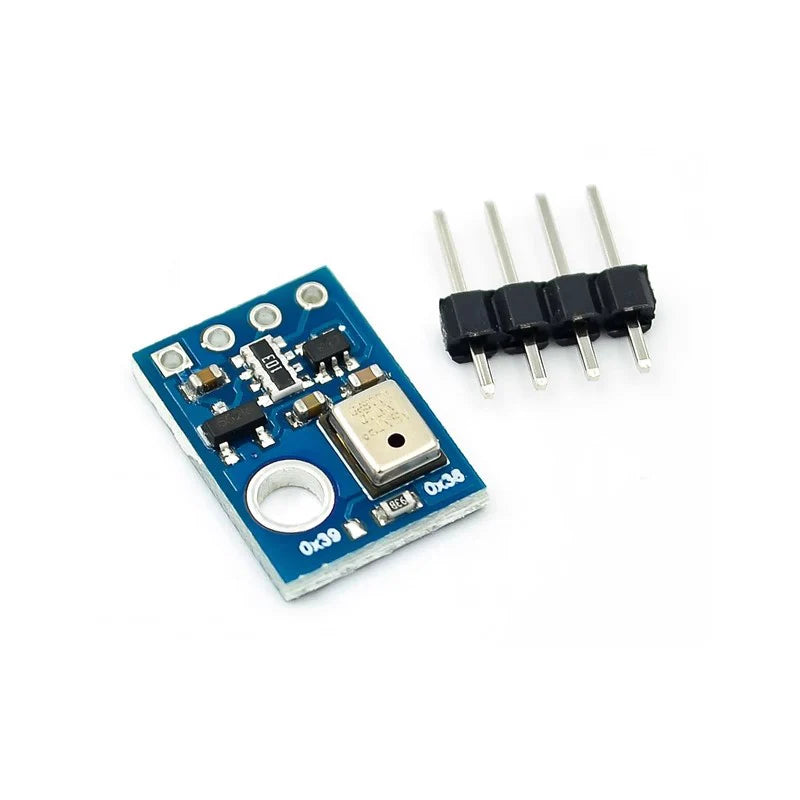

Custom AHT10 High Precision Digital Temperature and Humidity Sensor Measurement Module I2C Communication Replace DHT11 SHT20 AM2302
Custom AHT10 High Precision Digital Temperature and Humidity Sensor Measurement Module I2C Communication Replace DHT11 SHT20 AM2302
After receiving this module, please place it in an environment with humidity greater than 80% for 12 hours to ensure accuracy recovery.
Aarduinos library file: https://github.com/Thinary/AHT10
Specifications and code links: https://pan.baidu.com/s/1fqoUHHdF3yRc56LOpkKlDg extraction code: PGSF
The AHT10, a new generation of temperature and humidity sensors, sets a new standard in terms of size and intelligence: it is embedded in a two-row flat pin-less SMD package suitable for reflow, with a base of 4 x 5mm and a height of 1.6mm. The sensor outputs a calibrated digital signal in standard I 2C format. With a newly designed ASIC dedicated chip, an improved MEMS semiconductor capacitive humidity sensor and a standard on-chip temperature sensor, the AHT10's performance has greatly improved and even exceeded the reliability level of the previous generation of sensors, and the new generation of temperature and humidity sensors have been improved to provide more stable performance in harsh environments.
Features:

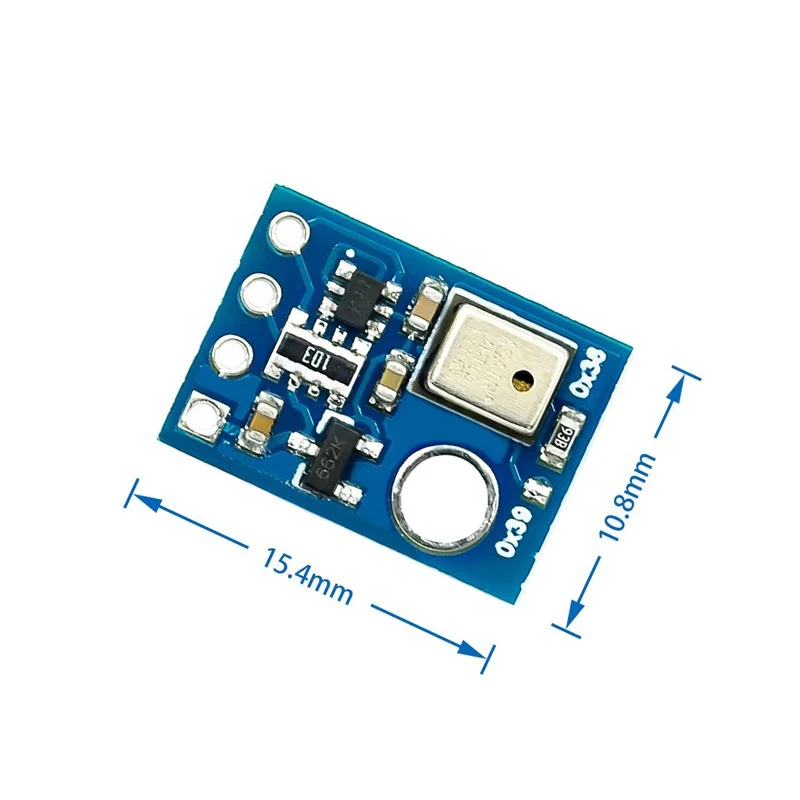

1. Module size: 16*11 mm
2. Interface type: I2C
3. Working voltage: 1.8-6.0V
4. Interface size: 4*2.54mm spacing
5. Humidity accuracy: typical ±2%
6. Humidity resolution: 0.024%
7. Temperature accuracy: typical ±0.3℃
8. Temperature resolution: typical 0.01℃
9. Working temperature: -40℃--85℃
