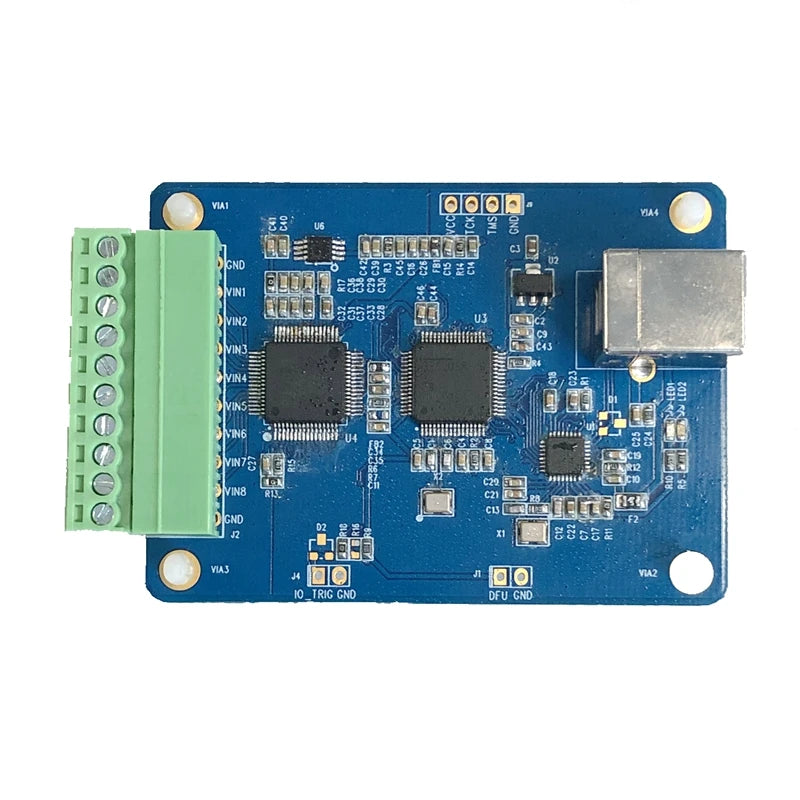

Custom AD7606 Multi-channel AD data acquisition module 16-bit ADC 8-channel synchronous USB high-speed interface control Manufacturer
Custom AD7606 Multi-channel AD data acquisition module 16-bit ADC 8-channel synchronous USB high-speed interface control Manufacturer
Regular price
$100.00 USD
Regular price
$0.00 USD
Sale price
$100.00 USD
Unit price
per
Couldn't load pickup availability
Product description:
USB2AD7606 software download link: Link: https://pan.baidu.com/s/15w8gL3tsBvDOqPysH2cm1Q Extraction code: 3yqk
Main features:
1>8 simultaneous sampling inputs
2>True bipolar analog input range: ±10 V, ±5 V
3>Analog input clamp protection
4>Input buffer with 1 MΩ analog input impedance
5>Second-order anti-aliasing analog filter
6>External precision reference voltage and reference voltage buffer
7>16-bit, 200 kSPS ADC (currently window only supports 100K, linux supports 50K parallel sampling)
8>Provide over-sampling function through digital filter
9>PC software controls the sampling and displays the sampling data in real time.
10>External high-precision reference voltage
11>Upper computer software control, can open multiple AD706 at the same time
PC software features:
1> Controllable sampling start and stop, flexible sampling method, timing and external trigger sampling, and set sampling times.
2> Provide library interfaces (VC, VB, .Net) for third-party development.
3> Different device serial numbers can open multiple devices at the same time.
4> Sampling data can be saved in bin and txt formats for further analysis.
5> Support systems above win XP (32bit, 64bit), support linux system.
6> Support firmware update.
7>Provide linux source code, labview, VC, C# and c++ builder Demo.
8>The latest host computer software supports waveform display and pole recording (source code is not provided).
Main features:
1>8 simultaneous sampling inputs
2>True bipolar analog input range: ±10 V, ±5 V
3>Analog input clamp protection
4>Input buffer with 1 MΩ analog input impedance
5>Second-order anti-aliasing analog filter
6>External precision reference voltage and reference voltage buffer
7>16-bit, 200 kSPS ADC (currently window only supports 100K, linux supports 50K parallel sampling)
8>Provide over-sampling function through digital filter
9>PC software controls the sampling and displays the sampling data in real time.
10>External high-precision reference voltage
11>Upper computer software control, can open multiple AD706 at the same time
PC software features:
1> Controllable sampling start and stop, flexible sampling method, timing and external trigger sampling, and set sampling times.
2> Provide library interfaces (VC, VB, .Net) for third-party development.
3> Different device serial numbers can open multiple devices at the same time.
4> Sampling data can be saved in bin and txt formats for further analysis.
5> Support systems above win XP (32bit, 64bit), support linux system.
6> Support firmware update.
7>Provide linux source code, labview, VC, C# and c++ builder Demo.
8>The latest host computer software supports waveform display and pole recording (source code is not provided).
Package included:
1Pcs
- :
- :
-
:
-
Labview demo:
- :
Welcome Customize Order!
