SKU :LC-Relay-ESP12-1R-MV Thanks for using our product, please download the technical info from here: http://www.mediafire.com/file/ha2grpl0c5obyt3/LC-Relay-ESP12-1R-MV_EN.zip/file
Overview:

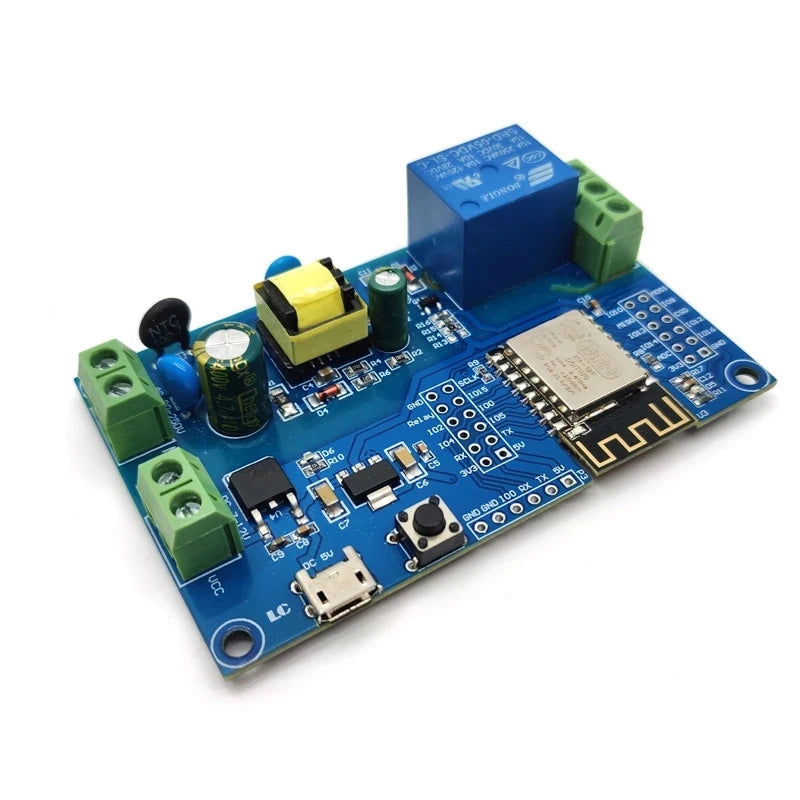

LC ESP8266 single relay development board onboard ESP-12F WiFi module, I/O orifice full lead ,support AC90-250V/DC7-12V/USB 5V etc.many supply power way. Provide Arduino develop environment reference code,suit for ESP8266 secondary development study, smart home wireless control.
The function characteristics
1.Onboard Mature and stable ESP-12F WiFi module, high capacity 4M Byte Flash
2. The I/O port of the WiFi module and the UART program download port are all extracted, convenient secondary development
3.Onboard AC-DC switch power module,supply power way support AC90-250V/DC7-12V/USB5V
4. Onboard Wifi module RST reset button
5.ESP-12F support use Eclipse/Arduino IDE etc.development tools, provide Arduino development environment reference program
6.Onboard 1 channel 5V relay,output switch signal ,Suitable for controlling and controlling the working voltage to be within the load of AC 250V/DC30V.
7.Onboard power indicator ,1 programmable LED and relay indicator.

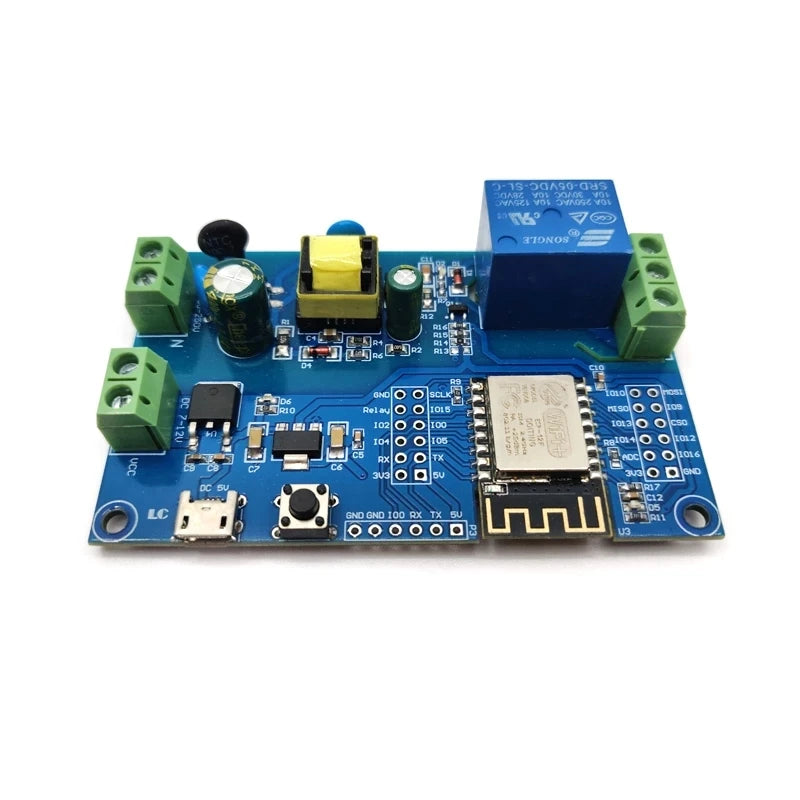

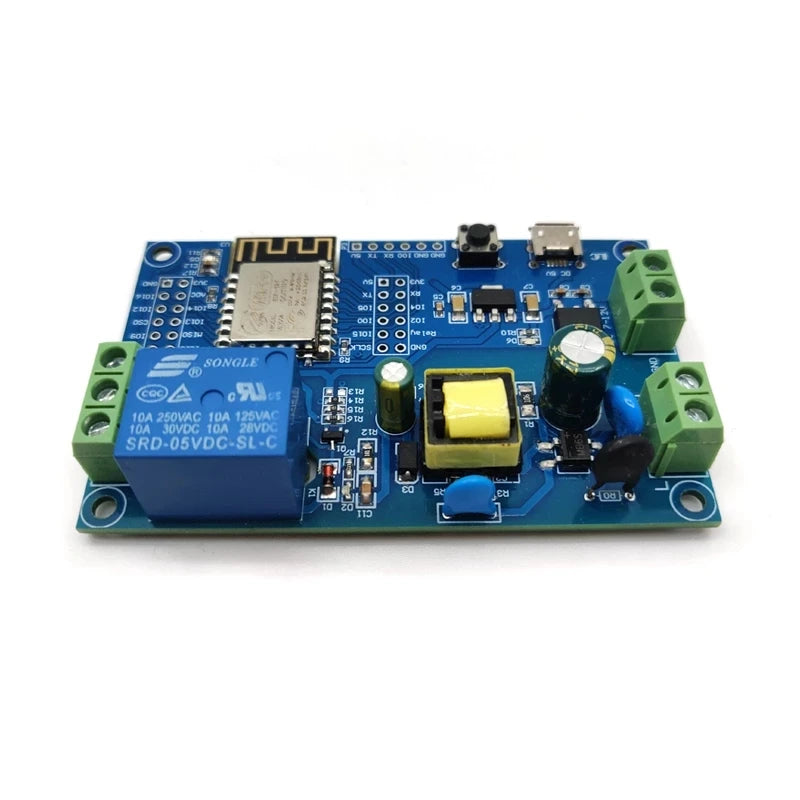

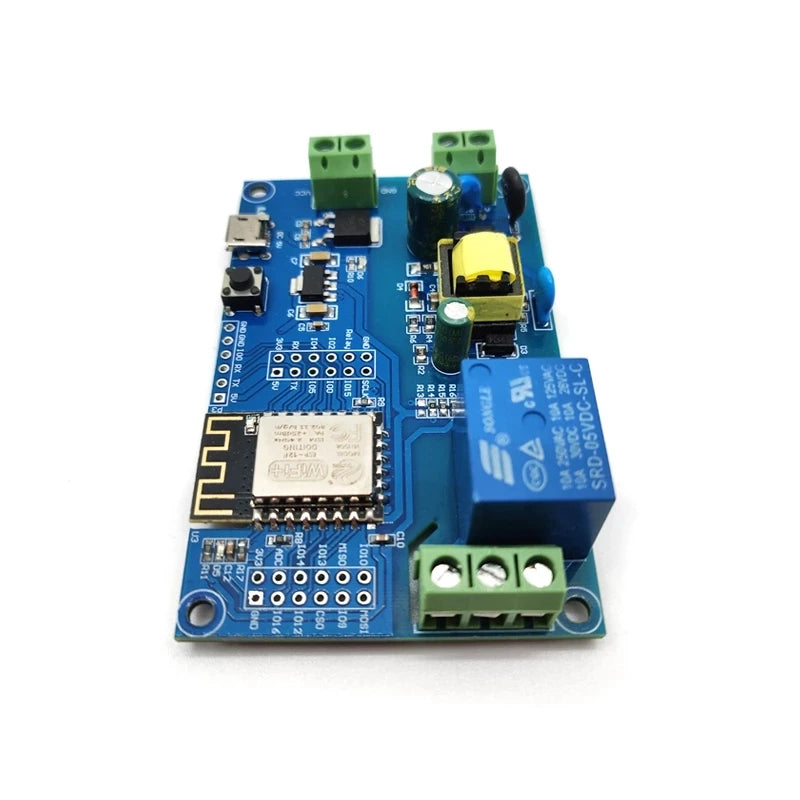

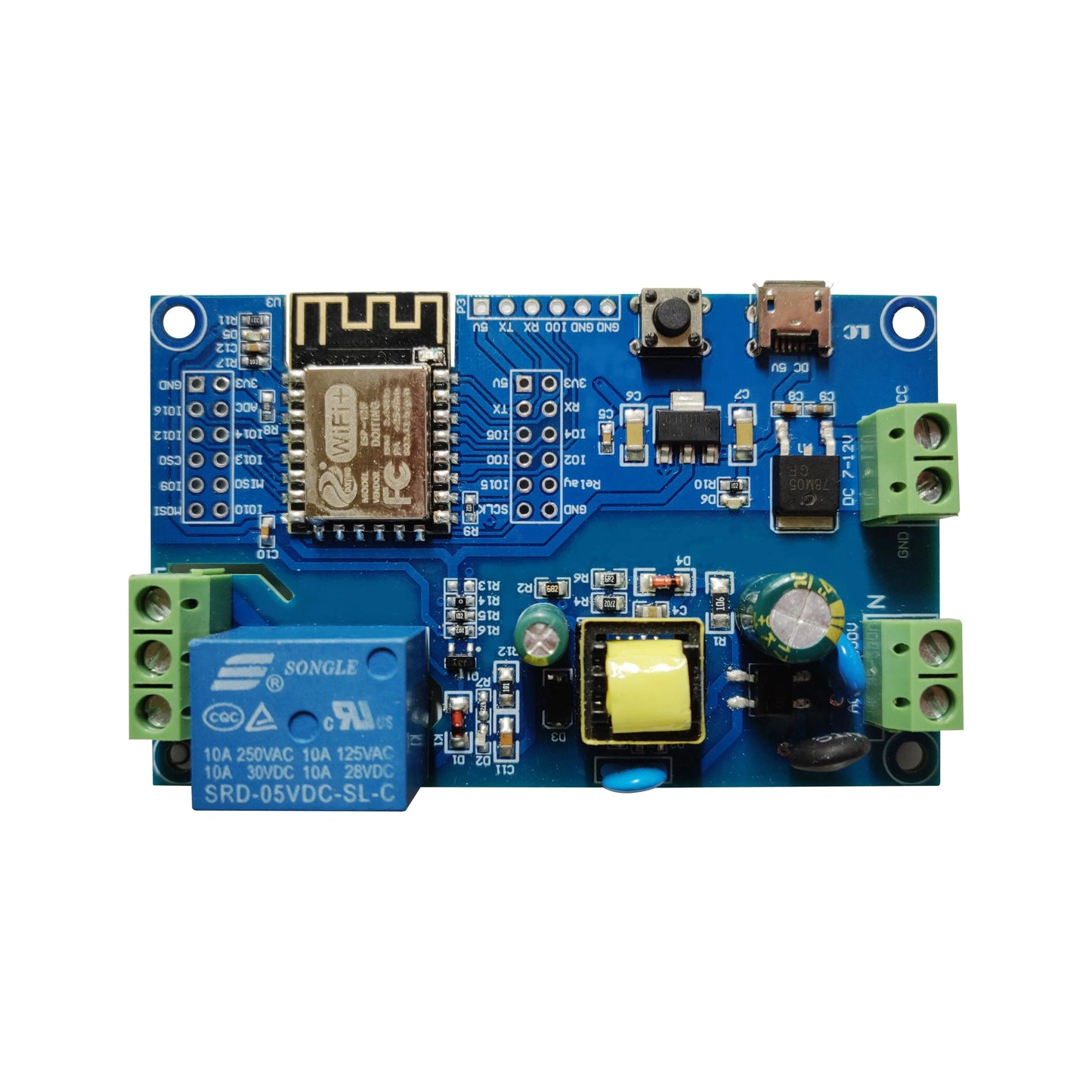

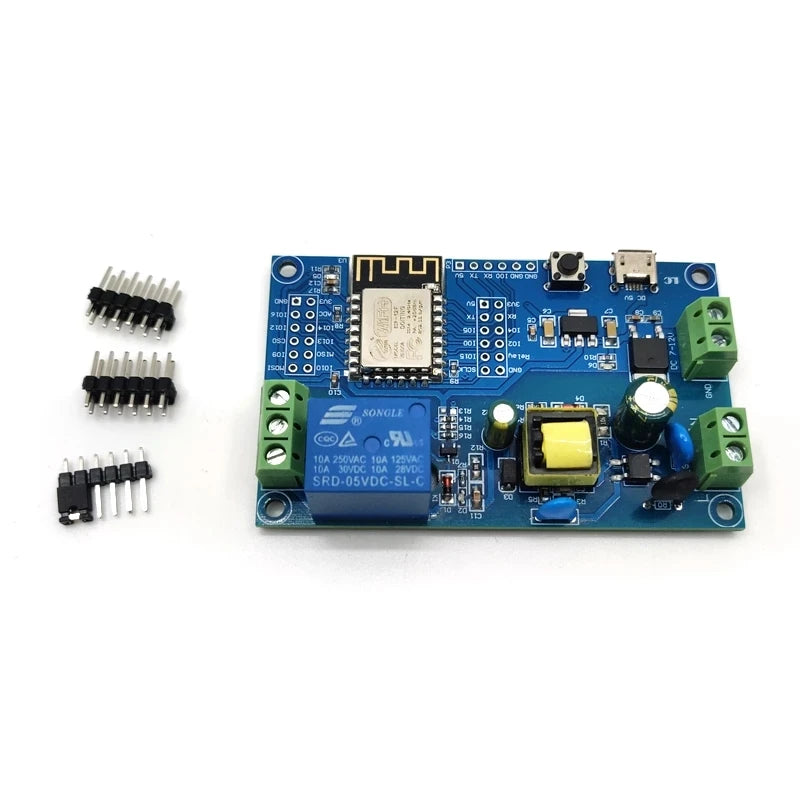

Hardware introduction and description
1.board size : 80*50mm
Weight :34g
1,L,N:AC90-250V power supply
2,AC90-250V turn DC5V switch power supply (when adopt AC supply power please don’t directly touch here by hand !!! )
3.VCC,GND:DC7-12V power supply
4.Micro USB:DC5V USB power supply
Mark: AC90-250V,DC7-12V,DC5V USB Choose one of the three power supply methods.
5. 6X6mm press button, ESP8266 reset button
6. UART Program download port: ESP8266 GND,RX,TX,5V separately connect external TTL Serial module GND,TX,RX,5V, IO0 need with GND connect when download .
7.GPIO Pinout port
8. relay output end:
NC: Normally close,the NC disconnect with COM when relay closed and connect with COM when relay released.
COM: Common end
NO: Normally open end,the NO disconnect with COM when relay released and connect with COM when relay closed.
9.Power indicator LED
10.programmable LED
11.Relay indicator LED.
