Custom 9DoF Razor IMU M0 9-Axis Attitude Sensor MPU-9250 9-Axis Sensor Manufacturer

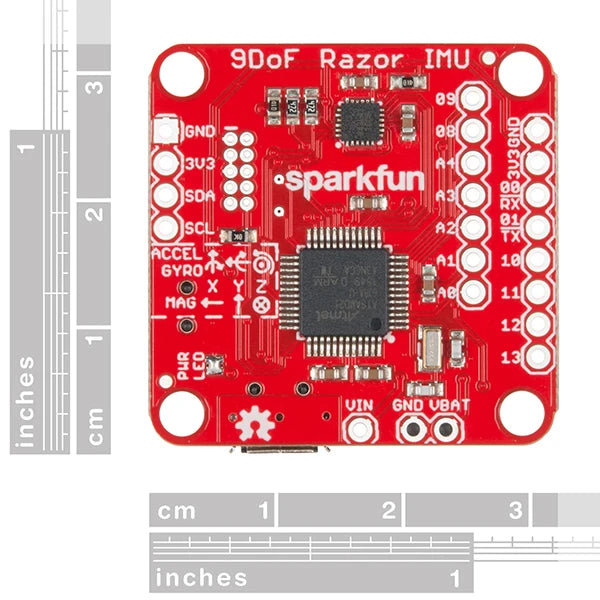

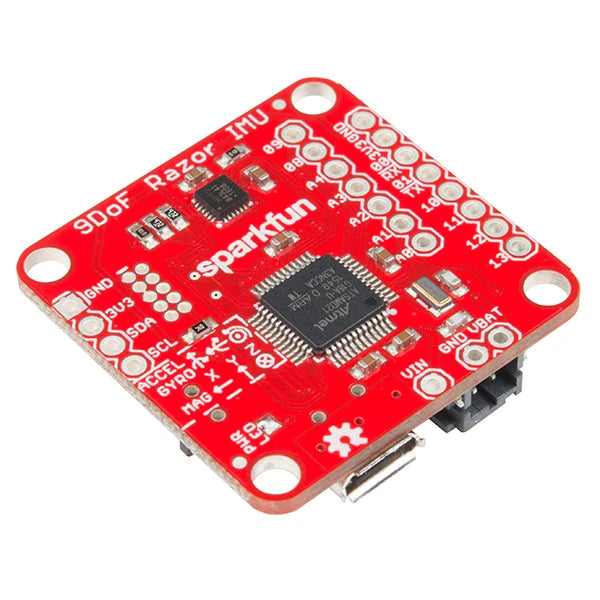

The 9dof Razor IMU sensor integrates an mpu-9250 9 sensor and a 32-bit samd21 microprocessor. This attitude module is a reprogrammable, versatile IMU (Inertial Measurement Unit). Programmable monitoring and recording of movement, via serial port or even as a pedometer.

The 9dof Razor IMU sensor features integrated three-axis sensors, accelerometers, gyroscopes and magnetometers, making him capable of measuring acceleration, rotational angular velocity and magnetic field vectors. The onboard microprocessor, Atmel's samd21, is an Arduino-compatible 32-bit ARM Cortex-M0 + microcontroller, which is perfectly compatible with Arduino zero and samd21 mini development boards.

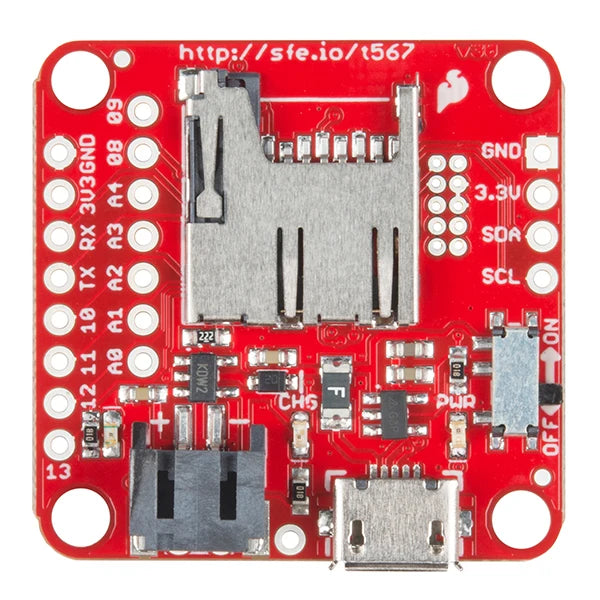

9dof Razor IMU includes μSD card socket, battery charger, power control switch, and a series of I / O expansion. It pre-programmed an Arduino compatible boot program, so you can customize the firmware and write new code to program through USB connection.

9dof Razor IMU only needs a USB cable to program your board. You can also send data to the PC through this USB cable. These 9-axis data can also be stored in the SD card in real time, which is very convenient.

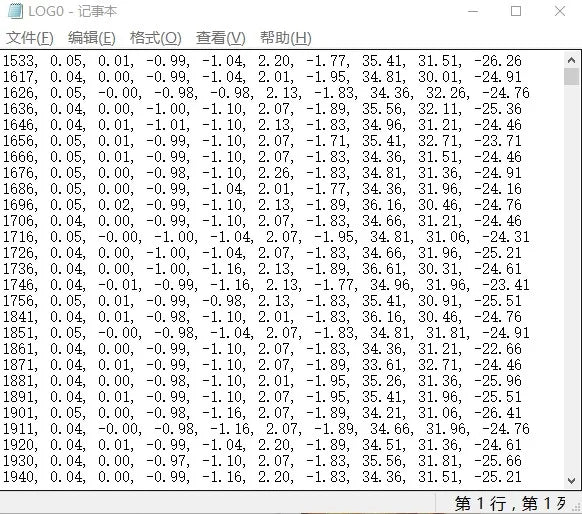

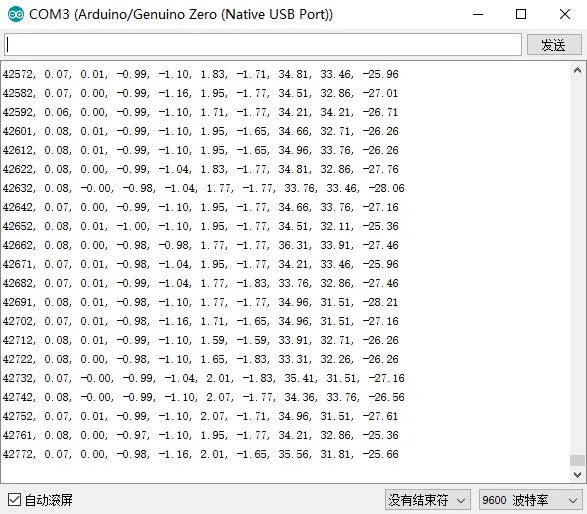

9dof Razor IMU test data is sent to the PC side data as shown below:
