Custom 9 Inch LCD Screen Display Monitor Driver Control Board 2AV HD--Compatible VGA For Raspberry Pi Banana/Orange Pi Mini Computer Manufacturer



This is a multi-purpose portable display device with a 9-inch 1024*600 high-definition display. Support HD/VGA/AV1/AV2 4 signal modes. It can be used to connect computer and computer secondary screen, Raspberry Pi,Banana Pi,Orange Pi,Development Board,TV box,game console, etc...... Most of the devices that support HD/VGA/AV signal. The DC5.5mm power supply interface can support 5V to 12V power supply.





Interface introduction:

1--AV1 Interface

2--AV1,AV2 Interface

3--VGA Interface

4--VGA Extension Interface

5--HD High-Definition Interface

6--DC5.5mm Power Interface

7--Power Extension Interface

8--High Voltage Board Power Supply

9--LED Display Backlight Power Supply
10--Lvds Display Interface

11--50Pin TTL Display Interface

12--Button Board Interface

13--Resolution Adjustment Shorting Block



Adapt to 5V-12V 2A Power supply


style 1：

9 inches LCD X1

LCD driver board X1

remote control X1

keyboard X1

Button board connection cable X1

USB power cord X1



style 2：

LCD X1



style 3：

The compatible resolution is: 1024 * 600. Interface: 50pin LCD screen

LCD driver board X1

remote control X1

keyboard X1

Button board connection cable X1

USB power cord X1



style 4：

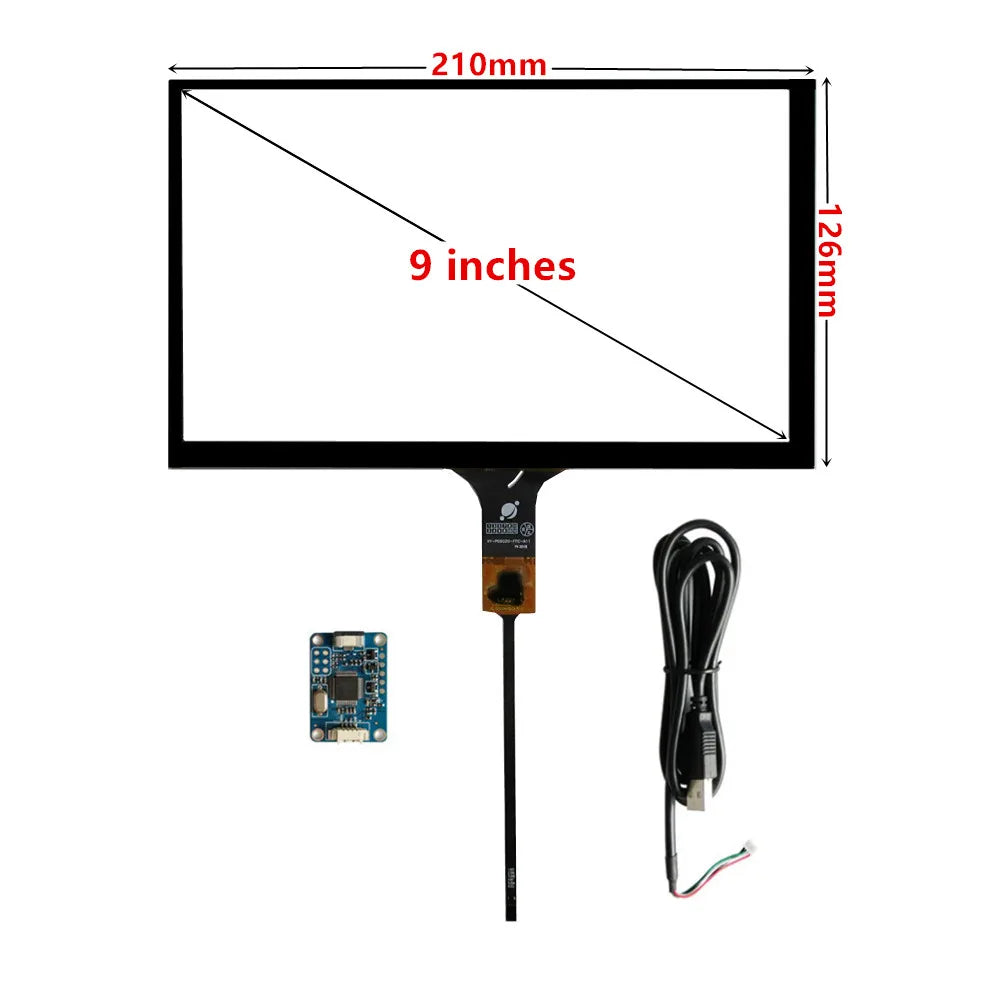

Capacitive touch screen X1

Touch screen cable X1

Touch screen driver board X1

USB cable X1

When you buy the touch screen and the display at the same time, we will install the touch screen on the front of the screen for you. If you do not need to install, please leave a message in the order



Product description

General Specifications



-LCD size: 9.0 inches(Diagonal)

-Driver element: a-Si TFT active matrix

-Resolution: 1024(RGB)*600

-Display mode: Normally white, Trans-missive

-Dot pitch: 0.05(W) x 0.15(H) mm

-Interface: Digital

Driver Board Interfaces

1.Power supply(5-12V 2A), The LCD Panel donot include power charger, you can order Kuman 12V 2A power supply (Asin:B01GDX6PW4 )from usThe LCD Panel donot include power charger, you can order Kuman 12V 2A power supply (Asin:B01GDX6PW4 )from us.

2.HD

3.VGA Connector

4.AV1

5.AV1+AV2

6.Keyboard

7.TTL Signal

8.LVDS Signal 1/2 ch 6bit 8bit

9.12V Backlight

10.Inverter Connector







 Welcome Customize Order!
