Custom 9 inch LCD panel+9 inch LCD display module resolution 1024 * 600 DYI kits for Raspberry Pi 3B 2 Car LCD module Manufacturer

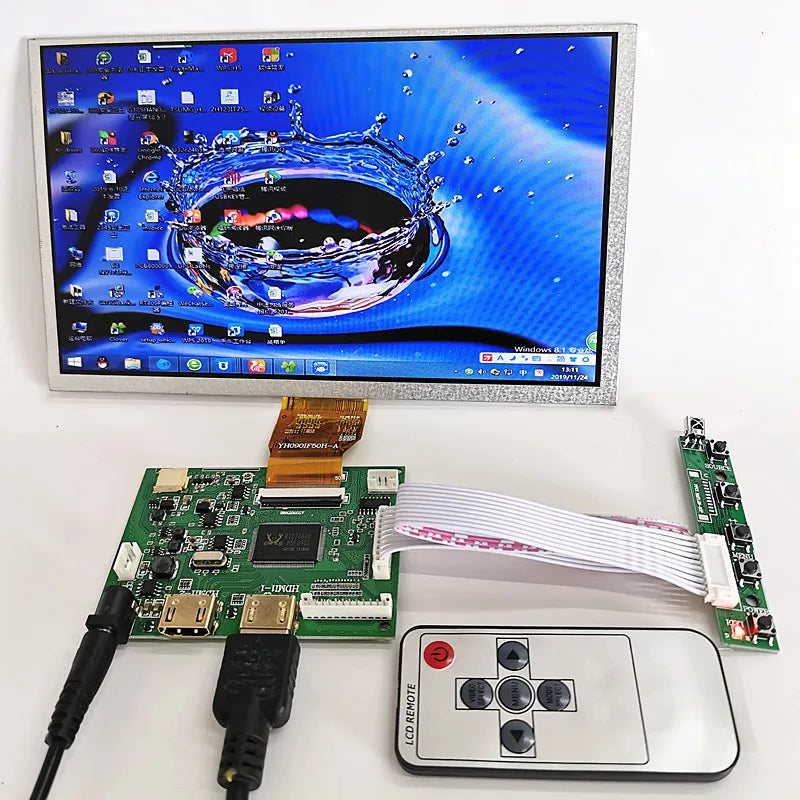

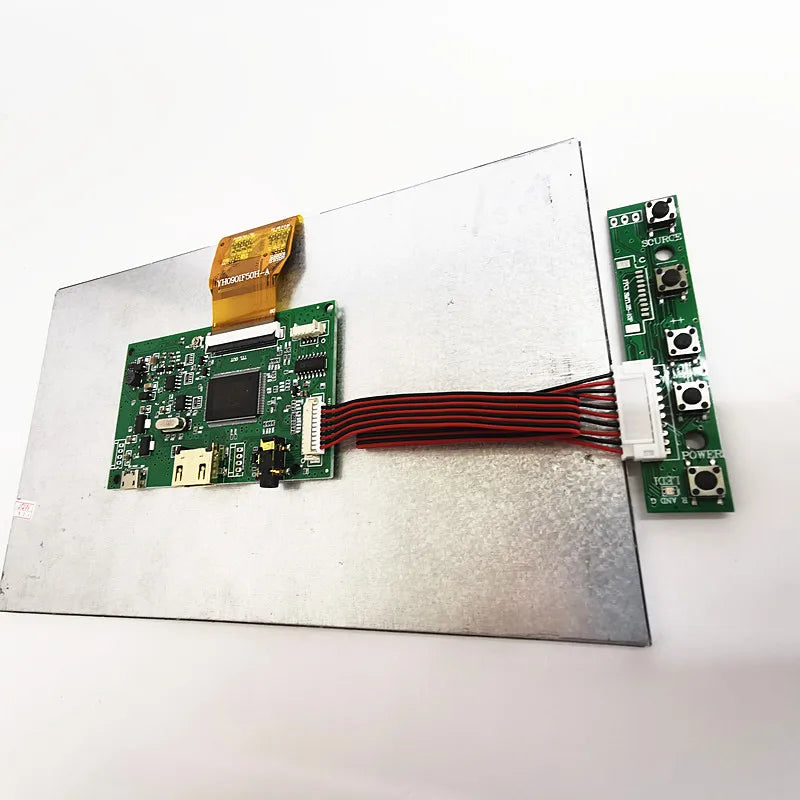

9 inch USB/5V HDMI LCD module

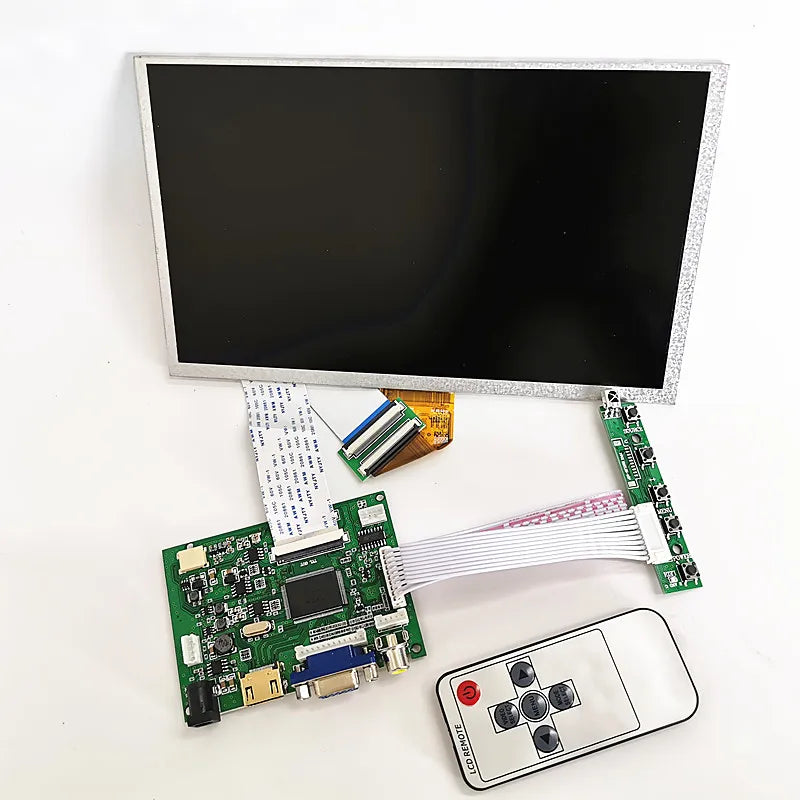

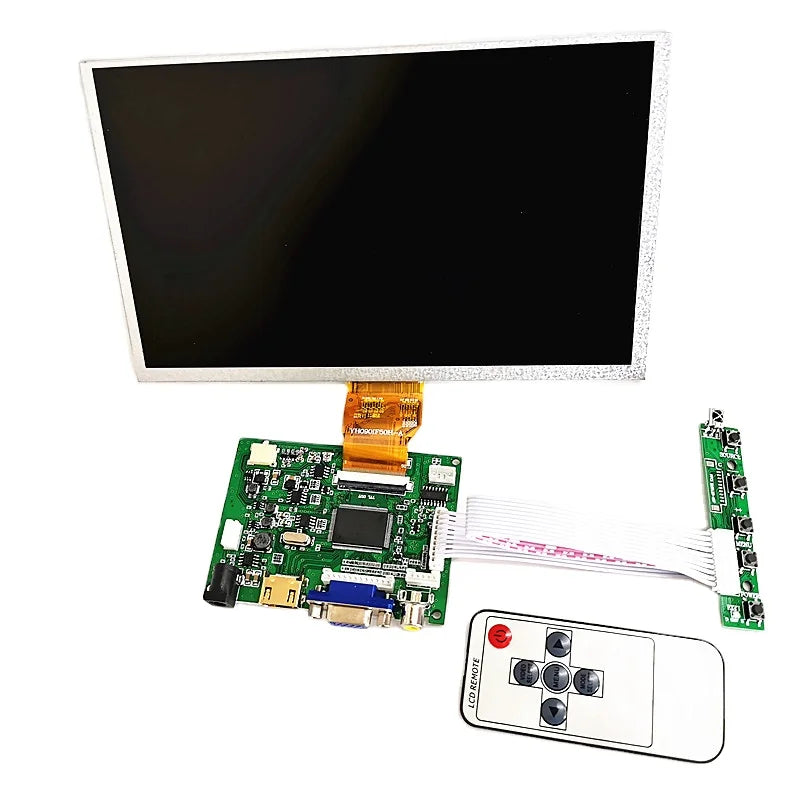

9 inch DC/ 5v-20v HDMI/VGA/2AV/ audio LCD module

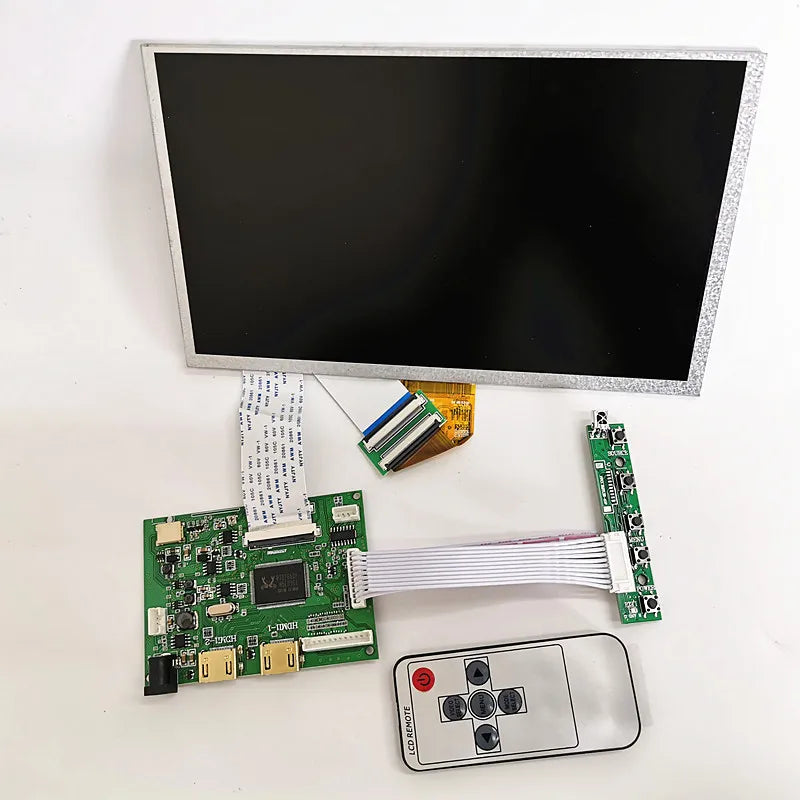

9 inch DC/ 5v-20v 2HDMI/VGA/ audio LCD module

Screen
Panel Size:8.0 inch
Panel Type:a-Si TFT-LCD , LCM
Resolution:1024×600 ,
Pixel Format:RGB Vertical Stripe
Brightness:350 cd/m² (Typ.)



HDMI AV2 board
1.1 way VGA signal input 2 way AV signal input;
2.1 way HDMI signal input ,IC support HDMI1.2;
3.1 way reverse signal input;
4.support wide voltage:4.5-20v normal working
5.support back light 6pin,External high voltage board integrated LCD screen LED backlight driver board
6.Standard lvds signal output,support 1ch 6bit/8bit ,2ch 6bit/8bit lvds ,but only work 3.3v voltage screen.
7.Support two-color led indicator display
8.support TTL signal output.
