Custom 9.7inch EPaper EInk Display Display Interface 15Hz Refresh Rate 1200X825 Pixels Supports Raspberry Pi/PC Custom PCB pcba sample Manufacturer

Custom 9.7inch EPaper EInk Display Display Interface 15Hz Refresh Rate 1200X825 Pixels Supports Raspberry Pi/PC Custom PCB pcba sample Manufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out


DESCRIPTION

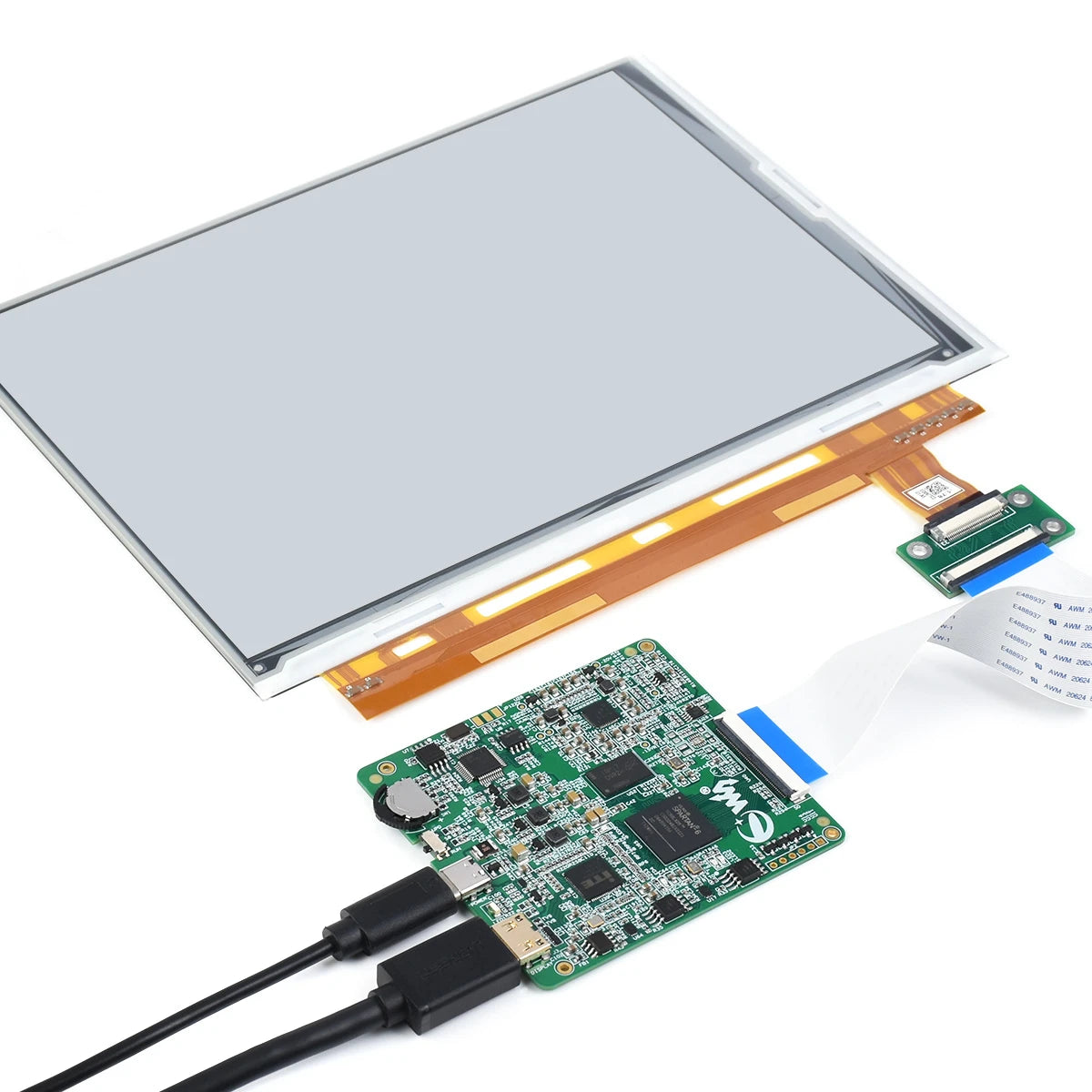

9.7inch E-Paper E-Ink Display, HDM1 Display Interface, 15Hz Refresh Rate, 1200×825 Pixels, Supports Raspberry Pi/PC
9.7″ HDM1 E-PAPER DISPLAY

Paper-Like Experience, Care For Your Eyes



  • Size9.7″

  • Resolution1200×825(150DPI)

  • Display PortHDM1

  • Display PanelE-paper

  • Viewing Angle>170°

  • Display ColorBlack and White

  • Grey Scale2-16 (1-4bit)

  • ExperiencePaper-like

  • EnvironmentAmbient Light Required

  • Display TypePassively Reflective

  • Display AdvantageEye Care, No Blue Light

  • Display AdjustmentMode/Contrast

  • Device SupportPi/PC


  • Limited by display principle, E-paper monitor has lower refresh rate (about 15Hz on mode A2), it only suits office/study applications such as coding, document editing, spreadsheet making, webpage browsing, etc.

  • For scenes where high refresh rate is required, say, entertainment or gaming, please choose other normal LCD monitors.

  • E-paper monitor reflects ambient light for displaying, without emitting light actively, producing no blue light. It is an ideal choice for people who have to use computer for quite a long time, and are troubled by dry eyes or eyestrain.

  • VGA is not available (there may be flickering or distortion caused by the VGA analog signal)

  • If your computer has no HDM1 port, please feel free to contact us with a picture of the computer connector panel, so that we can recommend a proper adapter.

Device & System Support


Raspberry Pi
Supports Raspbian / Ubuntu / Kali

Supports all versions of Raspberry Pi




PC
Supports Windows 10 / 8.1 / 8 / 7
Connection Examples

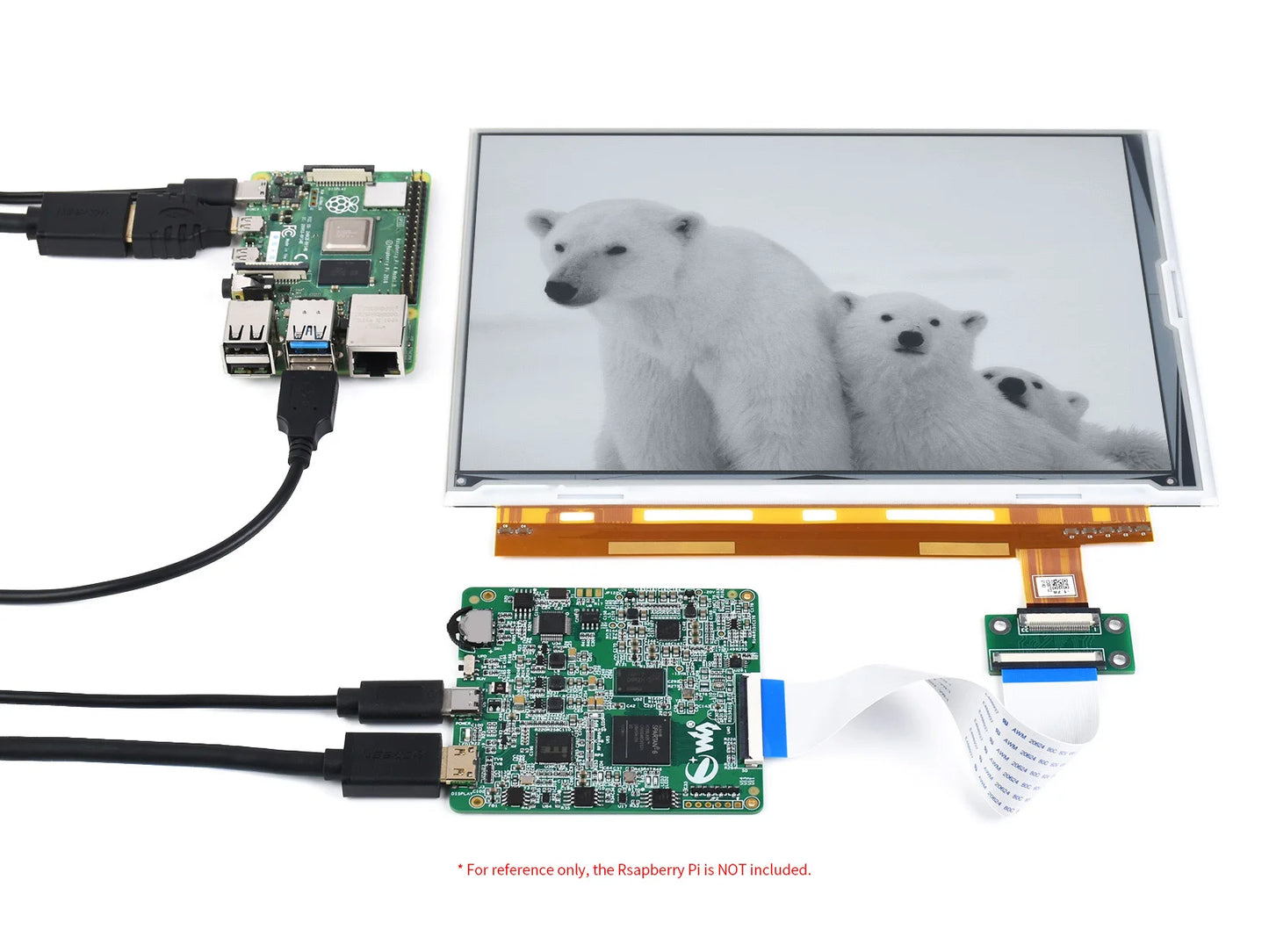

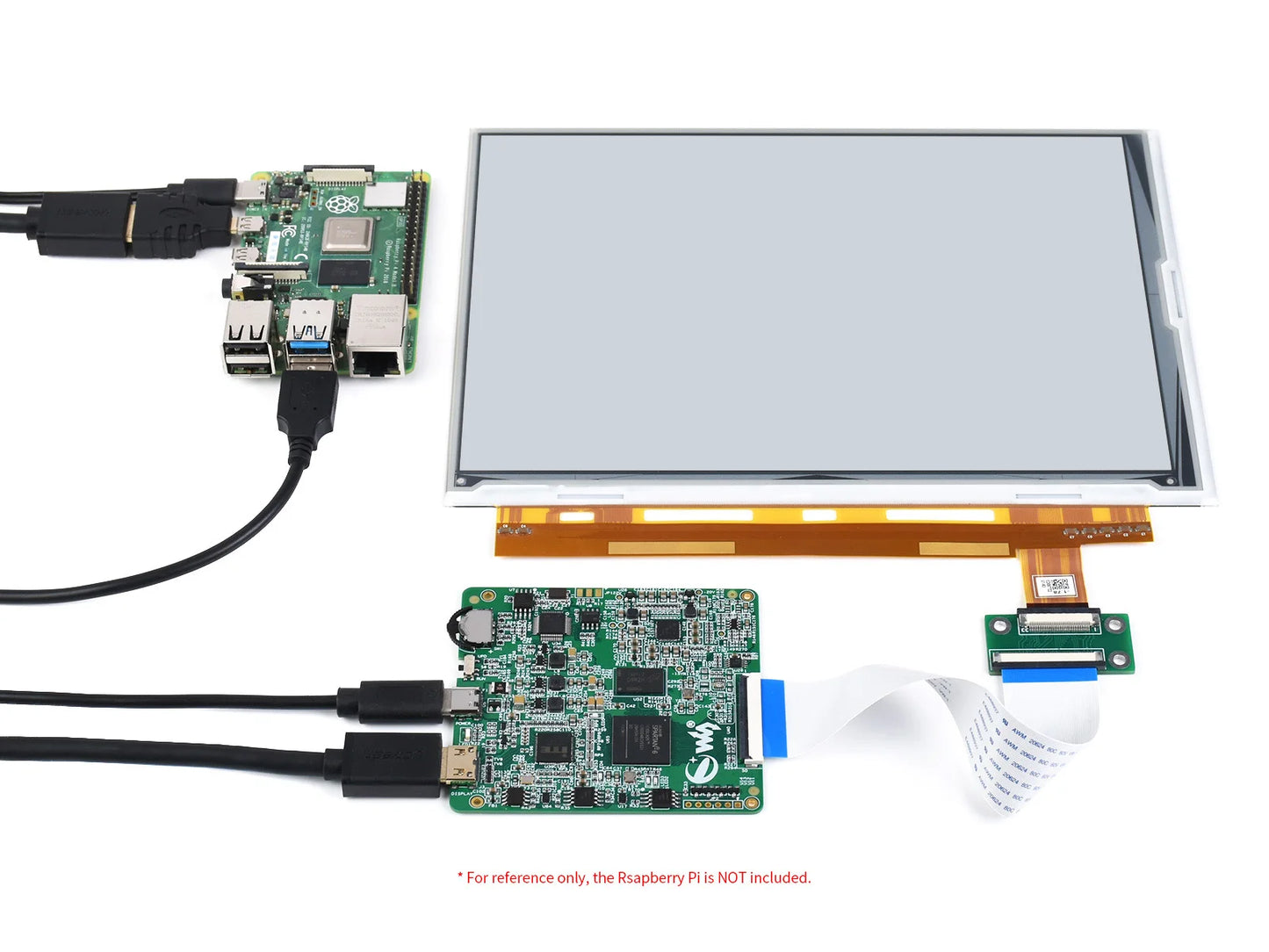

Working With Raspberry Pi (Take Pi 4 As Example)

Working With Computer

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Quick Response, Low Latency

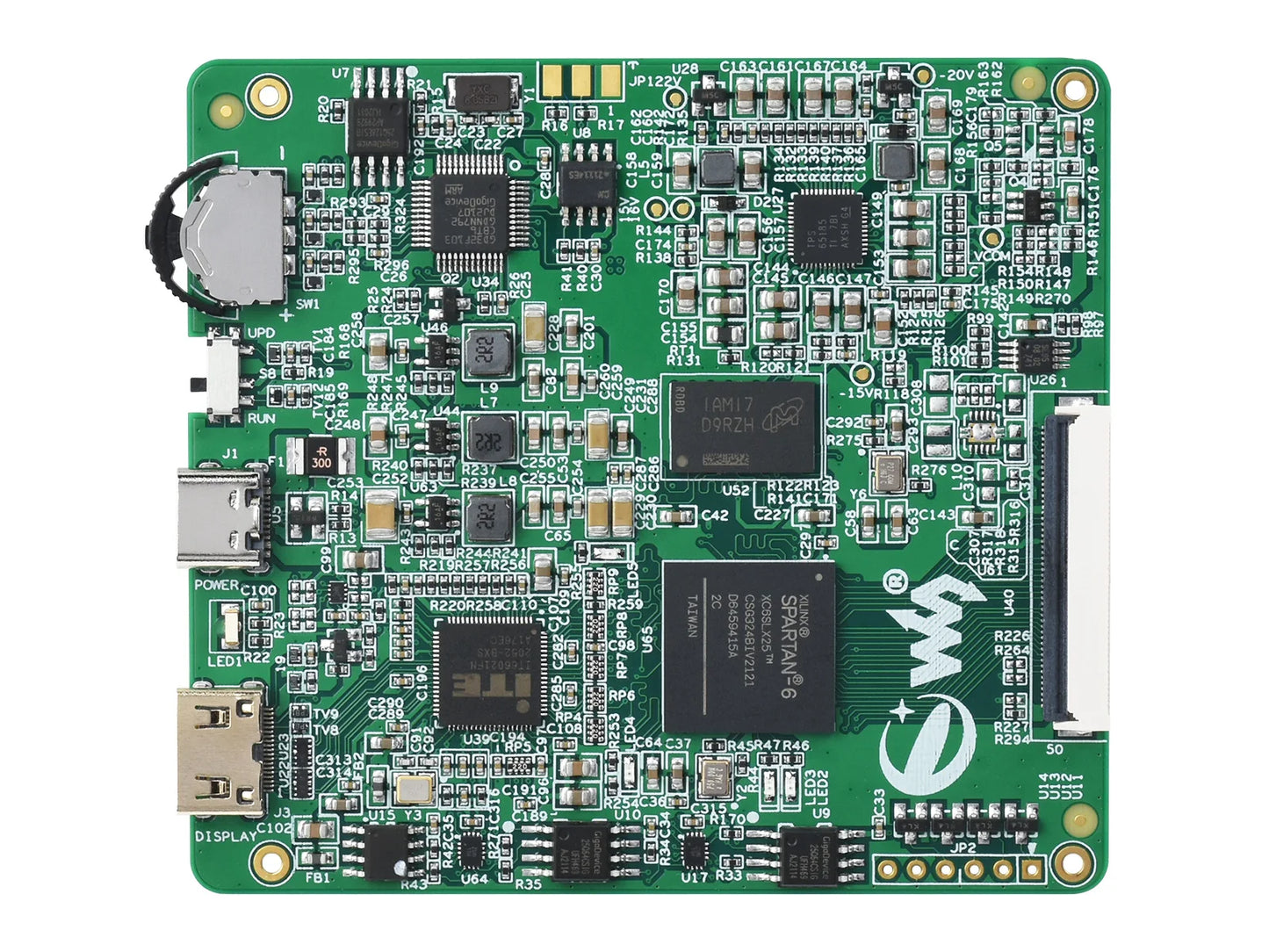

Refresh Technology Based On FPGA, Quick Response, Low Latency

Multi Mode Support

Three Available Modes: GC16, A2, And A2+, Selected Via Mode Button

Contrast And Refresh Rate Adjustment

Supports Up To 10 Contrast Options, And 5 Refresh Rate Options
Combined With Different Mode, It Is Possible To Tune Your Best Own Effect

Refresh rate of 5 has the fastest effect (up to 15fps), the lower refresh rate, the darker display effect, vice versa.
For better experience, it is recommended to use rate of 5 for video, and 1-3 for documents.
Demonstration

Introduction
Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/9.7inch_HDM1_e-Paper
Selection Guide

PARTNUMBER

COLORS

GRAYSCALE

PIXELS

DPI

DIMENSIONS (MM)

FEATURES

7.8inch HDM1 e-Paper

black/white

16

1872×1404

300

158.184×118.638

-

9.7inch HDM1 e-Paper

black/white

16

1200×825

150

202.8×139.425

-

10.3inch HDM1 e-Paper

black/white

16

1872×1404

227

209.66×157.25

-

EINK-DISP-103

black/white

16

1872×1404

227

238.0×187.0×8.9

with case

13.3inch HDM1 e-Paper

black/white

16

1600×1200

150

270.4×202.8

-

PACKAGE CONTENT

Weight: 0.431 kg

  1. 9.7inch e-Paper x1

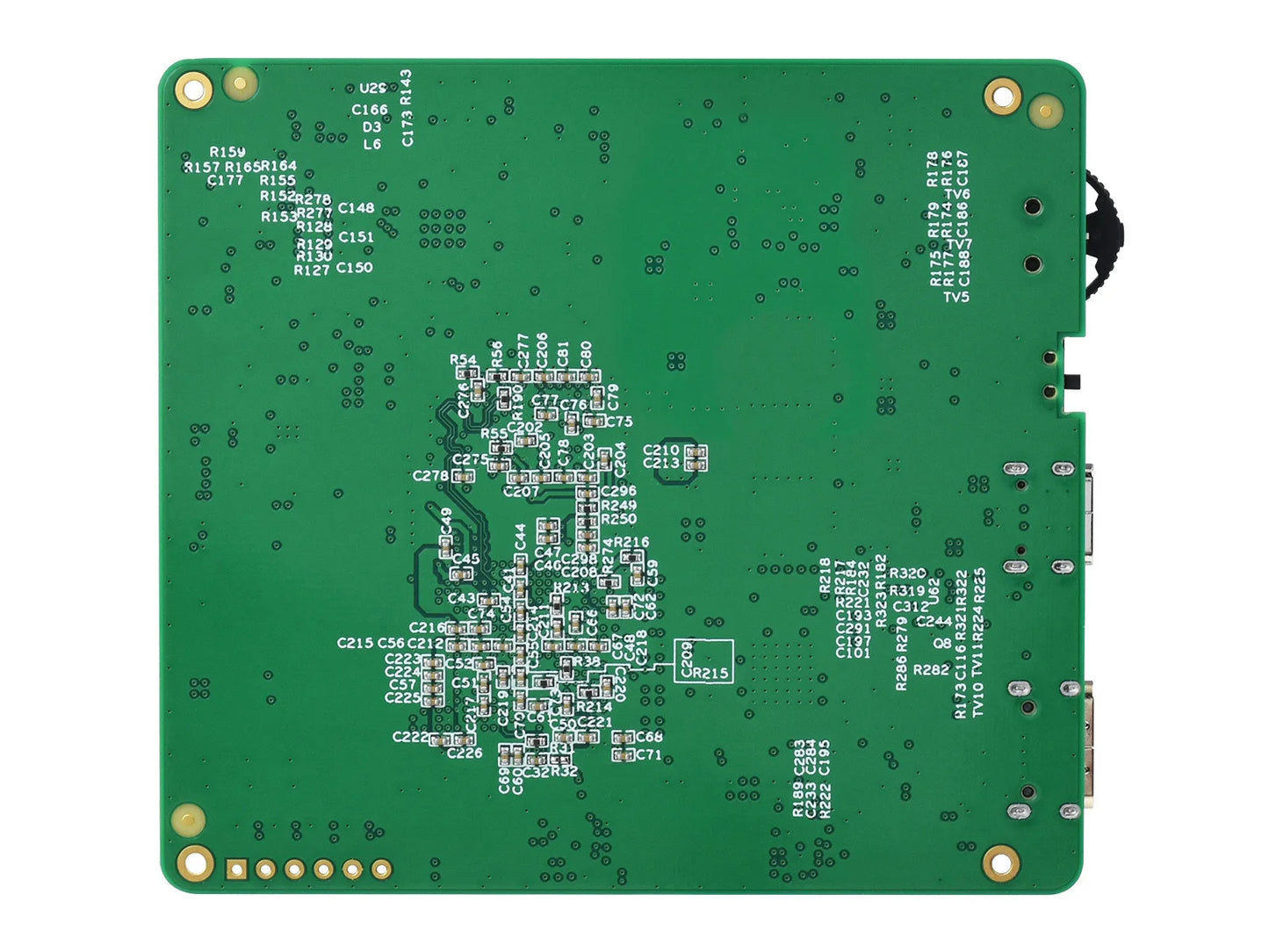

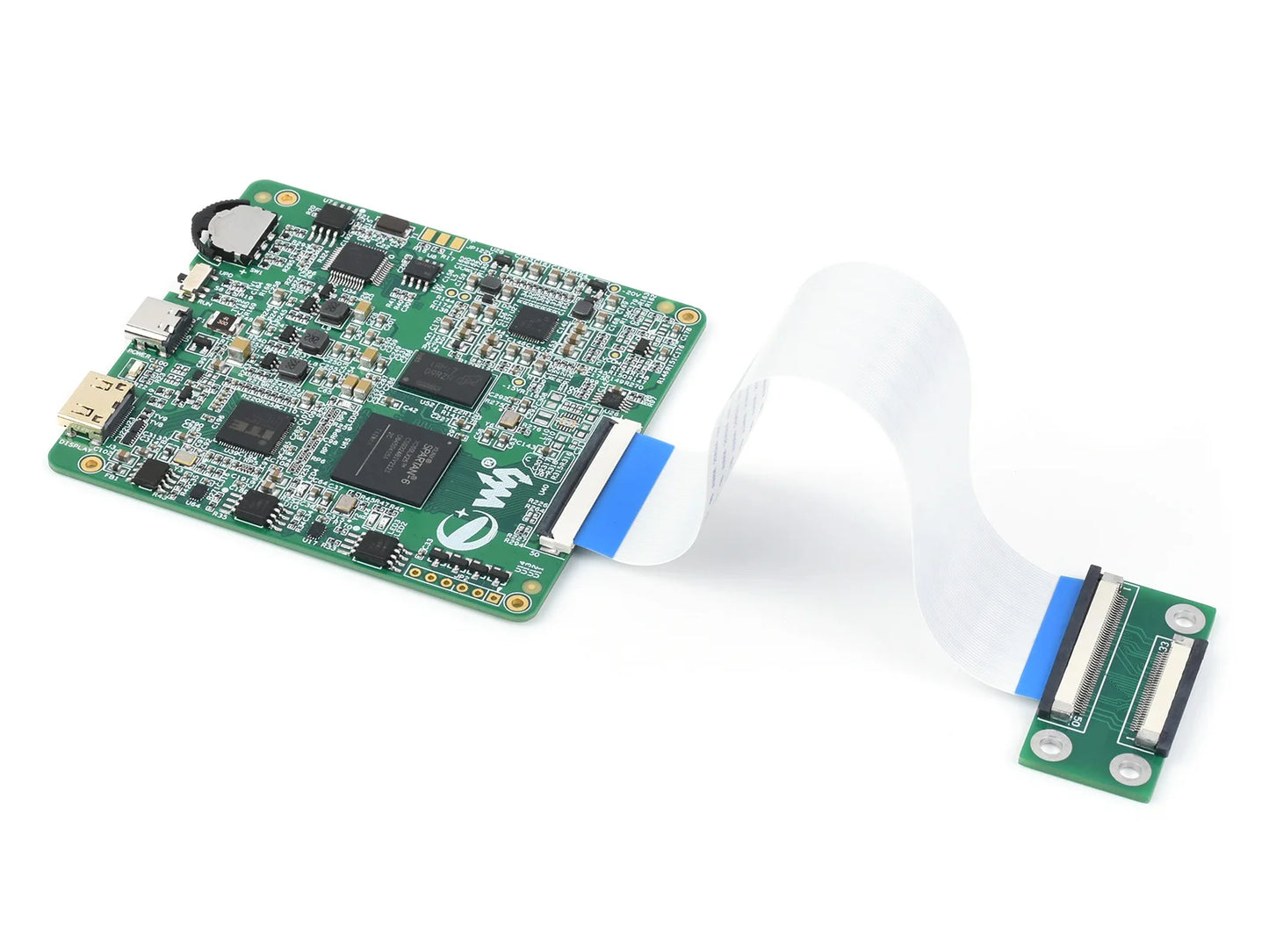

  2. Driver board + FPC + adapter board x1

  3. HDM1 cable x1

  4. HDM1 to micro HDM1 adapter x1

  5. USB-A to USB-C cable x1

1
2
3
4
5








 Welcome Customize Order!
