Custom 895 Dual Output Shaft Motor DC 12V-24V 6000RPM-12000RPM PWM Speed Controller Reversing Switch for Electrical Tools DIY Manufacturer

-It's a combination of a DC 12V-24V 895 motor and a DC 10V-60V 20A DC Motor PWM Speed Controller,adjust the knob of potentiometer to change the output occupying Vacancy proportion of controller, and the motor speed will change.

-The motor uses pure copper coils inside for longer life and less jitter, and has a built-in cooling fan.Easy to wire and install. Durable construction for long-lasting performance.

-The PWM speed controller owns power supply reverse polarity protection, control voltage over-voltage protection, 20A fast-blow ceramic fuse.

-Application: Wide applied to electric tools, electric fans, electric cleaners, shredder, sprayer, small cutting machine, small table saw, money counter, printer,DIY etc.

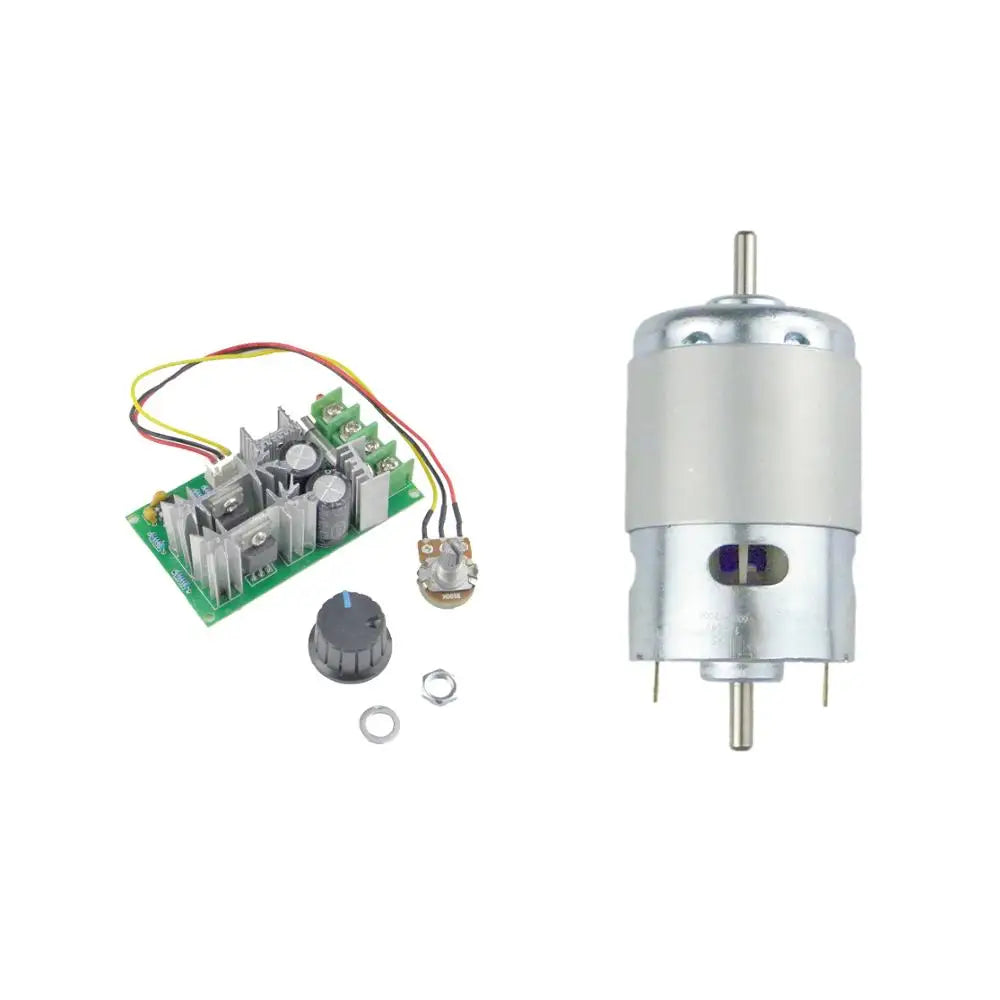

-Package Including:
1 x Speed Control;
1 x Speed Control Switch;
1 x 895 DC motor.

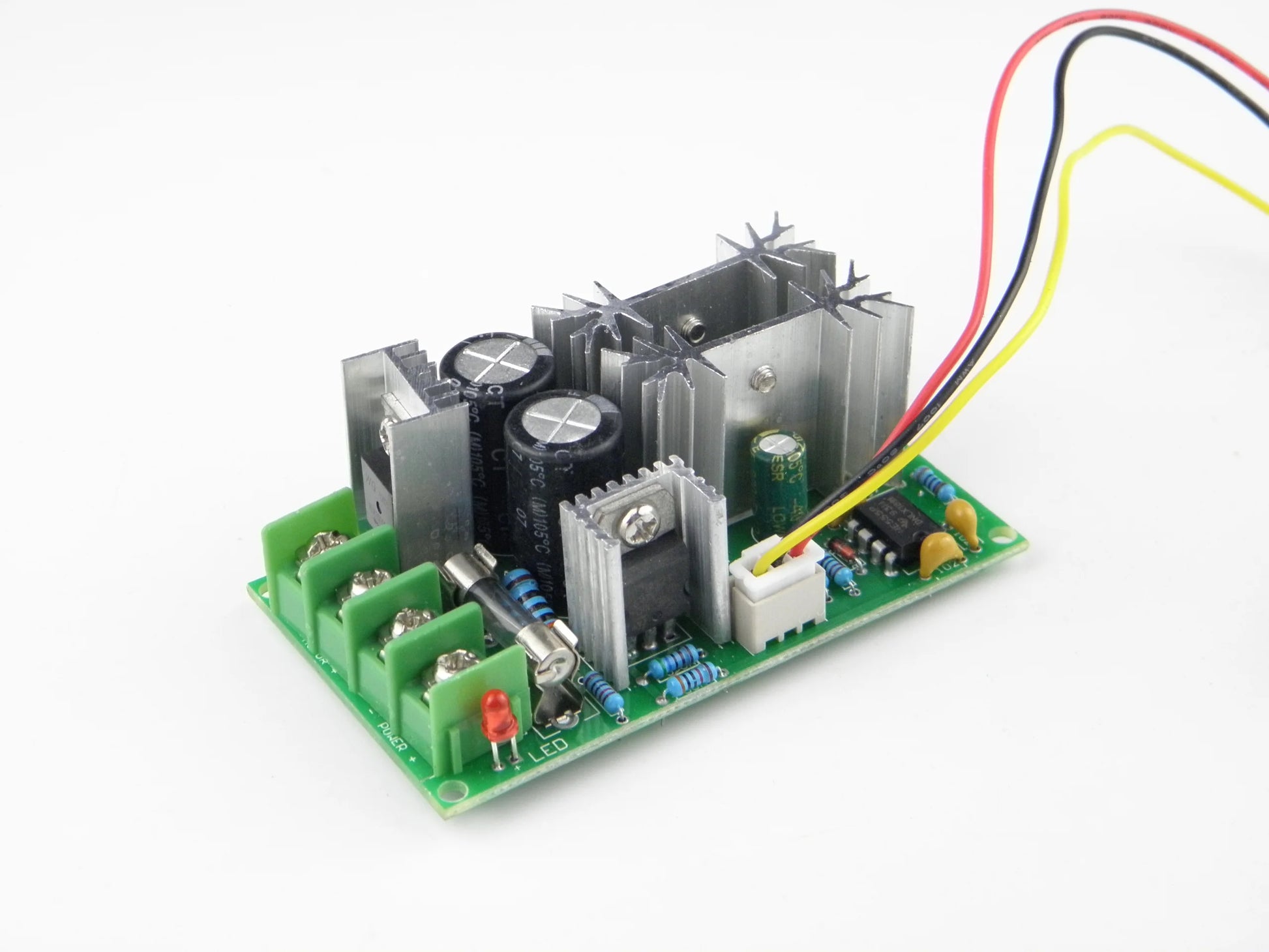

*[Specifications of PWM speed controller:]

Input Voltage: DC 10V-DC 60V (Ultra wide working voltage);
Output voltage: linear under load;
Control Power: 0.01-1200W;
Rated Current: 10A;
Max Current: 20A (Long-term use of 10A, 450W or less, pay attention to keep the module free of heat dissipation conditions.);
PWM Duty Cycle: 0%-100%;
PWM Frequency: 25Khz;

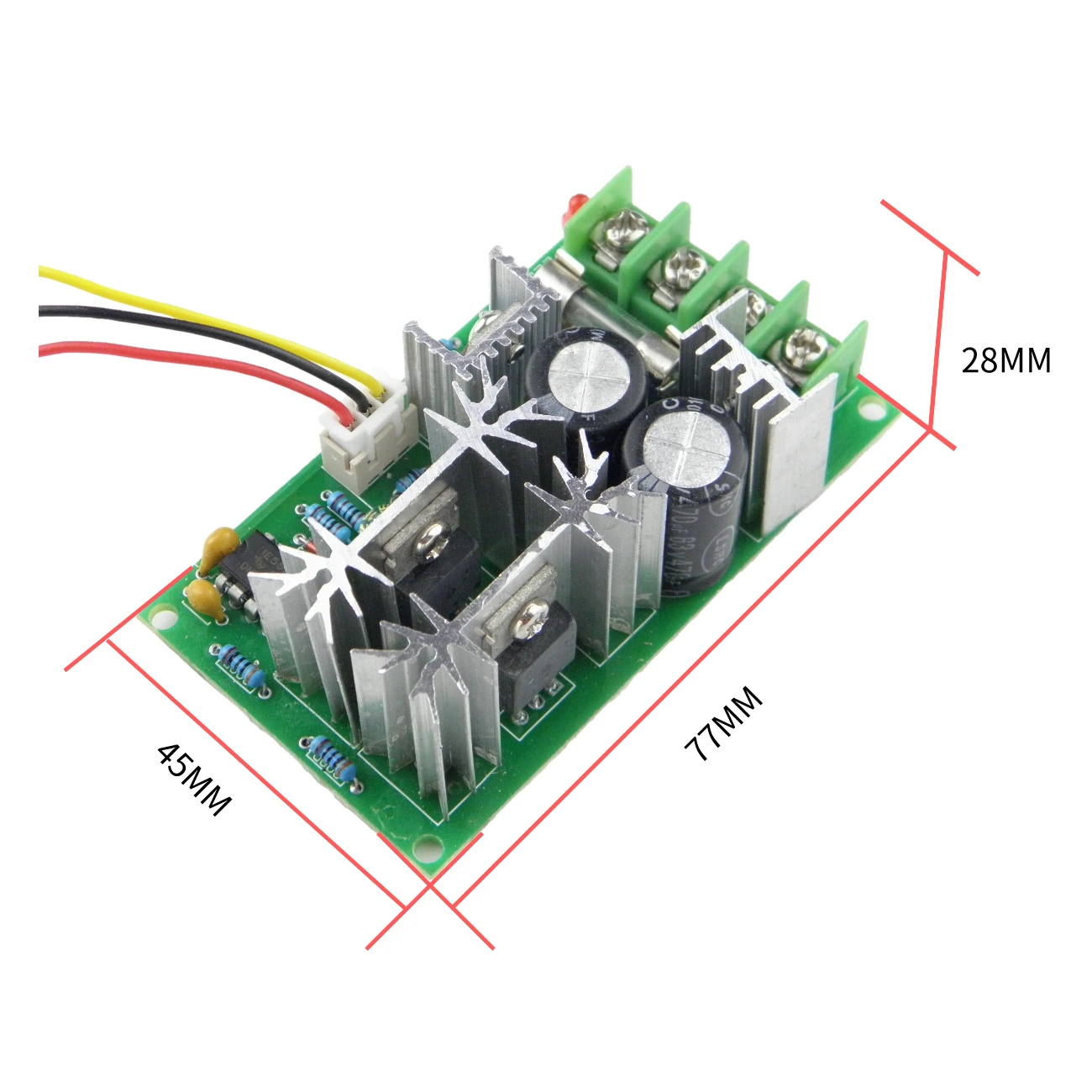

Product Size(L x W x H): 77*45*28mm;

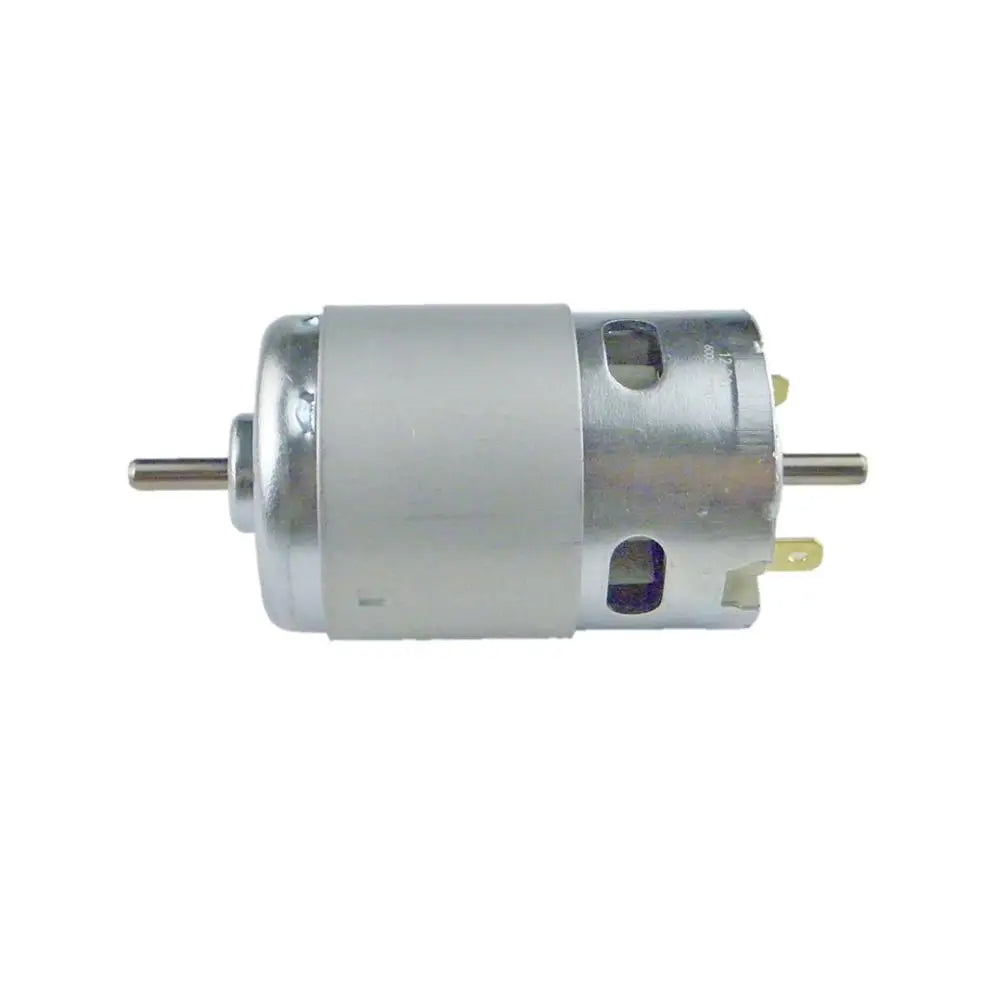

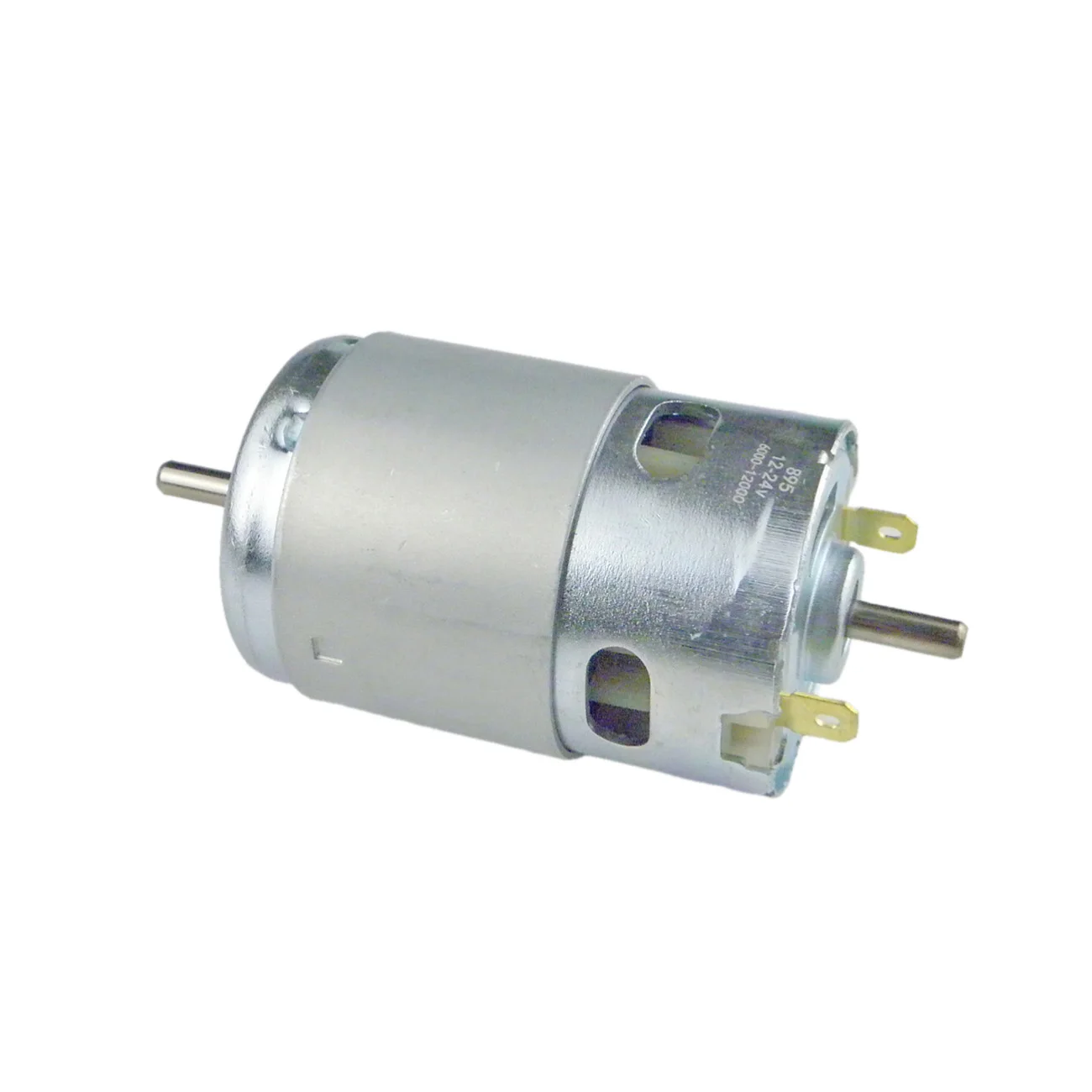

[Specification of 895 DC motor:]

Type: 895 DC Motor;
Rated voltage: 12V, No-Load Speed: 6000 RPM;
Rated voltage: 24V; No-Load Speed: 12000 RPM;
Torque:≤8.6Kgf.cm;
No-load current: 0.9A;
Power:150W;

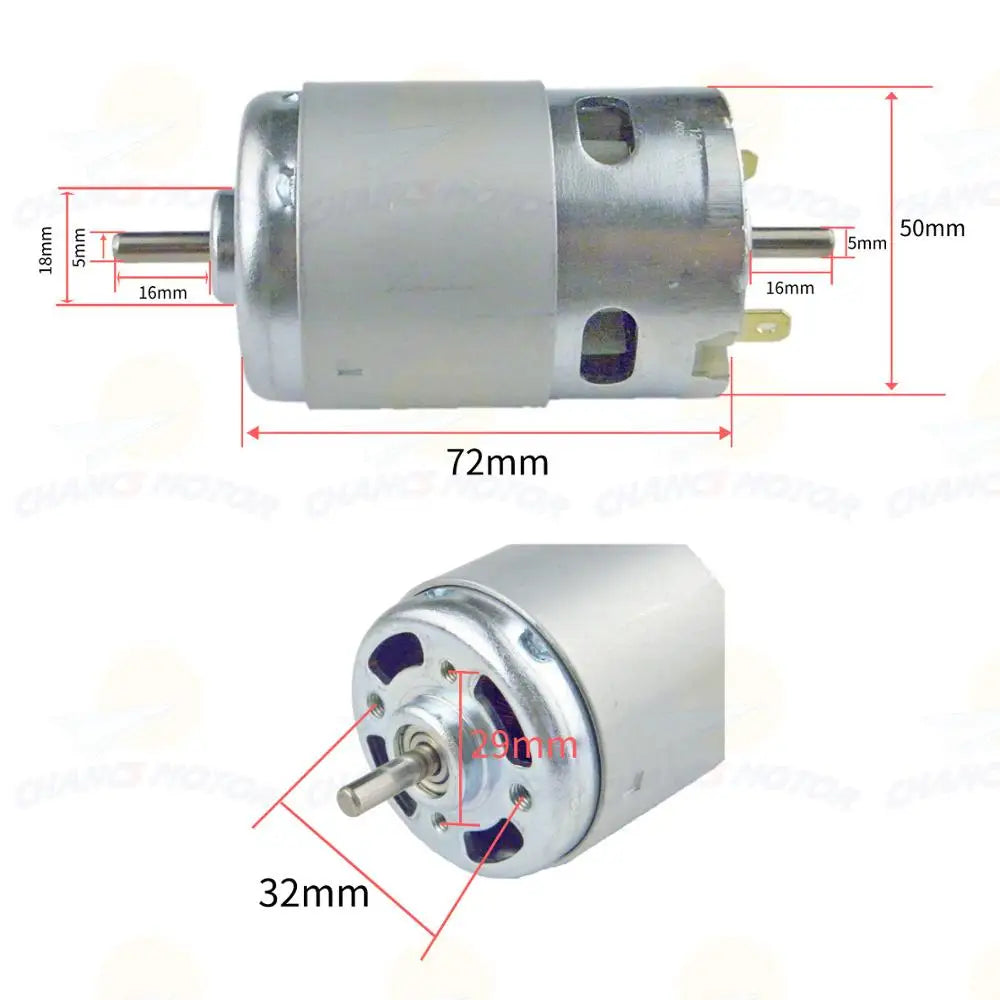

Front Shaft Diameter: 5mm;
Front Shaft length: 16mm;
Rear Shaft Diameter: 5mm;
Rear Shaft length: 16mm;
Length:72mm;
Width: 48mm;
Mounting hole distance: 29mm(M4 screws)/32mm(M5 screws);

*[Note for the PWM speed controller:]

1.Please do not connect AC power directly(Such as:110V AC),the input volt of this controller should be DC 9V-60V,otherwise it will be burned out.

2.This speed regulator is for use with DC brushed motors. It is NOT suitable for speed regulation of DC brushless motors; nor can it be used as a voltage regulator or voltage stabilizer!

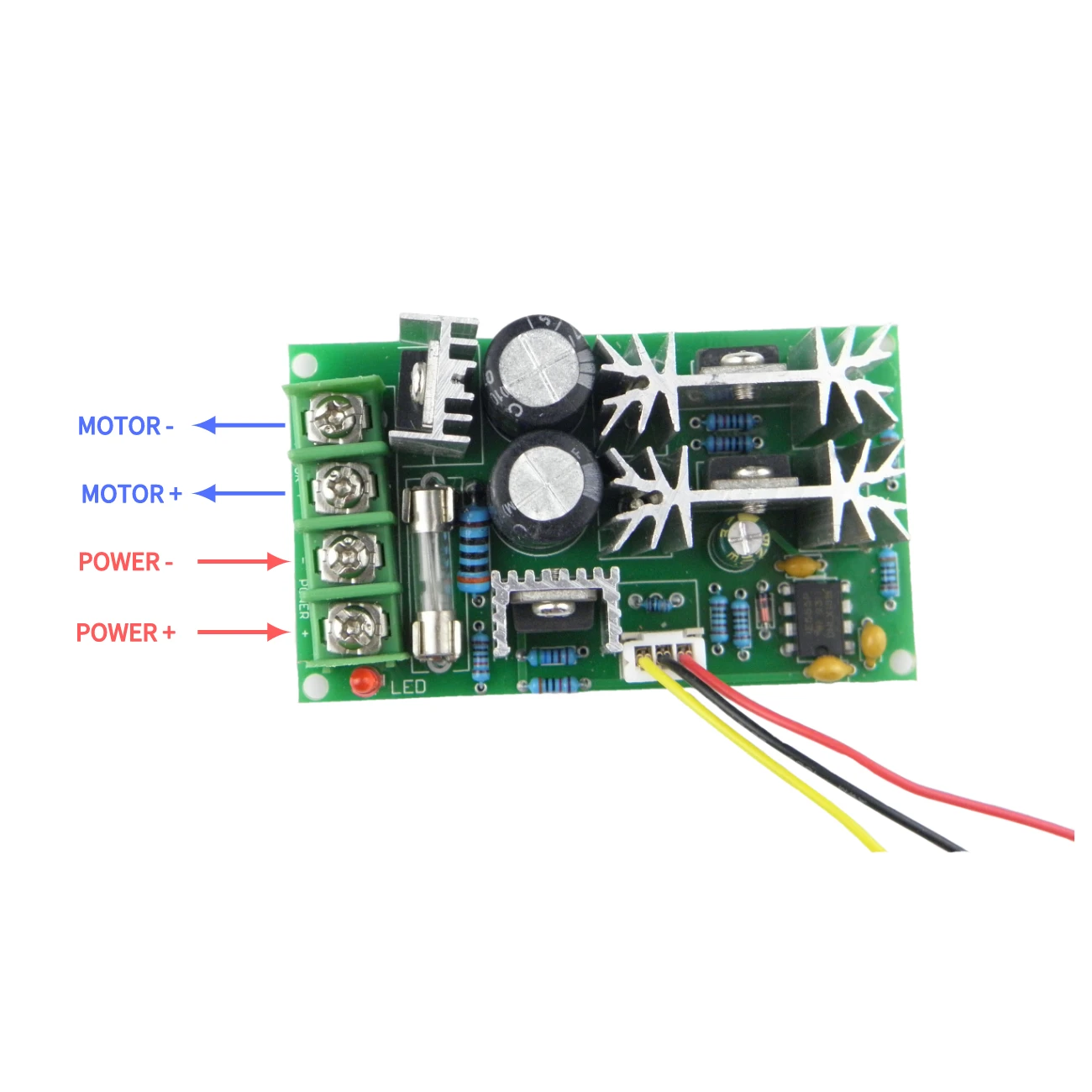

3.Positive and negative pole of the POWER and the MOTOR can NOT be reversed.
