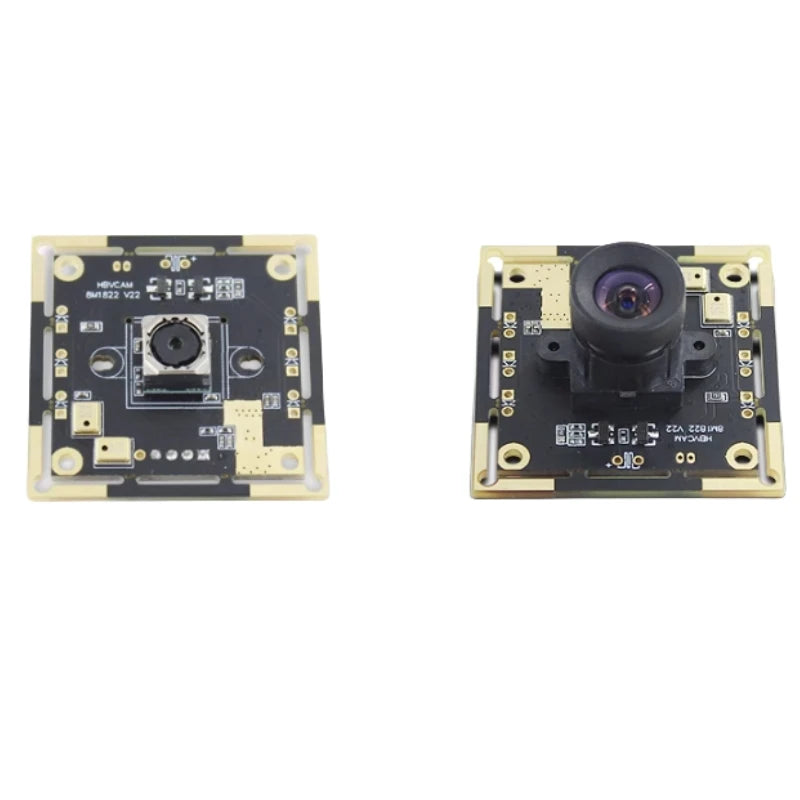

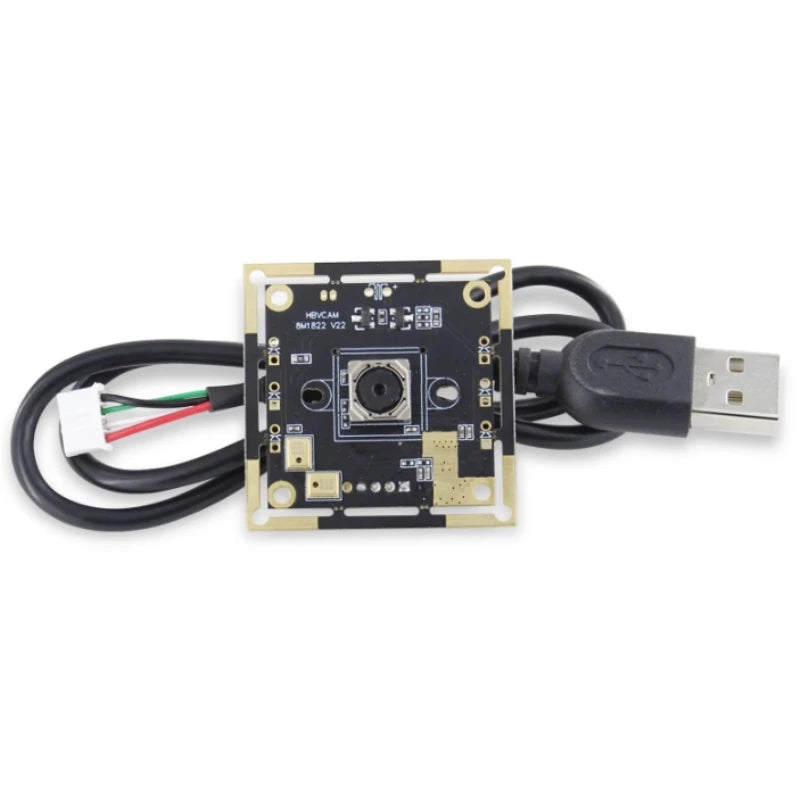

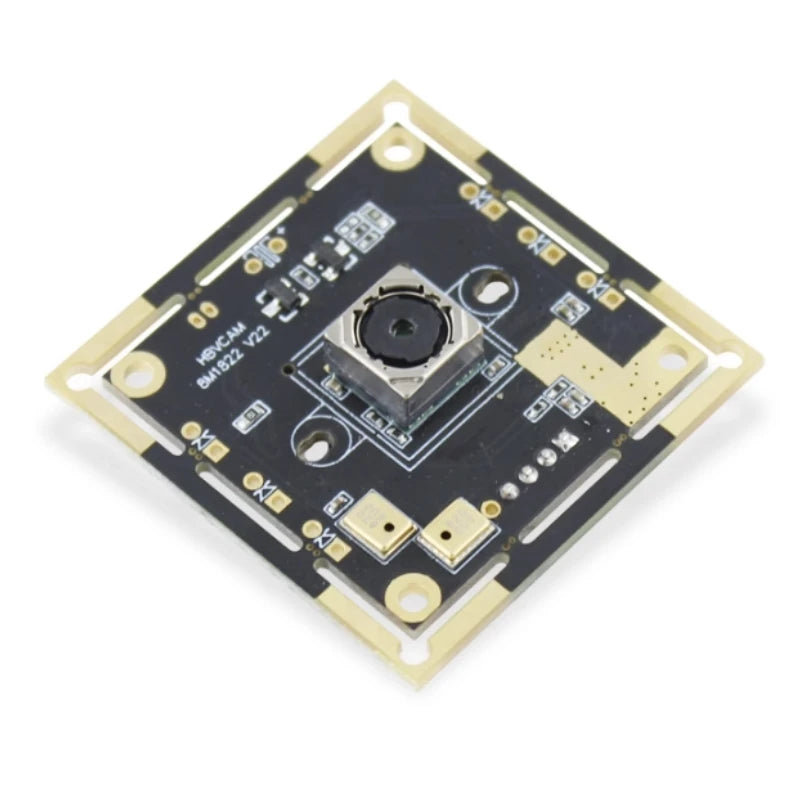

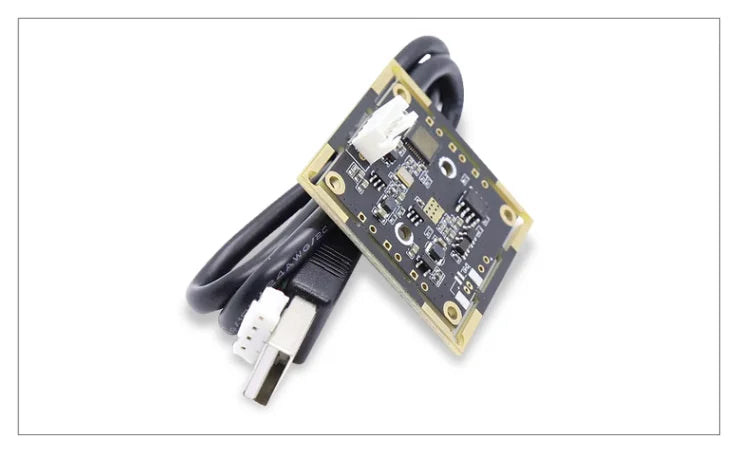

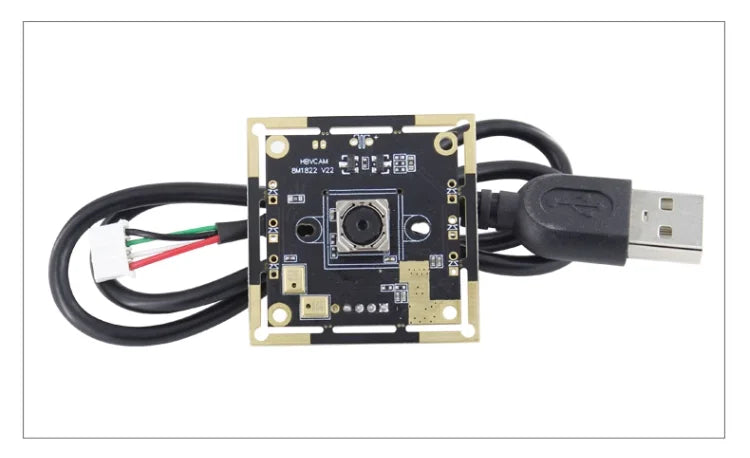

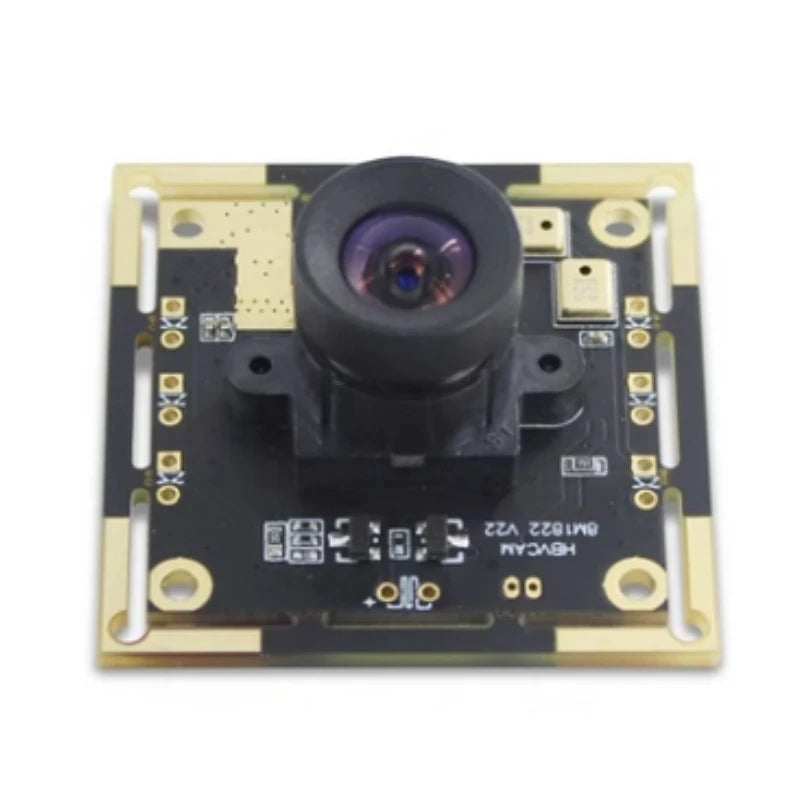

Custom 8 million pixel imx179 camera module A4 document scanning altimeter module

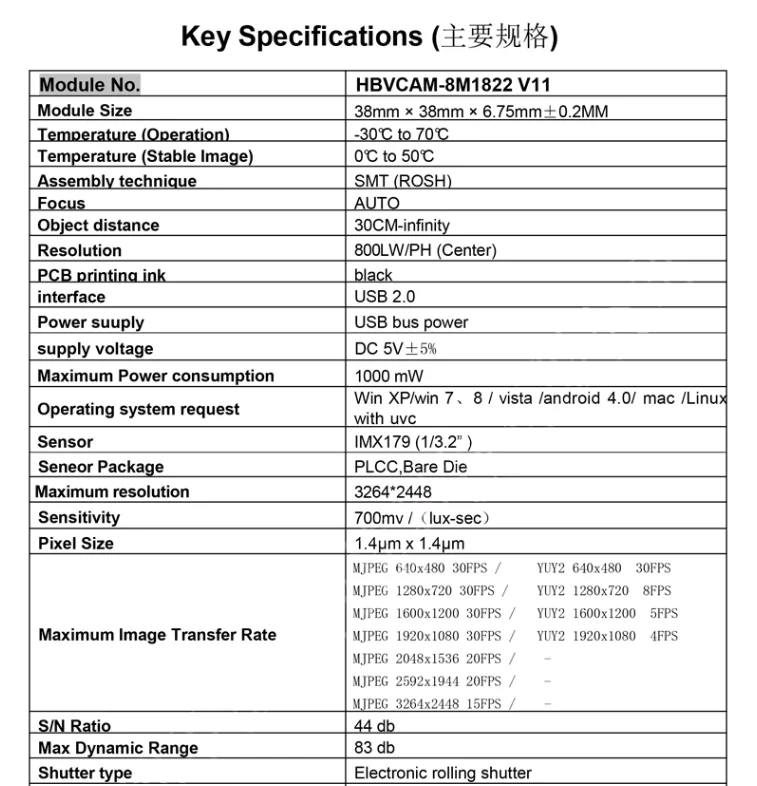

Product parameters

Product model: hbv-1822

Pixels: 8million pixels

Photosensitive chip: imx179 (1/3.2 ") CMOS

Field angle/focal length: 77.2 °/3.566mm 72 °/3.0mm

Format: mjpg/yuy2

Resolution:

3264x244815 frames/1920x1080 30 frames (mjpg)

1920x1080 4 frames/640x480 30 frames (yuy2)

Focus mode: auto focus/manual focus is optional (the default factory object distance is 60cm. Please contact customer service for special requirements)

Function introduction: Certificate taking, A4 paper scanning

Output: USB 2.0

Support system: winxp/win7win8/win10/mac osx/linux/android

Wire: Standard 40cm (1m 2m 3M optional)

Operating temperature: -20 ° c~70 ° C

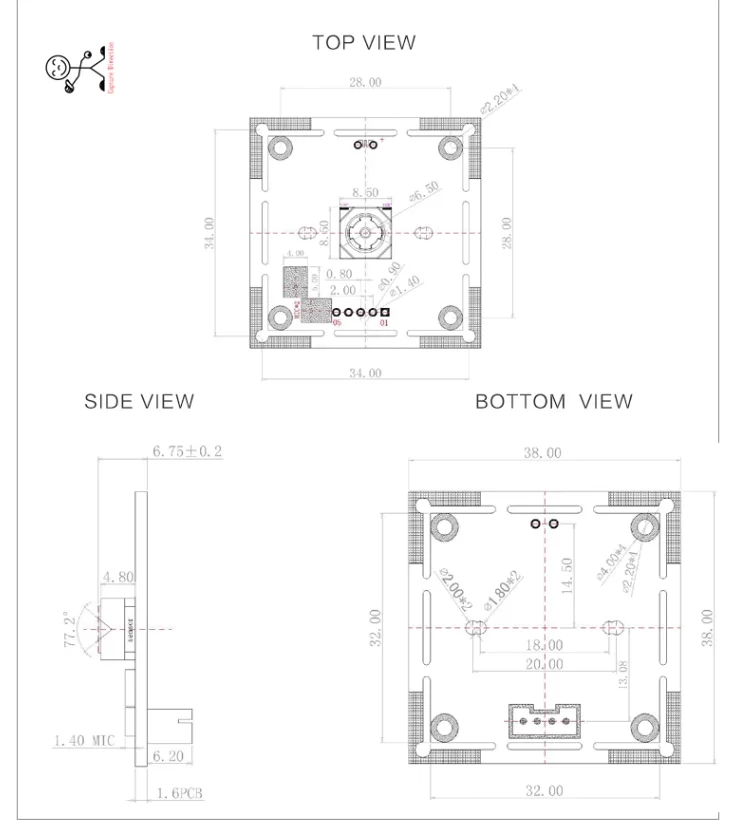

Size: 38x38x6.5mm/32x32x6.5 (different lens, different height)

Others: support customization
