Custom 8 Inch IPS Multipurpose Portable Monitor LCD Display Screen HD-Compatible VGA AV Driver Control Board Digitizer Touchscreen Manufacturer



This is a multi-purpose portable display device with a 8-inch 1024*768 IPS high-definition display. Support HD/VGA/AV1/AV2 4 signal modes. It can be used to connect computer and computer secondary screen, Raspberry Pi,Banana Pi,Orange Pi,Development Board,TV box,game console, etc...... Most of the devices that support HD/VGA/AV signal. The DC5.5mm power supply interface can support 5V to 12V power supply.



When you choose to buy "Only Control Board", please make sure that your screen interface is 40Pin and the resolution is 1024x768. It is not compatible with other specifications of the screen



We provide different options, please choose according to your needs (please refer to the photos corresponding to the selected options)



If you want to buy related accessories, please click the text link below to buy, thank you!

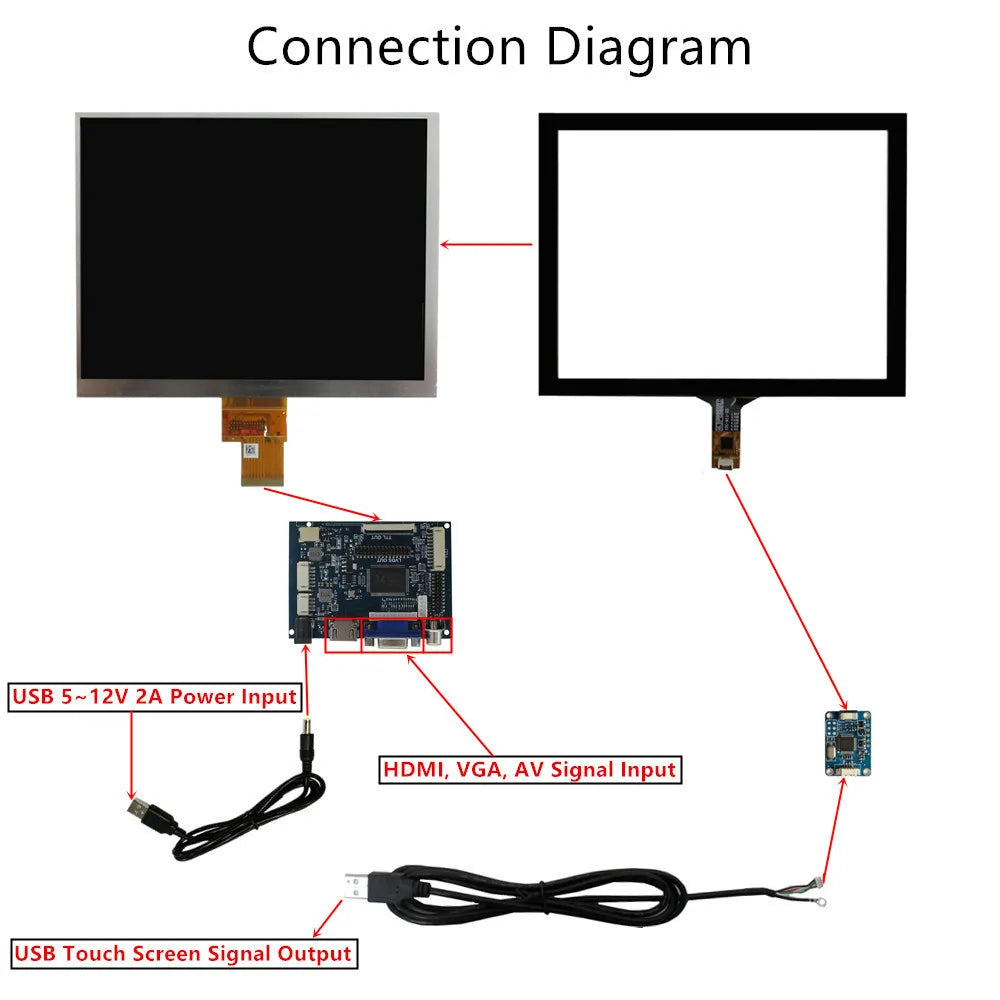

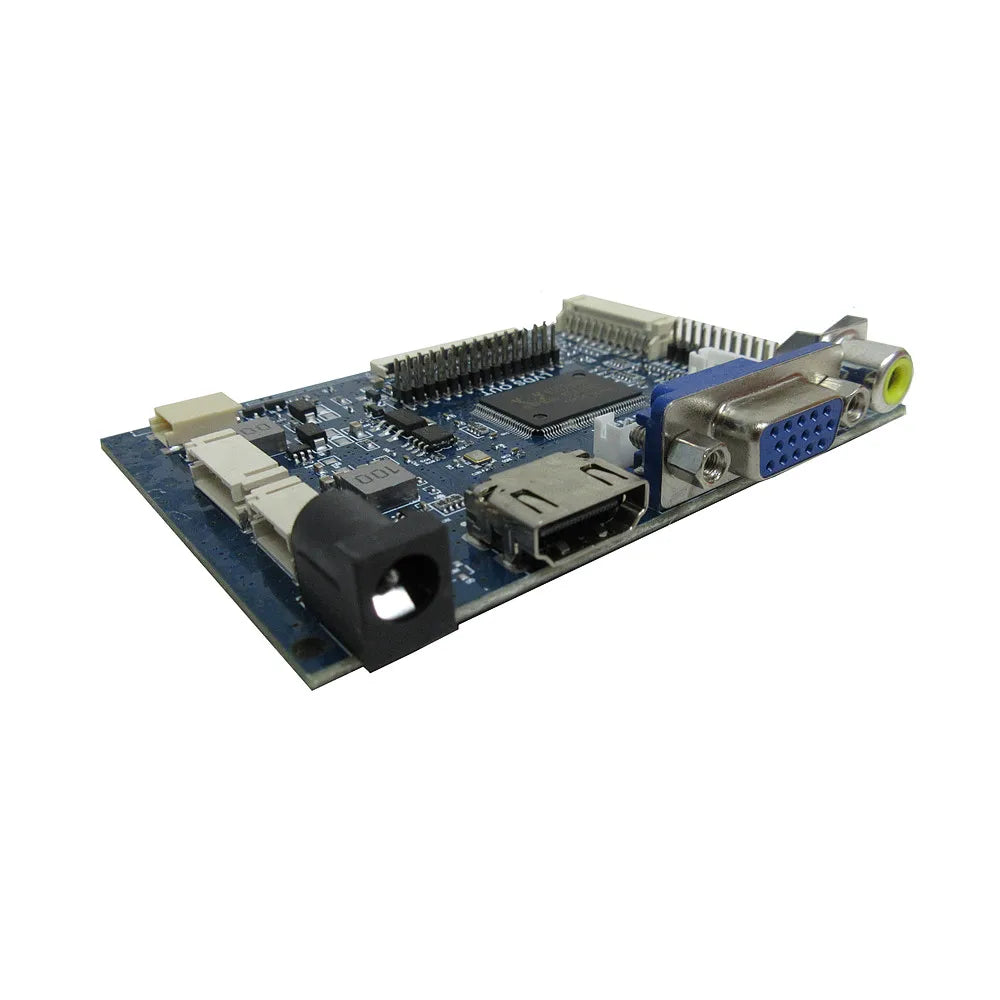

Interface introduction:

1--AV1 Interface

2--AV1,AV2 Interface

3--VGA Interface

4--VGA Extension Interface

5--HD High-Definition Interface

6--DC5.5mm Power Interface

7--Power Extension Interface

8--High Voltage Board Power Supply

9--LED Display Backlight Power Supply
10--Lvds Display Interface

11--50Pin TTL Display Interface

12--Button Board Interface

13--Resolution Adjustment Shorting Block

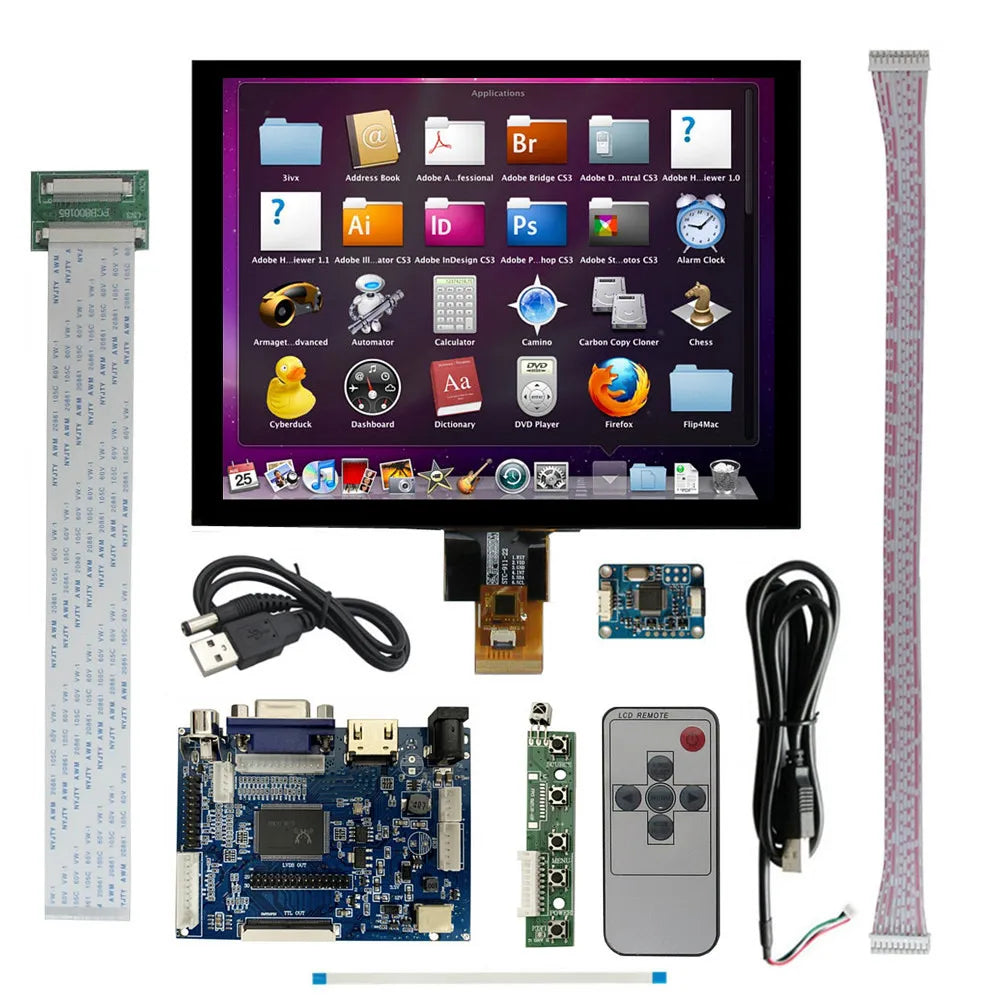

Package Content:

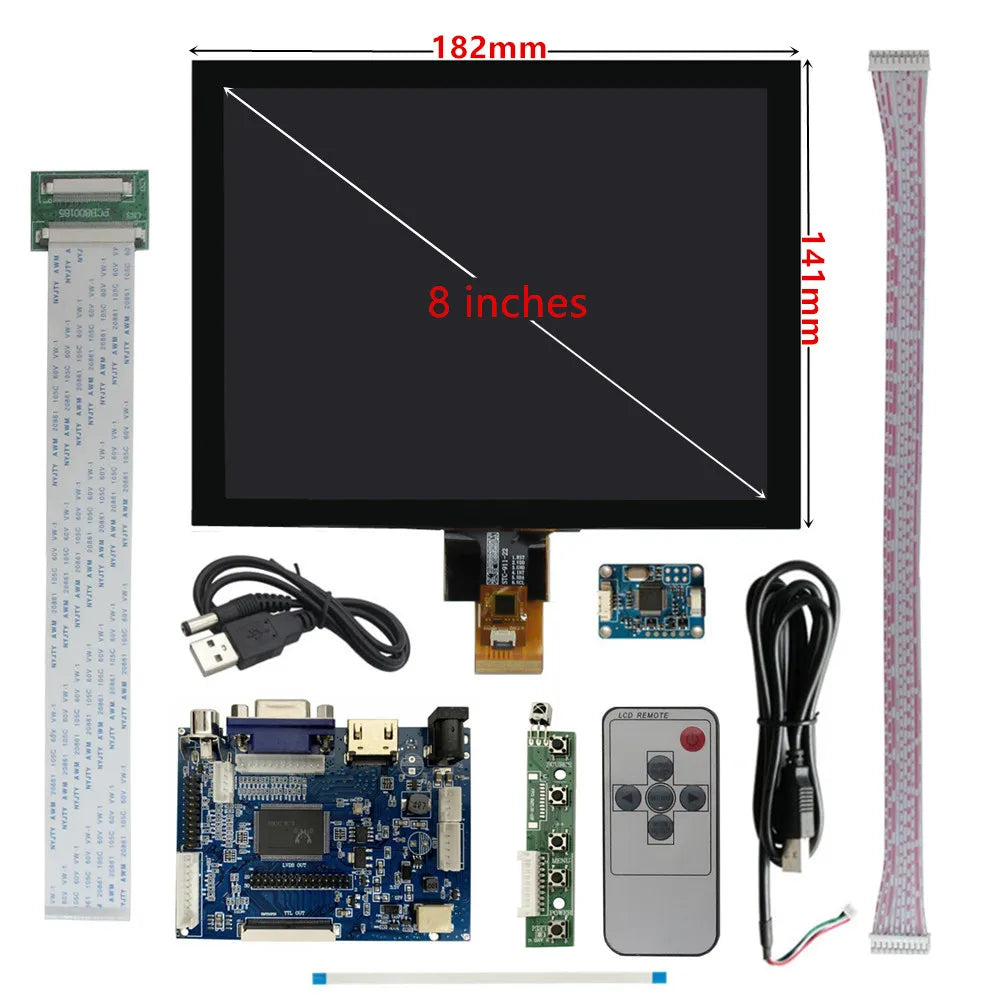

Full Set：

• • 8Inch 1024*768 IPS LCD Display Screen

• LCD Display Screen Driver Control Board

• 8 Inch Capacitive Touch Screen

• Touch Screen Converter

• USB Power Cable

• USB Touch Screen Connecting Cable

• Remote Control

• Key board

• Key board connection Line

• Screen conversion Flat Cable

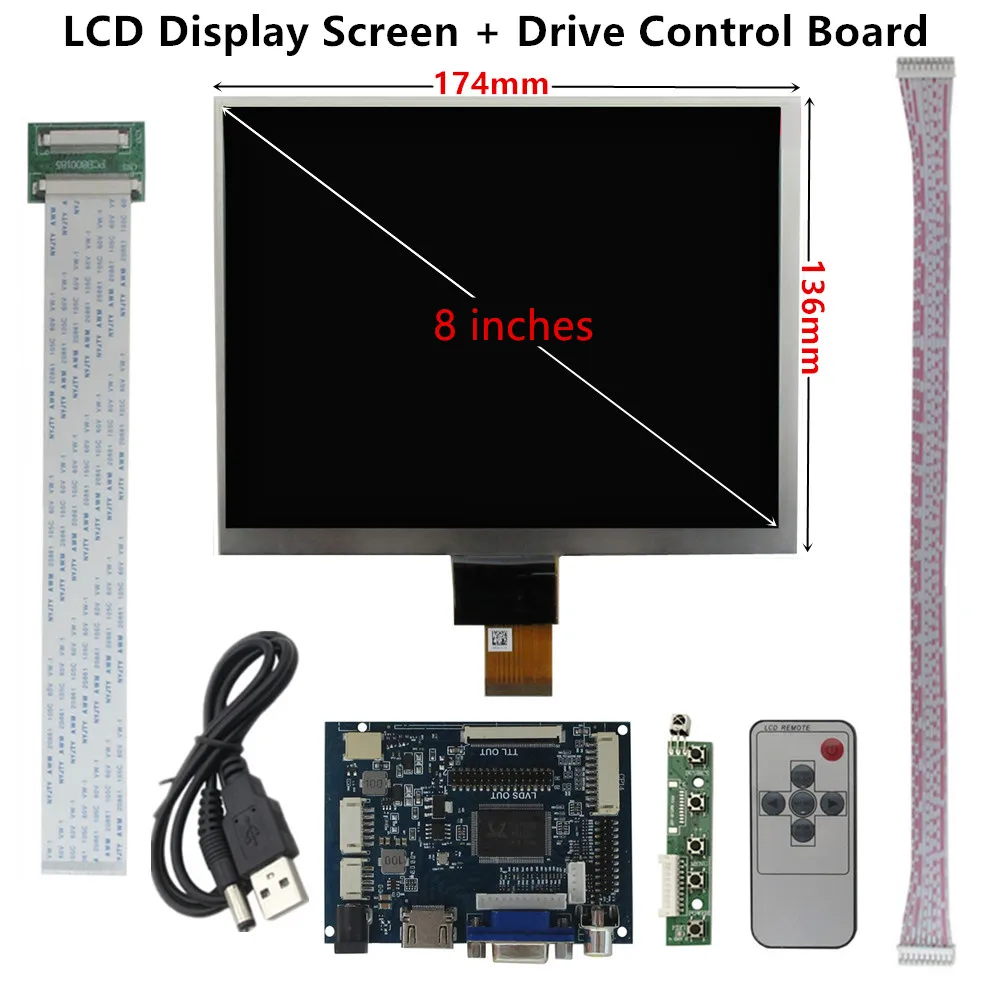

LCD and Driver Board：

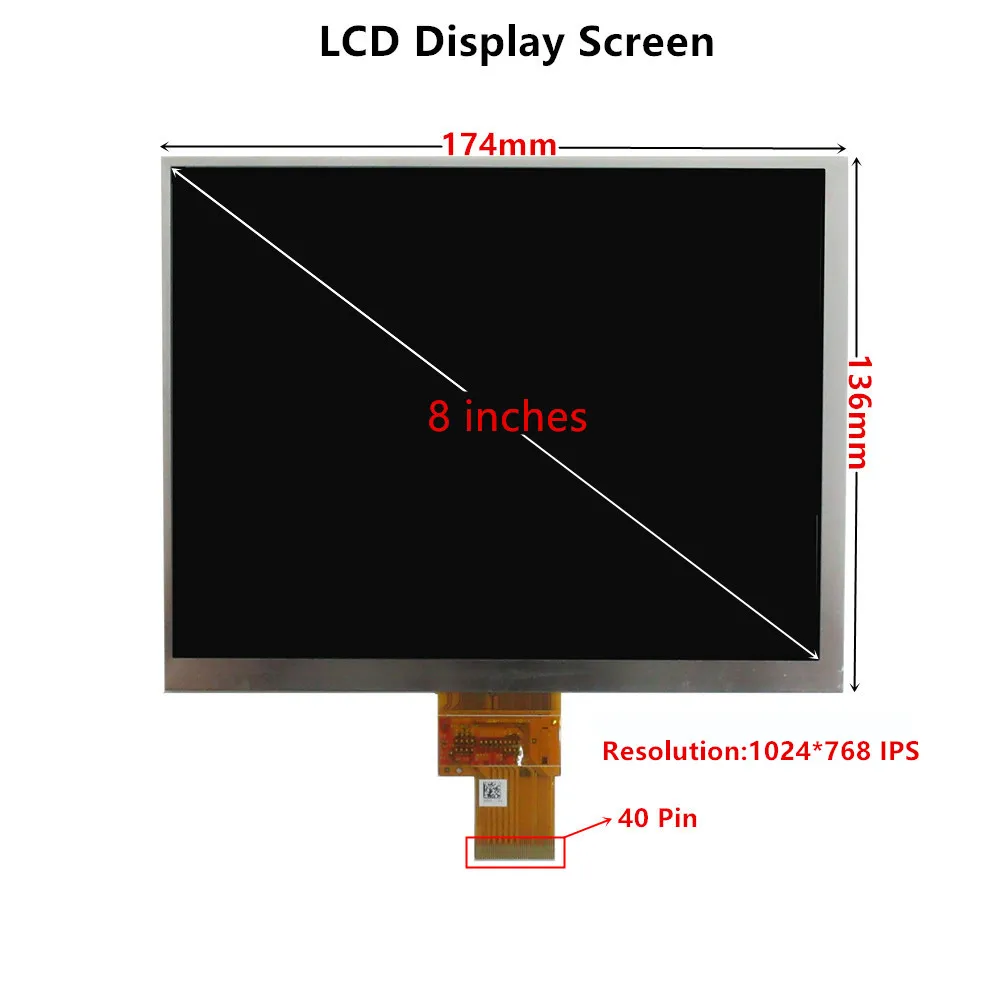

• 8 Inch 1024*768 IPS LCD Display Screen

• LCD Display Screen Driver Control Board

• USB Power Cable

• • Remote Control

  • Key Board

  • Key Board Connection Line

  • • Screen conversion Flat Cable

Only LCD Display：

• • • • 8 Inch 1024*768 IPS LCD Display Screen

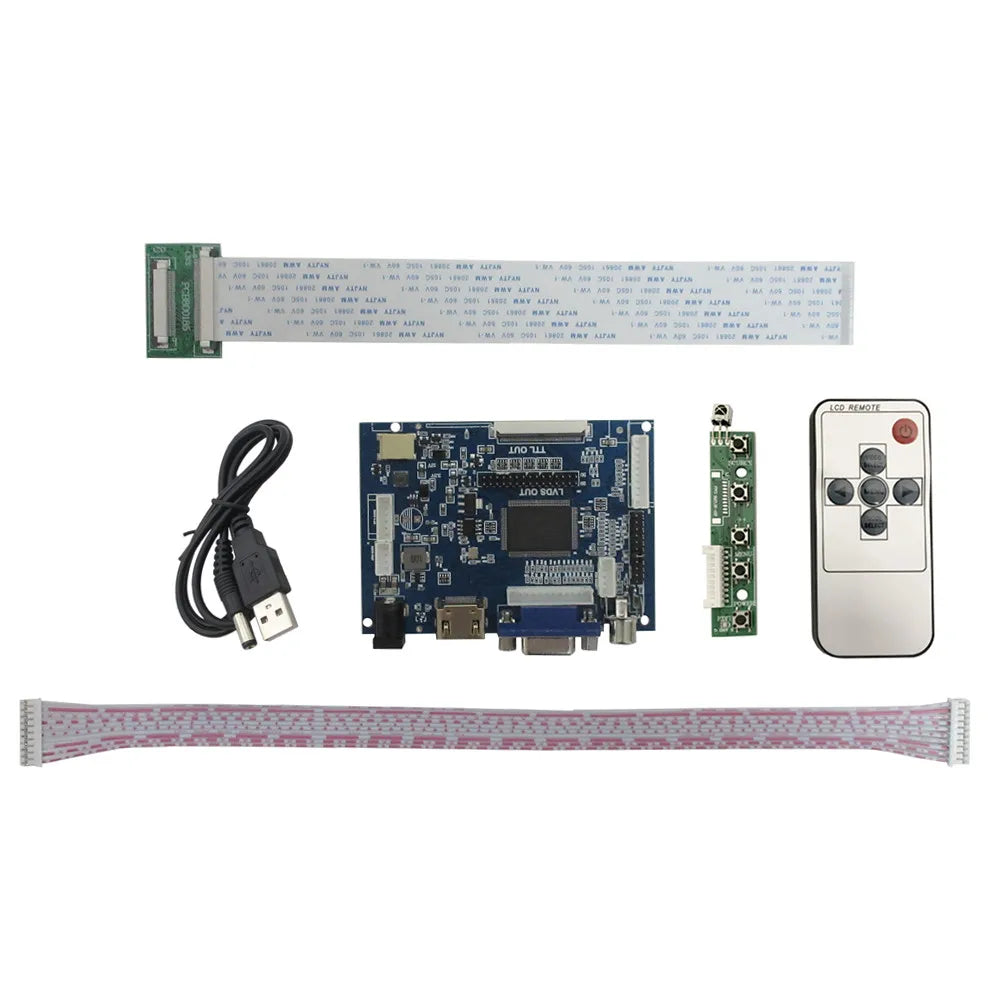

        Only Driver Board：

• LCD Display ScreenDriver Control Board

• USB Power Cable

• • Remote Control

  • Key board

  • Key board connection Line

  • Screen conversion Flat Cable

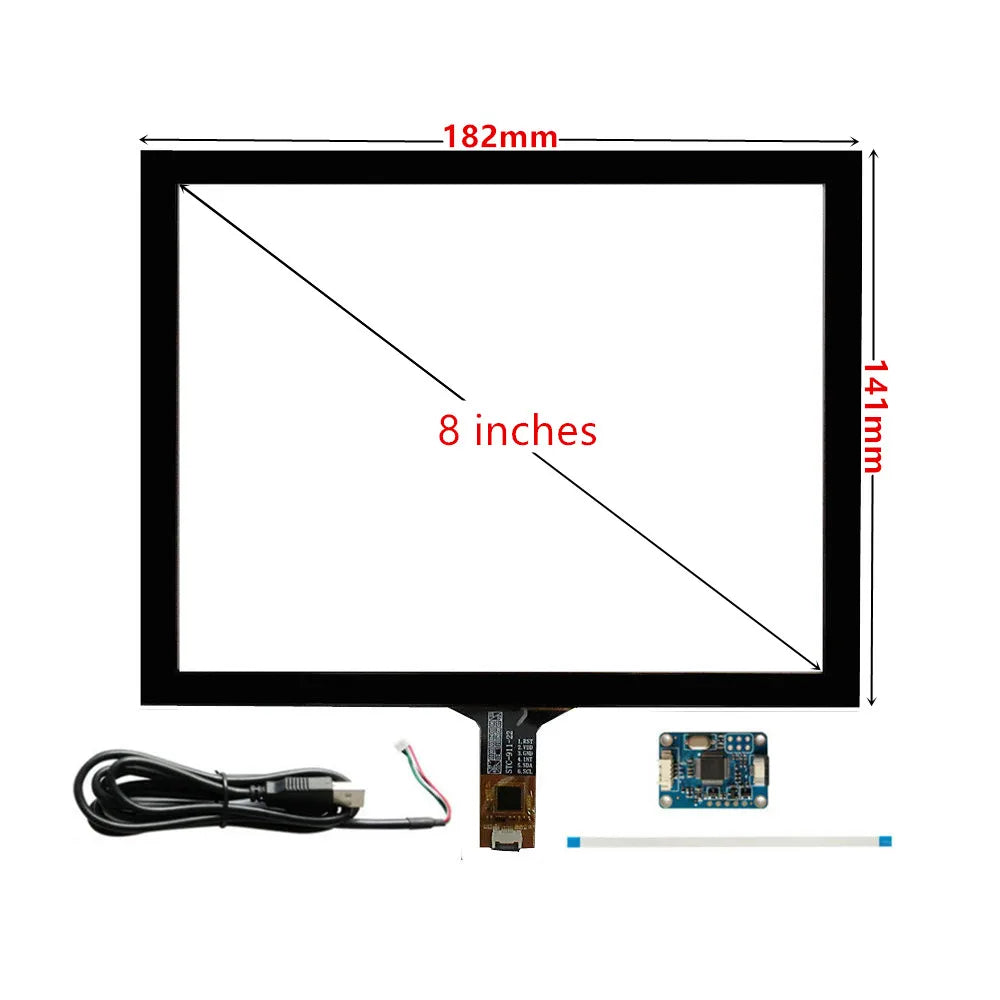

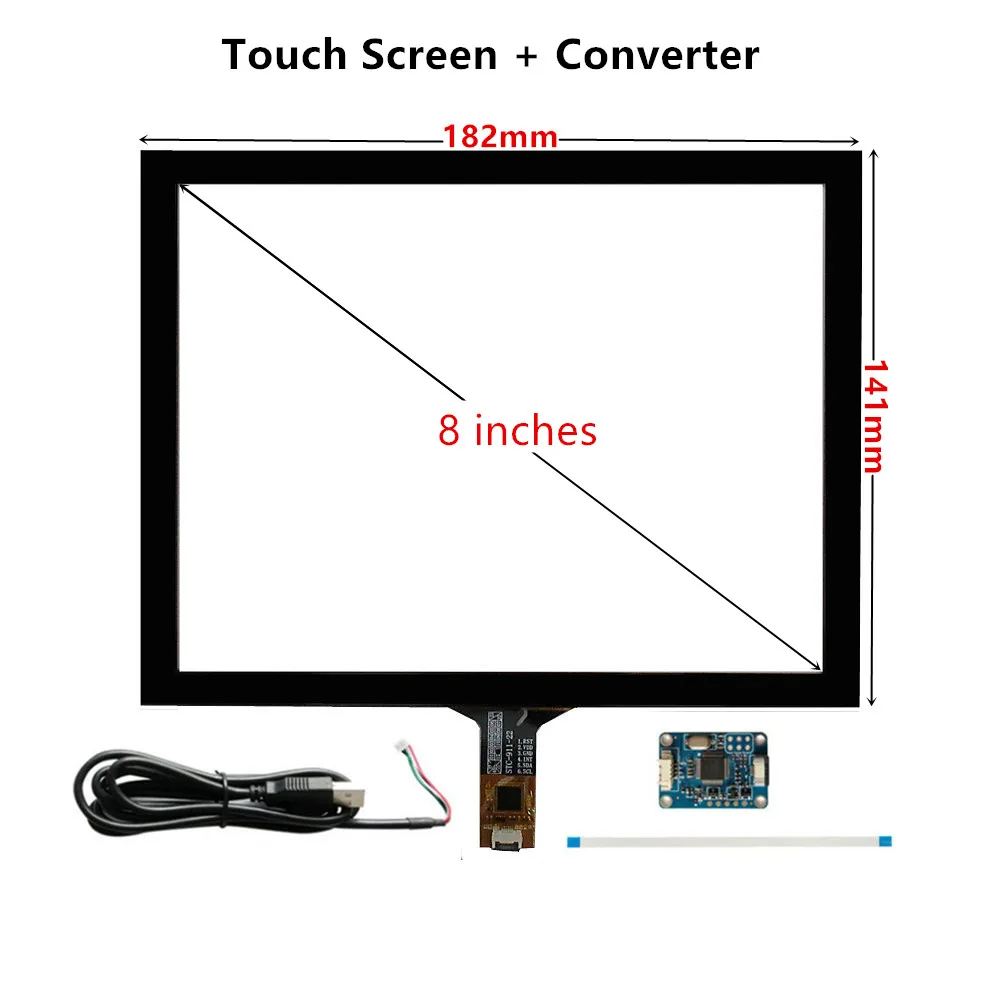

Only Touch Screen:

• 8 Inch Capacitive Touch Screen

• Touch Screen Converter

• USB Touch Screen Connecting Cable





 Welcome Customize Order!
