Custom 8 channel relay module 24V high and low level trigger relay control with optocoupler for PLC automation equipment control Manufacturer
Custom 8 channel relay module 24V high and low level trigger relay control with optocoupler for PLC automation equipment control Manufacturer
Regular price
$4.77 USD
Regular price
$4.77 USD
Sale price
$4.77 USD
Unit price
per
Couldn't load pickup availability

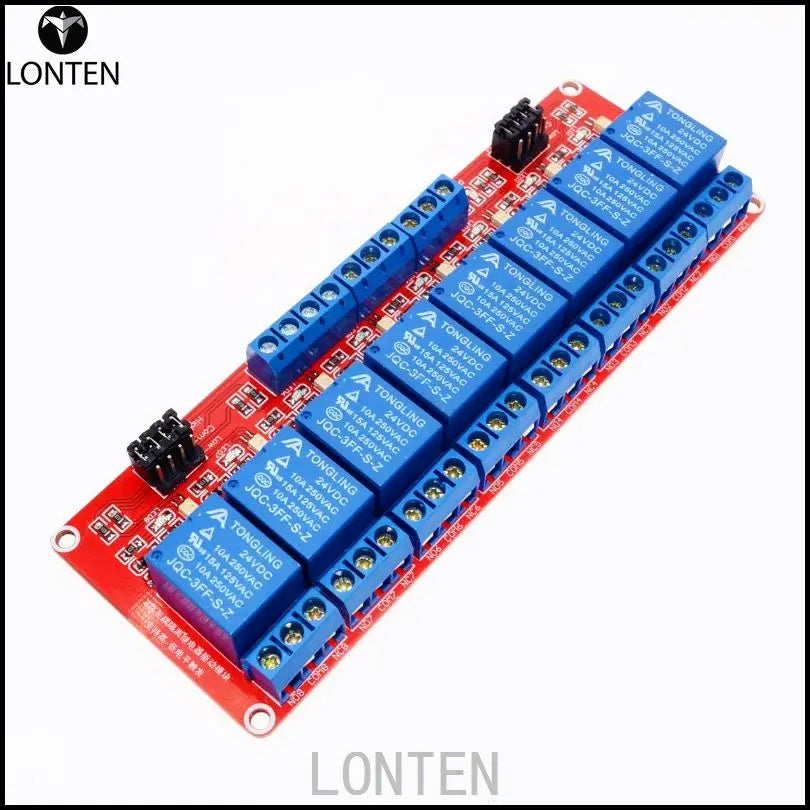

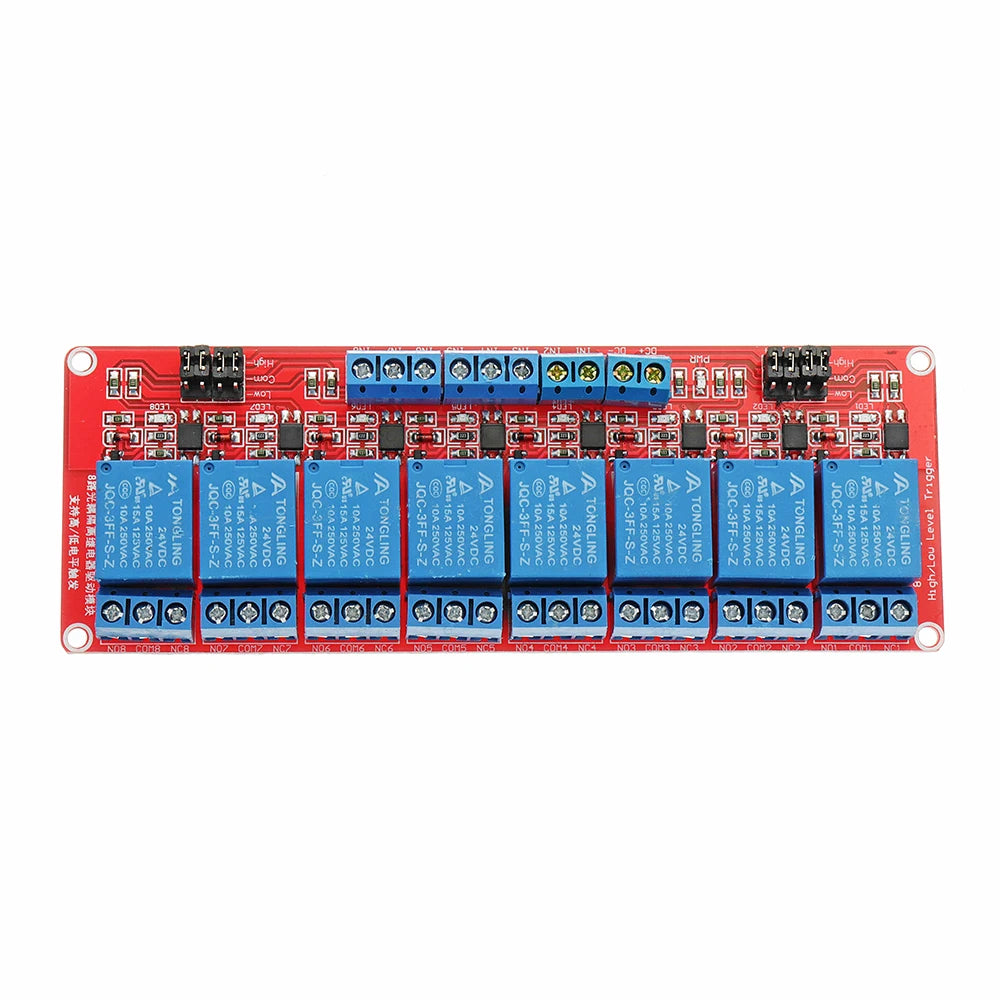

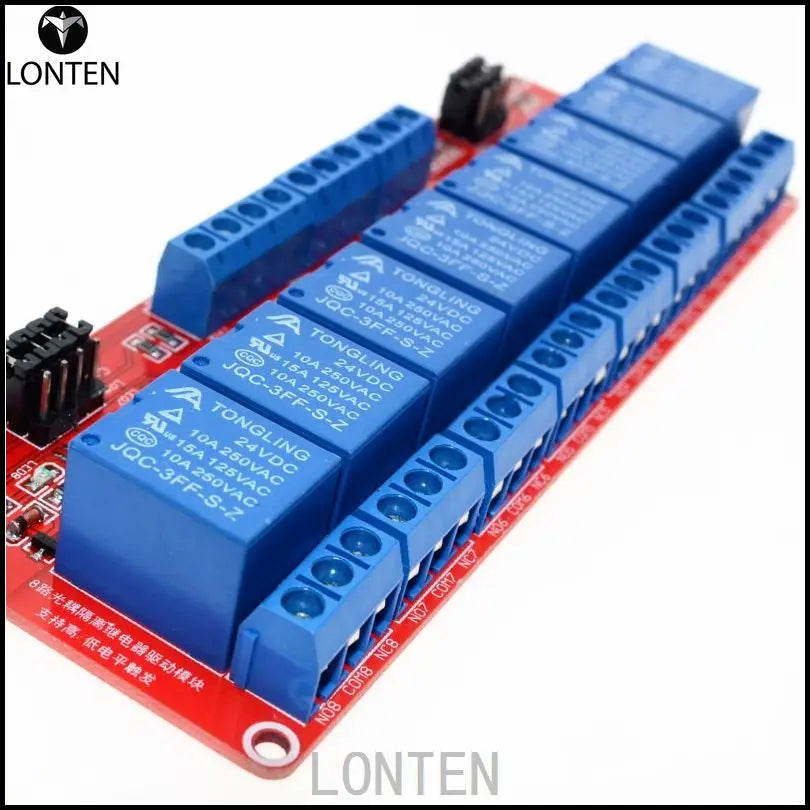

8 channel relay module 24V high and low level trigger relay control with optocoupler for PLC automation equipment control
Features:
1.Dual trigger design, use a dedicated two-way driver IC.
2.Strong resist interference, use diode continued current to protect it.
3.The relay contact part adopts double cloth line for large current, safe and reliable.

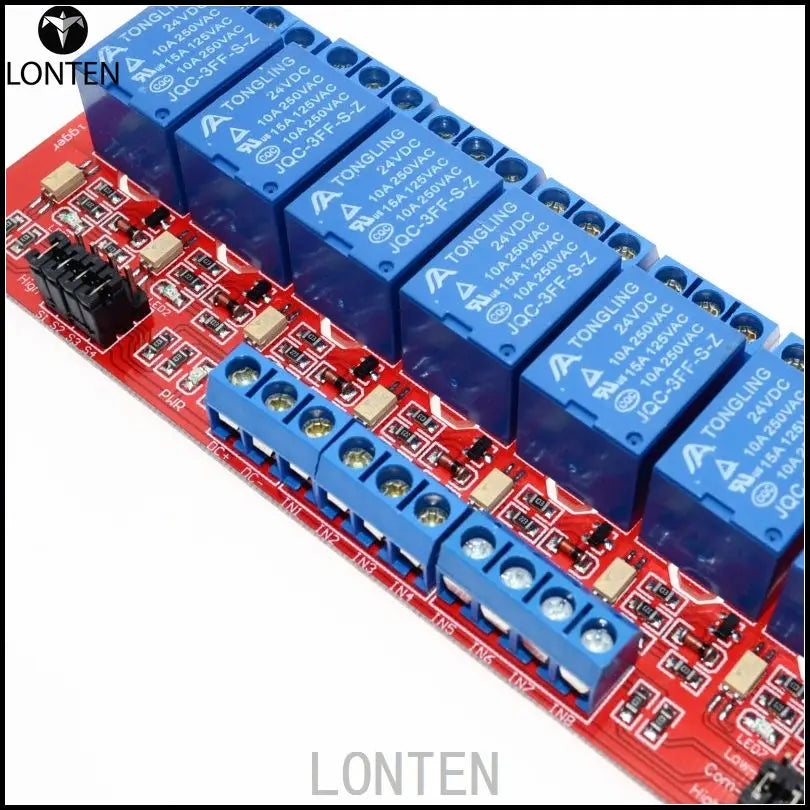

4.The input and output are 5.08mm wiring terminals, wiring is more convenient, suitable for PLC control.
5.Input terminals can be arbitrarily set high and low level, the control mode is more flexible.
6.Equipped with fixing screw hole, easy to install.

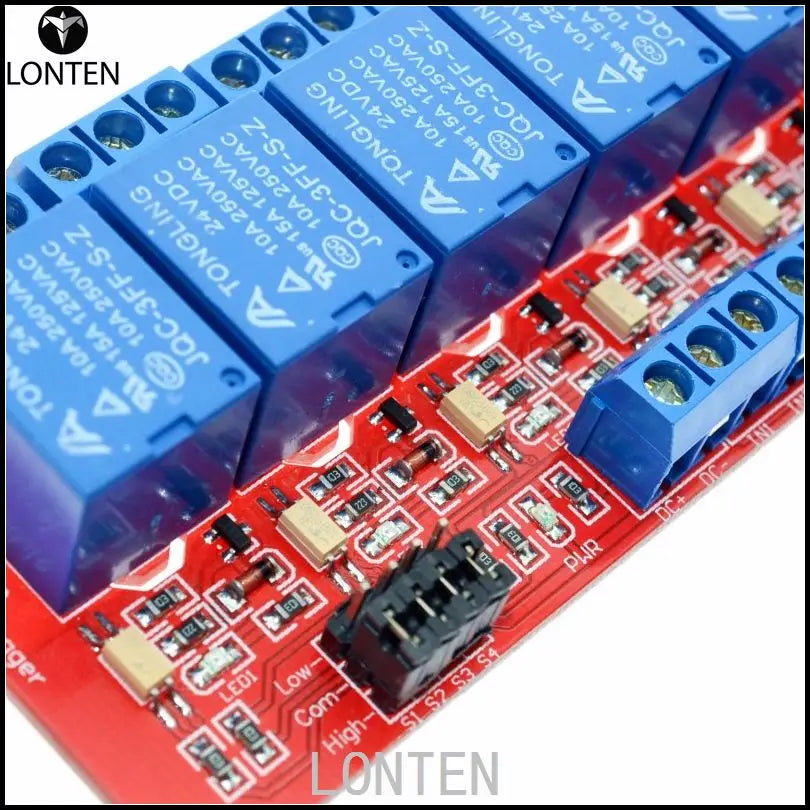

7.Each way module can be set high or low triggered by jumper.
Specifications:
Size: 141.5mm * 50mm * 18.5,
Material: Metal
Mounting bolts holes: 4
Holes diameter: 3mm
Voltage: 24V
Maximum load : AC 250V/10A, DC 30V/10A
Interface:
VCC: Power end
GND: Ground strap
CTR1-CTR8: Signal input trigger
Outputs:
24 line interface, the interface can be directly connected to all leads , user-friendly.
NO1-NO8: normally open relay interfaces , relay before the vacant after the pull shorted with COM
COM1-COM8: Relay Common Interface
NC1-NC8: normally closed relay interface relay shorted with COM ago , after the pull- vacant
Package Included:
1x 8 Channel Relay Module
1.Dual trigger design, use a dedicated two-way driver IC.
2.Strong resist interference, use diode continued current to protect it.
3.The relay contact part adopts double cloth line for large current, safe and reliable.
4.The input and output are 5.08mm wiring terminals, wiring is more convenient, suitable for PLC control.
5.Input terminals can be arbitrarily set high and low level, the control mode is more flexible.
6.Equipped with fixing screw hole, easy to install.
7.Each way module can be set high or low triggered by jumper.
Specifications:
Size: 141.5mm * 50mm * 18.5,
Material: Metal
Mounting bolts holes: 4
Holes diameter: 3mm
Voltage: 24V
Maximum load : AC 250V/10A, DC 30V/10A
Interface:
VCC: Power end
GND: Ground strap
CTR1-CTR8: Signal input trigger
Outputs:
24 line interface, the interface can be directly connected to all leads , user-friendly.
NO1-NO8: normally open relay interfaces , relay before the vacant after the pull shorted with COM
COM1-COM8: Relay Common Interface
NC1-NC8: normally closed relay interface relay shorted with COM ago , after the pull- vacant
Package Included:
1x 8 Channel Relay Module
Welcome Customize Order!
