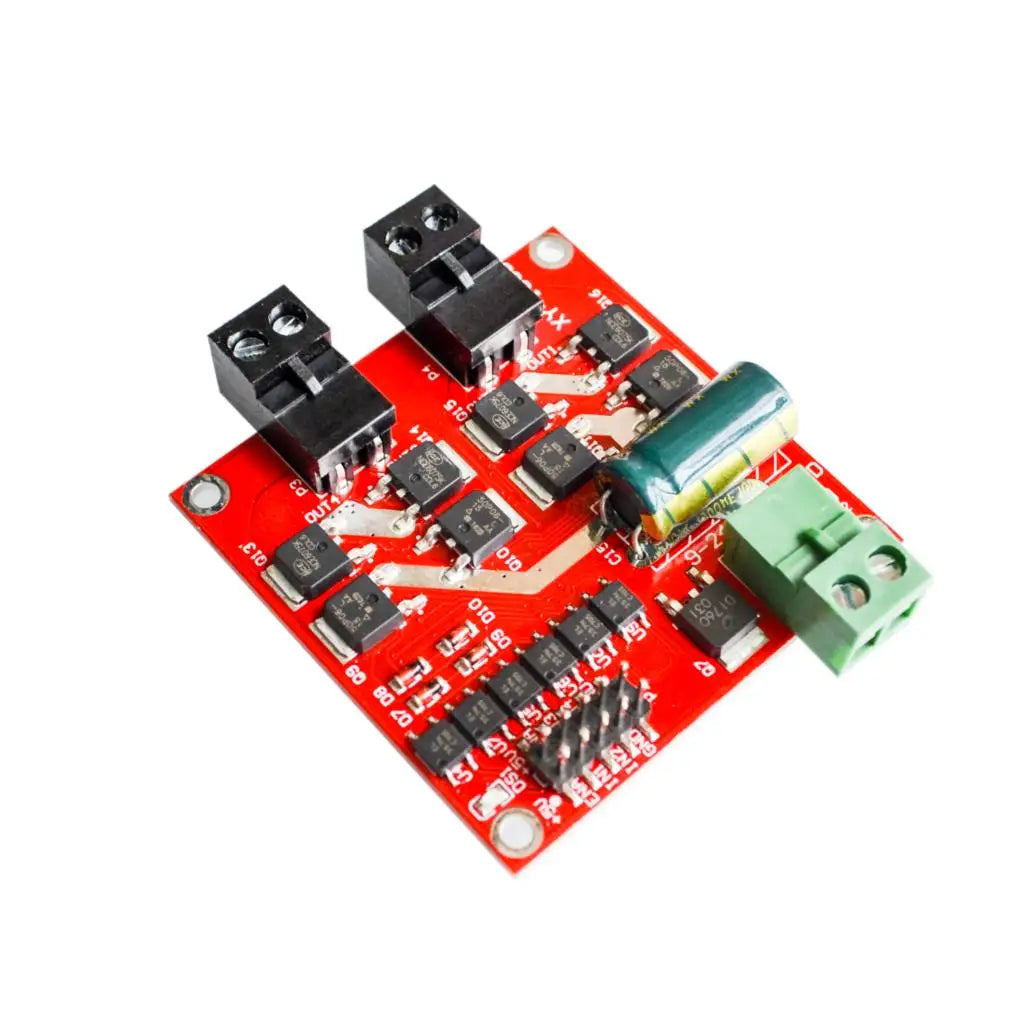

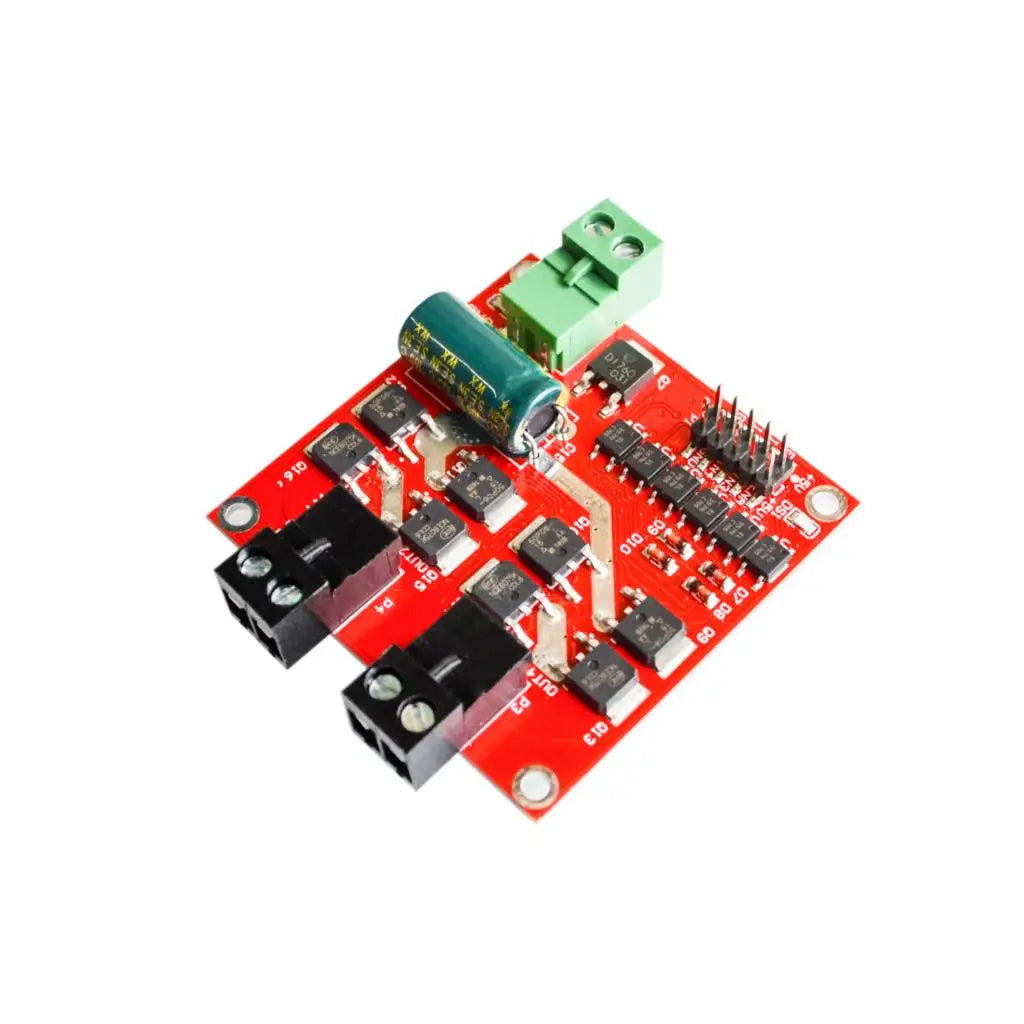

Product Introduction

• Model:XY-160D
• Double H bridge,which could drive two DC motors at the same time,single 7A current, high power;
• Wide vlotage input:6.5V-27V
• Signal optocoupler isolation input,With isolation and undervoltage protection and suit for EMC specifications for electromagnetic compatibility
• It is electrostatic discharge circuit and stable and reliable, industrial grade.



Product Parameter

• Dual motor interface, each rated output current 7A, peak current 50A, the motor interface must not short-circuit, the proposed series 10A fuse.
• Power supply voltage 6.5V-27V, power supply must not be connected to or over 27V, otherwise it may burn out the module, it is recommended that the power input in series 15A fuse.
• Working temperature -25 ° -80 °.
• Enable signal terminal (ENA) input PWM adjustable speed, PWM frequency range 0-10KHZ, PWM minimum pulse width 10us.
• Product size: 55 * 55 * 16mm (length and width).
• Control signal voltage 3-6.5V, respectively, is the enable signal and the positive inversion control signal.

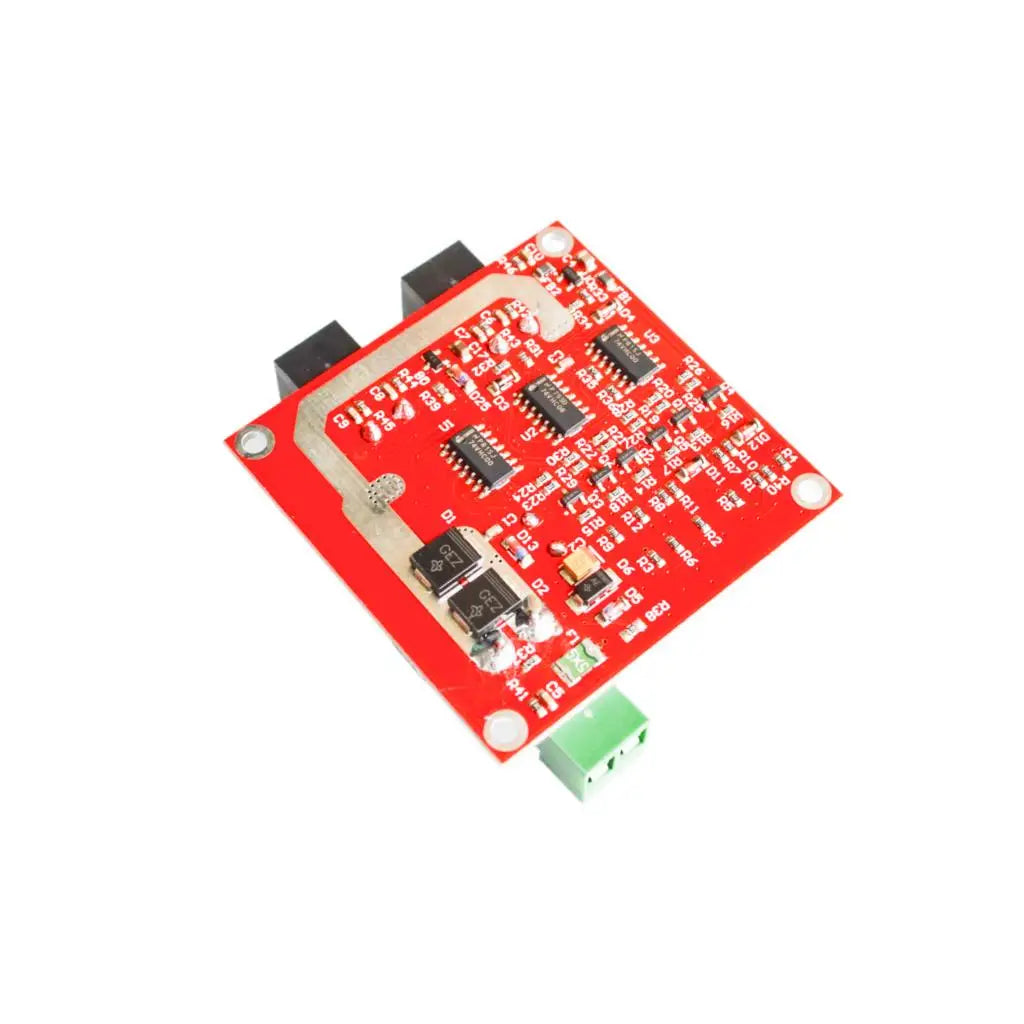

• Installation hole diameter: 3mm, attention should be paid to prevent short circuit on the back of the circuit, you can add insulation pad or copper column to raise the circuit board.
