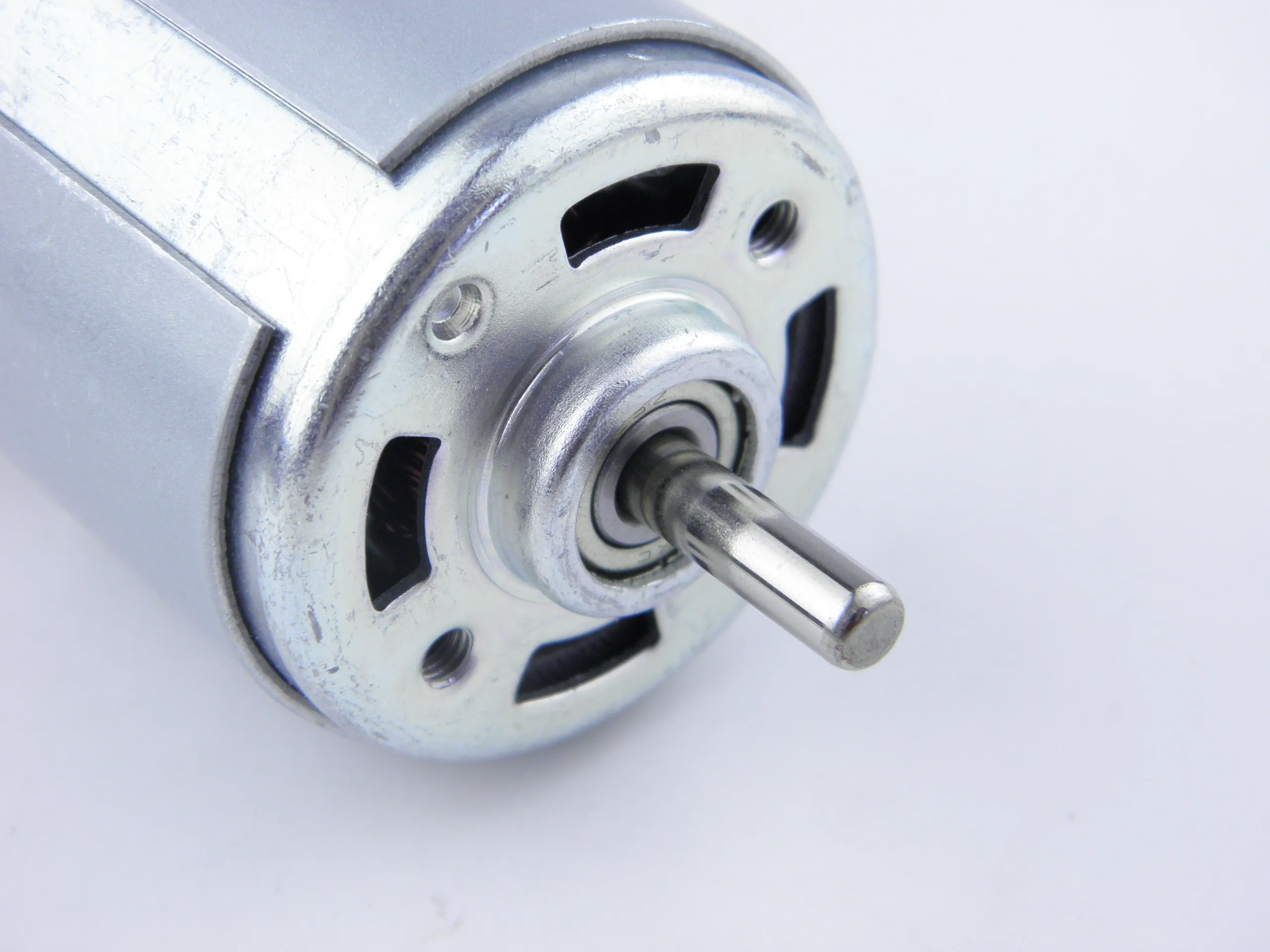

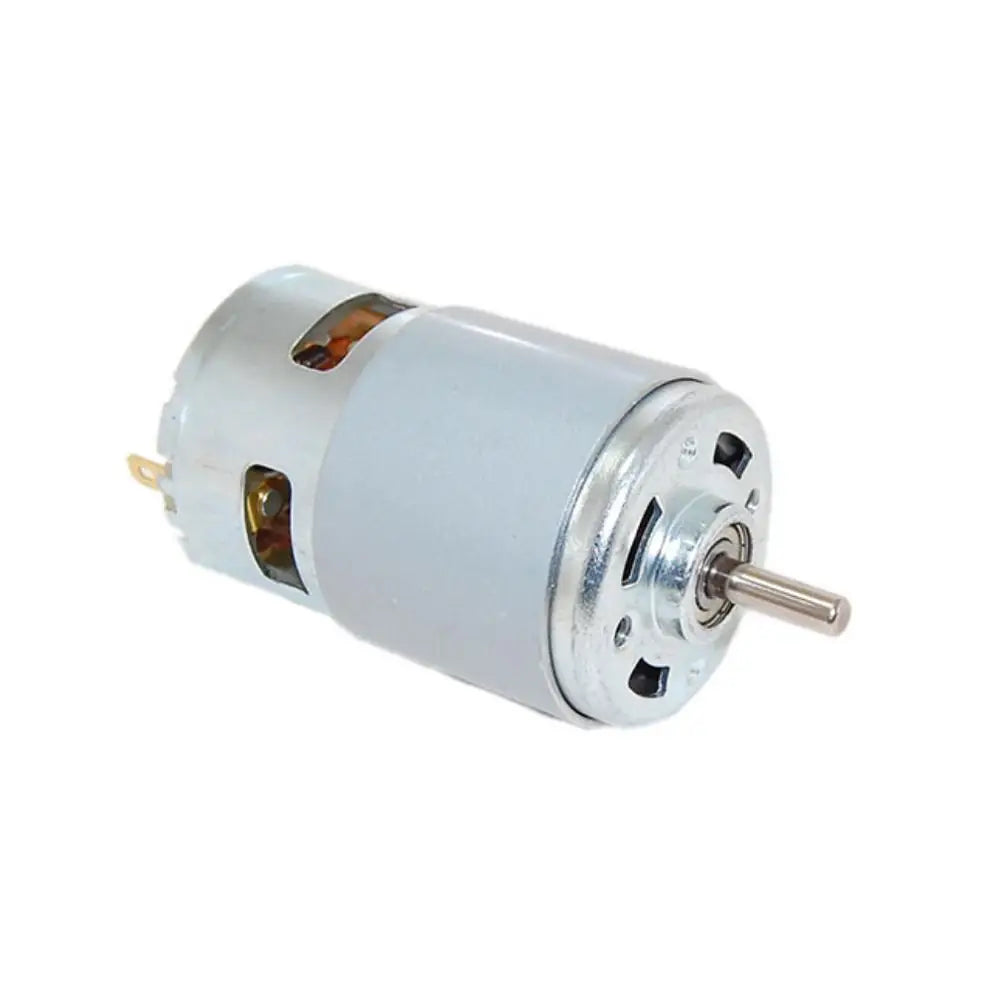

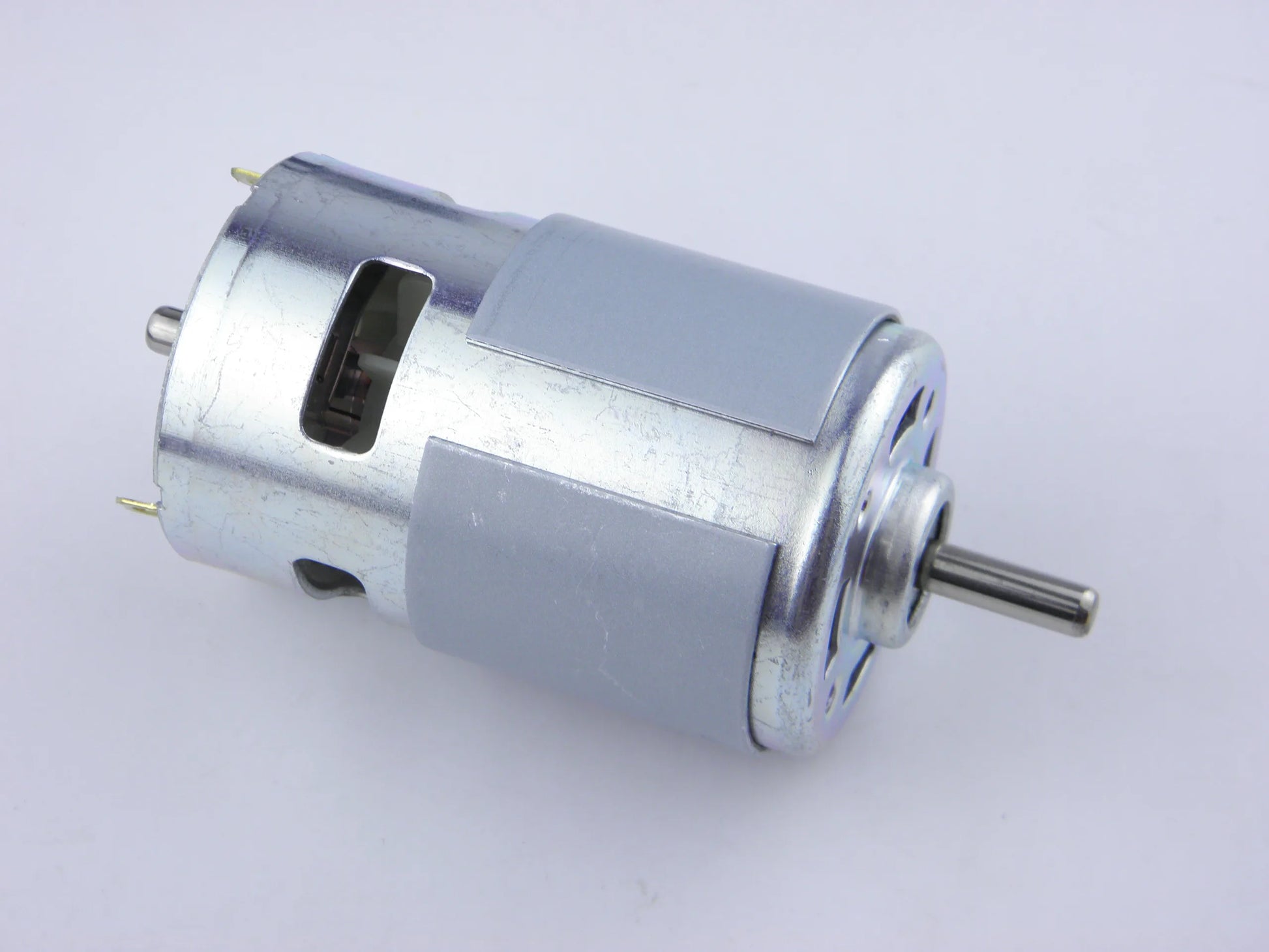

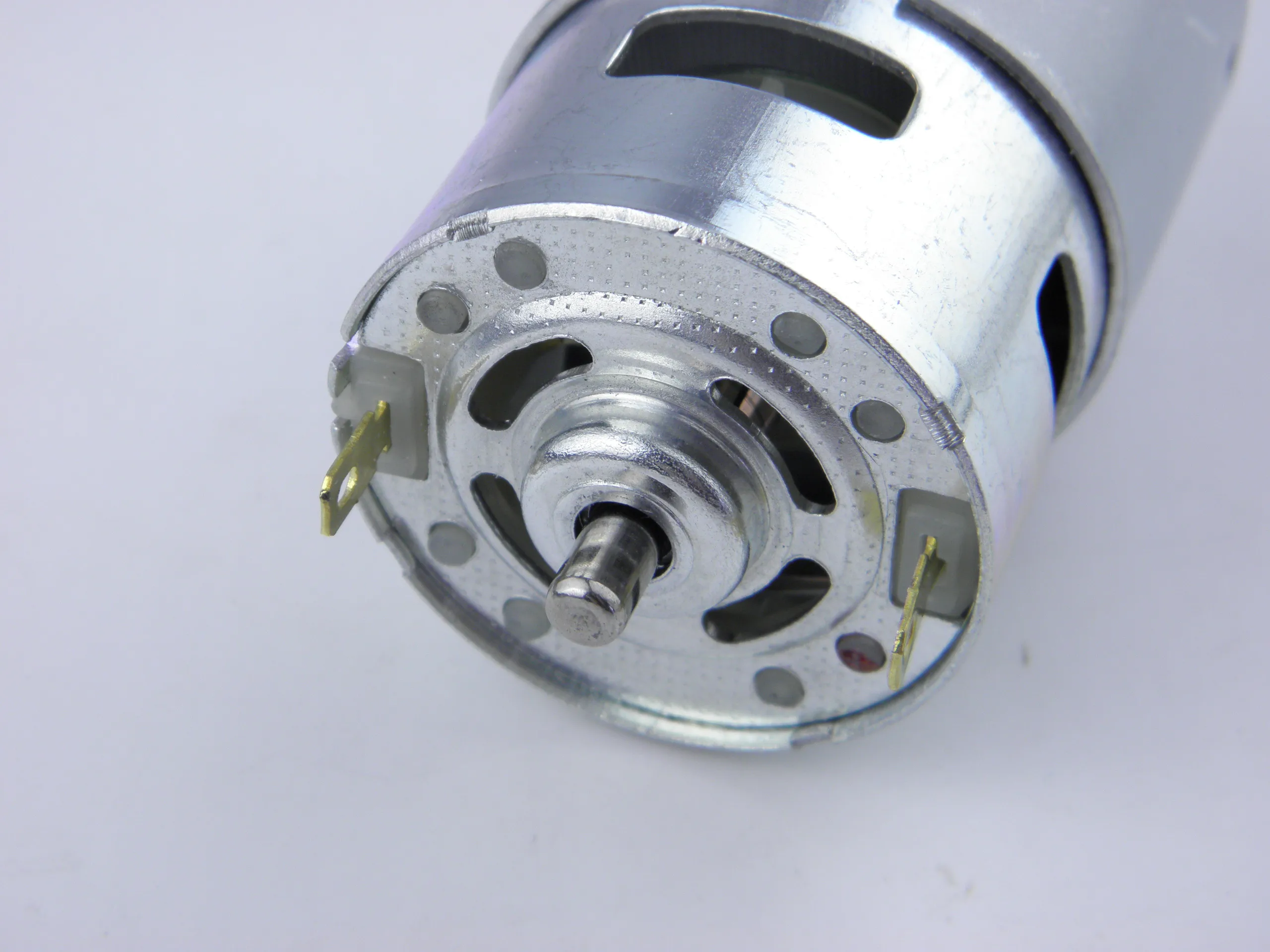

Custom 775 Motor 12V /24V DC Mini Gear Motor 14500RPM 29000RPM Gear Motor Electronic for DIY Electric Saw Manufacturer

*The motor is with ball bearing, large torque, low noise, built-in cooling fan,durable and long service life.

* Pure copper wire core rotor, with precision winding technology, high-temperature resistance, strong load capacity, sturdy and durable, effectively protect the gear box motor body.

* Used for electric fan, shredder, sprayer, small cutting machine, small table saw, money counter, printer, etc.

*Package: 1PCS x DC Motor.

Rated voltage: DC 12V, no-load speed: 14500RPM;

rated voltage: DC 24V, no-load speed: 29000RPM, DC 24V, No-load power: 20.4W;

It is recommended to use a power adapter above 5A for power supply, and the ideal power supply current is 8A.

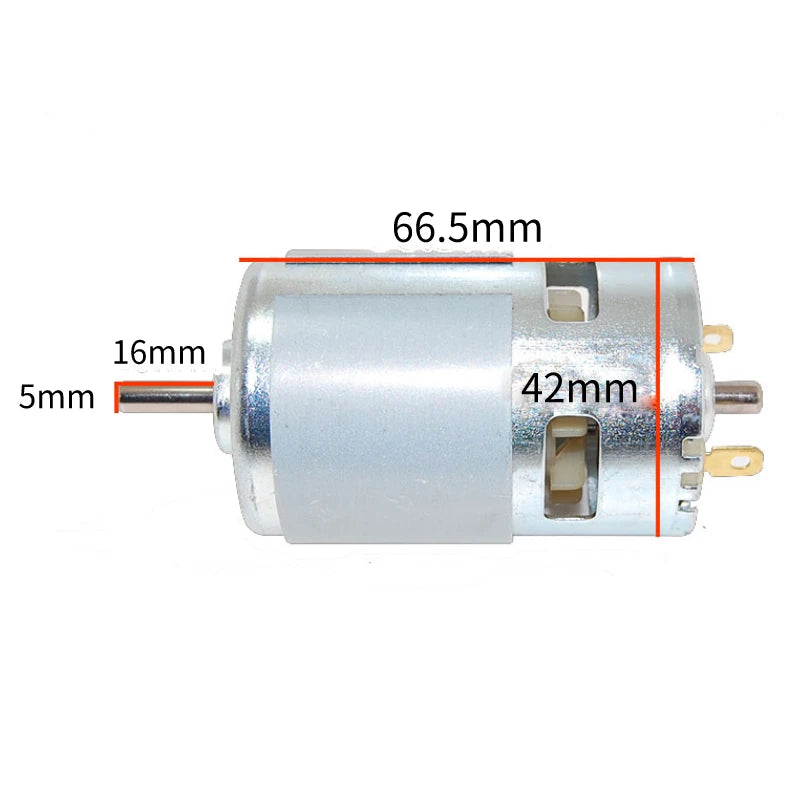

Motor Body Diameter: 42mm

Motor Body Length: 66.5mm

Shaft Length: 16mm

Shaft Diameter: 5mm
