Custom 7'' Screen Display LCD TFT Monitor Driver Control Board 2AV HD-Compatible VGA For Lattepanda,Raspberry Pi Banana Pi Manufacturer

Custom 7'' Screen Display LCD TFT Monitor Driver Control Board 2AV HD-Compatible VGA For Lattepanda,Raspberry Pi Banana Pi Manufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out

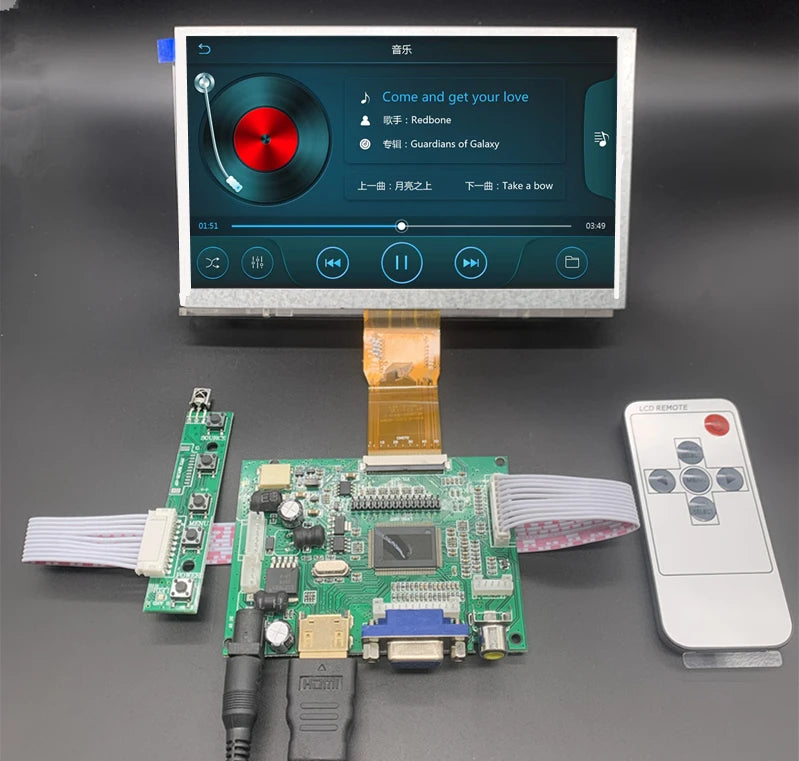

7HD LCD Display Screen High Resolution Monitor Remote Driver Control Board 2AV HD-Compatible VGA For Raspberry Pi Mini computer

(without touch Screen)



1--AV1 Interface



2--AV1,AV2 Interface



3--VGA Interface



4--VGA Extension Interface



5--HD High-Definition Interface



6--DC5.5mm Power Interface



7--Power Extension Interface



8--High Voltage Board Power Supply



9--LED Display Backlight Power supply



10--Lvds Display Interface



11--50Pin TTL Display Interface



12--Button Board Interface



13--Resolution Adjustment Shorting Block



Adapt to 5V-12V 2A Power supply














Specifications

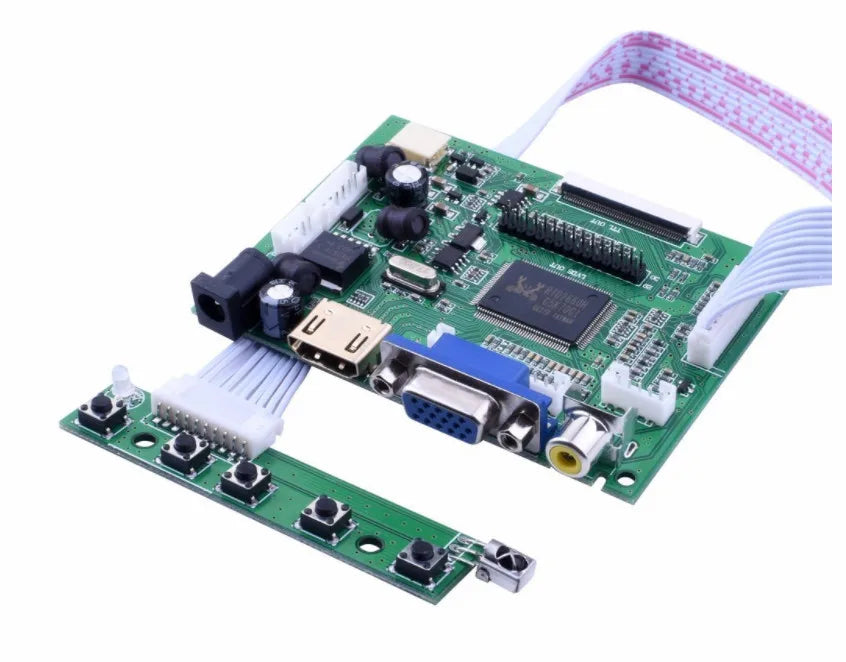

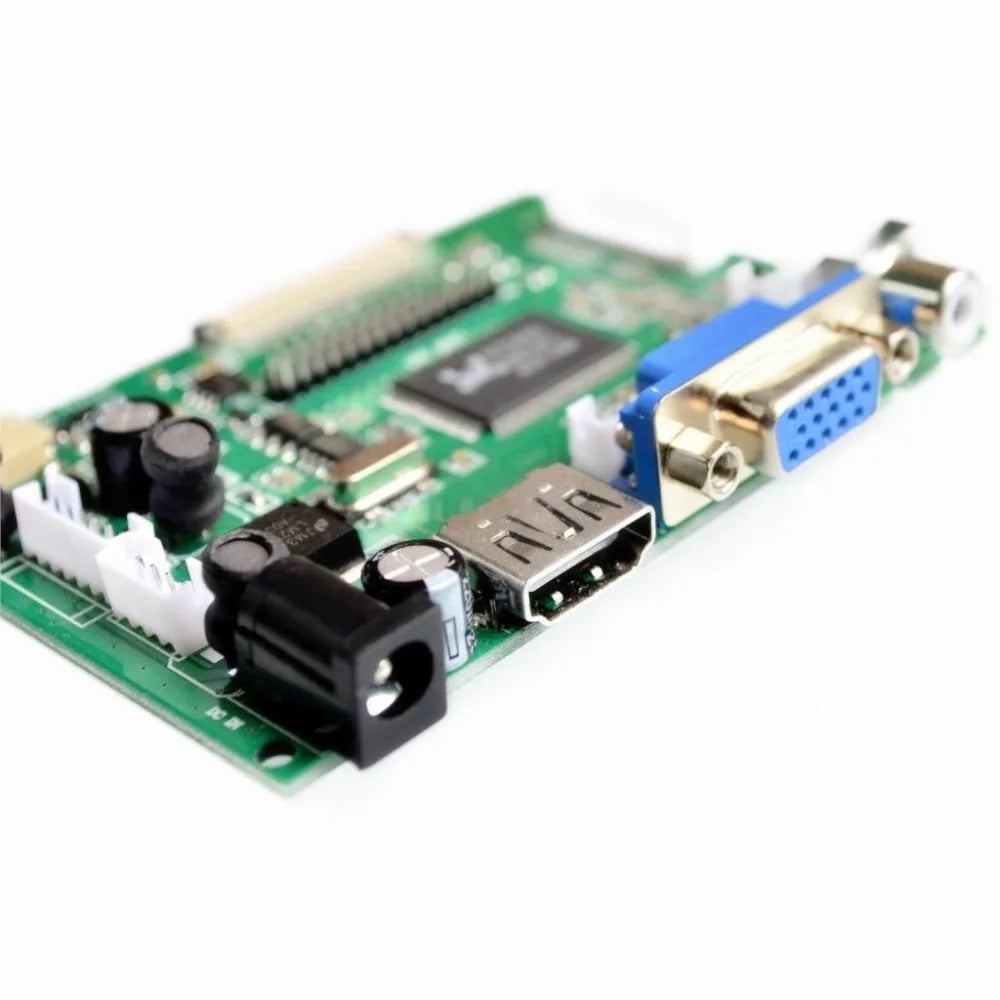

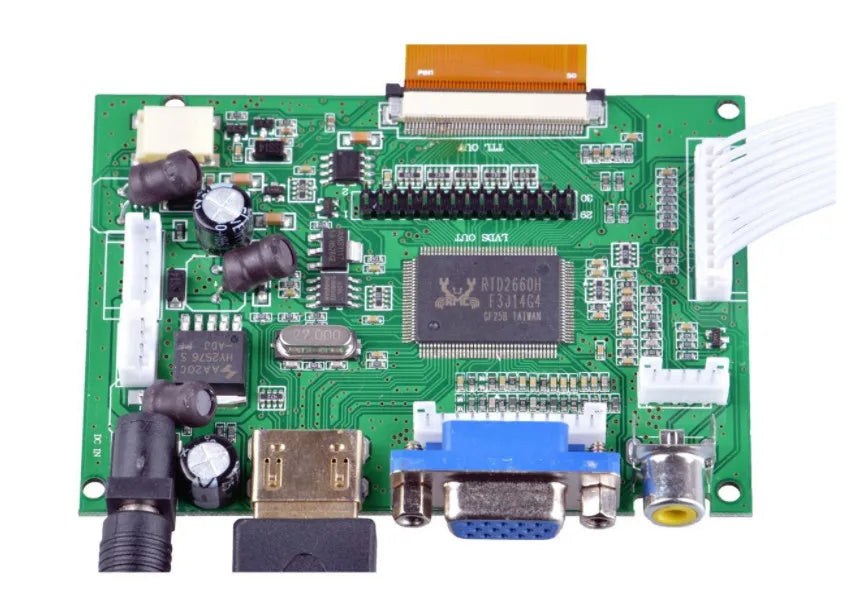

PCB-800099 Driver board



1. Product description:

This driver board uses SIXTHHD-HD1 main control IC

This driver board can

1,1 VGA signal input

2,2 AV signal inputs

3,1 HD signal input, and this IC supports HD1.2

4,1 road reverse signal input

5,Support wide voltage input, and can work normally between 4.5V-20V

6,Standard backlight 6PIN, interface, can be connected with high voltage board

7,Driver board integrated LCD screen LED backlight driver board

8,Standard LVDS signal output, can support single 6, single 8, double 6, double 8 and other standard LVDS signal LCD screen, but only supports LCD screen with 3.3V power supply

9,Standard button board interface, and supports dual-color LED indicator display

10,Support TTL signal output

Compatible General 50PIN 1024*600 resolution interface TTL LCD screen

11,Support reverse control, and display on AV2, reverse voltage supports voltage input within 50V

12,This drive board has four positioning holes

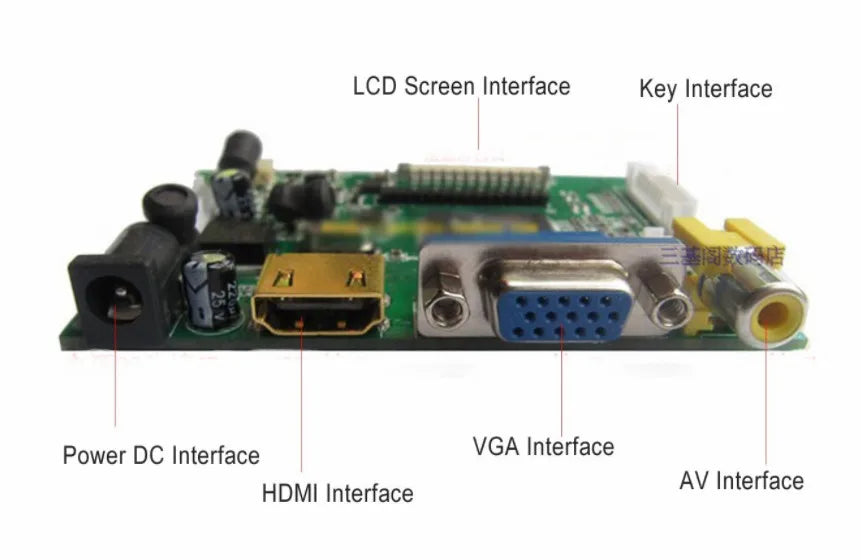

Interface function description

Tag

Function Description

Remarks

RCA1

AV  Input



TP1

AV



J4

VGA Input



DB15

VGA Input



HD

HD Input

HD standard is 1.1

DCIN

power input



J3

power input



J1

External high voltage board port



J7

LED Backlight seat



CON1

TTL-50PIN Signal output



CN1

LVDS Signal output



J6

Buttons, remote control, LED indicator interface



AV simulation

NTSC

support

PAL

support

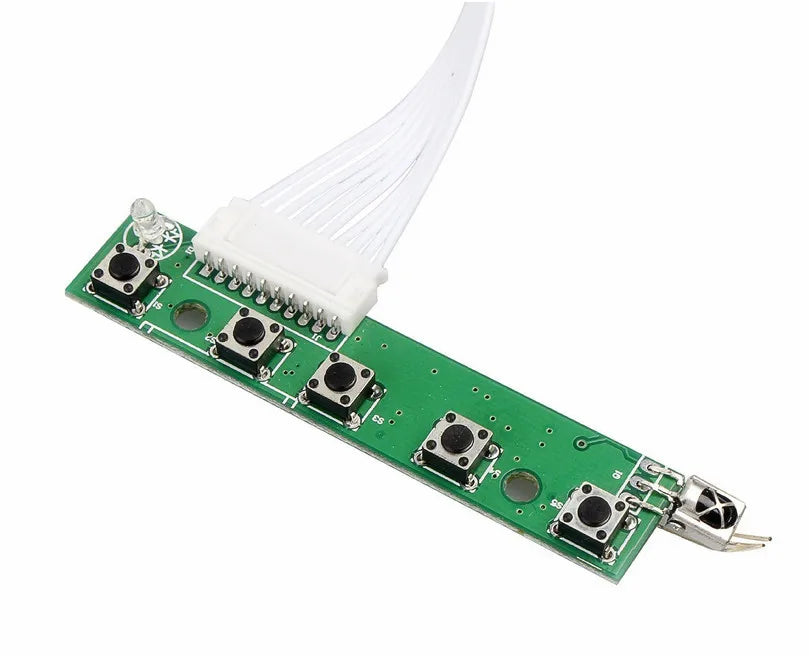

Keypad, remote control input interface

Serial number

definition

Explanation

1

5V

Remote control power supply, actually 3.3V

2

GND

GND

3

IR

Remote input

4

POWER

Switch function

5

MENU

Menu display function

6

+

plus

7

_

Less

8

SOURCE

Signal conversion

9

LED-R

LED Indicator light

10

LED-G

LED Indicator light

VGA signal input interface

Serial number

definition

Explanation

High voltage board interface

1

+12V

Positive power input

2

+12V

Positive power input

3

EN

High voltage board switch signal

5

GND

GND

6

GND

GND

LVDS Screen interface

Serial number

definition

Explanation

1

VCC

LCD power supply

2

VCC

LCD power supply

3

VCC

LCD power supply

4

GND

GND

5

GND

GND

6

GND

GND

7

LAX0+

LVDS signal

8

LAX0-

LVDS signal

9

LAX1+

LVDS signal

10

LAX1-

LVDS signal

11

LAX2+

LVDS signal

12

LAX2-

LVDS signal

13

GND



14

GND



15

LACK+

LVDS signal

16

LACK-

LVDS signal

17

LAX3+

LVDS signal



18

LAX3-

LVDS signal

19

LBX0+

LVDS signal

20

LBX0-

LVDS signal

21

LBX1+

LVDS signal

22

LBX1-

LVDS signal

23

LBX2+

LVDS signal

24

LBX2-

LVDS signal

25

GND



26

GND



27

LBCK+

LVDS signal

28

LBCK-

LVDS signal

29

LBX3+

LVDS signal

30

LBX3-

LVDS signal



DCIN Power interface

1

+12V

Positive power input

2

+12V

Positive power input

3

GND

GND

4

GND

GND



HD interface

1

HD Standard interface

Standard wire available



AV signal and reversing control power interface

1

ACC

Reversing voltage input, forced to AV2 after 12V input

2

AV1

AV1 Input

3

GND

GND

4

AV2

AV2 Input

5

GND

GND



VGA IN

1

GND

GND

2

V

V

3

H

H

4

GND

GND

5

R

R

6

GND

GND

7

G

G

8

GND

GND

9

B

B



10

GND

GND

11

SDA

For upgrading

12

SCL

For upgrading
