Custom 7 inch LCD display module kit 1024 * 600 LCD panel USB Play video HD-compatible Raspberry Pi advertising Car LCD Module Manufacturer

parameters and description

Screen ： 7 inch Resolution: 1024 (RGB) × 600 [FHD] Display area: 153.84 (horizontal) × 85.63 (vertical) mm Appearance size: 165 (horizontal) × 100 (vertical) × 3.0 (thickness) mm Opening area: 258.32 (horizontal) × 146.18 (vertical) mm Display brightness： 200 cd/m2 (Typ.) Response time: 16 (Typ.)(Tr/Td) ms Light source type: WLED, 12K hours, with LED driver Interface Type: 40 pins Signal Interface: HDMI USB（Support playing video） Voltage: Micro USB 5V1A-2A Certification standards RoHS

Attention Please:

1.Please pay attention to the negative and positive pole. 2. when you connect power please don't hot plug, which may break the main IC 3.don't touch the driver board, and keep it insulation, don' let metal touch it. 4.please take care of the flat cable.

contenido del paquete

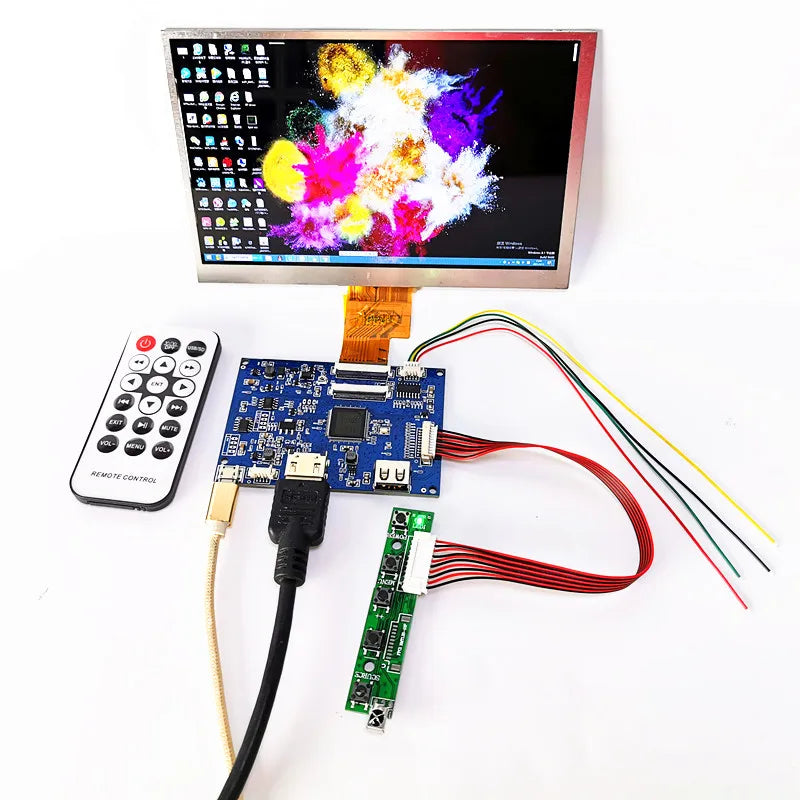

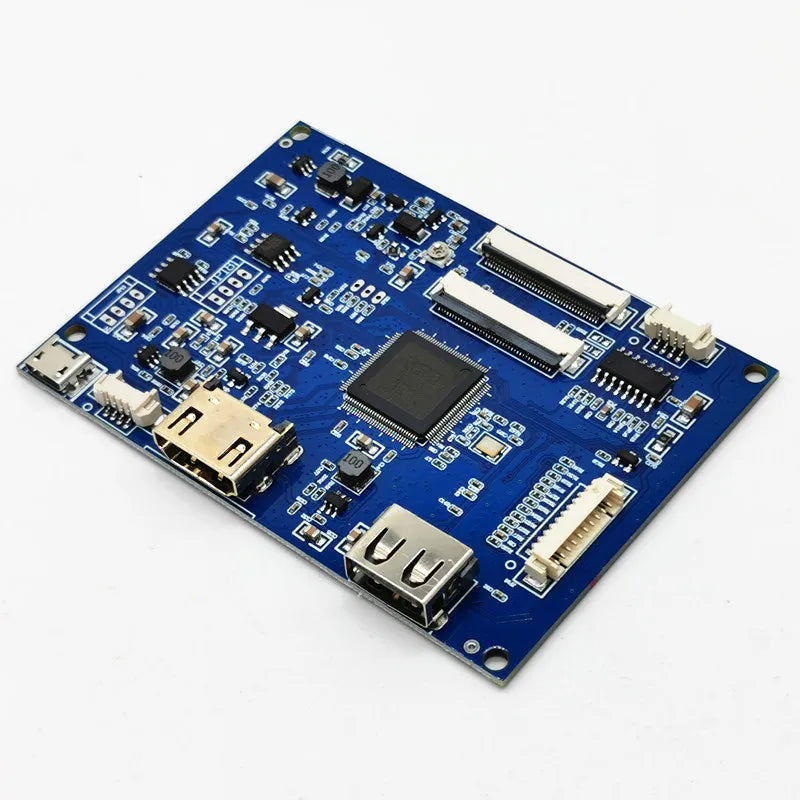

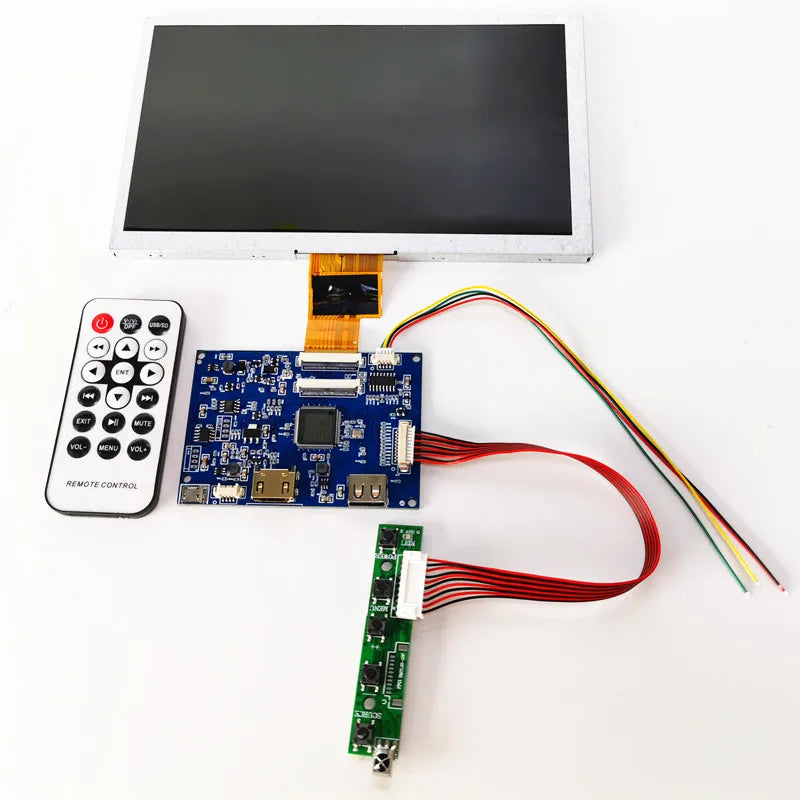

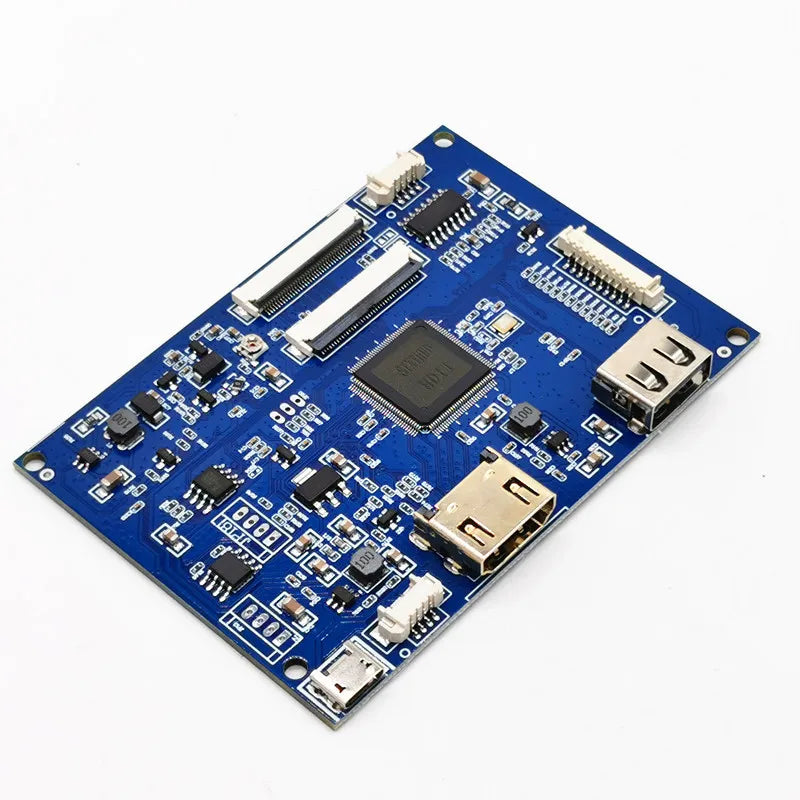

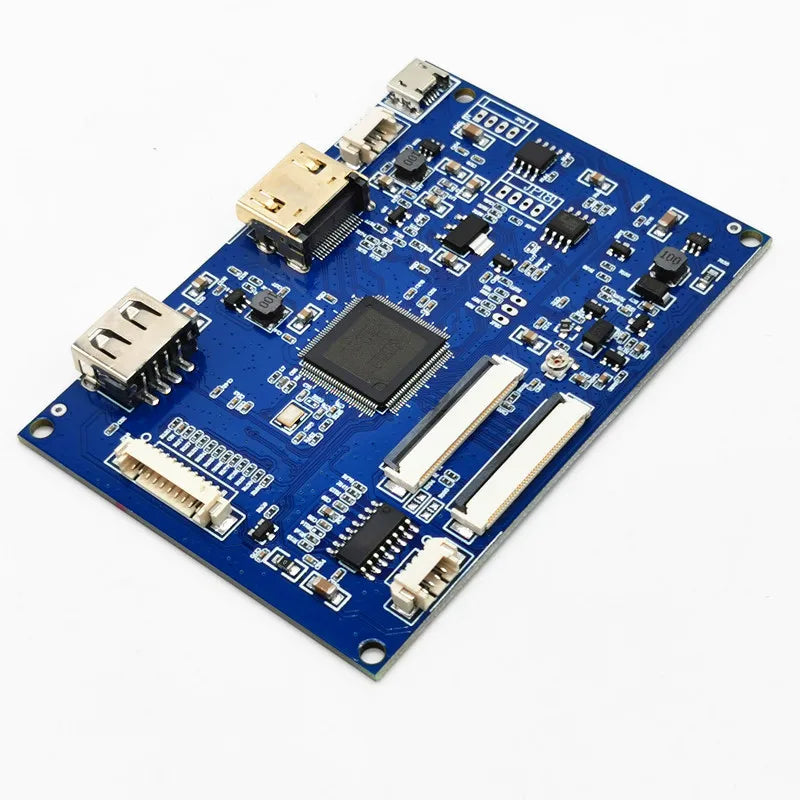

1 * 7 inch LCD 1 * Driver board 1 * teclado OSD 1 * Loudspeaker cable
