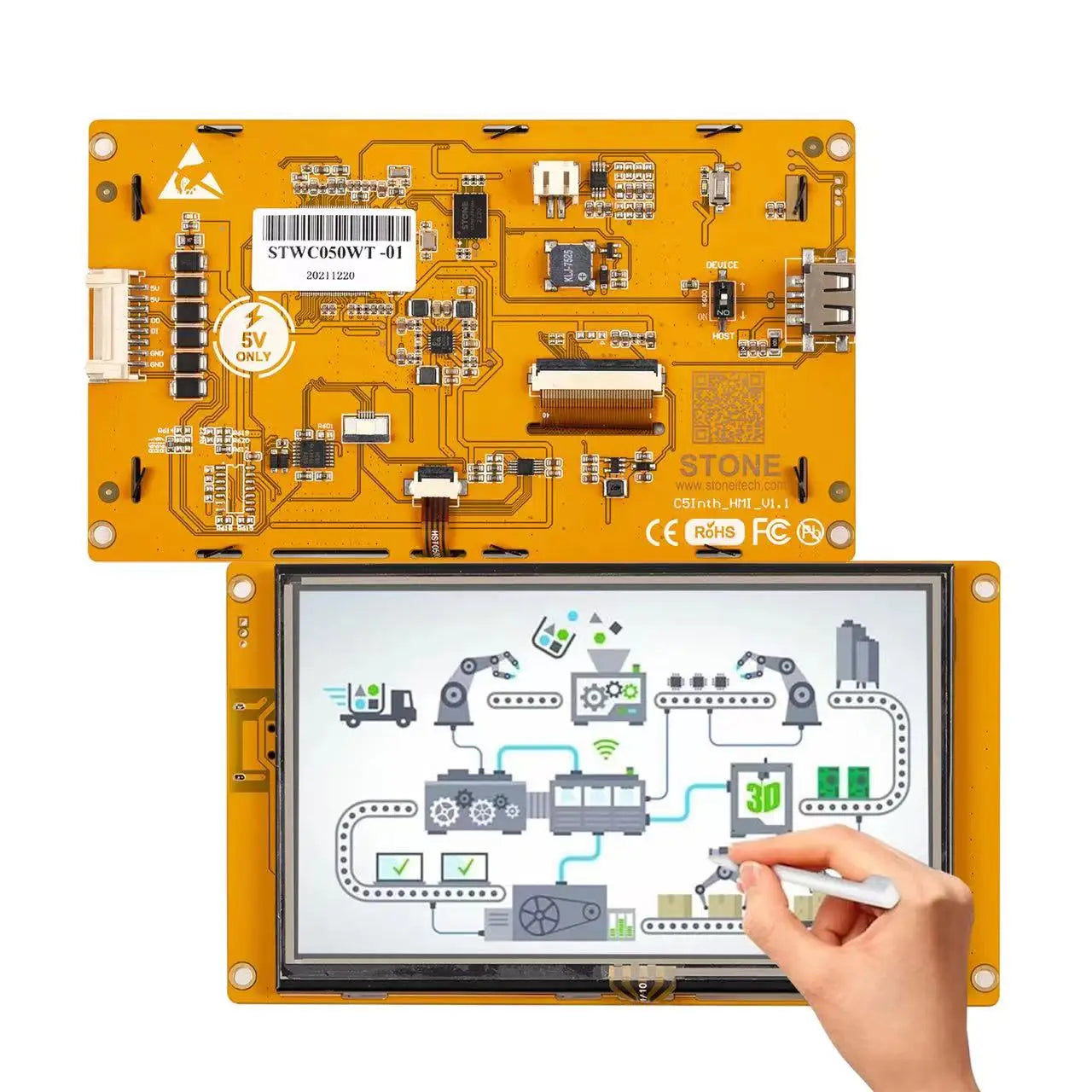

Custom 7 Inch HMI Smart TFT LCD Display Module with Controller + Program + Touch + UART Serial Interface Manufacturer
Custom 7 Inch HMI Smart TFT LCD Display Module with Controller + Program + Touch + UART Serial Interface Manufacturer
Couldn't load pickup availability
New Launch intelligent C-Series 3.5 inch-10.1 inch TFT LCD Display Module

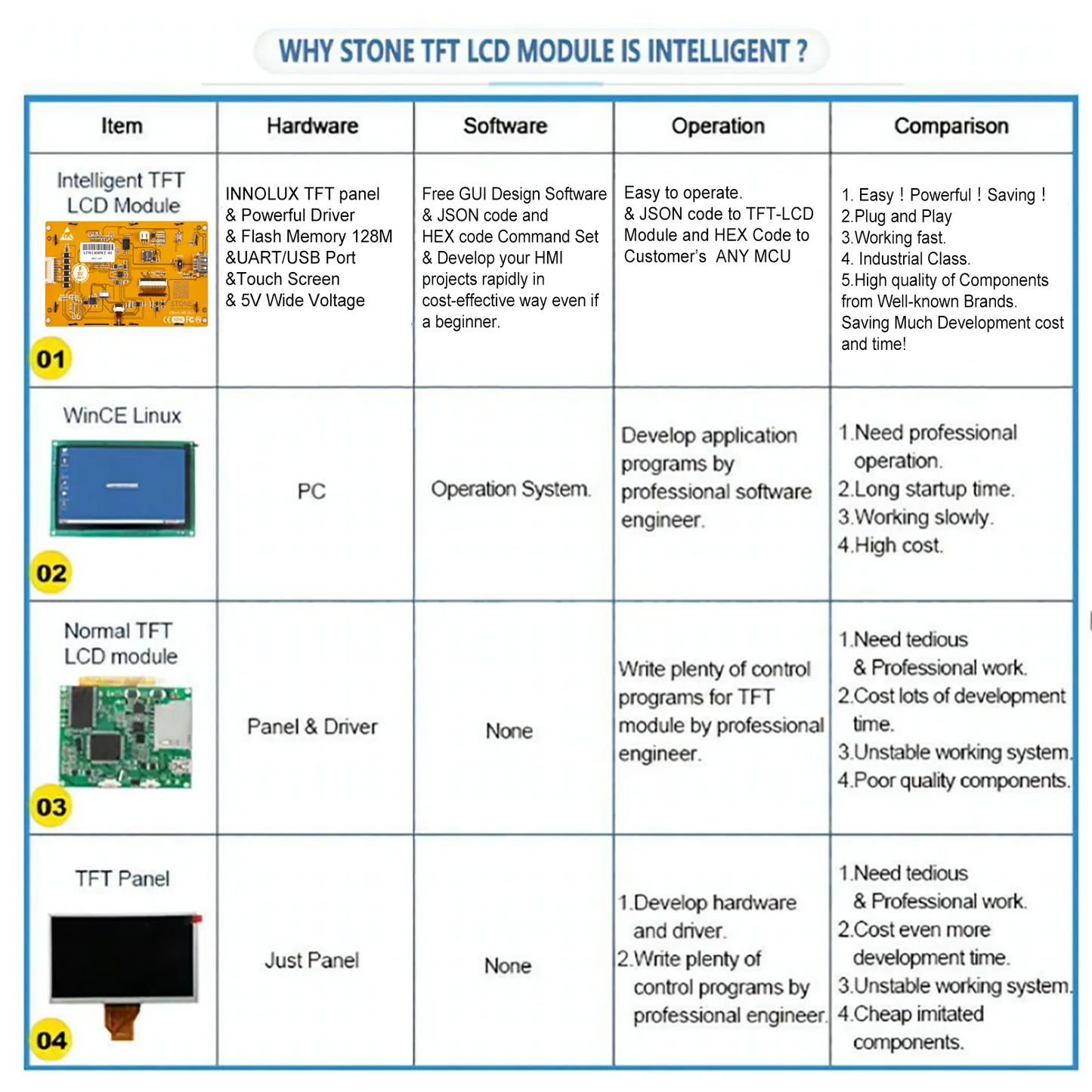

SCBRHMIproducts has been conceived as TFT monitor & Touch controller. It includes processor, control program, driver, flash memory,RS232/ TTL /USB, touchscreen, power supply etc,so it is a whole display system based on the powerful & easy operating system, which can be controlled byAny MCU.(Very suitable for your Arduino and Raspberry Pi projects.)
They can be used to perform all basic functions, such as text display, image display,curve display as well as touch function, Video & Audio function etc. It hasfree GUI design softwareto offer an easy way to create an intuitive and superb touch user interface even for beginners, the User Interface can be more abundant and various. And the128M flash memorycan store your data, configuration files, image file, font file, video file and audio file etc.
Ultra Compatible with Multiple Interfaces
-Fully compatible withRS232/TTL UART Interface & USB port.
-Medical grade electromagnetic interference
-You can also design your new project file for Intelligent tft lcd screen on Windows system PC or MacOS PC
Included GUI Design Software Makes Programming Fast & Easy
-Our HMI TFT LCD module is a whole display system that comes withno-cost GUI design software(STONE Designer).
-This offers an easy way to create an intuitive, superb touch user interface even for beginners.
-This willreduce 90% of your development time and cost. It makes designing a GUI a piece of cake.

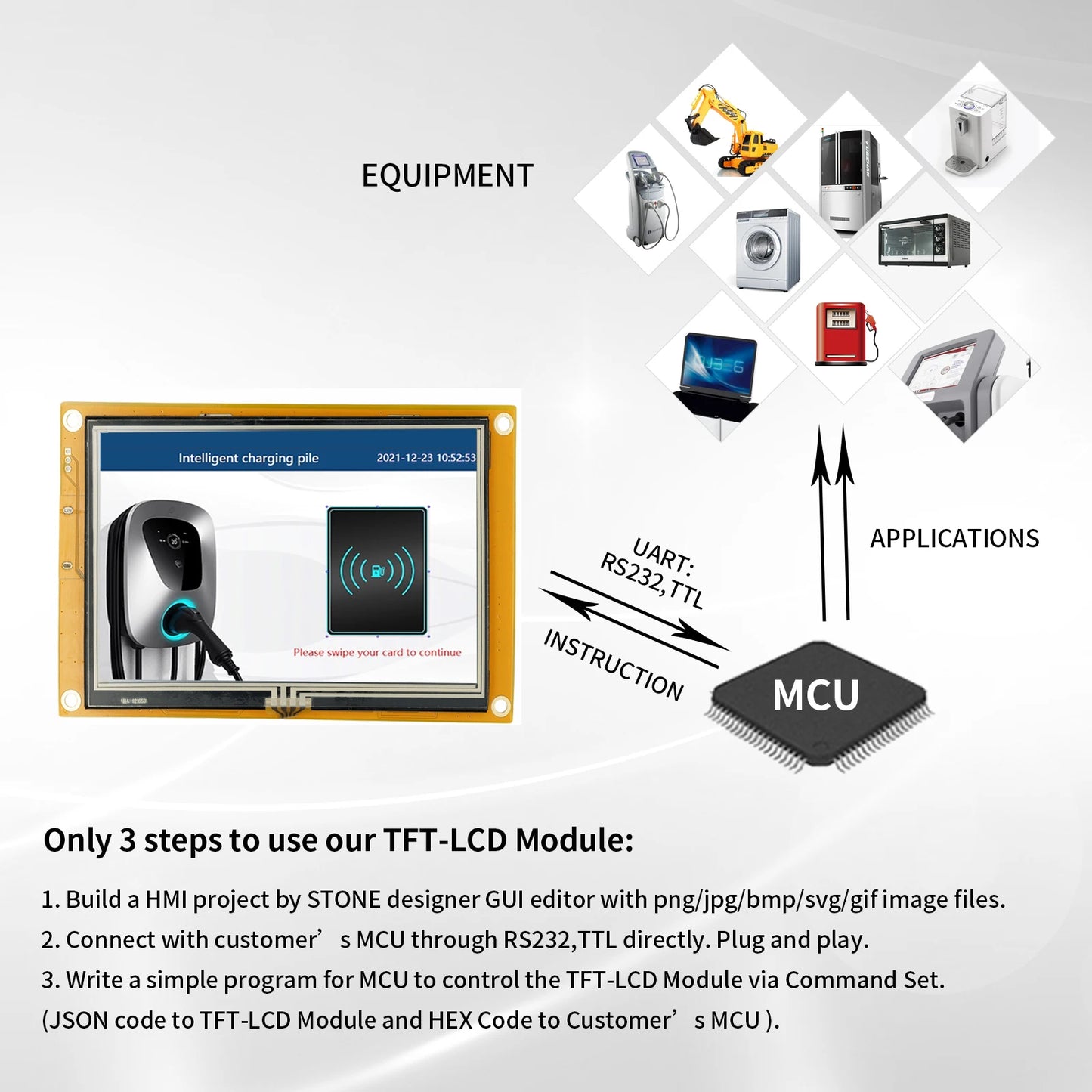

Only 3 steps to use our TFT-LCD Module:
1. Build a GUI project by STONE designer GUI editor with png/jpg/bmp/svg/gif image files.
2. Connect with customer's MCU through RS232,TTL directly.Plug and play.
3. Write a simple program for MCU to control the TFT-LCD Module via Command Set.
(JSON code to TFT-LCD Module and HEX Code to Customer's MCU ).
That's all.
|
| CPU and Flash: 1GHz Cortex-A8 standard 256MB, expandable 1GB or 2GB |
| Audio interface: External audio playback, support 720P 30Hz high frame rate video / WAV lossless audio playback |
|
|
| UART interface: Serial communication, support RS232/RS485/RS422 interface |
| USB interface: Plug and play, when the external device, plug the USB can be used |
|

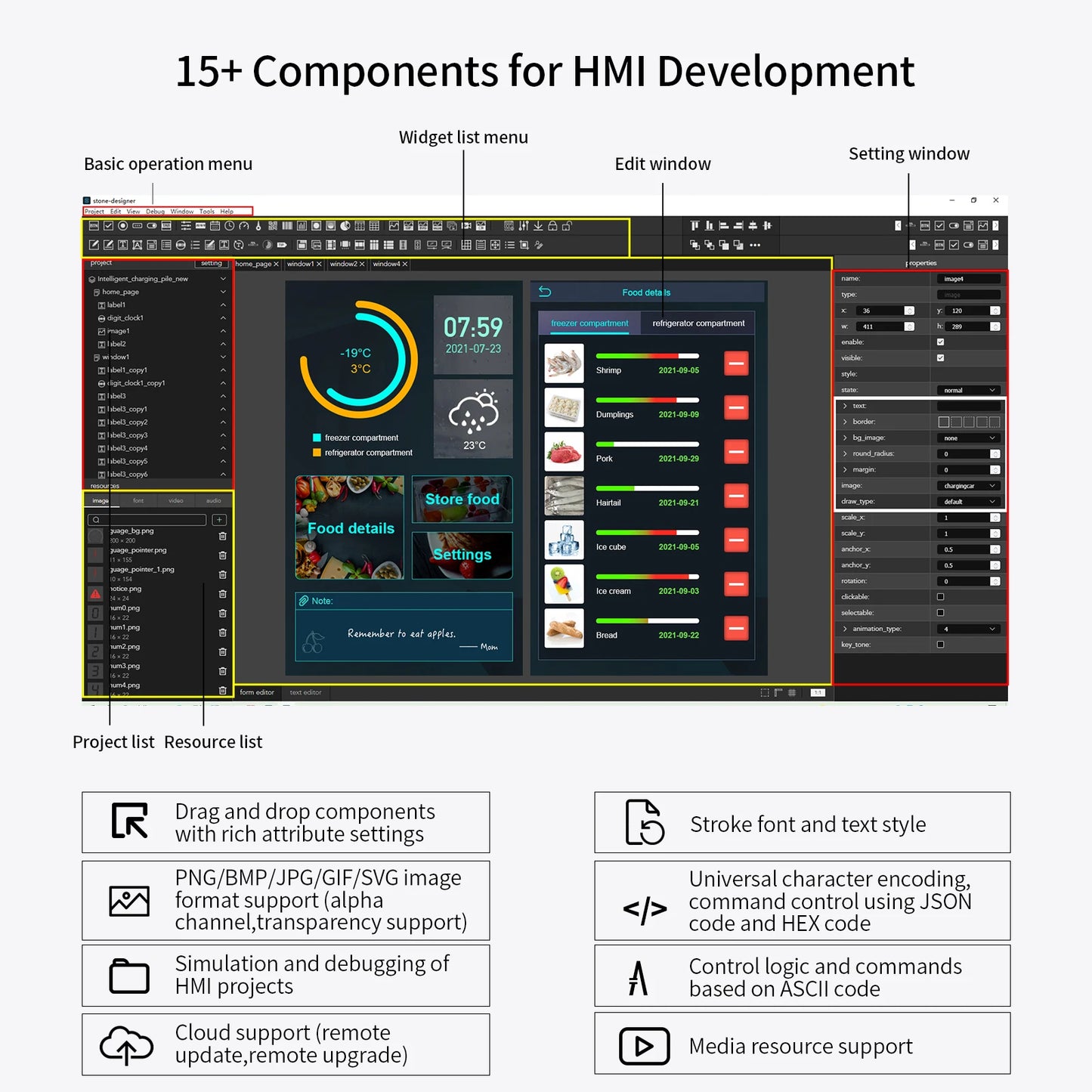

STONE Designer(Free GUI Designer Software)
| » Drag-and-drop components with rich property » PNG/BMP/JPG/GIF/SVG image format support (alpha channel, transparency support) » Simulation and debugging of HMI projects » Cloud support (remote updates, remote upgrades) | » Vector fonts and text styles » Generic character encoding, command control using JSON code and HEX code » ASCII-based control logic and commands » Media resource support |
|
| Simple and fast component functions 1. text 2. scrolling text 3. numbers 4. buttons 5. progress bar 6. images 7. cropping 8. meters 9. waveforms 10. image switching 11. keyboard 12. progress bar 13. slider 14. clock 15. USB download 16. video 17. audio, etc. |
| Component Property Settings The component property settings provide you with a wealth of design options. Example: |
|
|
| Custom font styles The font creation component can customize the value of any text property. Example: |
| Support for multimedia materials such as images, fonts, videos, and audio. Easily add audio, video, and animation resources to your HMI projects. Edit the properties of these resources to achieve the HMI video presentation you want. |
|
Support cross-platform, support Windows, macOS, Linux operating systems.
Working temperature:
industrial-grade -30 ° C / +80 ° C
High strength to adapt to the environment,
-30° low-temperature normal operation,
80° high-temperature normal operation
high strength to adapt to the working environment
so that you work production worry-free.
