Custom 7 Inch For Raspberry Pi Banana Pi LCD Display With Touchscreen Digitizer Screen Monitor Driver Control Board HD-Compatible VGA Manufacturer



This is a multi-purpose portable display device with a 7-inch 1024*600 high-definition display. Support HD/VGA/AV1/AV2 4 signal modes. It can be used to connect computer and computer secondary screen, Raspberry Pi,Banana Pi,Orange Pi,Development Board,TV box,game console, etc...... Most of the devices that support HD/VGA/AV signal. The DC5.5mm power supply interface can support 5V to 12V power supply.







When you choose to buy "Only Control Board", please make sure that your screen interface is 50Pin and the resolution is 1024x600. It is not compatible with other specifications of the screen



We provide different options, please choose according to your needs (please refer to the photos corresponding to the selected options)

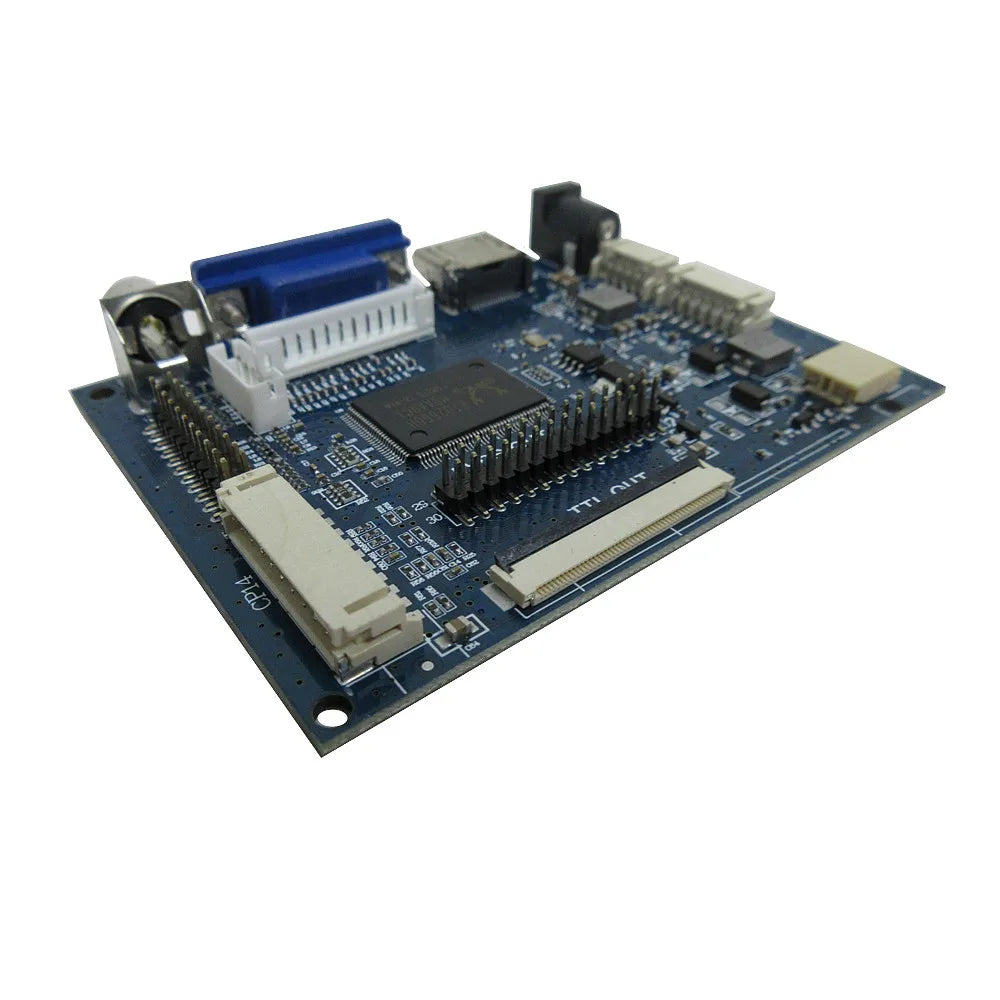

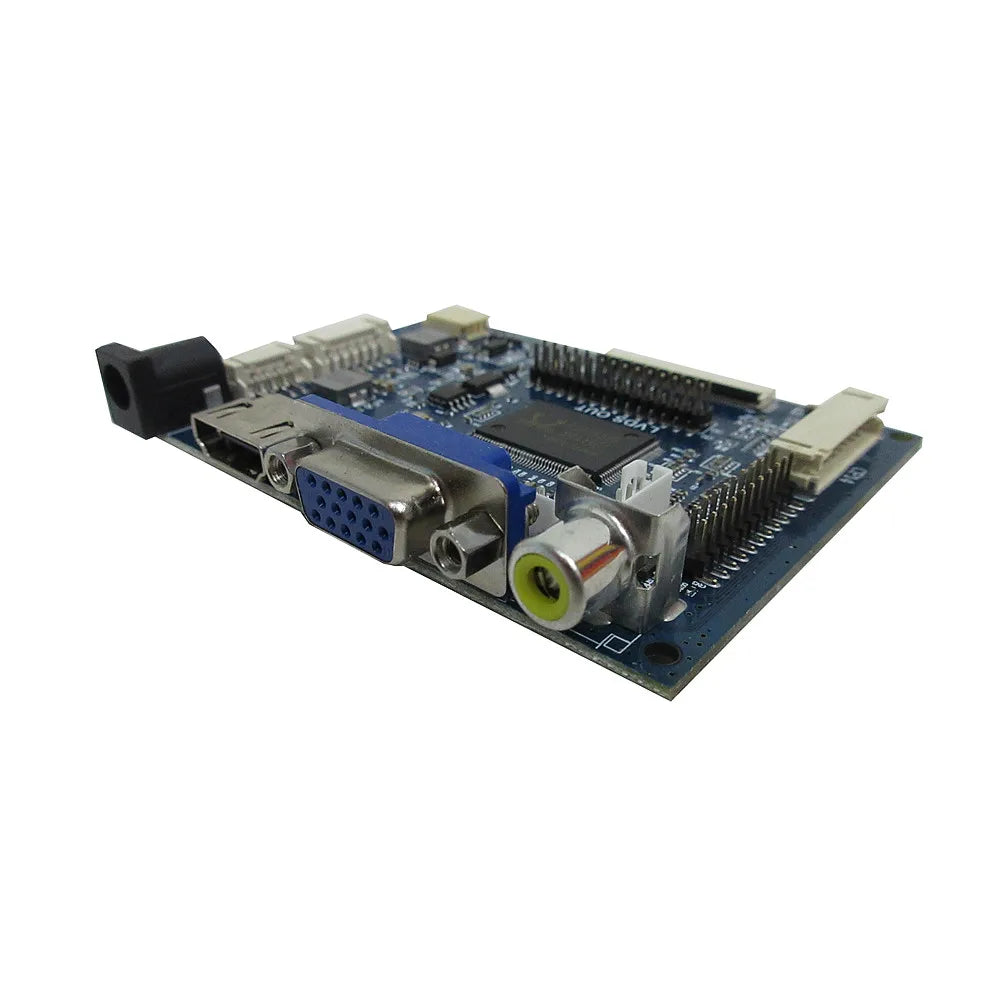

Interface introduction:

1--AV1 Interface

2--AV1,AV2 Interface

3--VGA Interface

4--VGA Extension Interface

5--HD High-Definition Interface

6--DC5.5mm Power Interface

7--Power Extension Interface

8--High Voltage Board Power Supply

9--LED Display Backlight Power Supply
10--Lvds Display Interface

11--50Pin TTL Display Interface

12--Button Board Interface

13--Resolution Adjustment Shorting Block

Adapt to 5V-12V 2A Power supply


Package Content:

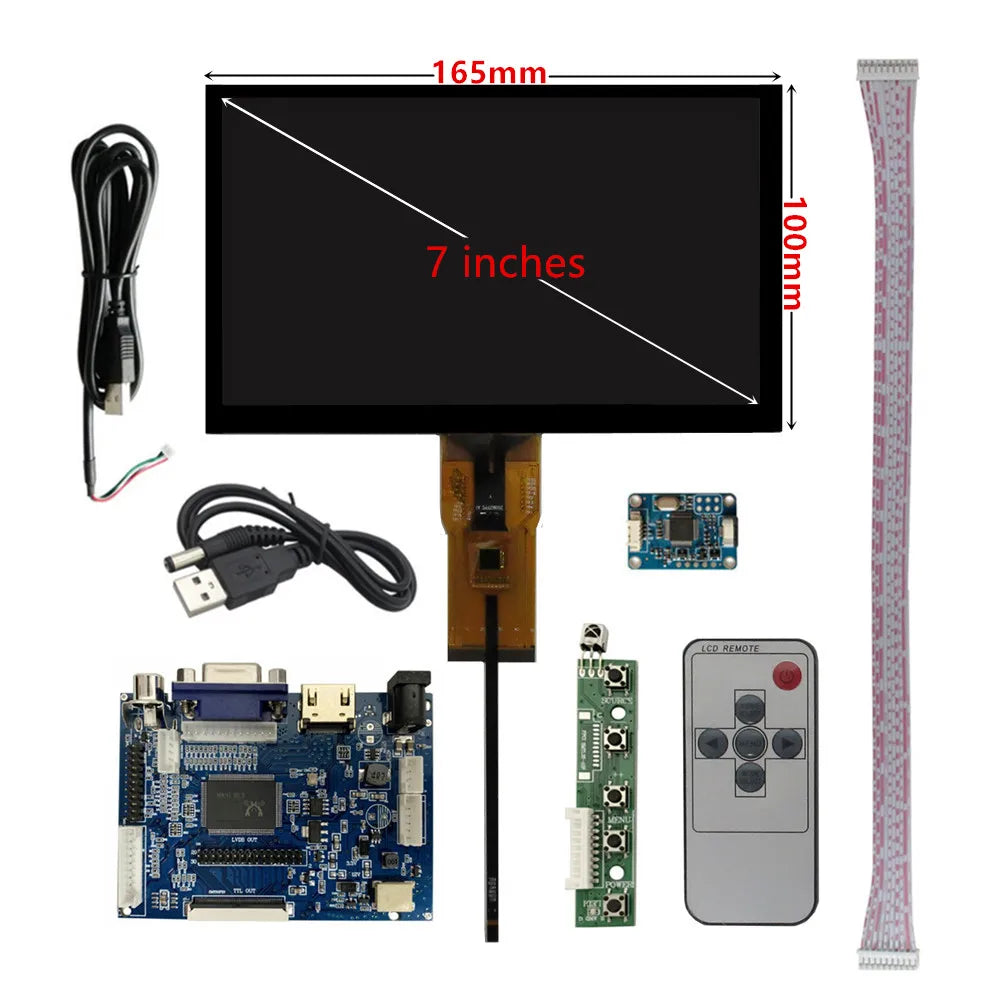

Full Set：

• 7 Inch 1024*600 LCD Display Screen

• LCD Display Screen Driver Control Board

• 7 Inch Capacitive Touch Screen

• Touch Screen Converter

• USB Power Cable

• USB Touch Screen Connecting Cable

• Remote Control

• Key board

• Key board connection Line

Only LCD Display：

• • • • 7 Inch 1024*600 LCD Display Screen
        Only Driver Board：

• LCD Display Screen Driver Control Board

• USB Power Cable

• • Remote Control

  • Key board

  • Key board connection Line

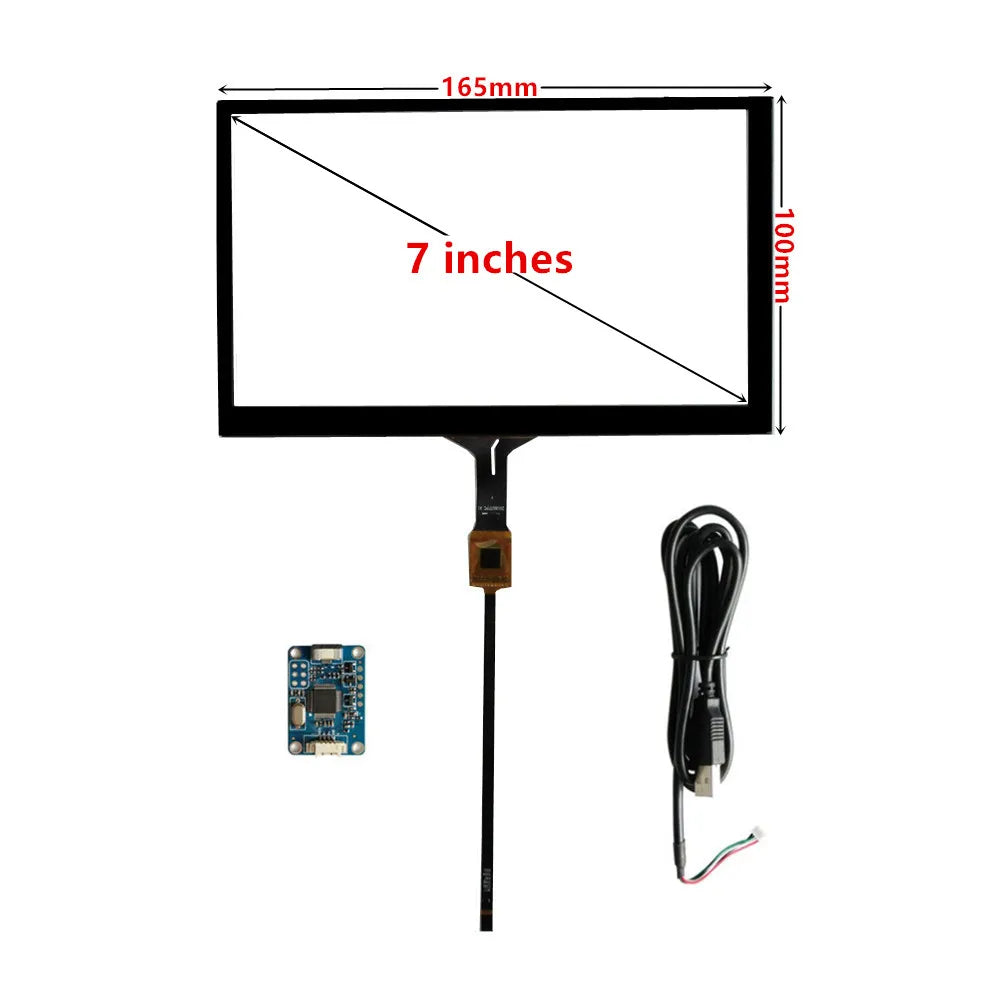

Only Touch Screen:

• 7 Inch Capacitive Touch Screen

• Touch Screen Converter

• USB Touch Screen Connecting Cable











 Welcome Customize Order!
