Custom 7 inch Car display capacitive touch module kit1280x800 IPS for Car Raspberry Pi Game PS3 XBox PS4 capacitive touch Monitor Manufacturer

Product description

Drive motherboard specifications: (main features) 1. Main chip RTD2660 2. Input HDMI VGA AV 3. Output PANEL interface 0.5mm pitch 40PIN Flip-flop connector 4. Output Headphone output Support horizontal socket 5. Power Input DC 12V2A-12V4A OSD menu; brightness, contrast, auto correction, phase, clock, line position, function settings, reset, etc.; OSD language Chinese, English, etc. key :POWER/ ENTER /MENU/ UP/ DOWN 5 button

Capacitive Touch Screen parameters and description

7 inch multi-point capacitive touch Android kernel 3.1 system 5.1 or above; linux kernel version 3.5 or above are plug and play. Capacitive touch screen linuxWIN7810 and Android system plug and play

prompt

1.Please pay attention to the negative and positive pole. 2. when you connect power please don't hot plug, which may break the main IC 3.don't touch the driver board, and keep it insulation, don' let metal touch it. 4.please take care of the LVDS cable.

LCD Display module contenido del paquete

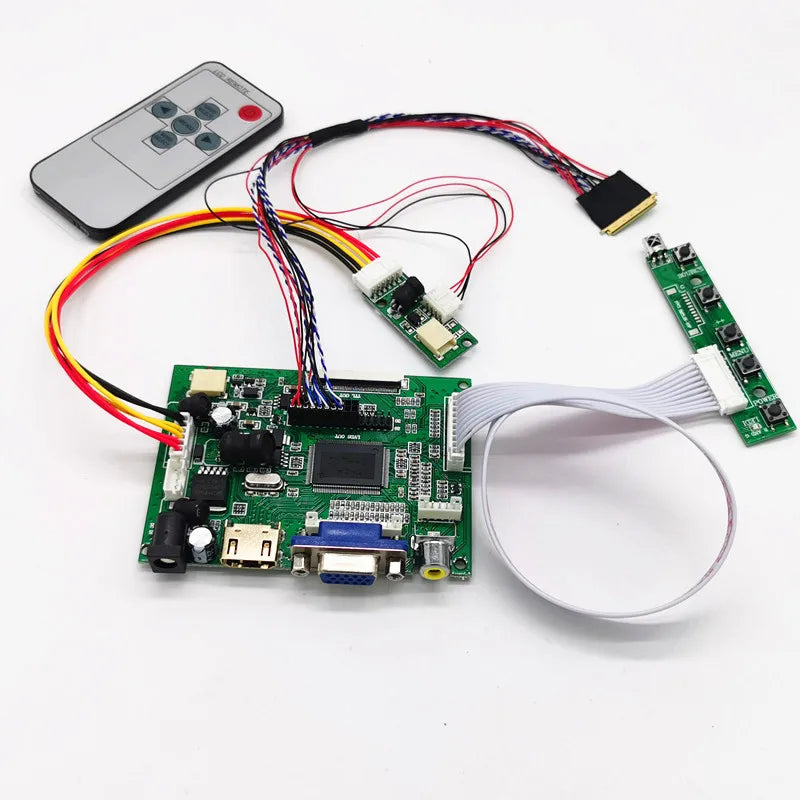

1xPCS 7 inch LCD 1xPCS LCD controller board 1xPCS LVDS cable 1xPCS keyboard/cable and remote control 1xPCS inverter and cable

LCD Touch display module contenido del paquete

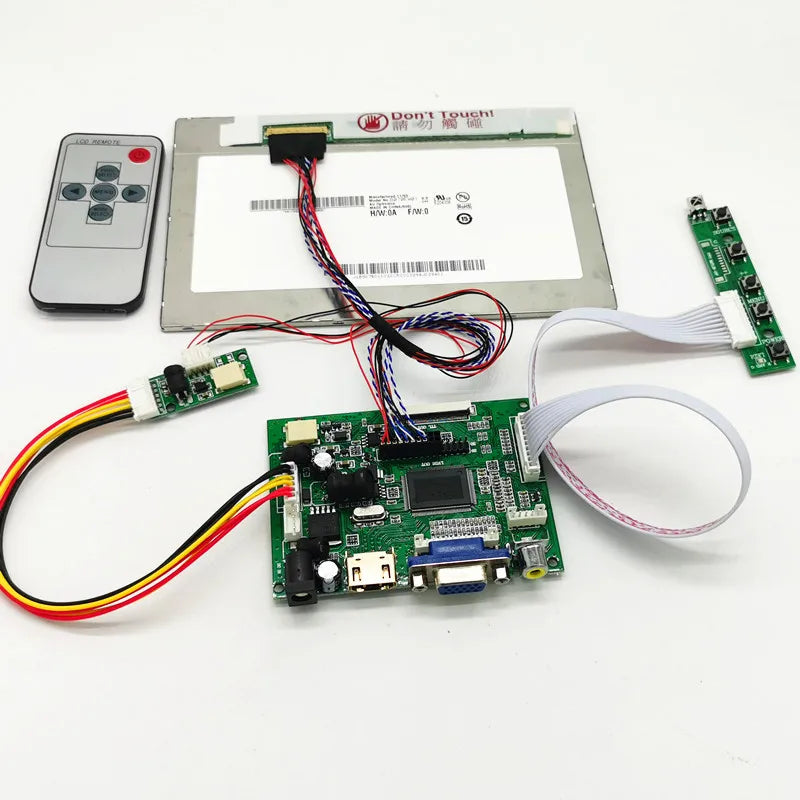

1xPCS Capacitive Touch Panel 1xPCS CTP driver board (Capacitive Touch Panel Driver board) 1xPCS USB touch screen cable wire 1xPCS 7 inch LCD 1xPCS LCD controller board 1xPCS LVDS cable 1xPCS keyboard/cable and remote control 1xPCS inverter and cable

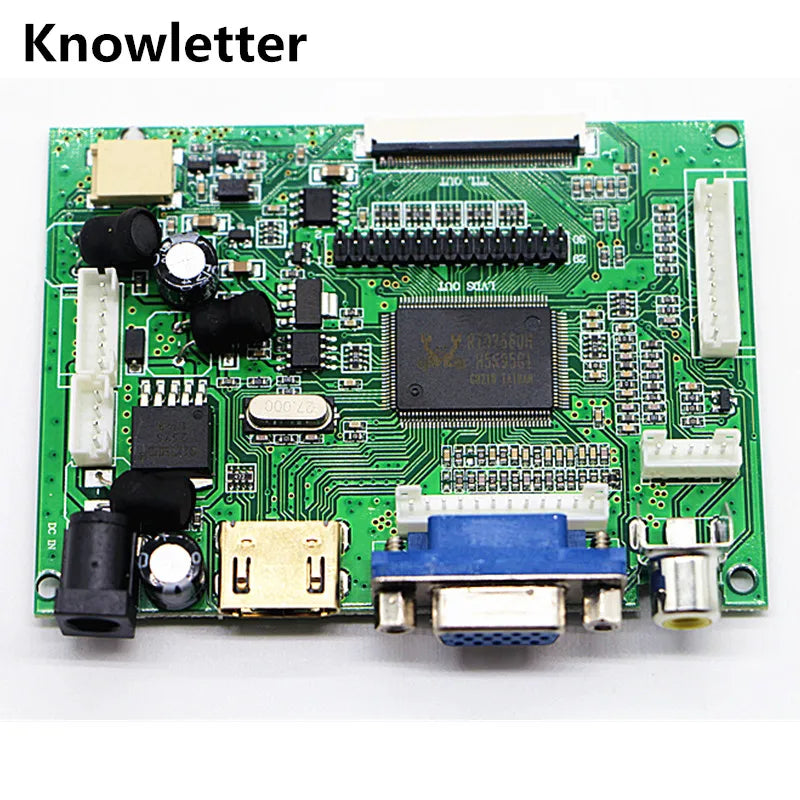

1.Power Supply(9V-20V) 2.HDMI 3.VGA Connector 4.AV1 5.AV1+AV2 6.Keyboard 7.TTL Signal 50Pin8.LVDS Signal 1/2 ch 6bit 8bit 9.12V Backlight

This controller board support Automatically Switch to AV2(Reversing View camera). Please connected ACC to 12V.
