Custom 7 Inch AT070TN90 LCD Screen Display Monitor Driver Control Board For Raspberry Banana/Orange Pi Mini Computer PC Manufacturer

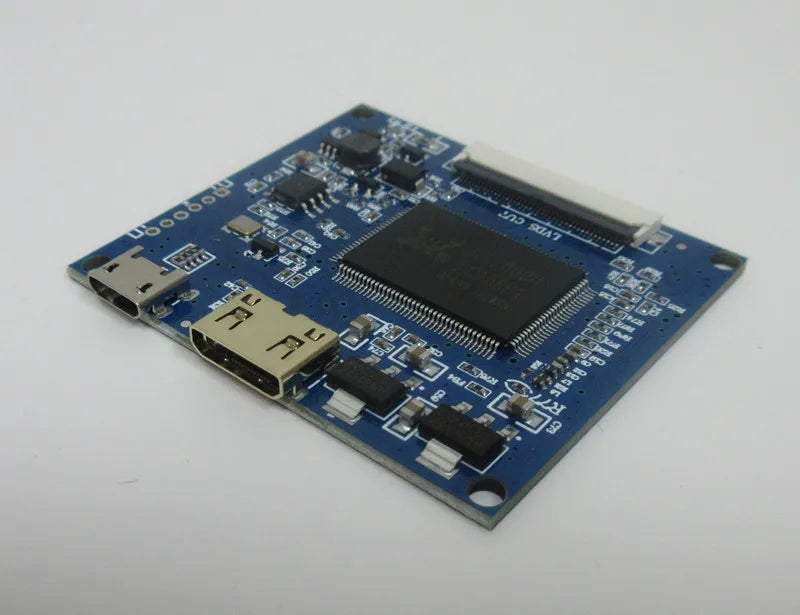

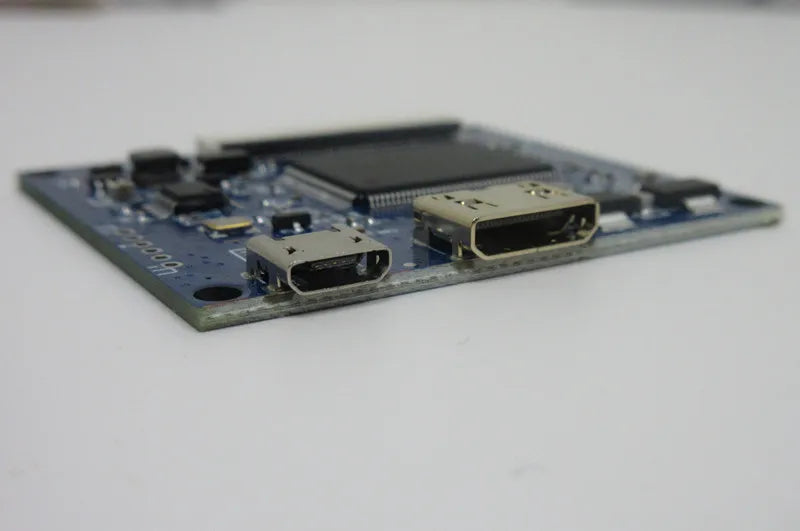

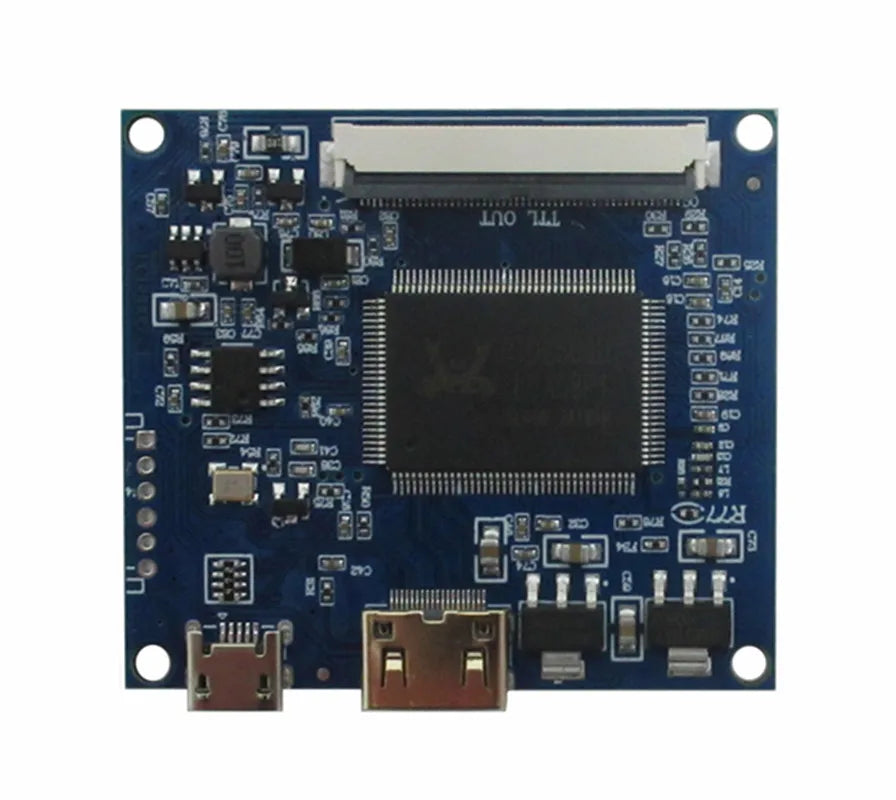

1.MIRCO USB power supply interface

2.Mini HD-Compatibl signal input interface

3.50Pin TTL screen interface

4.Power supply and AV expansion welding interface

When you choose to buy "Only Control Board", please make sure that your screen interface is 50Pin and the resolution is 800x480. It is not compatible with other specifications of the screen

Product Description:

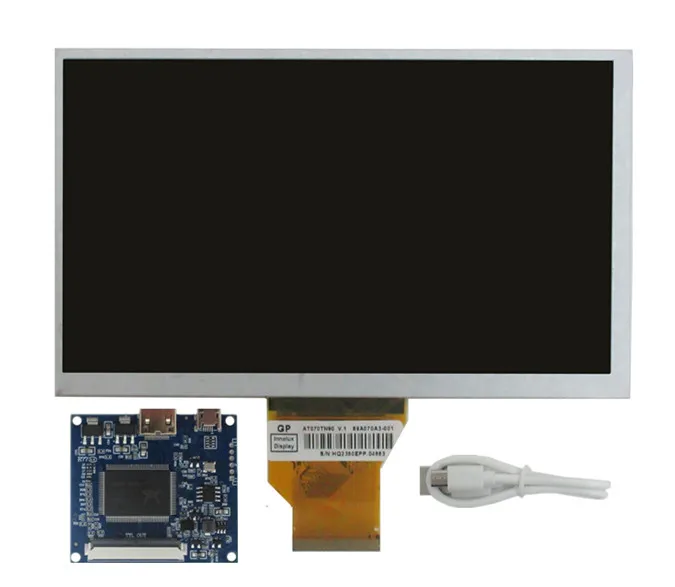

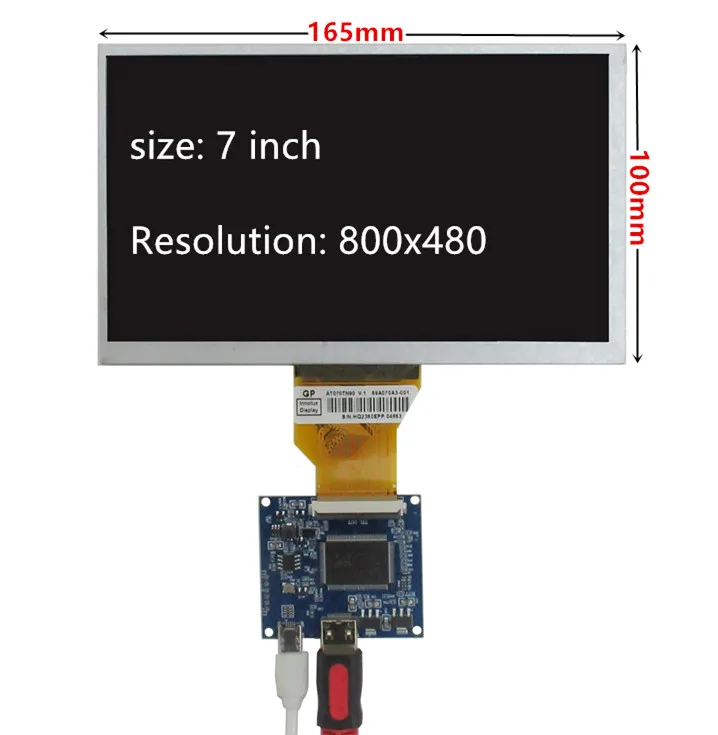

1.Adopts a 7-inch high-definition display with a resolution of 800x480

1. MIRCO USB power supply interface, 5V standard power supply, need more than 1.5A

2. mini HD signal input, and this IC supports HD 1.2

3.HD for high quality MINI gold-plated seat

4.The screen interface adopts high-quality gold-plated connectors

5.The driver board adopts a special circuit design, which can drive the LED backlight within 10V, and supports a maximum current output of 180MA.
