Lonten Tech

Custom 7 Inch 1024*600 Screen Display LCD Monitor Driver Control Board Mini HD-Compatible For Lattepanda,Raspberry Pi Banana Pi PC Manufacturer

Custom 7 Inch 1024*600 Screen Display LCD Monitor Driver Control Board Mini HD-Compatible For Lattepanda,Raspberry Pi Banana Pi PC Manufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out



This is a multi-purpose portable display device with a 7-inch 1024*600 high-definition display. Through the HDM interface, it can be used to connect the computer and the computer sub-screen, Raspberry Pi, Banana Pi, Orange Peel ... and most other devices that support HDM signals. Micro-USB interface, can support 5V mobile power supply.



When you choose to buy "Only Control Board", please make sure that your screen interface is 50Pin and the resolution is 1024x600. It is not compatible with other specifications of the screen



If you want to buy related accessories, please click the text link below to buy, thank you!

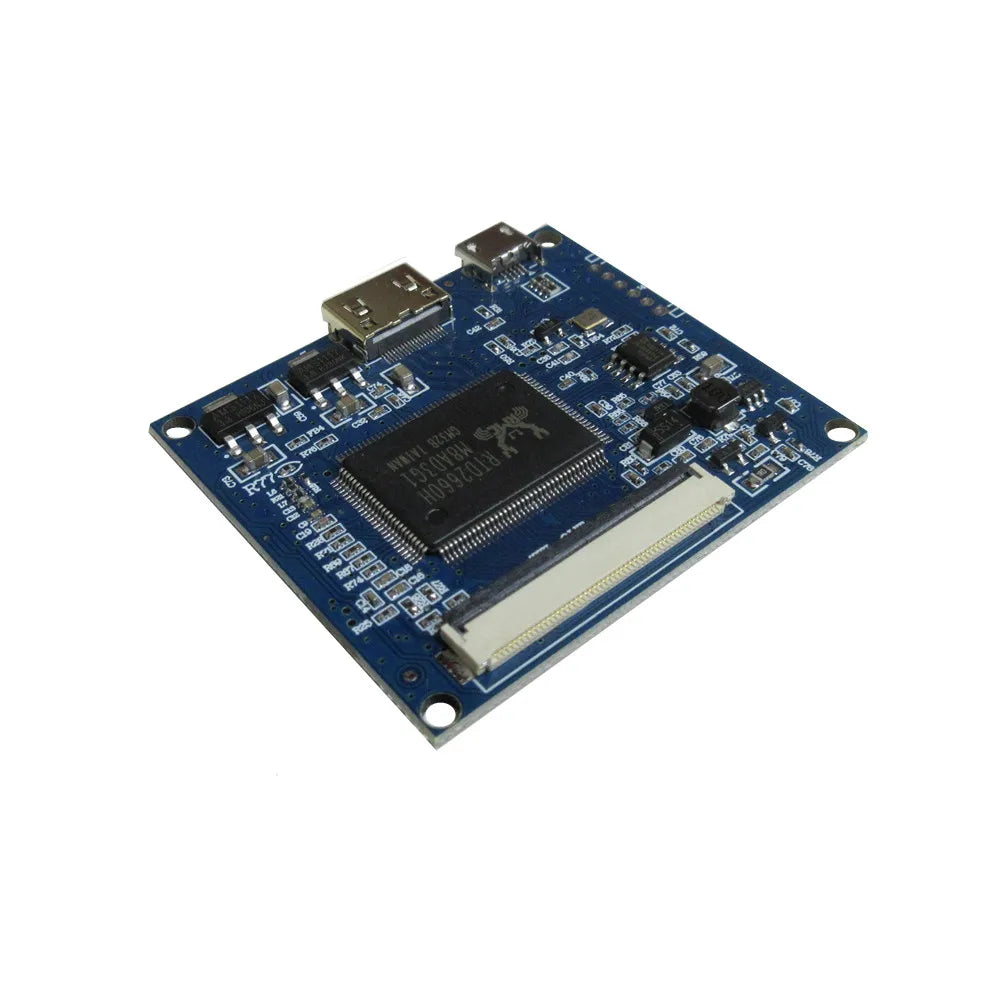

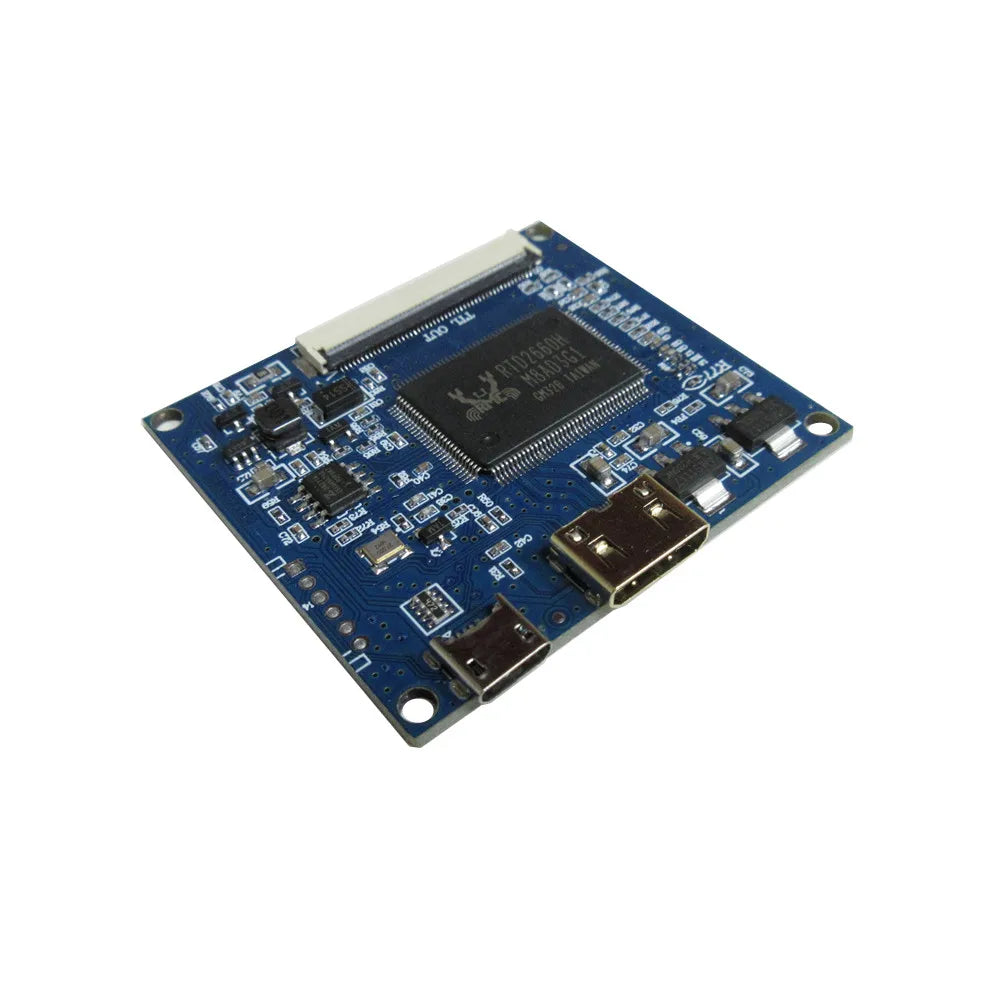

Interface introduction:

1--Mini HDM-Compatibl Signal Input Interface



2--Mirco USB Power Supply Interface



3--Power Supply Expansion Welding Interface



4--50Pin TTL Screen Interface


Product Description:

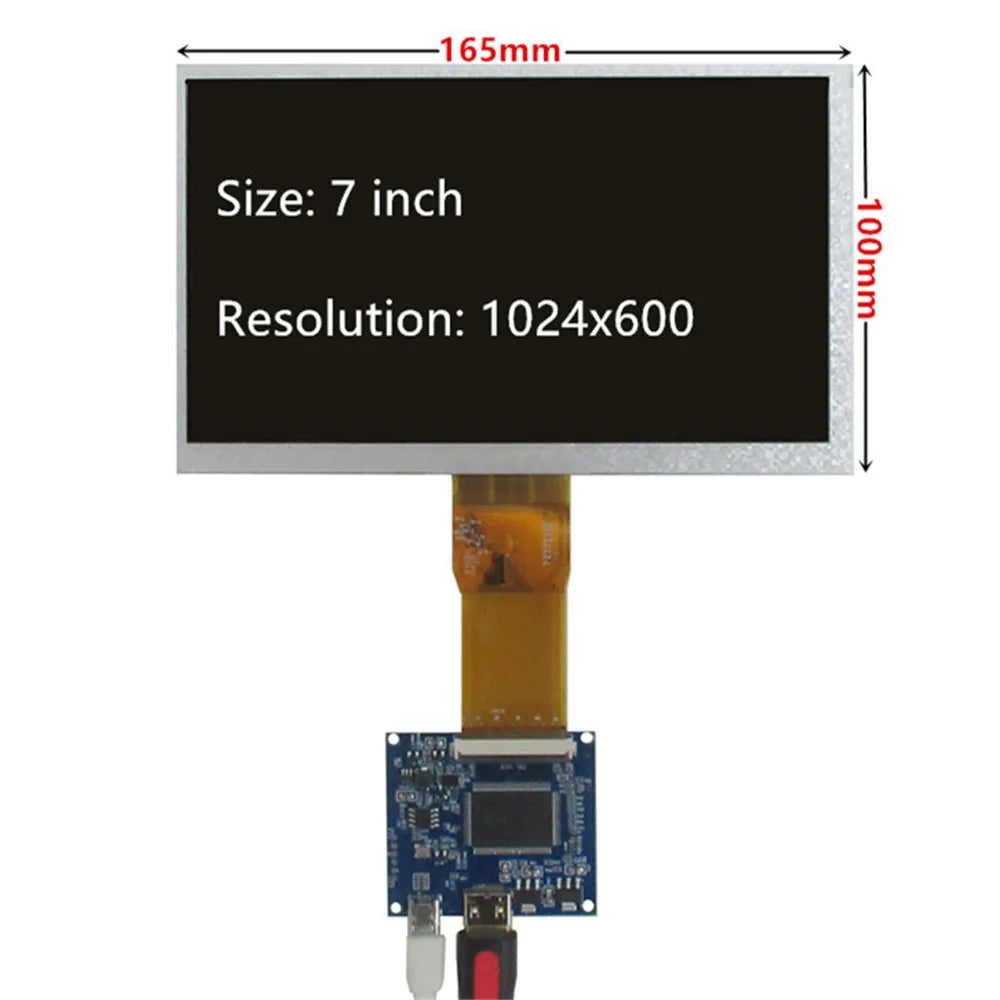

1.Adopts a 7-inch high-definition display with a resolution of 1024x600

2. MIRCO USB power supply interface, 5V standard power supply, need more than 1.5A

3. mini HD signal input, and this IC supports HD1.2

4.HD for high quality MINI gold-plated seat

5.The screen interface adopts high-quality gold-plated connectors

6.The driver board adopts a special circuit design, which can drive the LED backlight within 10V, and supports a maximum current output of 180MA.



We provide different options, please choose according to your needs (please refer to the photos corresponding to the selected options)

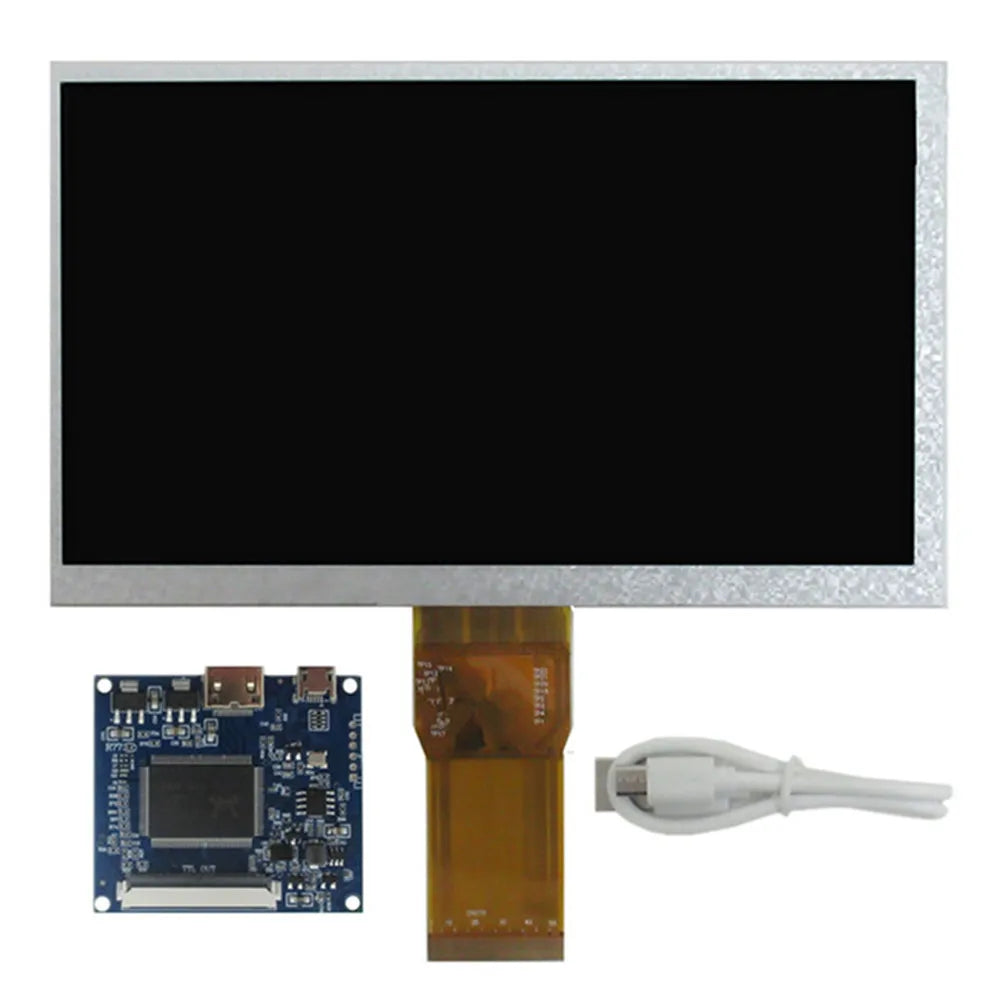

Package Content:

Full Set:

  • 7 Inch 1024*600 LCD Display Screen

  • LCD Display Screen Driver Control Board

  • USB Power Cable

Only LCD Display:

        • 7 Inch 1024*600 LCD Display Screen

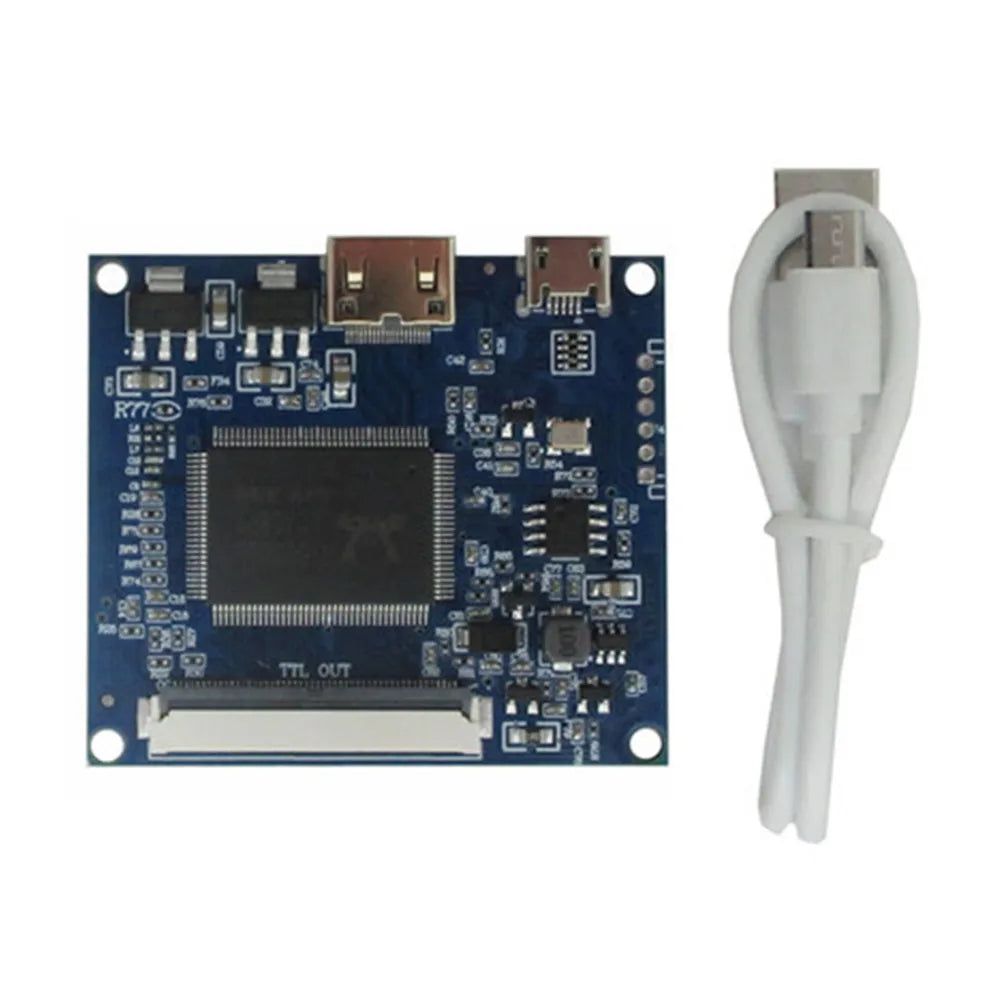

          Only Driver Board:

  • LCD Display Screen Driver Control Board

  • USB Power Cable



 Welcome Customize Order!
