Custom 7 Inch 1024*600 EJ070NA-01J HD-Compatible Screen LCD Display Driver Board Monitor For Raspberry Pi B+ 2 3 Banana/Orange Manufacturer

7 inch 1024*600 EJ070NA-01J HD-Compatible Screen LCD Display Driver Board Monitor for Raspberry Pi B + 2 3 Banana/Orange Pi Mini computer

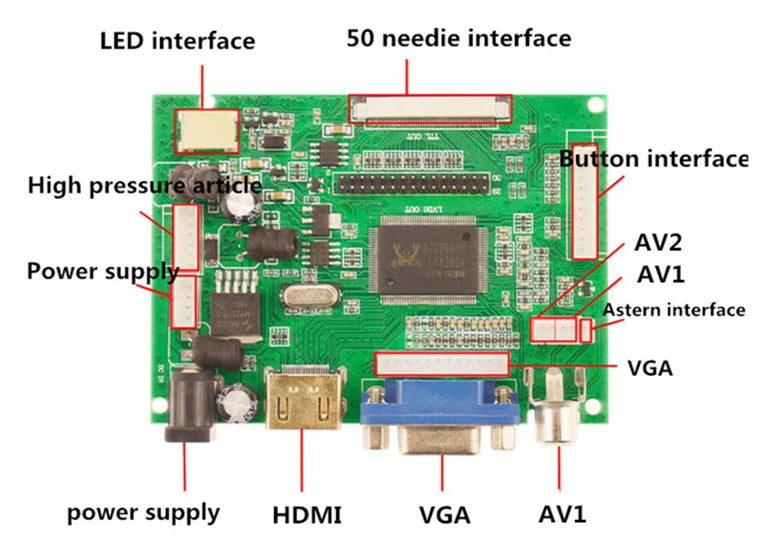

1--AV1 Interface



2--AV1,AV2 Interface



3--VGA Interface



4--VGA Extension Interface



5--HD High-Definition Interface



6--DC5.5mm Power Interface



7--Power Extension Interface



8--High Voltage Board Power Supply



9--LED Display Backlight Power supply



10--Lvds Display Interface



11--50Pin TTL Display Interface



12--Button Board Interface



13--Resolution Adjustment Shorting Block



Adapt to 5V-12V 2A Power supply

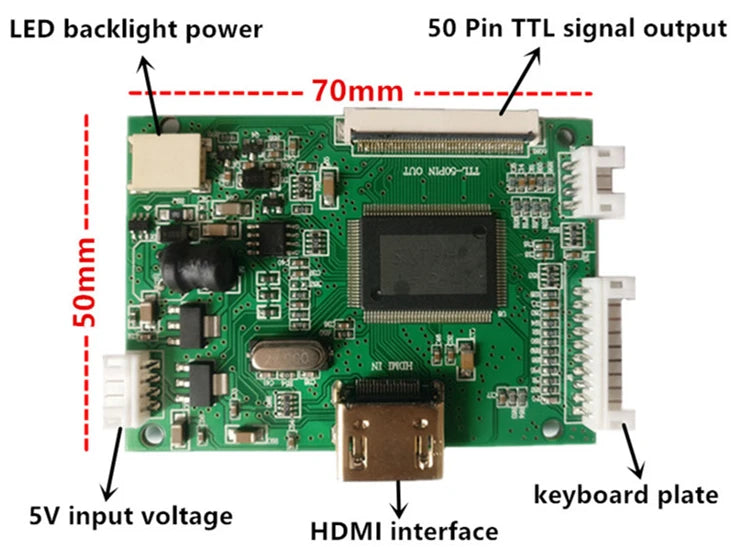

1-HD Interface



2-4Pin power Interface



3-LED Display Backlight Power supply



4-50Pin TTL Display Interface



5-4Pin Driver Write Interface



6-Button Board Interface



Adapt to 5V 2A Power supply

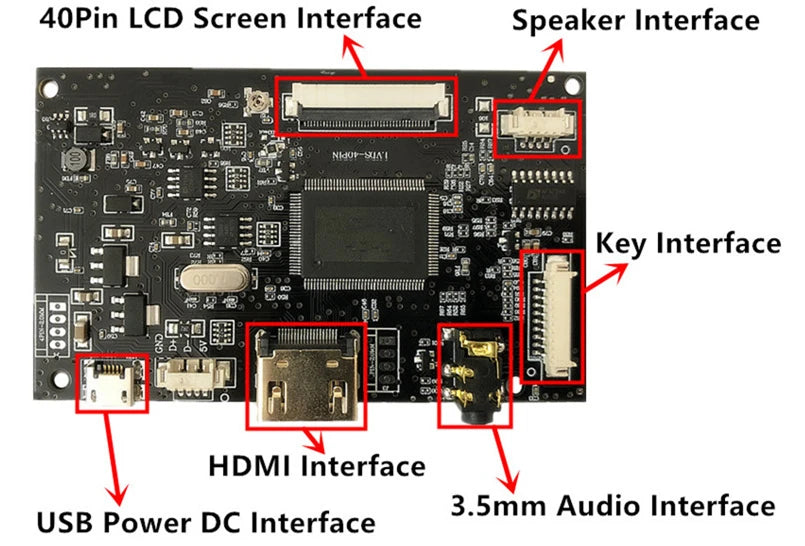

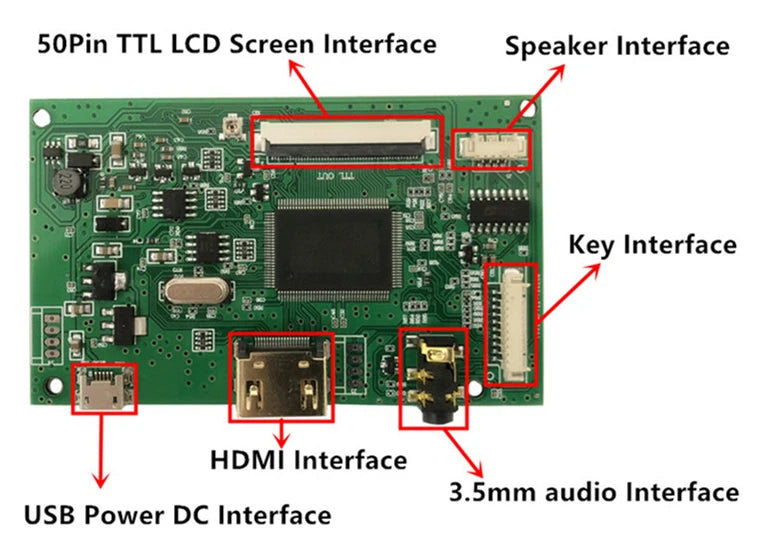

1--Button Board Interface

2--3.5mm Audio Interface

3--HD Interface

4--USB Expansion Interface

5--Micro-USB Power Connector

6--4Pin Speaker Interface

7--40Pin TTL Display Interface

Adapt to 5V 2A Power Supply





 Welcome Customize Order!
