Custom 68KTYZ 220V 10RPM AC Synchronous Motor Permanent Magnet Electric Synchronous Motor for Smart Application Manufacturer

Application:

This motor is mainly used for: stage lighting, electric curtains, monitoring PTZ, air conditioners, Christmas trees, advertising light boxes, dynamic painting, water control, a plastic machine, Dianjiao Ji, a press, the screen machine, Electronic equipment and so on.

Specifications:

Voltage: AC 220V
Frenquency: 50Hz~60Hz
Current: 0.5A
Power: 28W
Speed: 10RPM

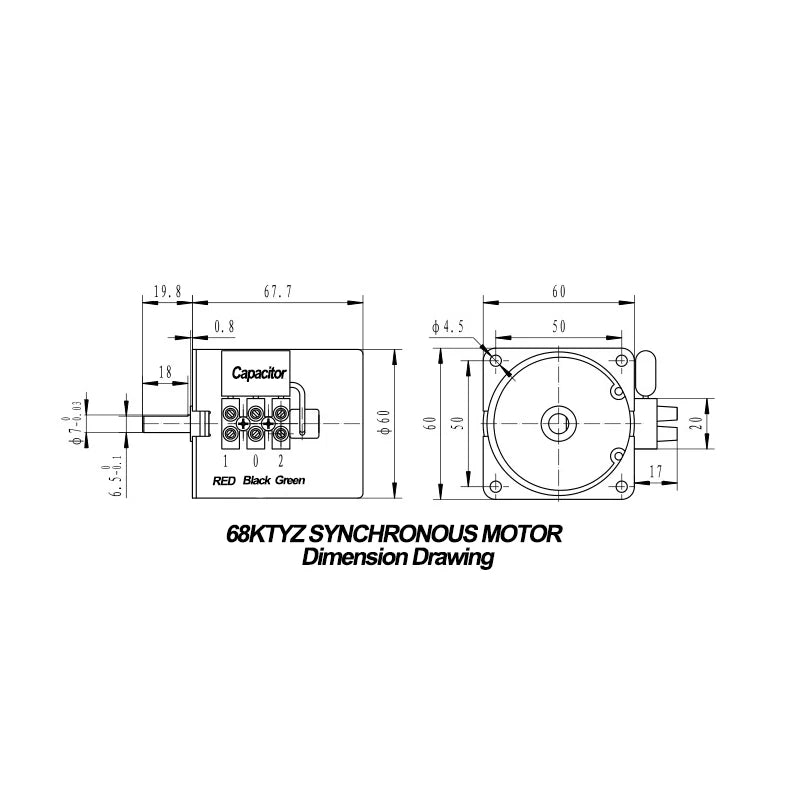

Motor Dimension: 60mm*68mm
Shaft Type: D-Type (Edge Milling: 0.5MM)
Output Shaft Diameter: 7MM
Output Shaft Length: 19mm

Features:

1.Low speed, large torque, positive and negative control, can be recycled for 24 hours. Synchronization, no inertia. Pure copper wire, metal gear. Large torque.
2.Out shaft( D word out of the shaft, easy to install is not easy to slip).
3.Connection (center shaft, bolt holes at the four corners for fixing with the motor bracket).
