Product Name : 60W DC 3.7V-18V to 5V 6V 9V 12V 15V 19.5V Step-Up Boost DC DC Converter Molude for lead acid Car cigarette lighter PLC LED

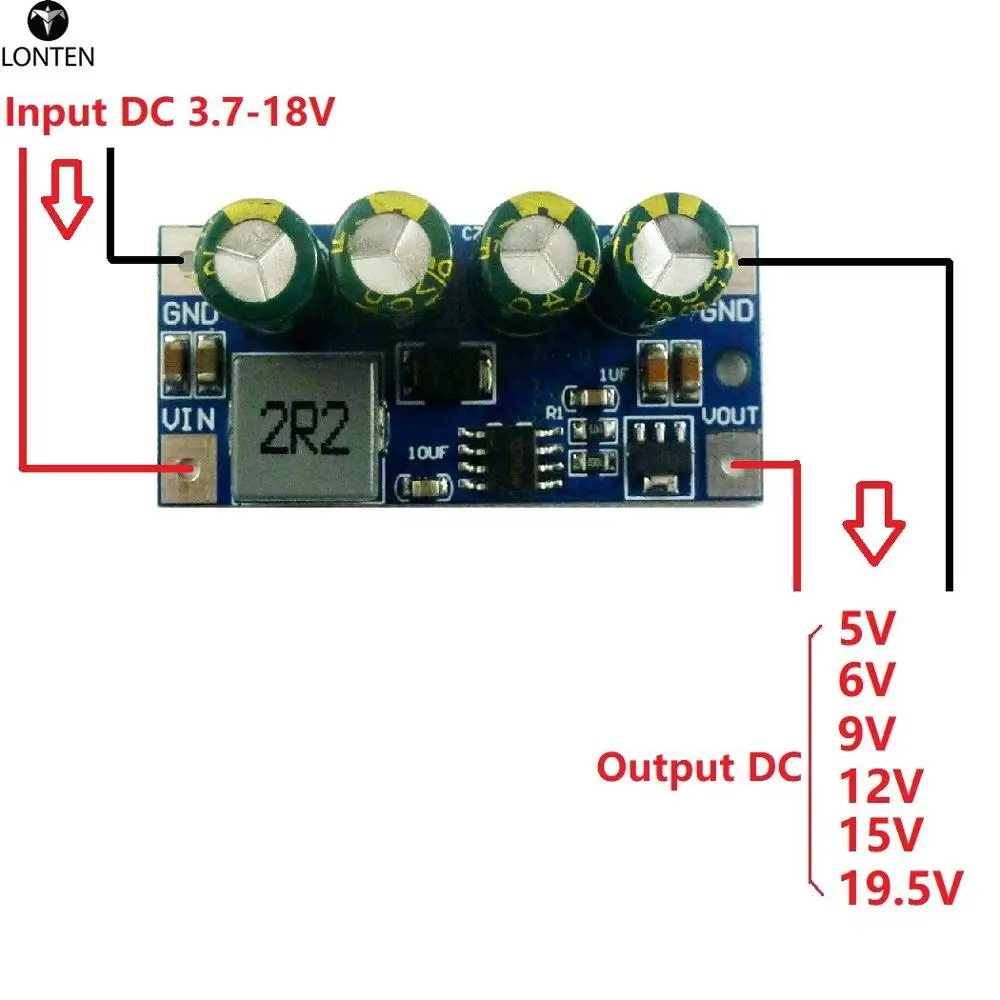

Packing list:

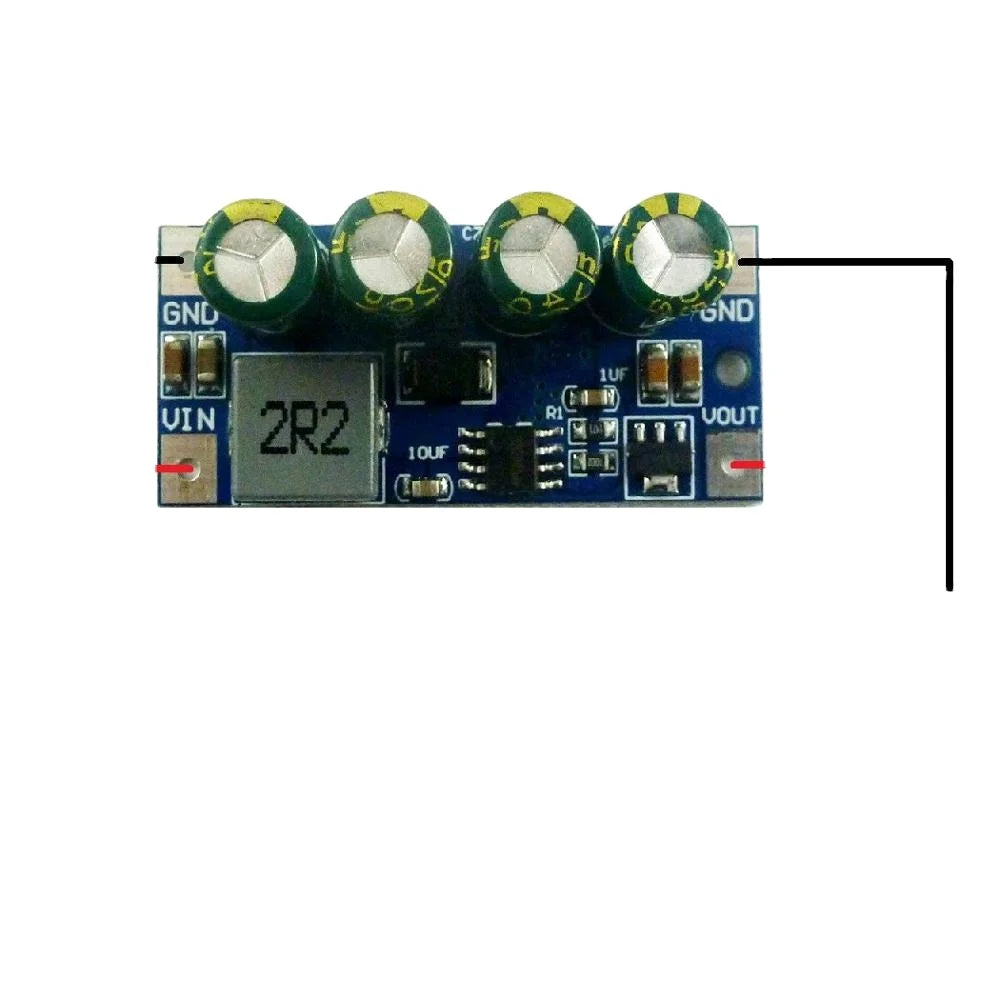

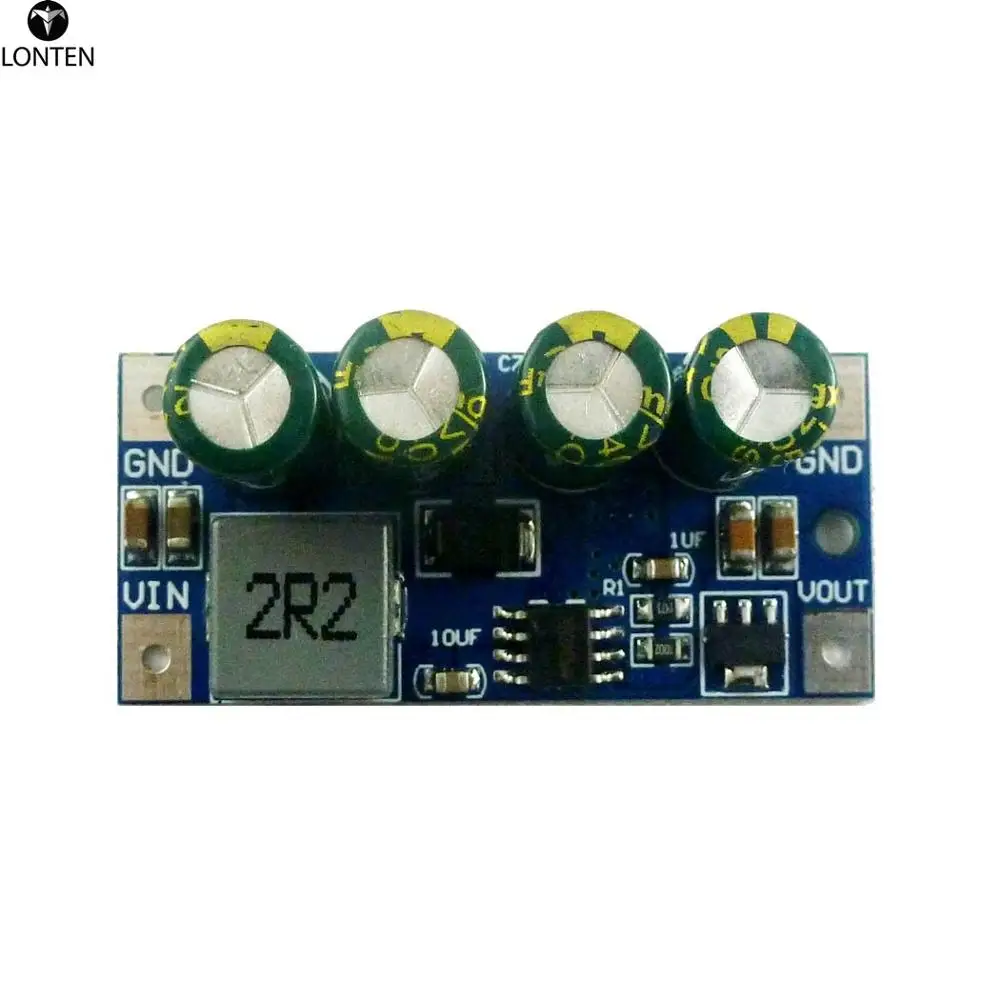

1 PCS 0424TA 60W high-power DC-DC Step-Up Boost module
(5V/6V/9V/12V/15V/19.5V optional)
(5V/6V/9V/12V/15V/19.5V optional)

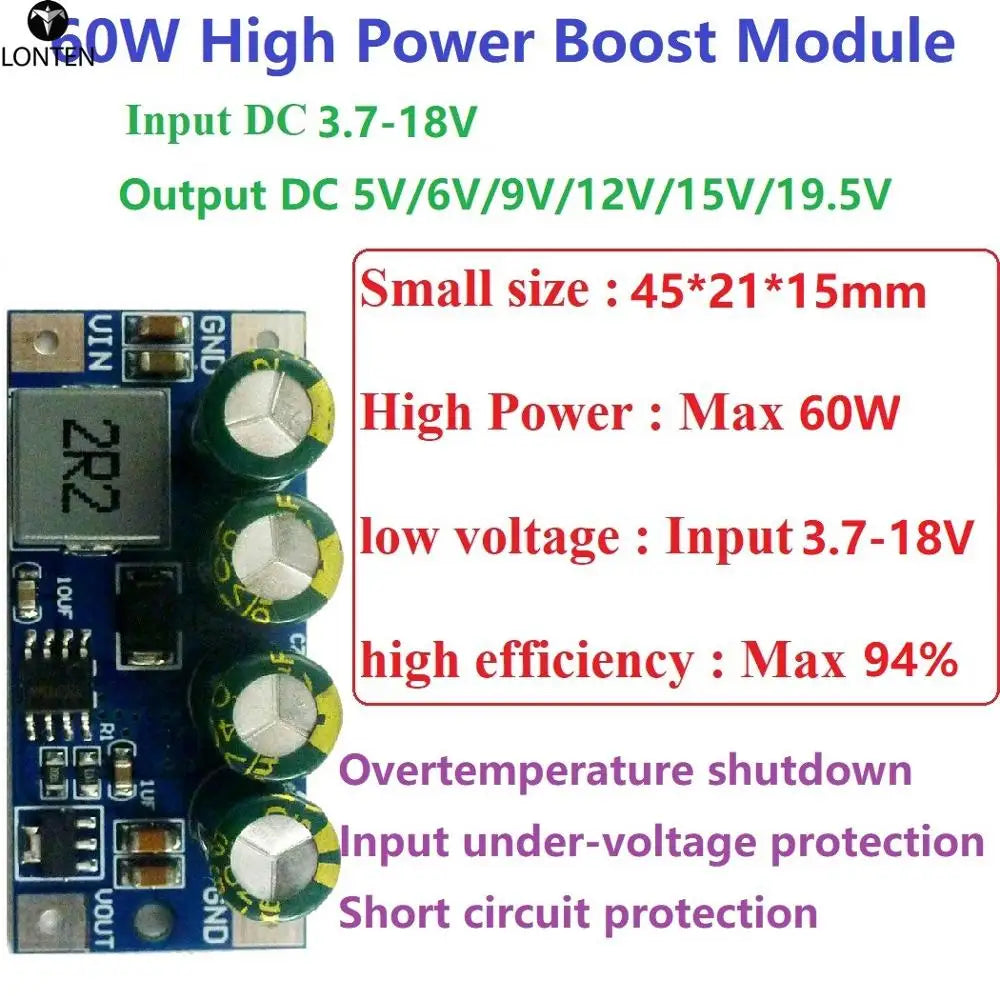

Description:
DC DC Boost Converter Module working frequency 600KHZ.
Up to 94% Efficiency (usually is 75%-91%)
Quiescent current: about 1MA
Overtemperature shutdown, input under-voltage protection and short circuit protection.
Operating temperature range : -40~+85 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius
Size : 45*21*15mm
Weight : 9g

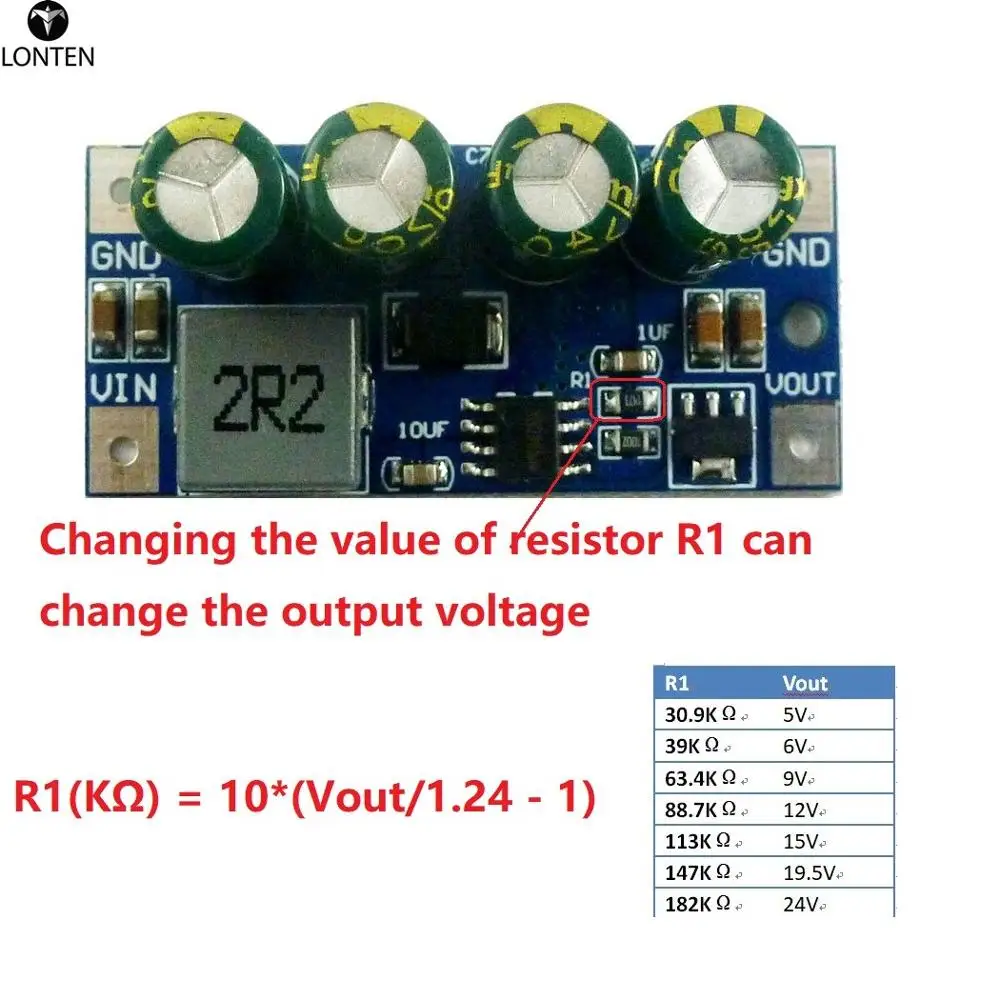

Output 5V :
Input voltage DC 3.7 ~ 4.5V,output DC 5V±3%

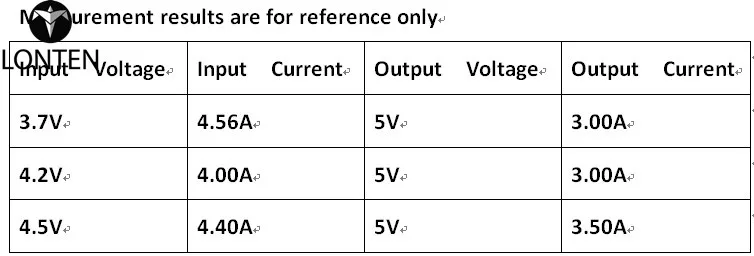

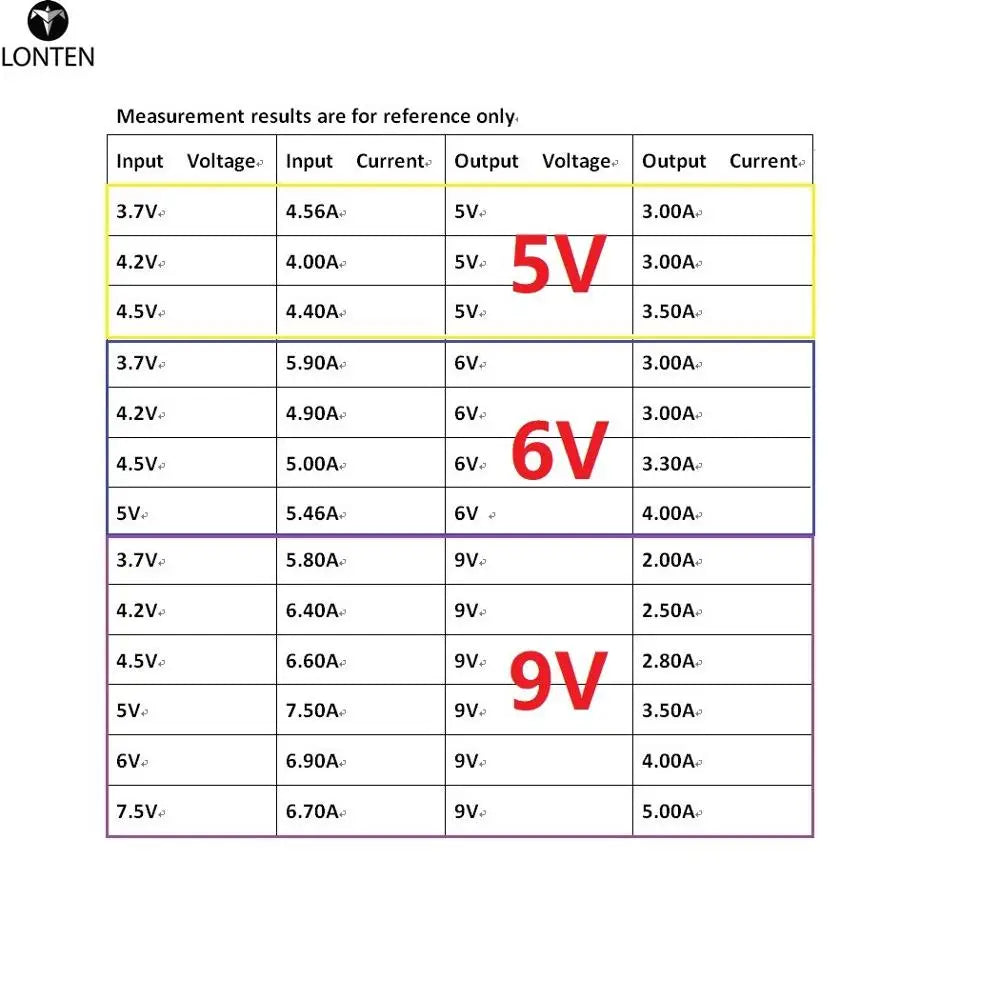

Maximum output : 5V/3.5A(Maximum power 17W,See the table below for details)
Output 6V :
Input voltage DC 3.7 ~ 5V,output DC 6V±3%

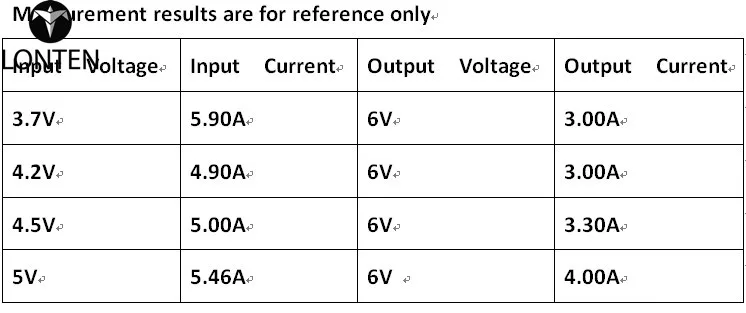

Maximum output : 6V/4A(Maximum power 24W,See the table below for details)
Output 9V :
Input voltage DC 3.7 ~ 8V,output DC 9V±3%

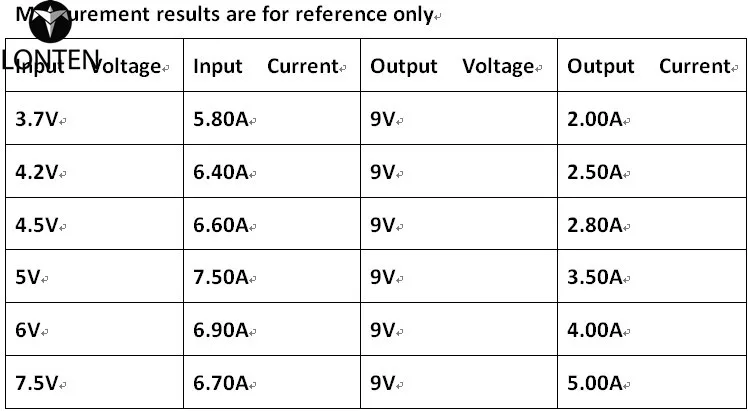

Maximum output : 9V/5A(Maximum power 45W,See the table below for details)

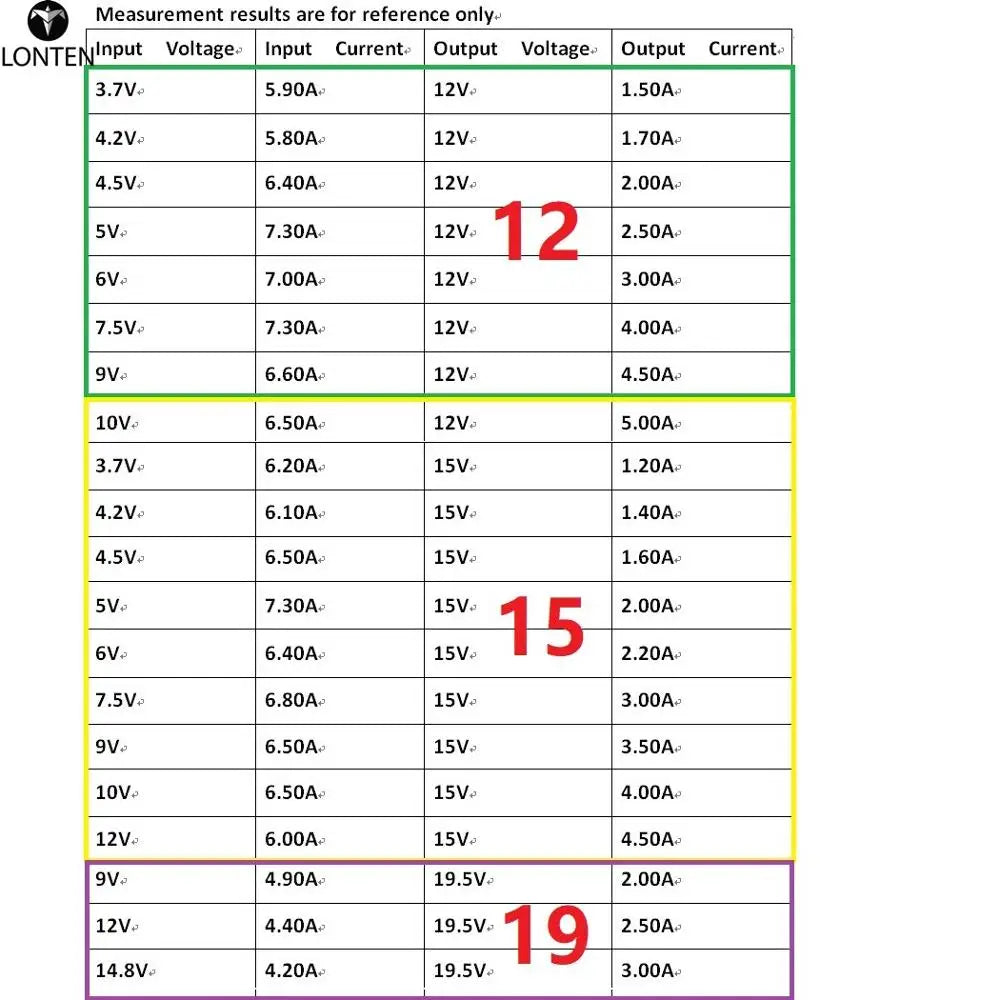

Output 12V :
Input voltage DC 3.7 ~ 11V,output DC 12V±3%
Maximum output : 12V/5A(Maximum power 60W,See the table below for details)
Output 15V :
Input voltage DC 3.7 ~ 14V,output DC 15V±3%
Maximum output : 15V/4.5A(Maximum power 67W,See the table below for details)

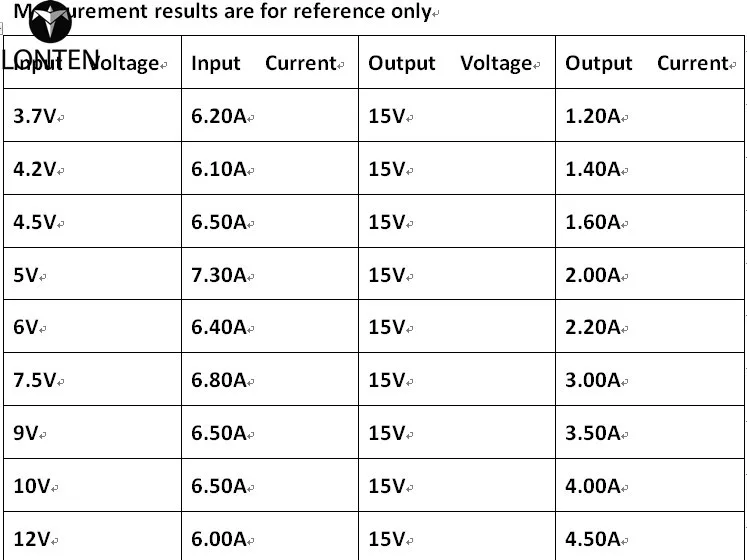

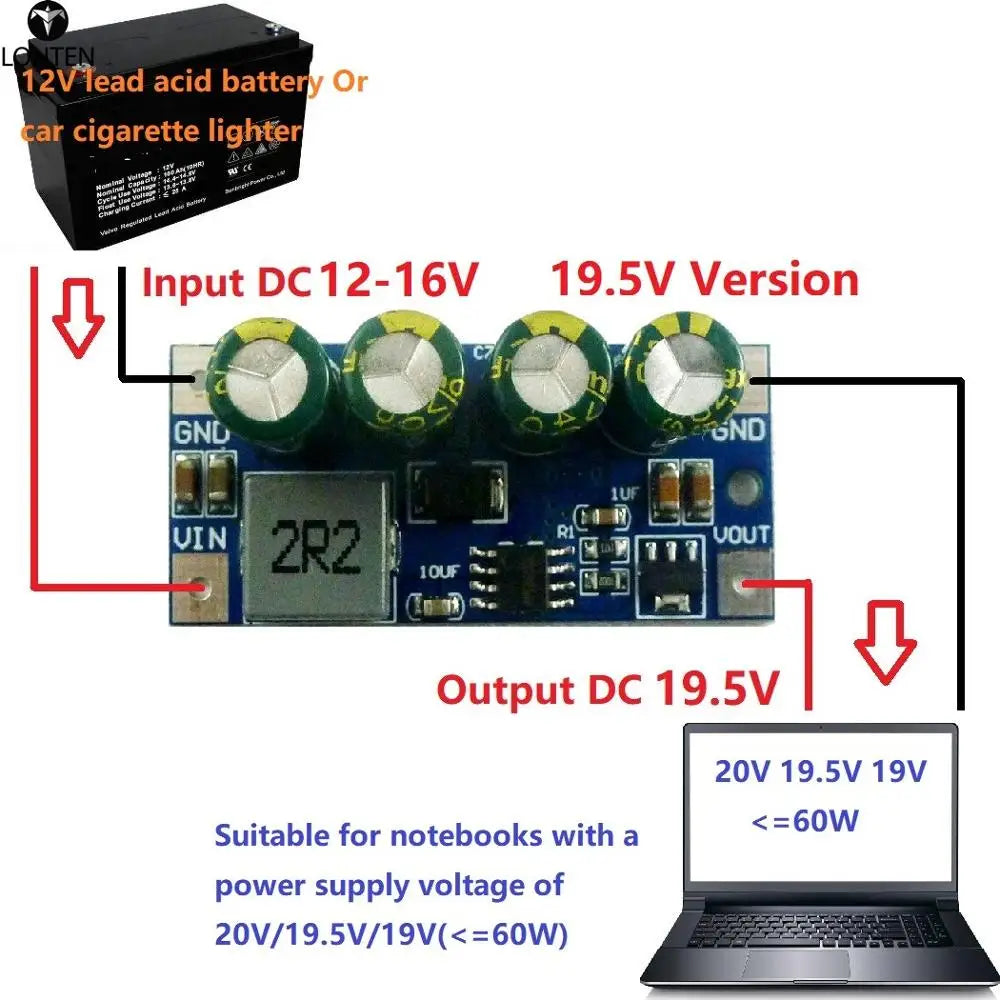

Output 19.5V :
Input voltage DC 9 ~ 18V,output DC 19.5V±3%

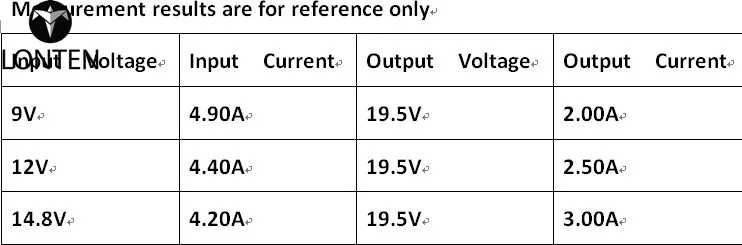

Maximum output : 19.5V/3A(Maximum power 58W,See the table below for details)

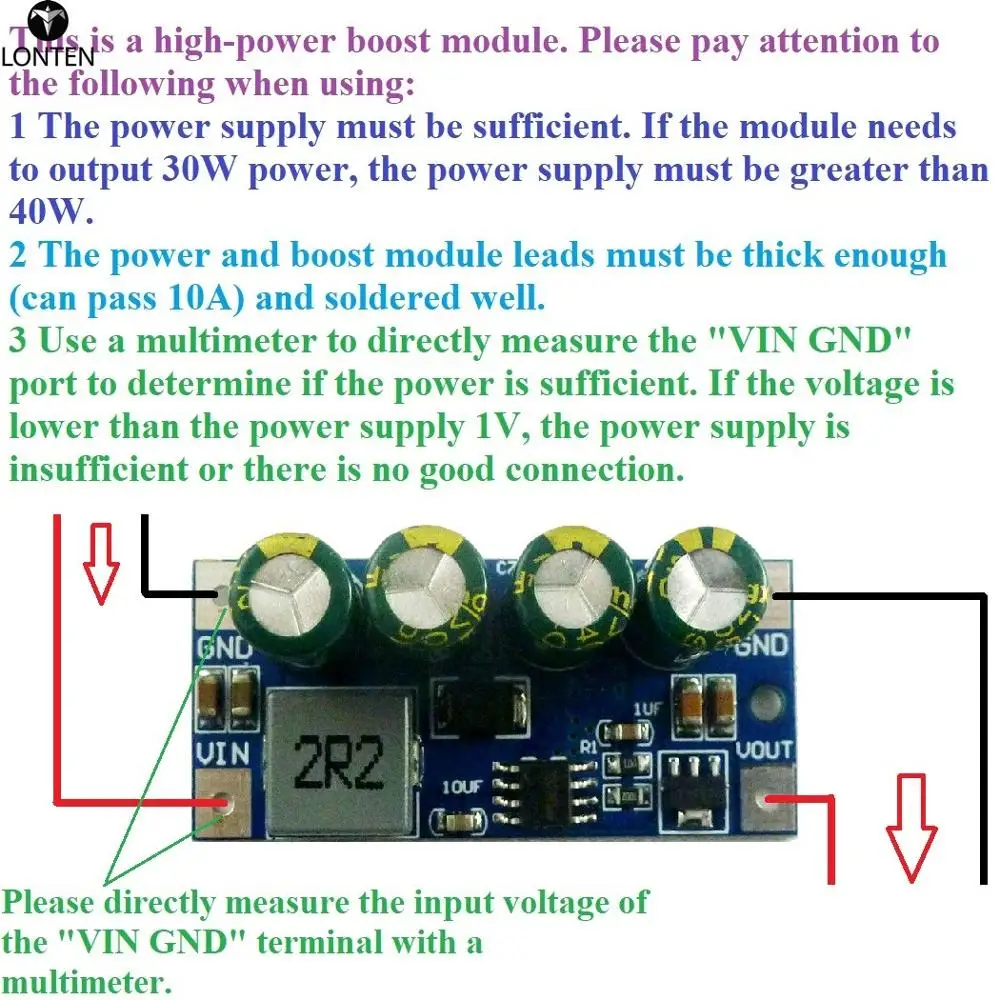

Attention :
This is a high-power boost module. Please pay attention to the following when using:
1 The power supply must be sufficient. If the module needs to output 30W power, the power supply must be greater than 40W.
2 The power and boost module leads must be thick enough (can pass 10A) and soldered well.
3 Use a multimeter to directly measure the ''VIN GND'' port to determine if the power is sufficient. If the voltage is lower than the power supply 1V, the power supply is insufficient or there is no good connection.
This is a high-power boost module. Please pay attention to the following when using:
1 The power supply must be sufficient. If the module needs to output 30W power, the power supply must be greater than 40W.
2 The power and boost module leads must be thick enough (can pass 10A) and soldered well.
3 Use a multimeter to directly measure the ''VIN GND'' port to determine if the power is sufficient. If the voltage is lower than the power supply 1V, the power supply is insufficient or there is no good connection.
4 Input voltage can not be greater than the maximum input range
5 Output power can not be greater than the maximum load for a long time
6 Input power must be greater than the output power, because the power consumption of the module itself
Applications:

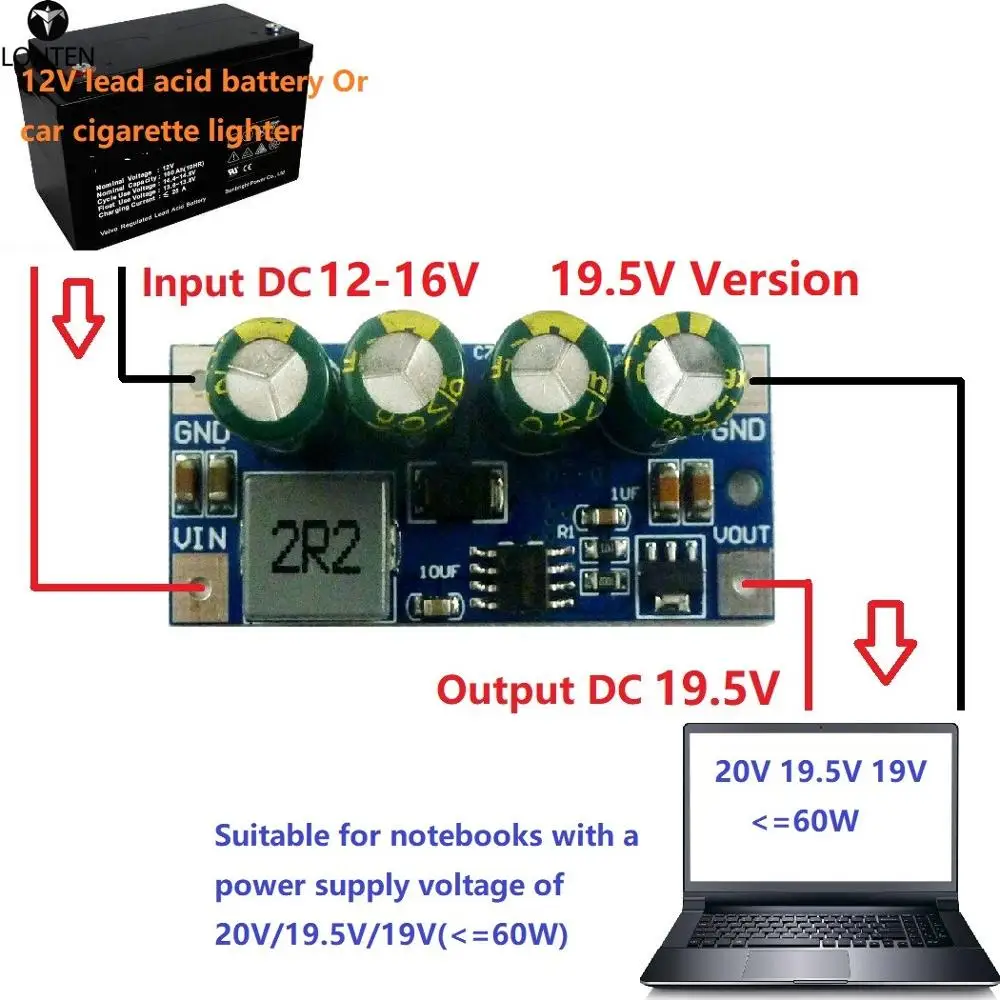

for 12V lead acid battery
for Car cigarette lighter
PTZ CCTV IP camera
laptop notebook PC
Smart home / home automation
WIFI Router Switch Network equipment
LED Motor
Solar power
