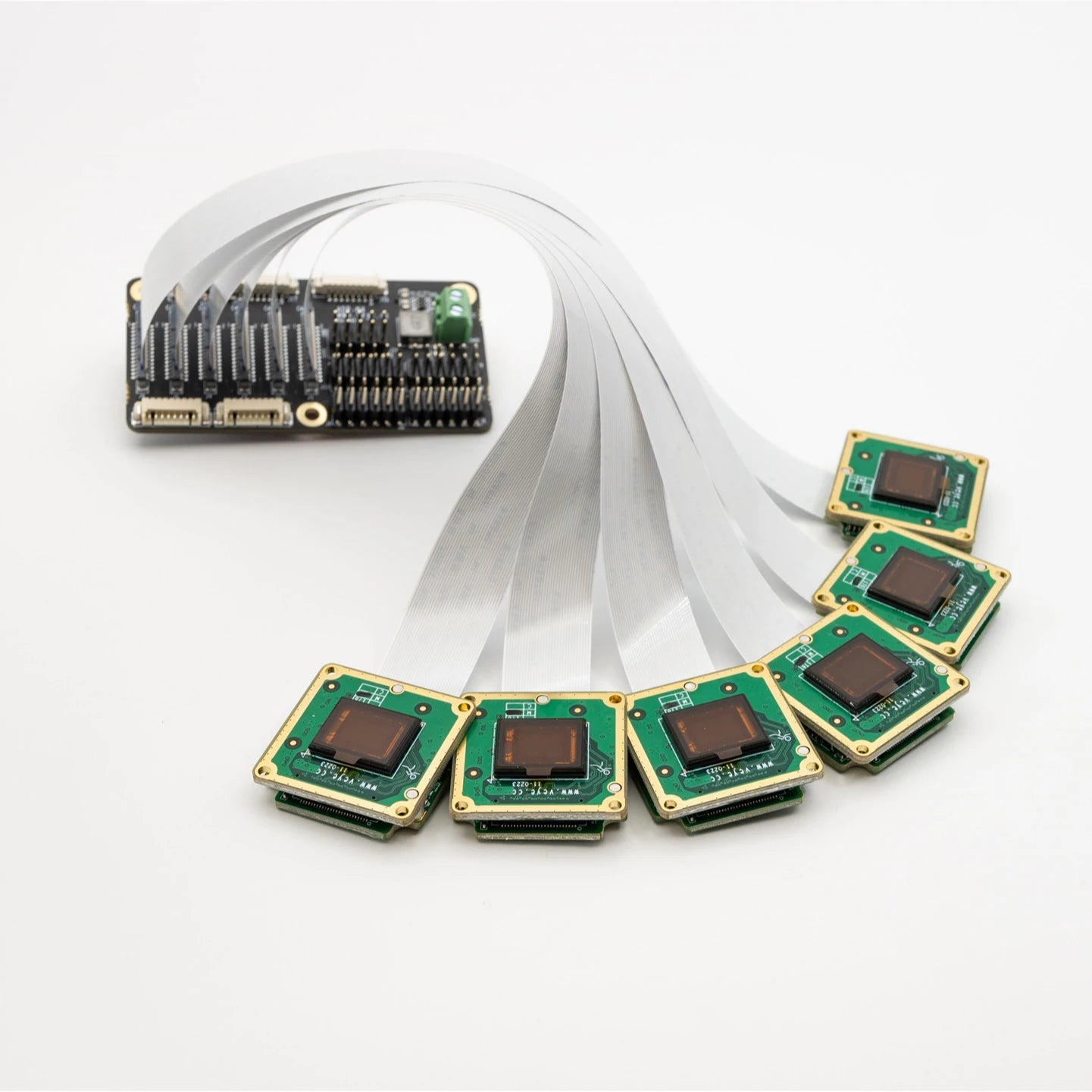

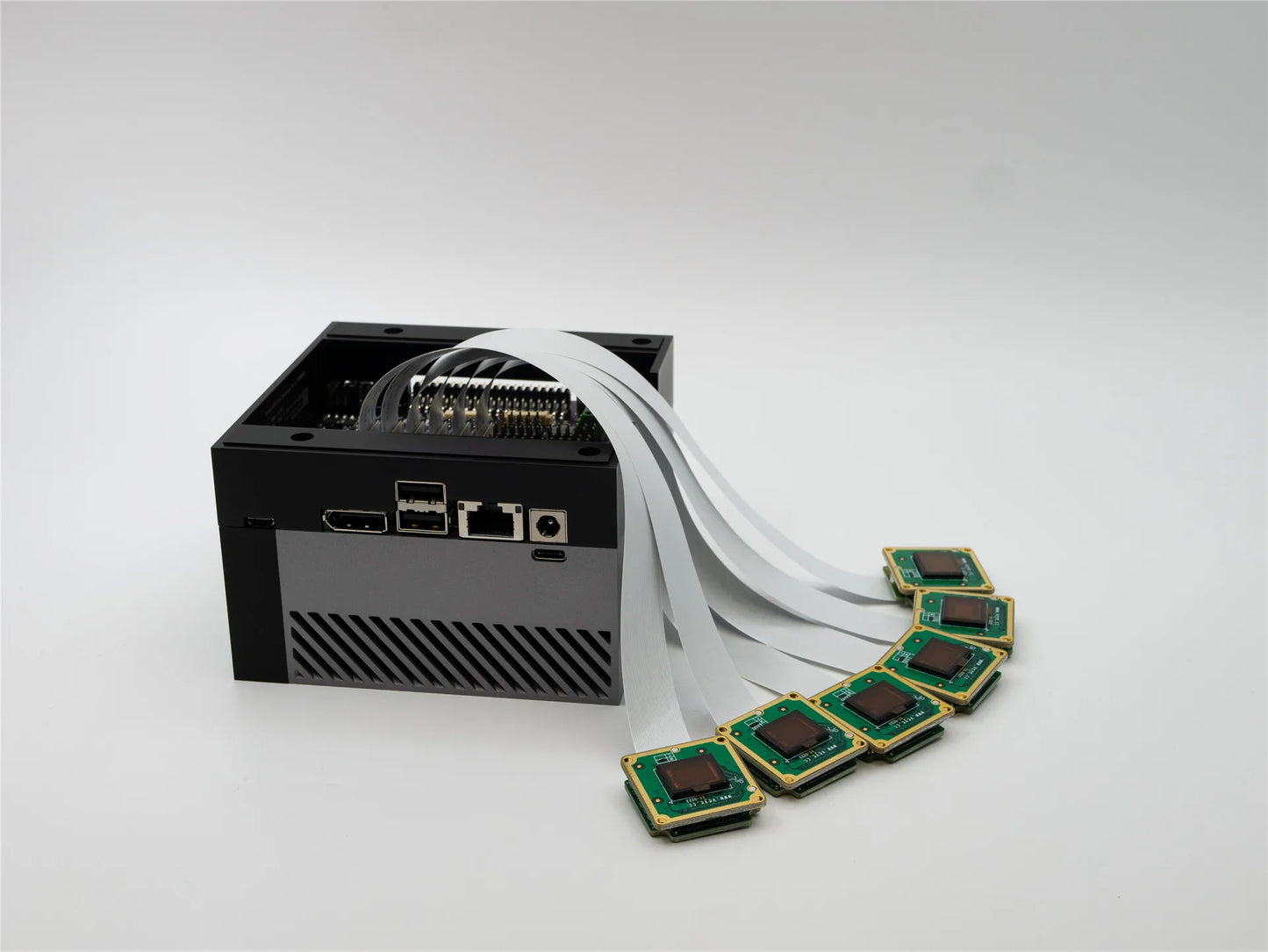

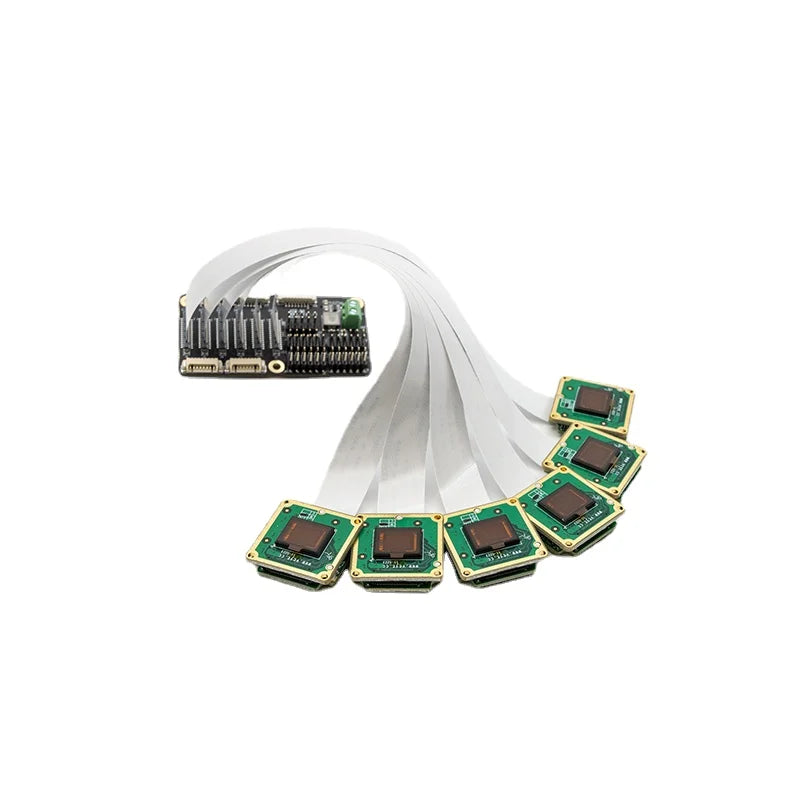

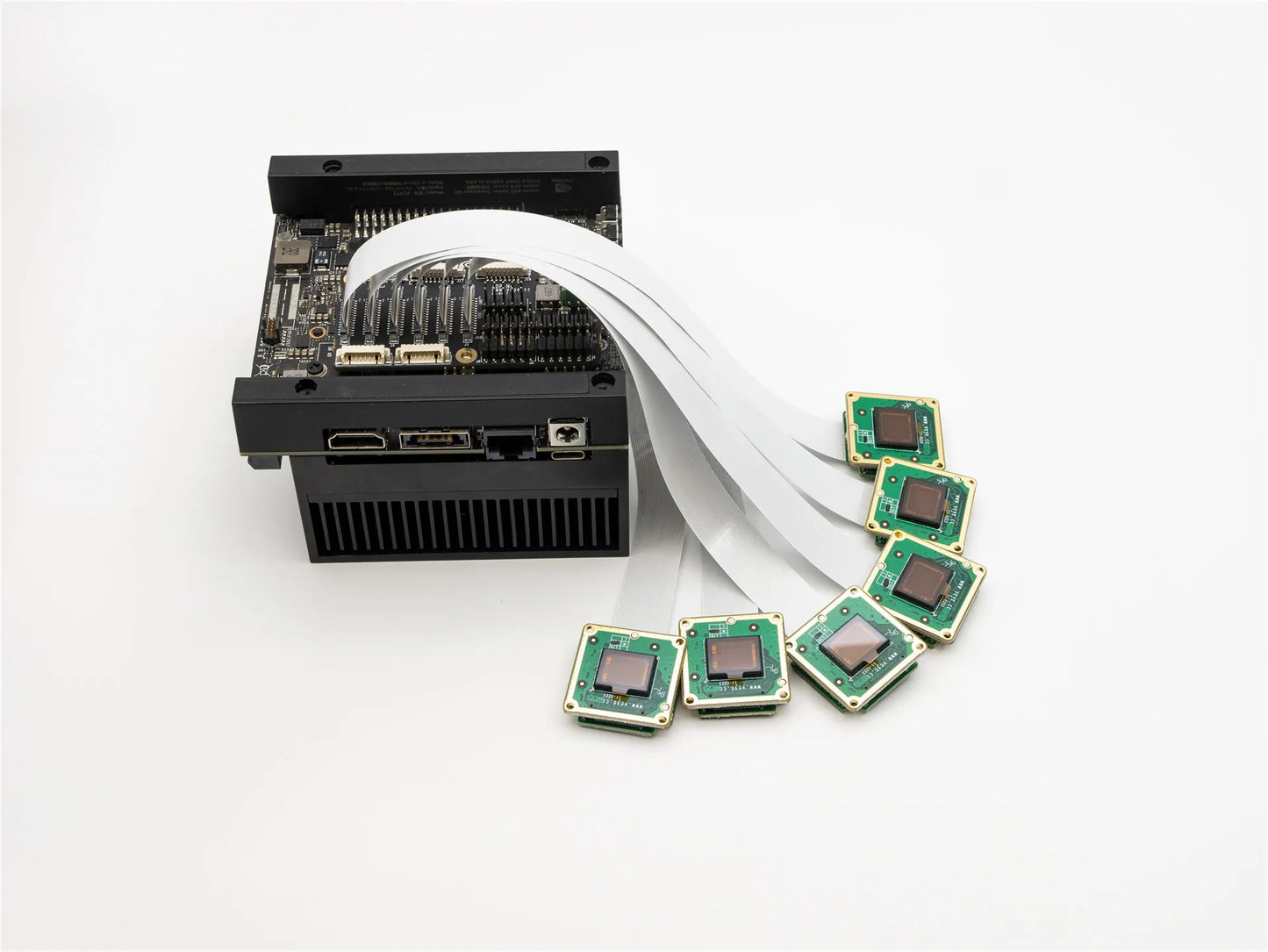

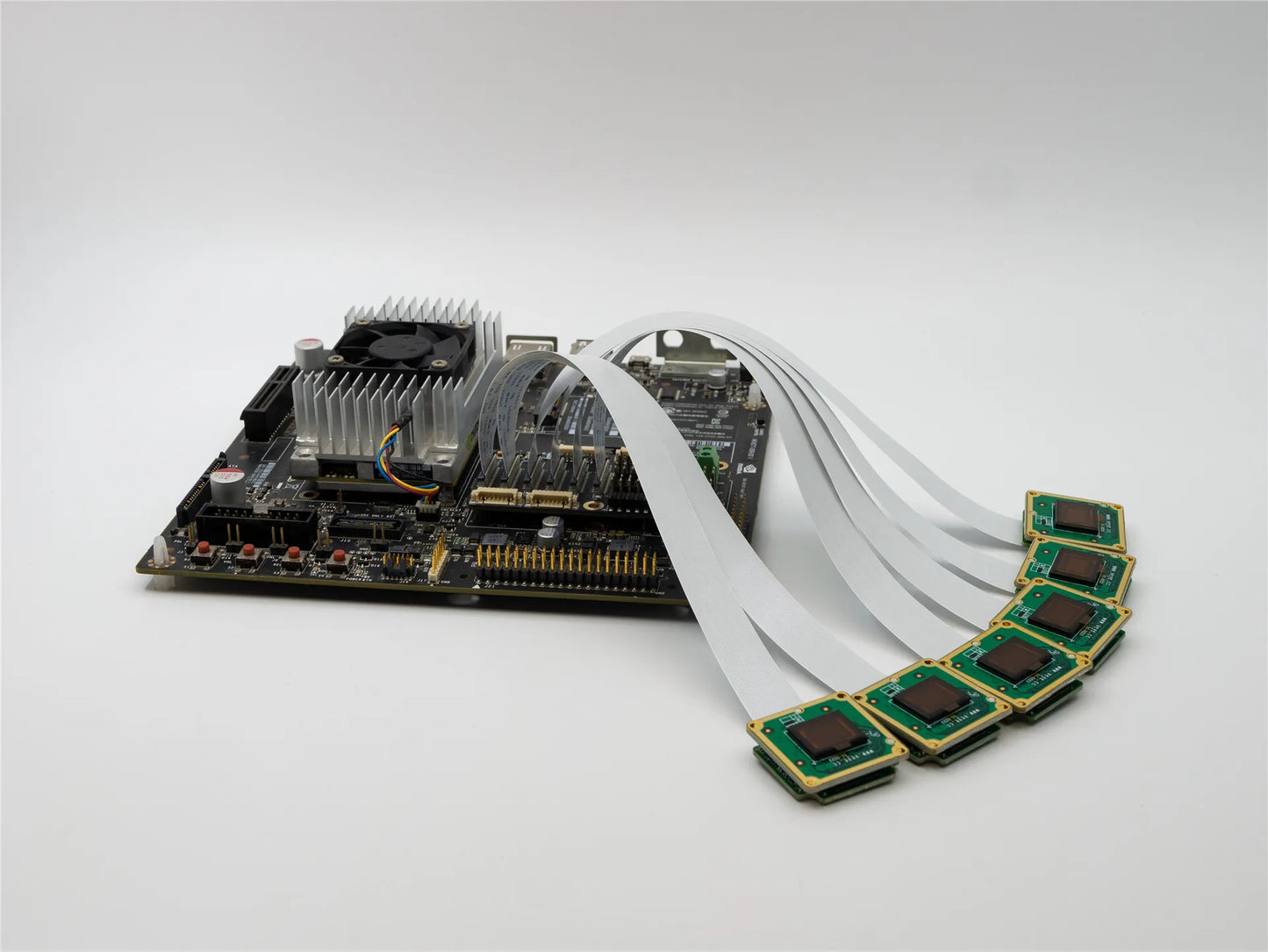

Custom 6.0MP Machine Vision MIPI CSI-2 Camera, MV-XAVITER-ORIN-nCAM-IMX178M for Jetson AGX-Xavier,Orin and TX2 Devkit Manufacturer

Brief

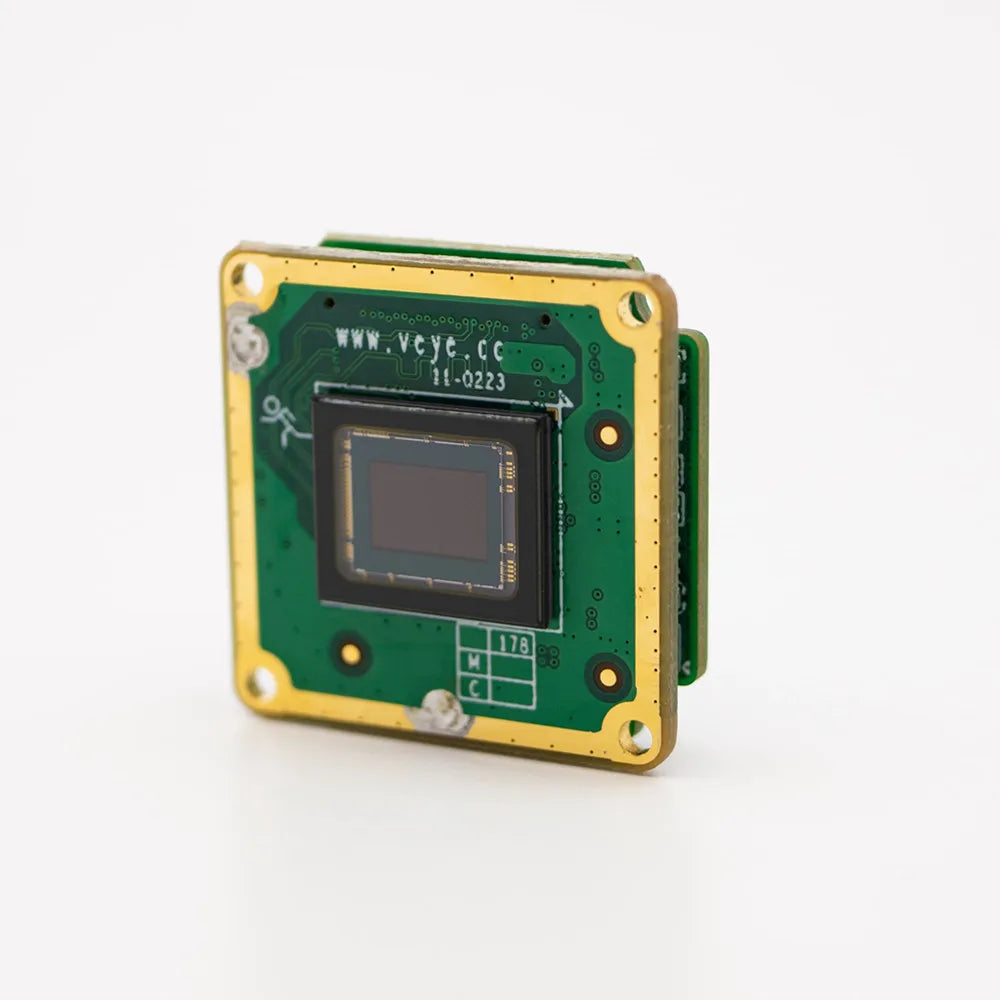

MV-MIPI-IMX178M is a 6 million MONO industrial camera with MIPI interface.

This camera has a small size (29*29mm) and rich functions, so it is suitable for integration as an image acquisition component.

Features

• 1/1.8'' 6M Pixel SONY STARVIS CMOS SENSOR

• MIPI CSI-2 Interface

• Mono-8,Mono-10,Mono-12 Data Format

• Video streaming mode(Free Running),Trigger mode,High-speed continuous trigger mode

• Hardware and Software trigger source

• Support trigger frame number, interval, delay, trigger filter function

• Strobe synchronization

• ROI

• USER Output

• Flexible frame rate settings

Thechnical Details

CAD drawing

• Sensor Board

• ADP-MV1 Board

• C-MOUNT01



Lens select

http://wiki.veye.cc/index.php/Machine_Vision_Lenses

Important references links

+ wiki MV-MIPI-IMX178M
http://wiki.veye.cc/index.php/MV-MIPI-IMX178_Index

+ How to use MV series camera module on Raspberry Pi
http://wiki.veye.cc/index.php/Mv_series_camera_appnotes_4_rpi

+ How to use MV series camera module on NVIDIA Jetson Platform
http://wiki.veye.cc/index.php/Mv_series_camera_appnotes_4_jetson

+ github
https://github.com/veyeimaging

+ website
www.veye.cc

+ Forum
http://forum.veye.cc

Packaging and accessories

We provide all the needed accessories and install them according to your purchase options and reliable packaging. Below is the schematic.
