Custom 5pcs DC DC Converter Step Down Buck 40-5V to 0.9-30V Adjustable Power Supply Module repl 7812 7805 AMS1117 LM2596 Manufacturer

Custom 5pcs DC DC Converter Step Down Buck 40-5V to 0.9-30V Adjustable Power Supply Module repl 7812 7805 AMS1117 LM2596 Manufacturer

Regular price $11.39 USD
Regular price $11.39 USD Sale price $11.39 USD
Sale Sold out

Lonten provide electronic component ,welcome OEM CUSTOM ,ODM,for more please contact.

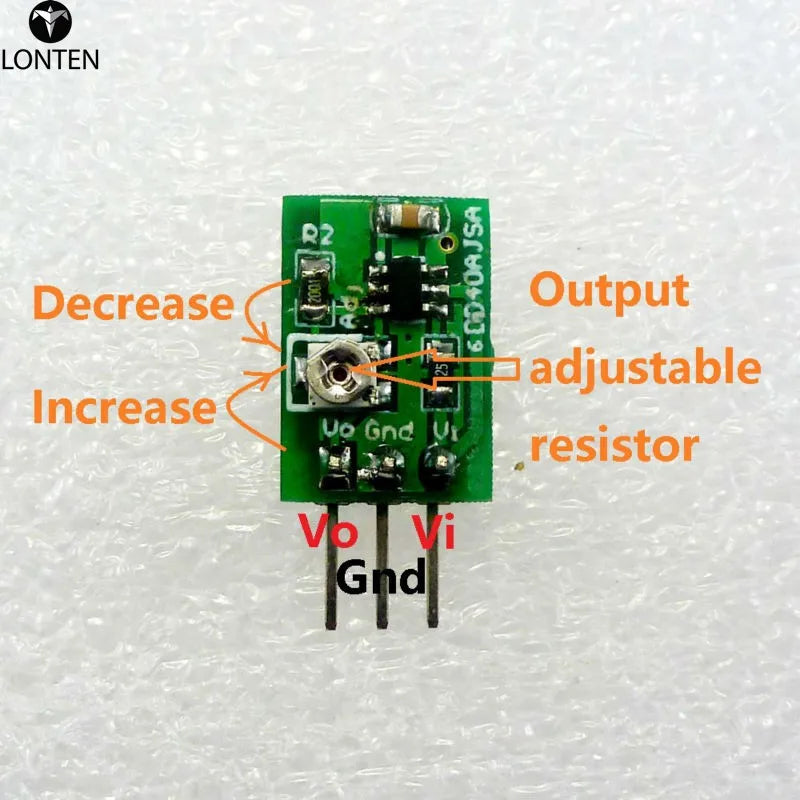

Note: Adjustable resistors (potentiometers) are components that are easily damaged. Use a suitable screwdriver to slowly rotate. Click here to buy a screwdriver.


Applications:

1.2V/1.5V/1.8V/2.5V/3.3V/5V MCU ARM CPU FPGA/CPLD
12V 5V TO 3.7V lithium battery- systems
12V 9V 6V 5V 3.3V Motor
WIFI esp8266 Module
CCTV camera
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
315M 433M Wireless remote controller
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
DSL Modems


Product Name :         5pcs DC DC Converter Step Down Buck 40-5V to 0.9-30V Adjustable Power Supply Module repl 7812 7805 AMS1117 LM2596

  Packing list:

5 PCS mini 1A DC DC Converter Step Down 4.75V-40V to 0.9-30V  Adjustable output
aeProduct.getSubject()


Description:

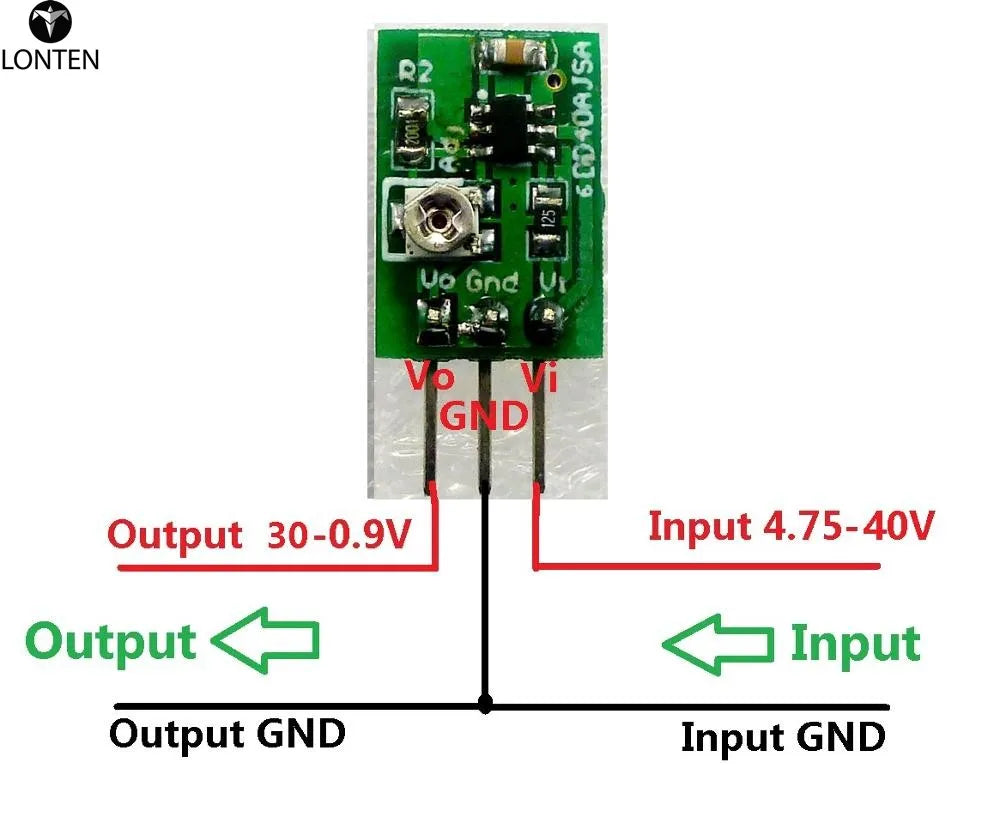

Input voltage 4.75~40V,Adjustable output 0.9~30V

Long time maximum output current 0.85A(12V to 5V)

Short time maximum output current 1A(12V to 5V)

Quiescent current: about 1.5MA

DC-DC Step-Down Converter module working frequency 550KHz. efficiency is 75-90% .

Overtemperature shutdown, input under-voltage protection, BS-voltage protection, and short circuit protection.

2.54mm pin pitch, Arduiuo UNO MEGA2560 Breadboard MCU Development Board friendly

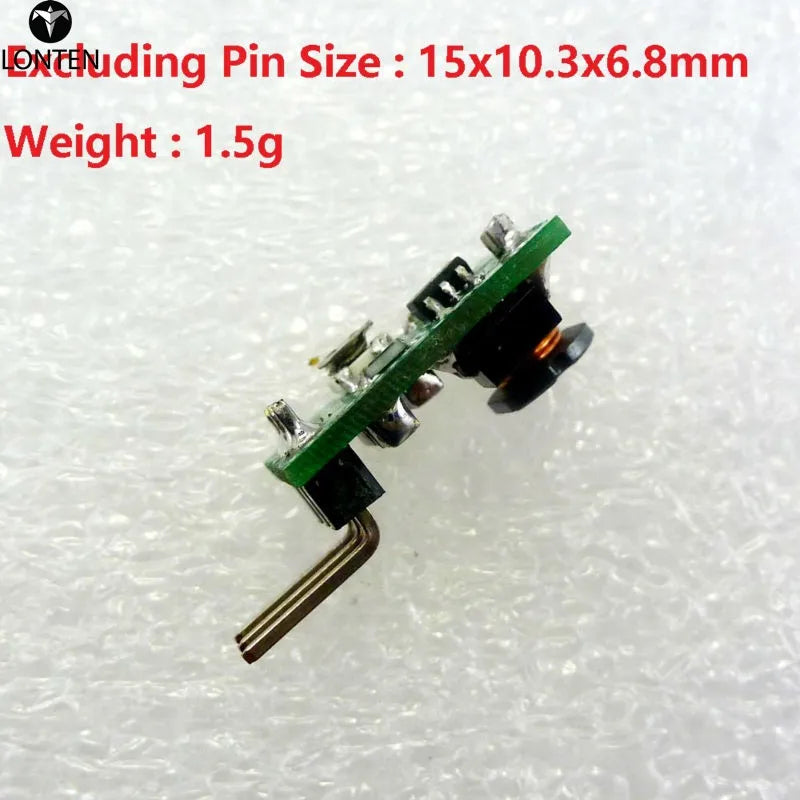

Excluding Pin Size 15mm x 10.3mm x 6.8mm(Very small)

Weight : about 1.5g(Very light)


Attention :


This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself



 Welcome Customize Order!
