Custom 5PCS/bag LC UPC female to male 15dB fiber optic Attenuator LC UPC female male Fiber Optic Attenuator Manufacturer
Custom 5PCS/bag LC UPC female to male 15dB fiber optic Attenuator LC UPC female male Fiber Optic Attenuator Manufacturer
Couldn't load pickup availability
Remark:The price is only for Bundle(optiona)1 ,welcome OEM ,ODM
5PCS/bag LC UPC female to male 5dB fiber optic Attenuator LC UPC female male Fiber Optic Attenuator
, most secure way to deliver the goods to your hands! If you have any questions after receiving the product, , , do feel to submit disputes, , we will give you the most satisfactory answer! Happy shopping,
Product Attributes

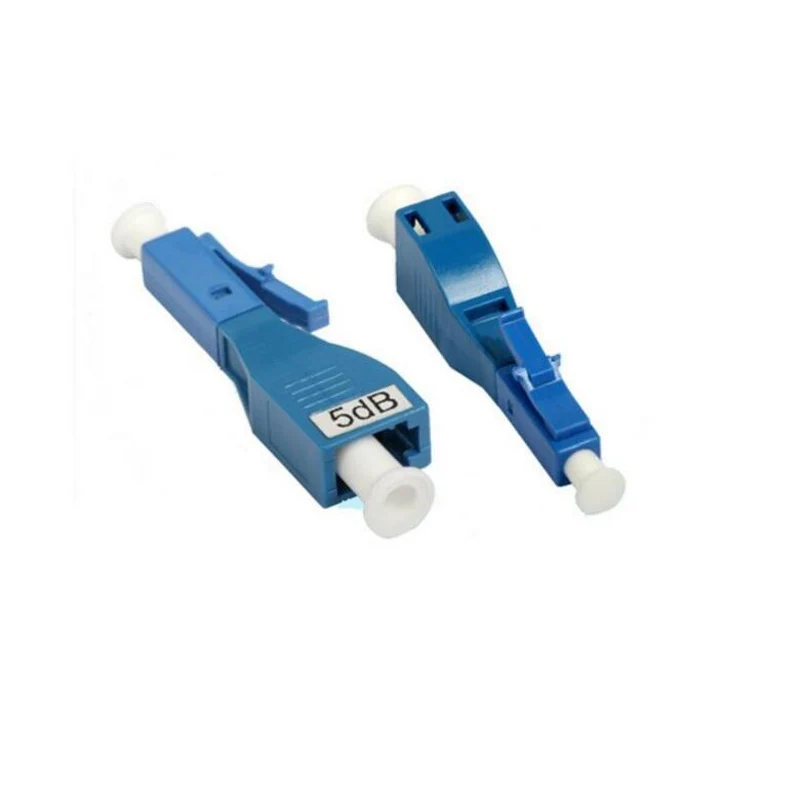

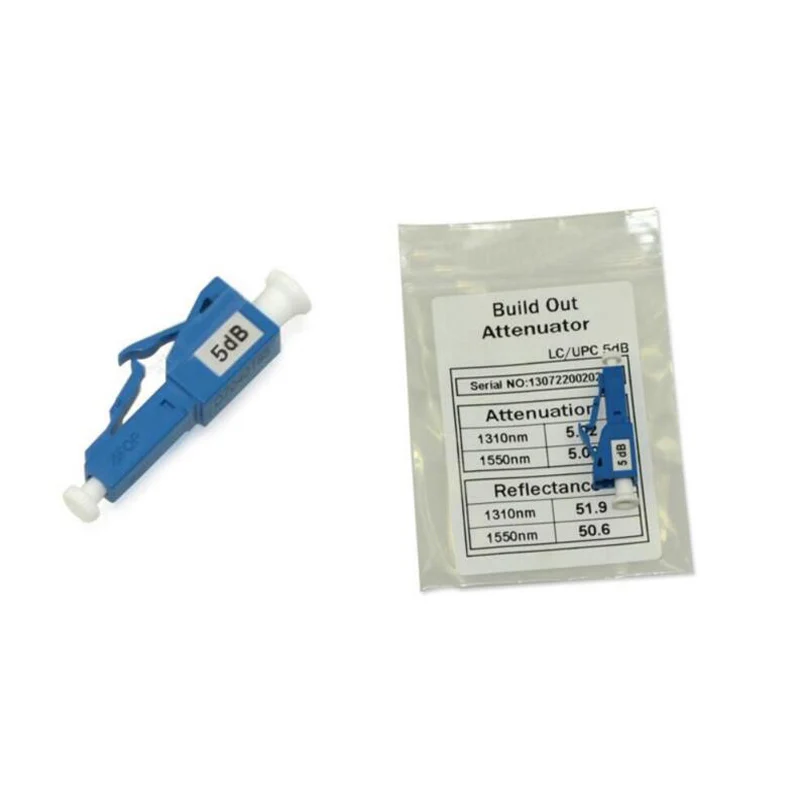

LC/UPC 5dB Fixed Fiber Optical Attenuator
1-30dB is available
Good quality
Best price
Fast delivery
LC/UPC 5dB Fixed Fiber Optical Attenuator
Features:
High power 1W continuous operation tested over 1000 hours
Precise attenuation
Return loss UPC >50 dB APC >60 dB
Low ripple broadband design for operation at both 1310 and 1550 nm
Attenuation range for SC, FC, and LC types 1 to 13 dB in 1 dB increments, 15 dB, and 20 dB
Applications:
Fiber optic systems
CATV and telecommunication systems
Receiver padding for optical receiver protection
Optical power equalization
Increasing dynamic range for apparatus
| Parameter table: Description | Unit | Condition | Values |
| Return Loss | dB | PC | ≥50 |
| dB | APC | ≥60 | |
| Attenuation Accuracy | dB | 1dB-10dB | <0.5 |
| dB | 11dB-20dB | <1 | |
| Operating Wavelength | nm | SM | 1200,1600 or 1310,1550 |
| nm | MM | 850, 1300 | |
| Polarization Dependent Loss | dB | / | ≤0.2 |
| Maximum Input Power | mW | / | 200 |
| Operating Temperature | °C | / | -40 to +80 |
