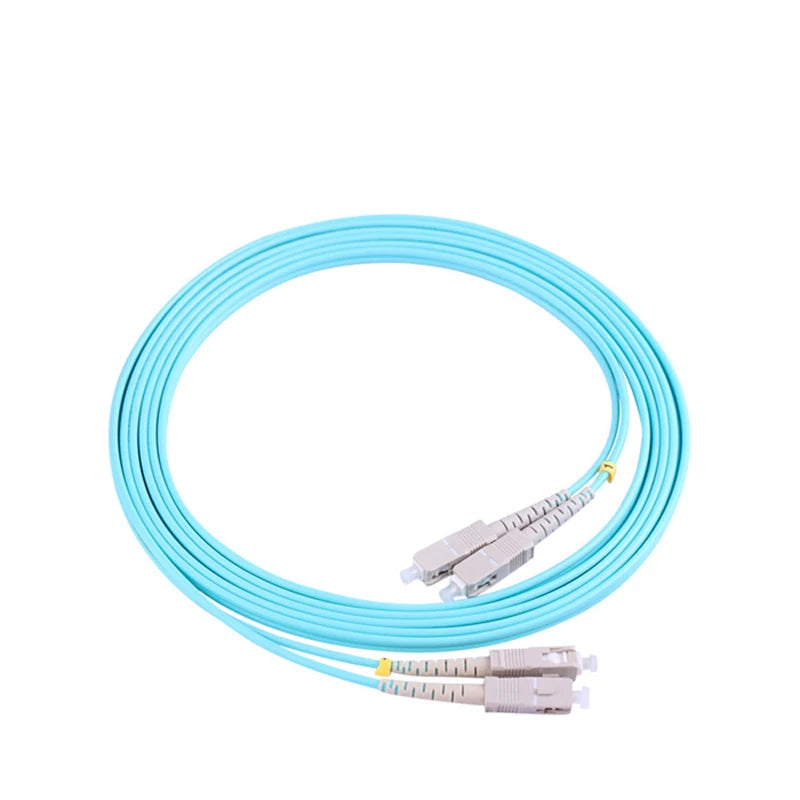

Custom 5PCS/bag 3M SC UPC OM3 Duplex multi-mode fiber optic patch cord cable SC 3M 2.0mm 3.0mm FTTH fiber optic jumper Manufacturer
Custom 5PCS/bag 3M SC UPC OM3 Duplex multi-mode fiber optic patch cord cable SC 3M 2.0mm 3.0mm FTTH fiber optic jumper Manufacturer
Couldn't load pickup availability
 |
5PCS/bag 3M SC UPC OM3 Duplex multi-mode fiber optic patch cord cable SC 3M 2.0mm 3.0mm FTTH fiber optic jumper
I assure you that the quality of our products to ensure that we give you the best service to ensure the fastest shipping, most secure way to deliver the goods to your hands! If you have any questions after receiving the product, or have quality problems, please do not panic, do feel to submit disputes, please contact our customer service, we will give you the most satisfactory answer! Happy shopping, thank you very much
Product Attributes
The optical Fiber Patch Cords is a length of optical cable with connectors fixed on two ends to realize the optical path active connection. Pigtail is a length fiber cable with only one connector fixed on one end. If both sides of the connector or its end-face are different, we call it hybrid patch cord. According to the transmission medium, it divides Single Modeand Multi Mode; according to the connector structure type, it divides FC, SC, ST, MU, D4, LC etc.; according to the polished ceramic end-face, it divides PC, UPC and APC.
Features
1.Low Insertion Loss
2.High Return Loss
3.Good Repeatability
4.Good Exchangeability
5.High Temperature Stability
Applications
1.Optic-fiber Communication Systems
2.Optic-fiber Data Communications
3.Optic-fiber Access Networks
4.Optic-fiber CATV
5.LAN,Cabling system,ODF
6.Test Equipment
7.Optic-fiber Sensors
8.FTTX applications
Specifications
| Mode | SM | MM | |
| Polish | UPC | APC | PC |
| Insertion Loss | Typical ≤0.2dB Maximum ≤0.3dB | ≤0.25dB | |
| Return Loss | ≥50dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | ||
| Durability | ≤0.2dB (1000 times mating) | ||
| Tensile Strengh | > 10kg | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
Ordering options
1) Connector type: FC, SC, LC, ST, MTRJ, MU, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
