Custom 5inch, 800x480,Resistive Touch Screen LCD, interface,support Raspberry Pi,BB Black,Banana Pi, 10/8.1/8/7 Manufacturer

DESCRIPTION

Features

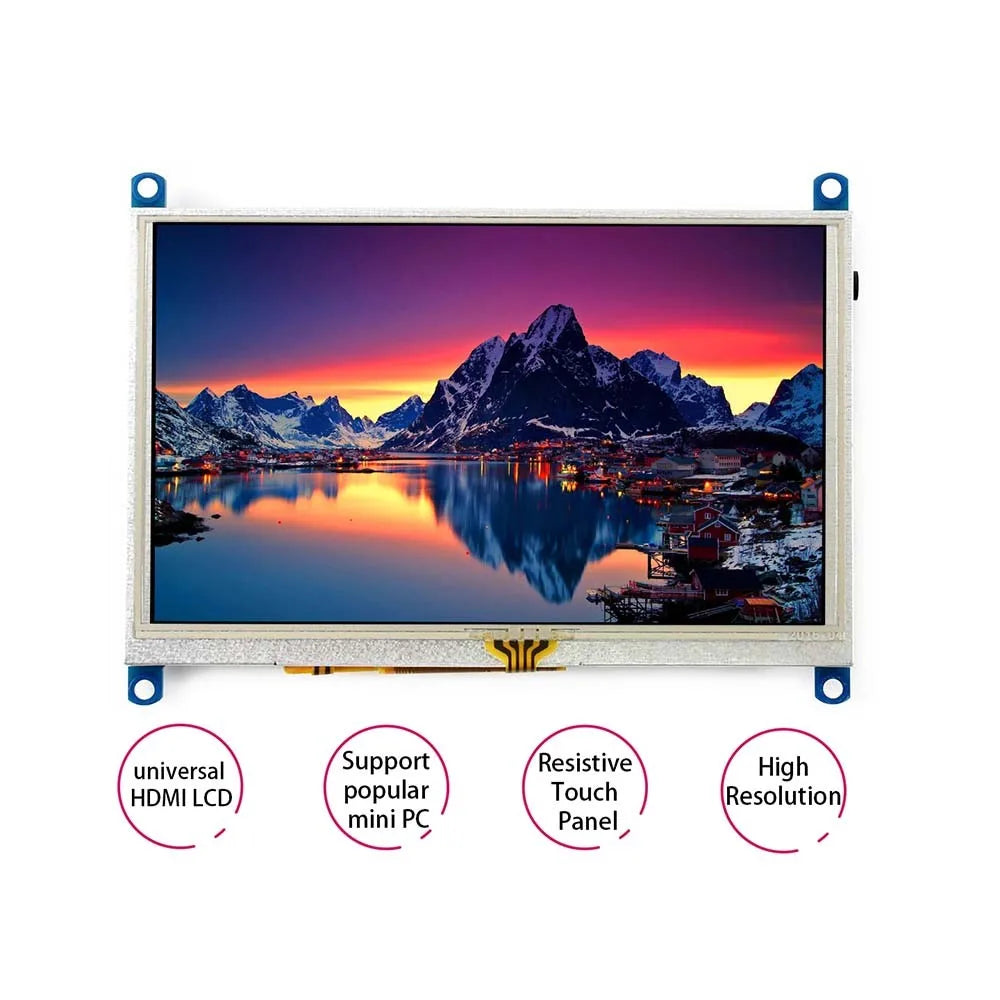

• 800x480 hardware resolution, configurable by software (up to 1920x1080)

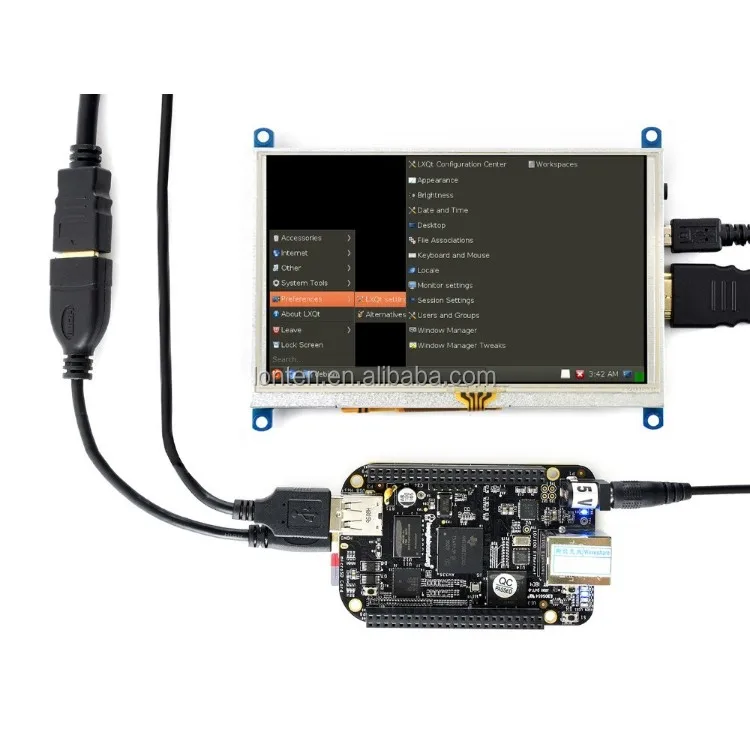

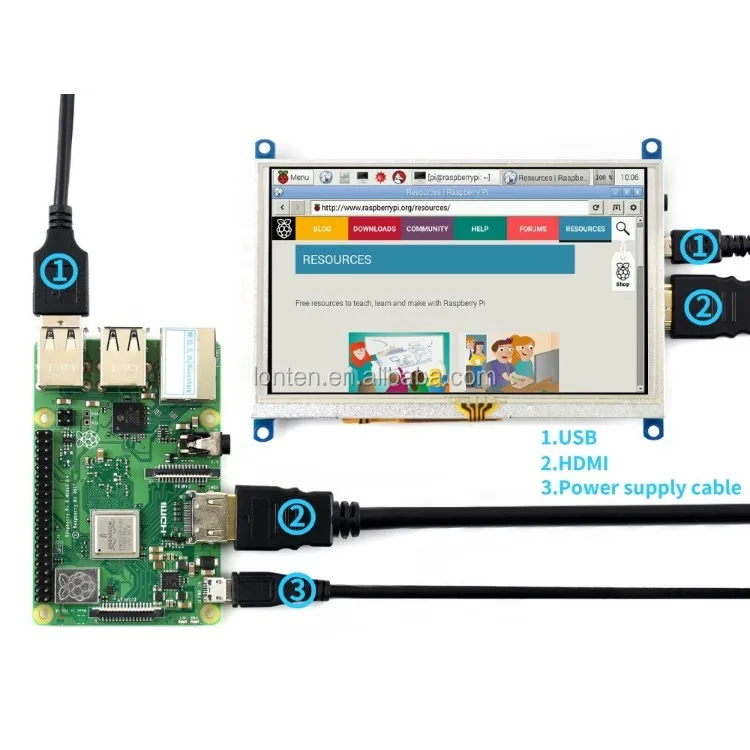

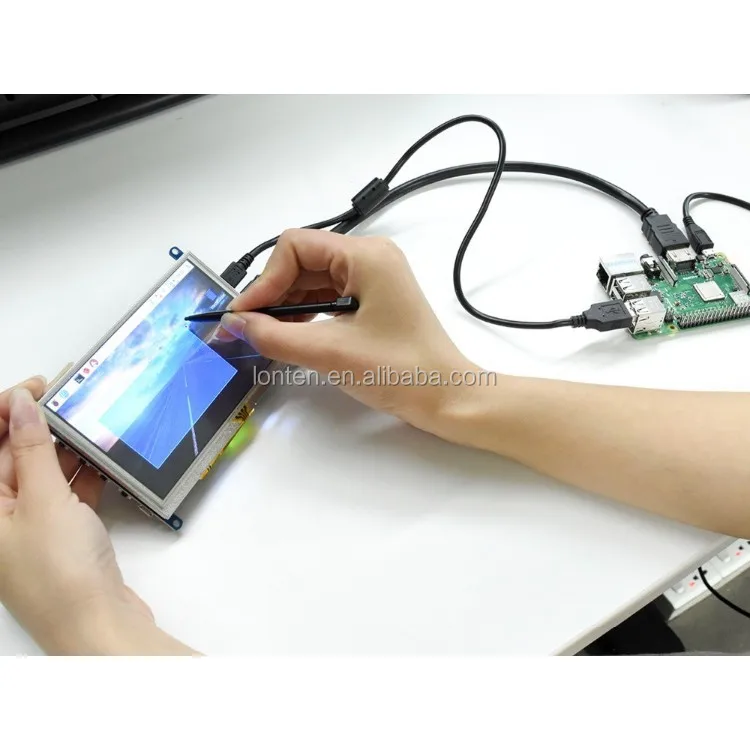

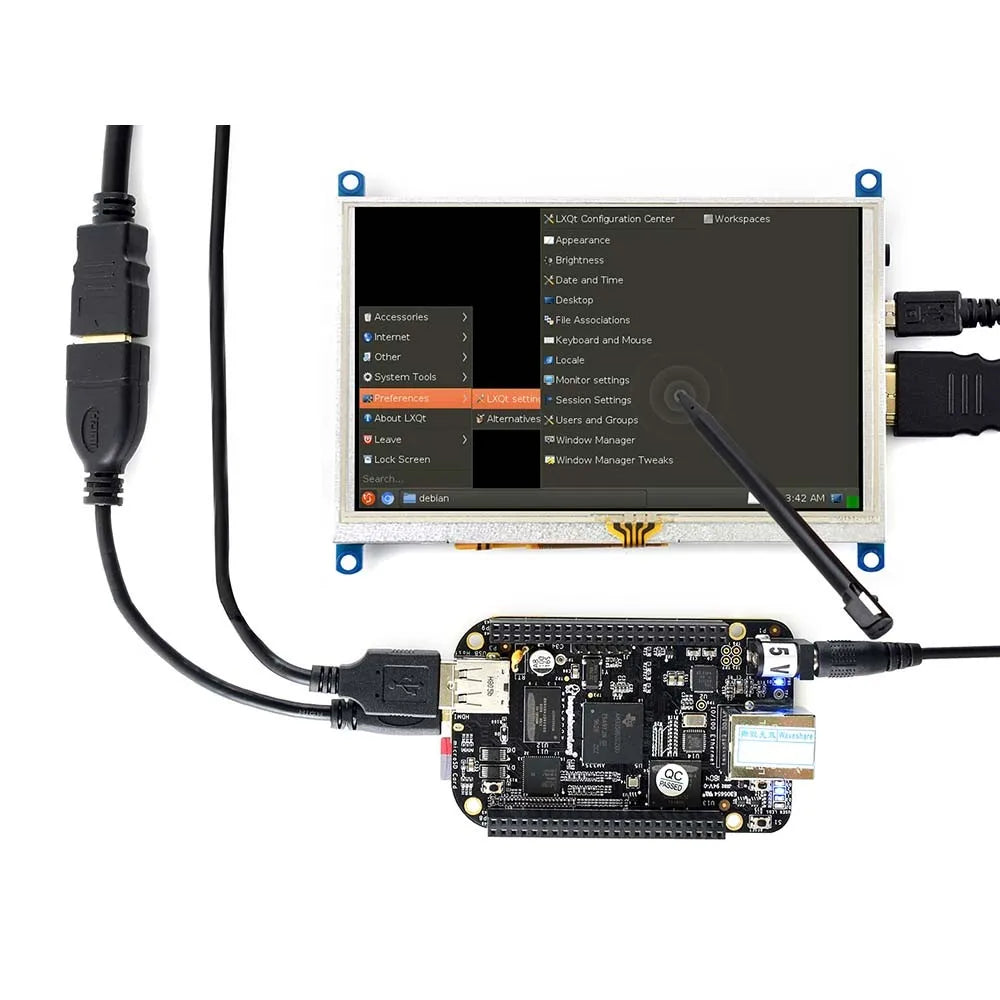

• Supports popular mini PCs such as Raspberry Pi, BB Black, Banana Pi, as well as general desktop computers

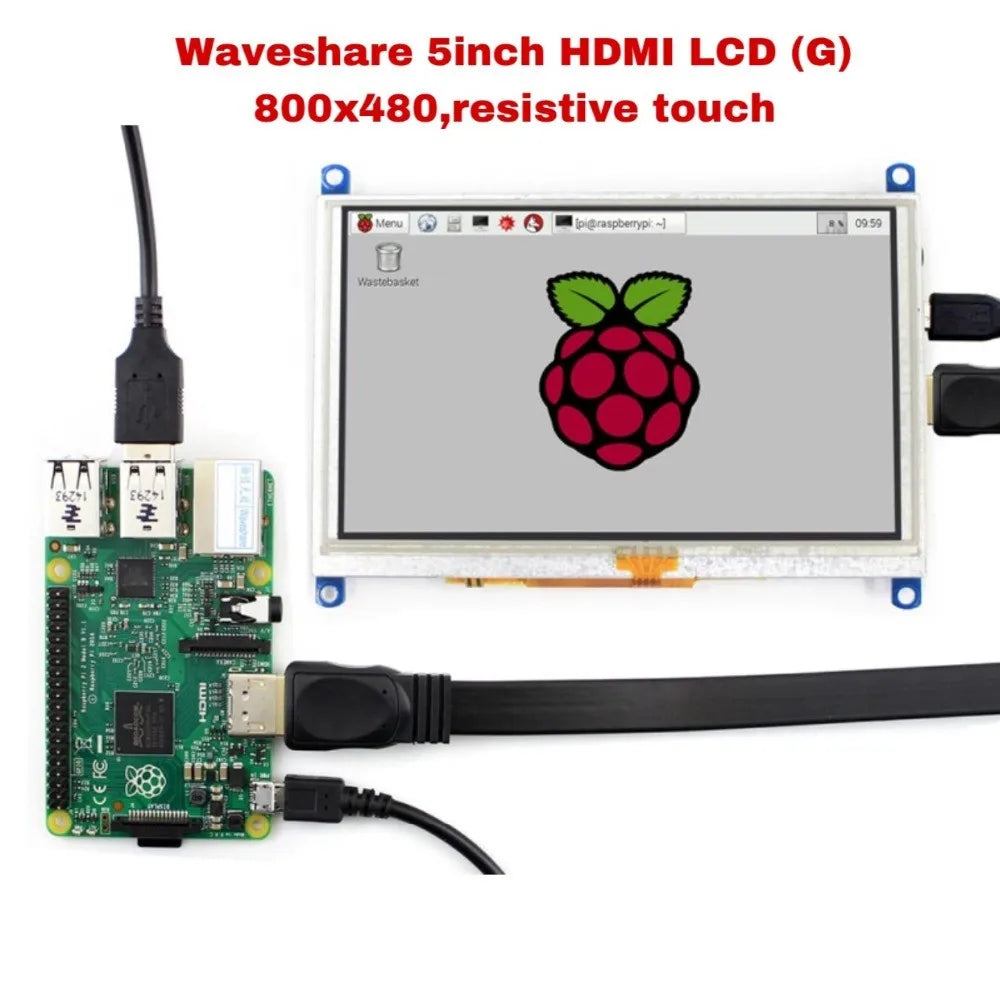

  • When works with Raspberry Pi, supports Raspbian, Ubuntu, 10 IOT, single touch, and driver

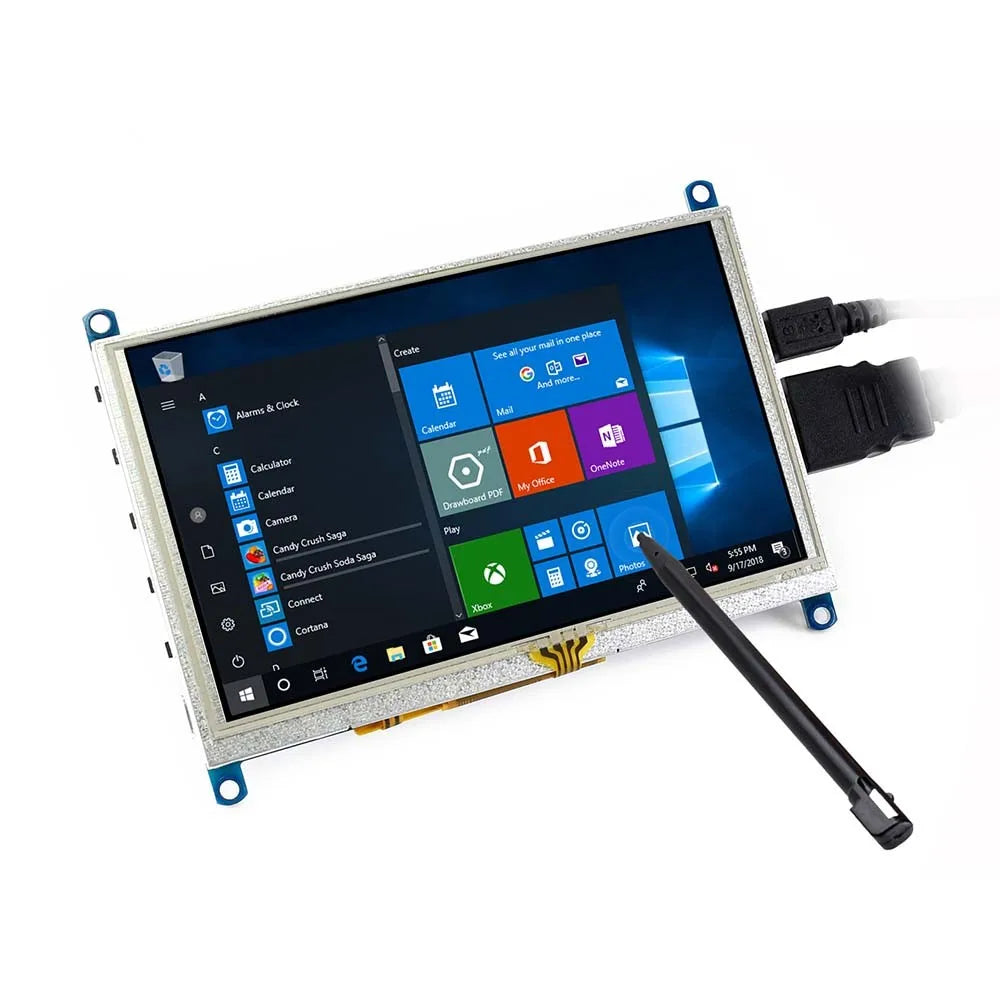

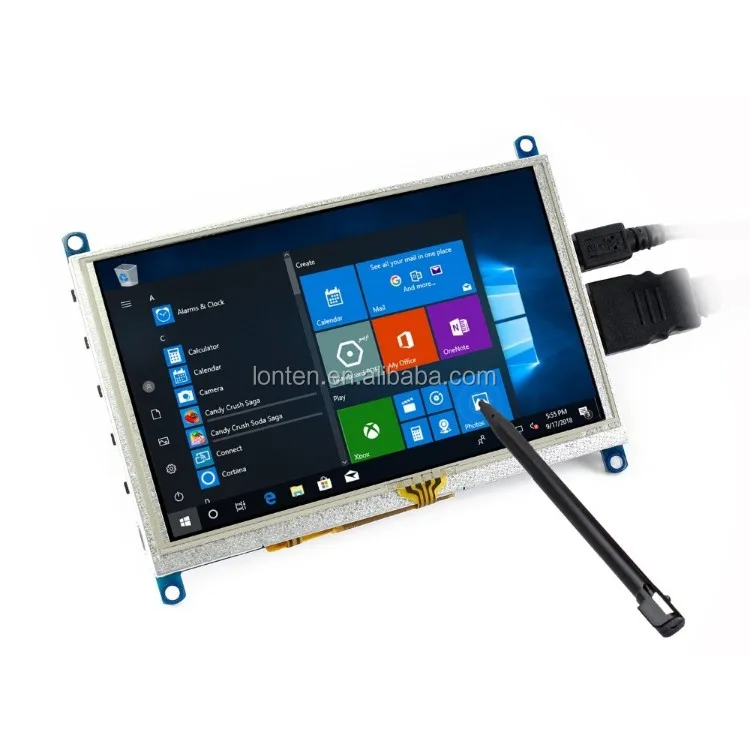

  • When work as a computer monitor, supports 10/8.1/8/7, five-points touch, and driver
• Supports popular game consoles like Microsoft XBOX360, Sony PS4, and Nintendo Switch, etc.

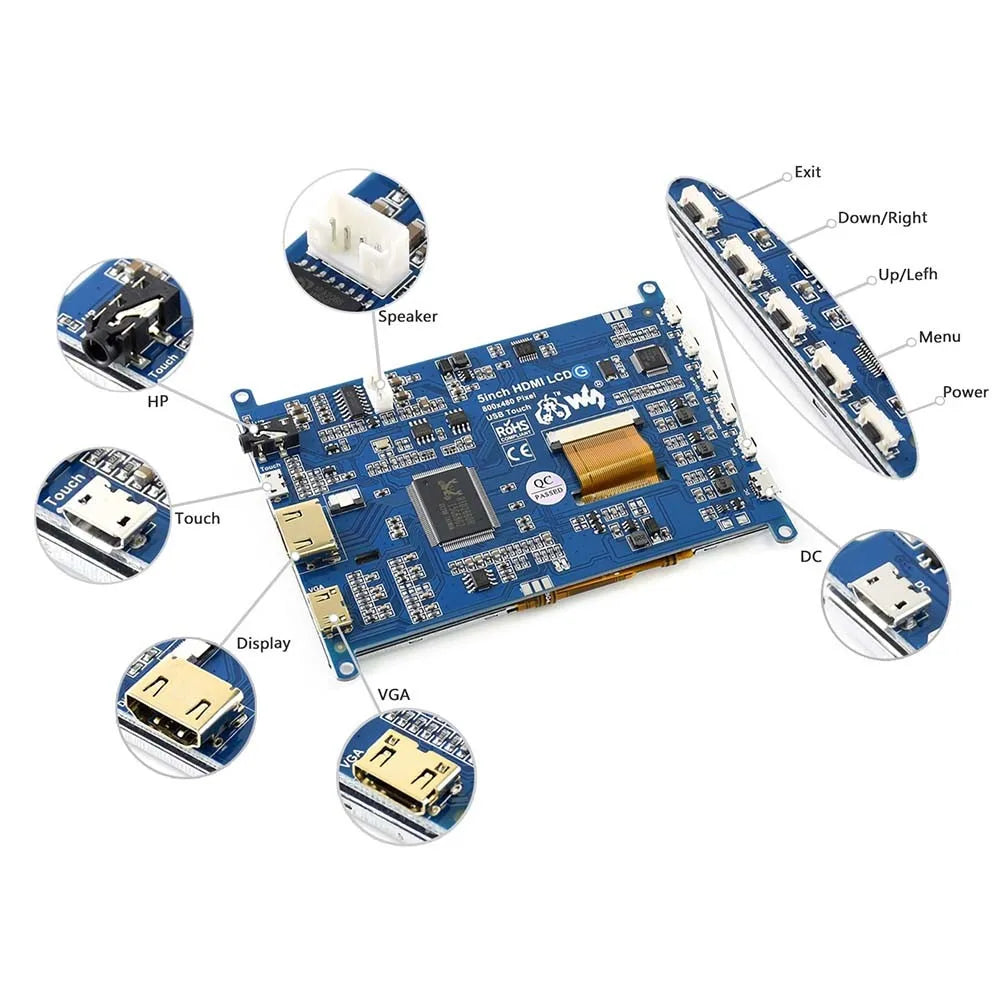

• Multi languages OSD menu, for power management, brightn/contrast adjustment, etc.
• 3.5mm o jack, speaker connector, supports o output
• Also supports VGA input (specific cable is required and should be purchased separately)

Using with Game Consoles

Note:

• Limited by the game console OS, the touch function is unavailable.
• Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack.

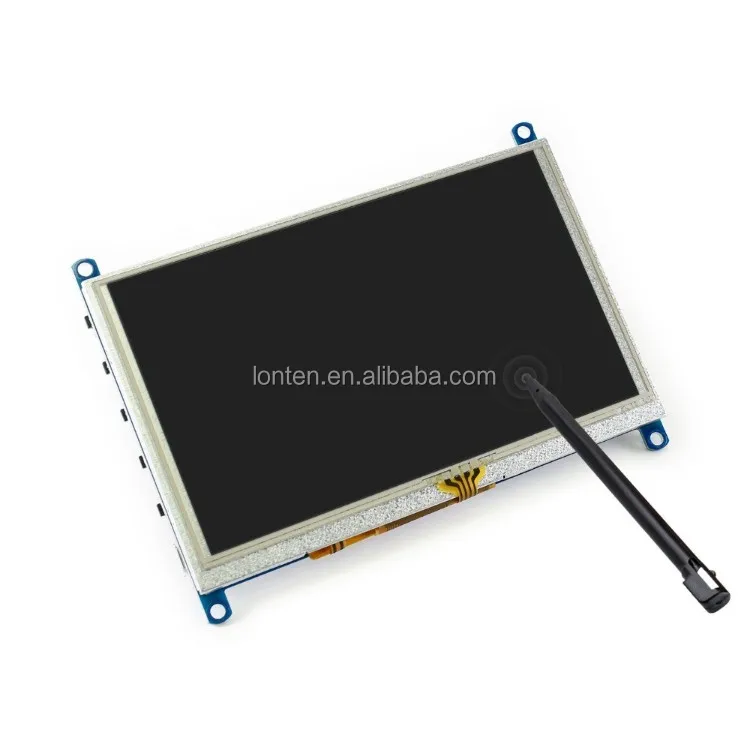

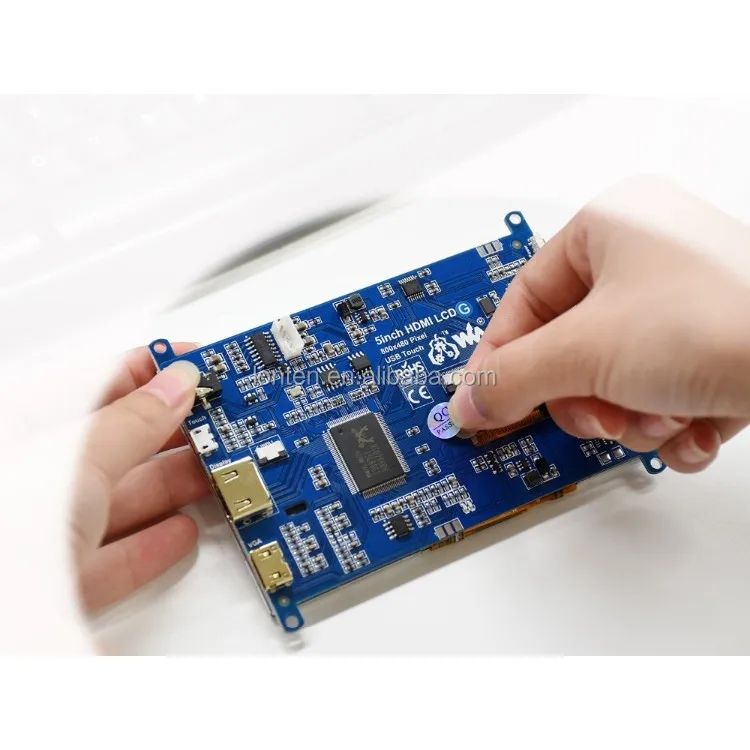

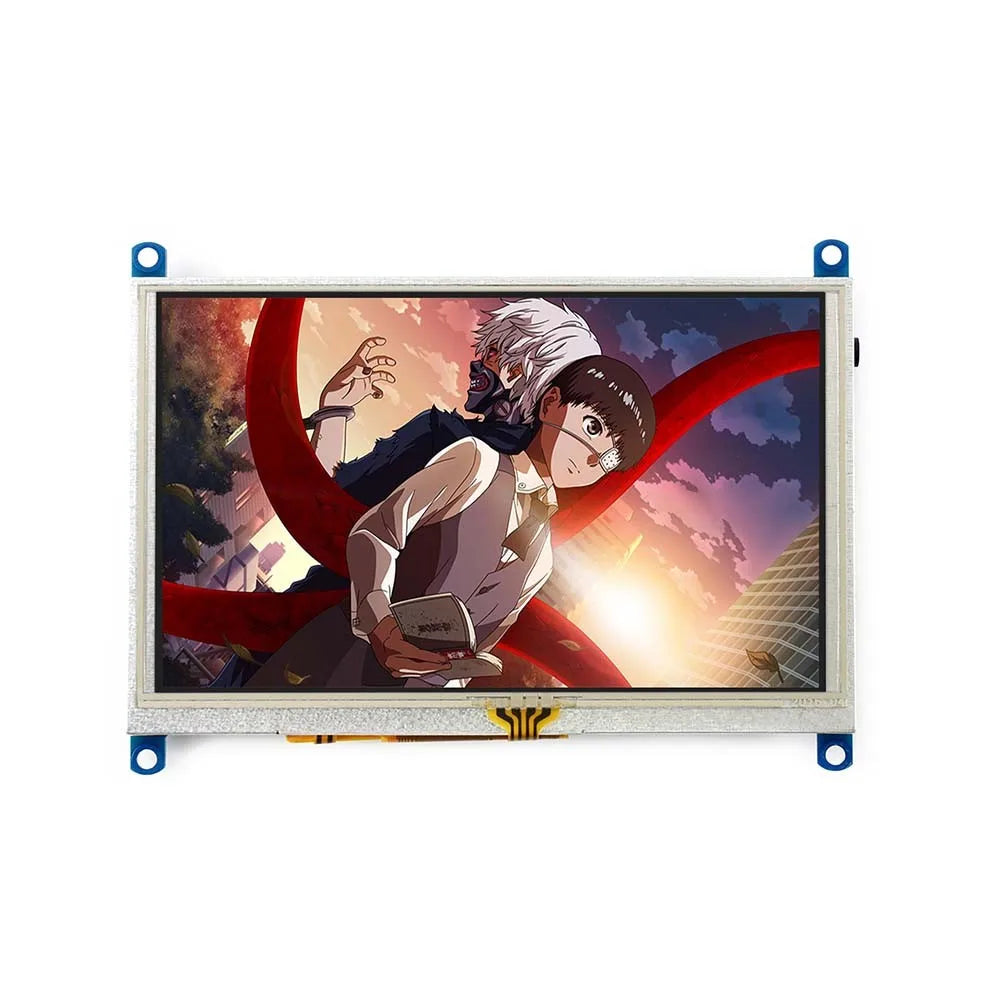

Photos

External Dimension

Development Resources

: //5inch__LCD_(G)

FAQ

Why the LCD doesn't work with my Raspbian?

To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly.

Why the LCD still doesn't work with the provided image?

Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up succfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.

Which power supply should I use?

It is recommended to use a 5V/2A power adapter for the Raspberry Pi other than USB connection, otherwise the Pi may failed to start up because the PC's USB port might have not enough power.
For large size LCDs, say, 10inch diagonal or more, another stand-alone power adapter is also required to provide power to the LCD.

For more info, please check the page.
