Custom 5 megapixel USB camera module, industrial control computer, laptop, Android driver free with microphone OV5640 module

Product parameters

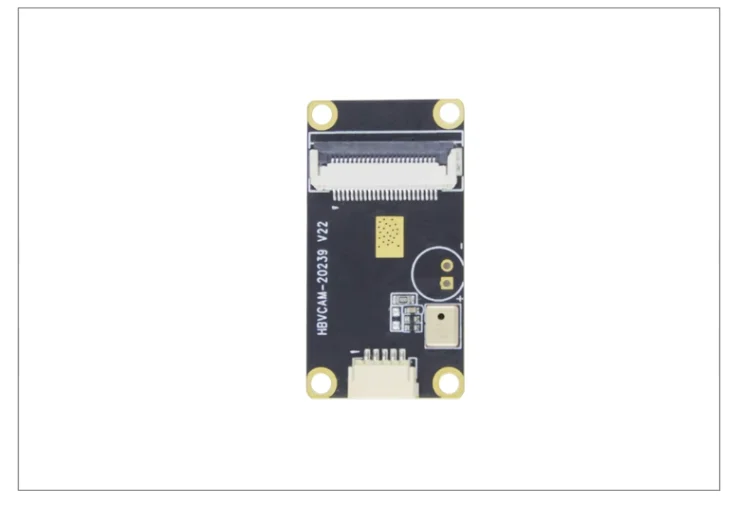

Product model: HBV-20239 V22

Pixel: 5 million pixels

Photosensitive chip: OV5640 (1/4 ") CMOS

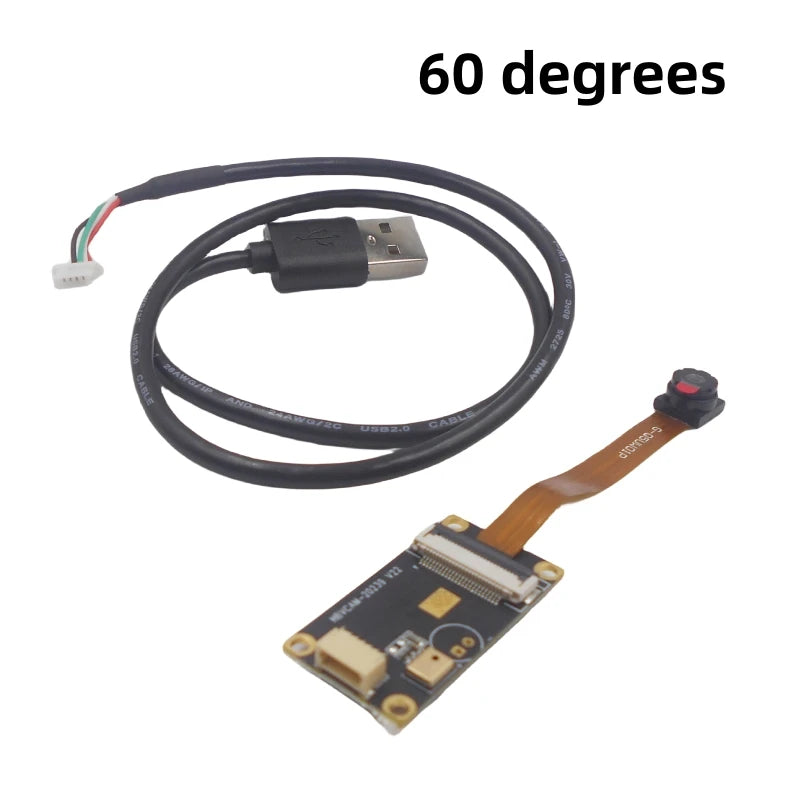

Field of view angle/focal length: 60 ° fixed focus/3.3mm (no distortion)

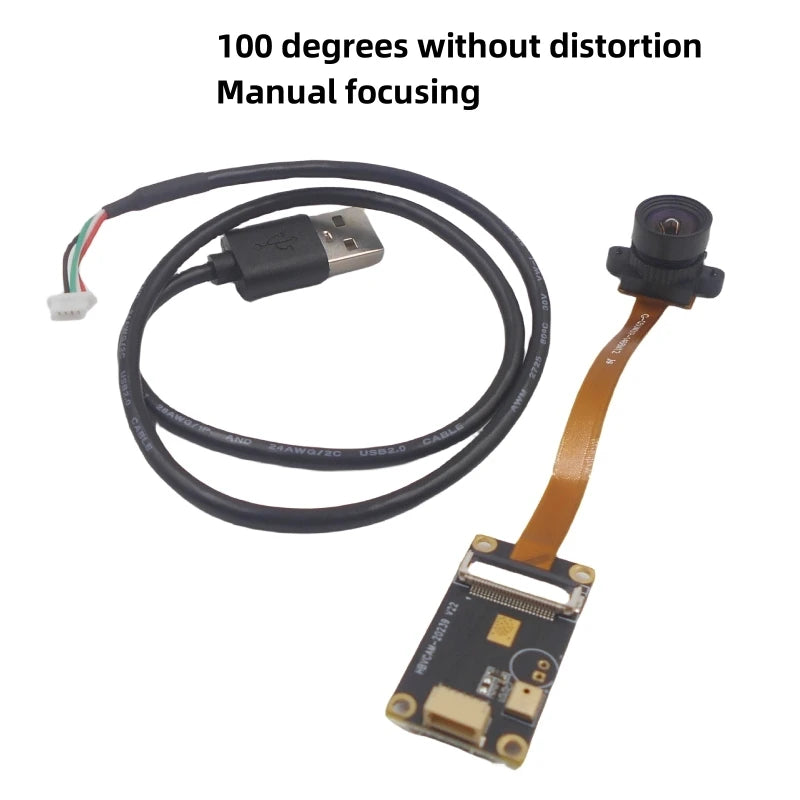

100 ° manual focusing/3.7mm (no distortion)

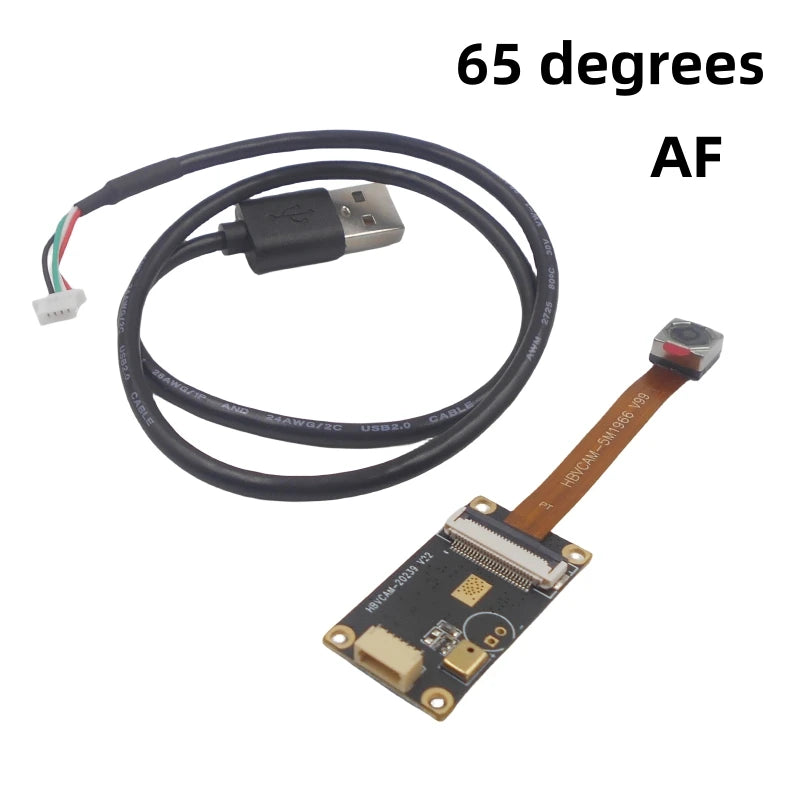

65 ° autofocus/2.7mm (no distortion)

100 ° fixed focus/2.6mm (without distortion)

Format: MJPG/YUY2

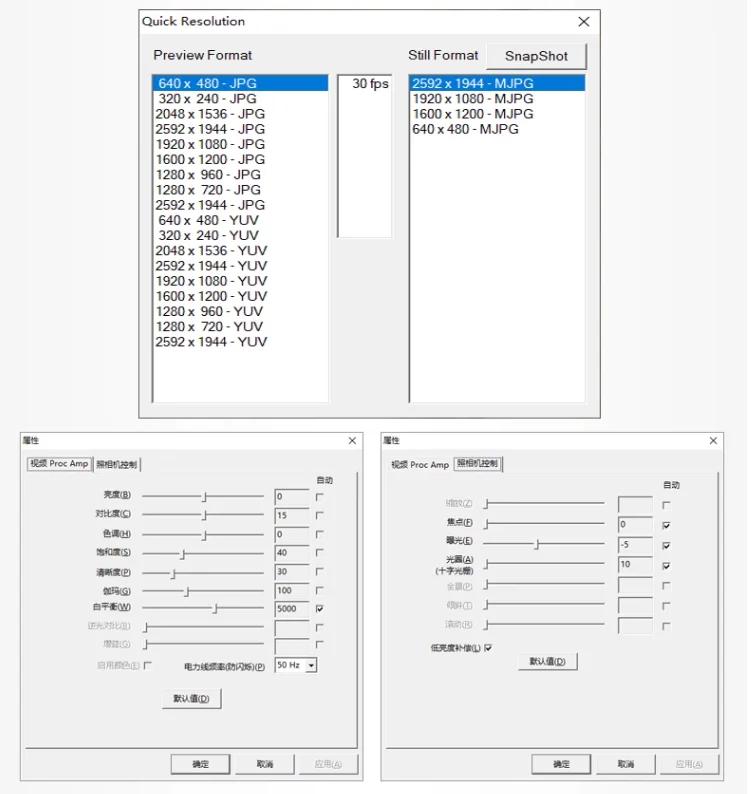

Resolution:

MJPEG 1280x72030FPS

MJPEG 1600x120030FPS

MJPEG 1920x108030FPS

MJPEG 2048x153615FPS

MJPEG 2592x194415FPS

YUY2 1280x72015FPS

YUY2 1600x120015FPS

YUY2 1920x10806FPS

YUY2 2048x15362FPS

YUY2 2592x19442FPS

Focusing method: fixed focus/automatic focus/manual focus (optional)

Function introduction: With digital microphone, no distortion field of view angle, USB drive free

Output: USB 2.0

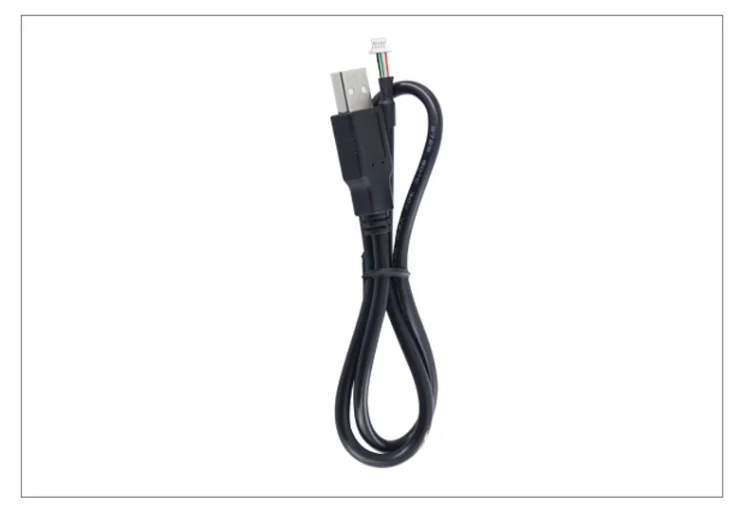

Wire: Standard 50cm USB male test cable, please contact customer service for other size specifications

Support system: WinXP/Win7Win8/Win10/MAC OSX/Linux/Android

Working temperature: -20 ° C~70 ° C

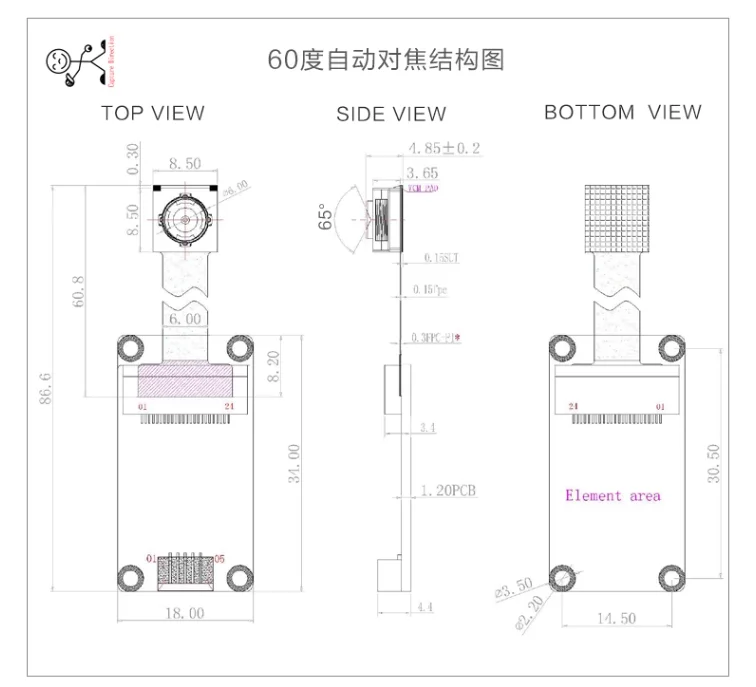

Size: 65 ° Auto focus: 85.8mm x 18mm x 4.85mm

60 ° fixed focus: 85.8mm x 18mmx6mm

100 ° fixed focus: 85.8mm x 18mm x 4.8mm

100 ° manual focusing: 85.8mm x 18mm x 14.8mm
