Custom 5'' inch 800X480 Touch Display Screen TFT LCD Panel Module Shield for Raspberry Pi 4 3 raspberry pi display Manufacturer

$29.00 USD

~~$29.00 USD~~ $29.00 USD

Sale Sold out

Model Number raspberry pi display

Quantity

Lonten is a manufacturer and provide For Raspberry Pi electronic component ,for more please contact.

Item specifics

Accory Type:LCD Screen
Compatible With:For Raspberry Pi 2 Raspberry Pi 3 Model B / B+
resolution:800x480 high resolution.
Size:approx. 120 x 78mm
screen size :5.0(inch)
screen type :Resistive screen

Product Description

5'' inch 800X480 Touch Display Screen TFT LCD Panel Module Shield for Raspberry Pi 3 / 2 / B / B+

Product description

Color:5 inch lcd

Features:

800x480 high resolution.

Directly-pluggable into any revision of Raspberry Pi.

(only except the first generation Pi model B which requires an cable).

Driver provided (works with custom Raspbian directly).

interface for displaying, no I/Os required (however, the touch panel still needs I/Os).

Back light control to lower power consumption.

High quality immers gold surface plating.

Not only the Pi, you can also use it with any other Mini-PCs like Cubieboard, Marsboard if the touch function is not required.

Specifications:

Size: approx. 120 x 78mm

Net Weight: 178g

How to Connect:

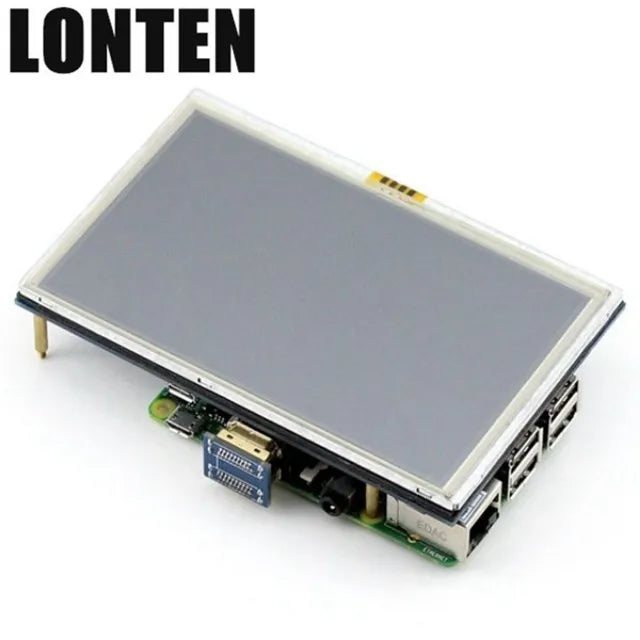

Connect this LCD to Raspberry Pi with Mini usb cable(RPI give power to LCD,and LCD's touch screen signal to RPI ).

Connect this LCD to Raspberry PI with cable insert TF CARD with System image.

Connect Raspberry pi to Power with micro usb cable Power on.

Wait some second,You will see the system is run!

Note: If you want to use this LCD as general monitor,the mini USB port is used for power supply, you just connect to any device(with LCD power by mini port).

Please feel to contact us for the operating system!

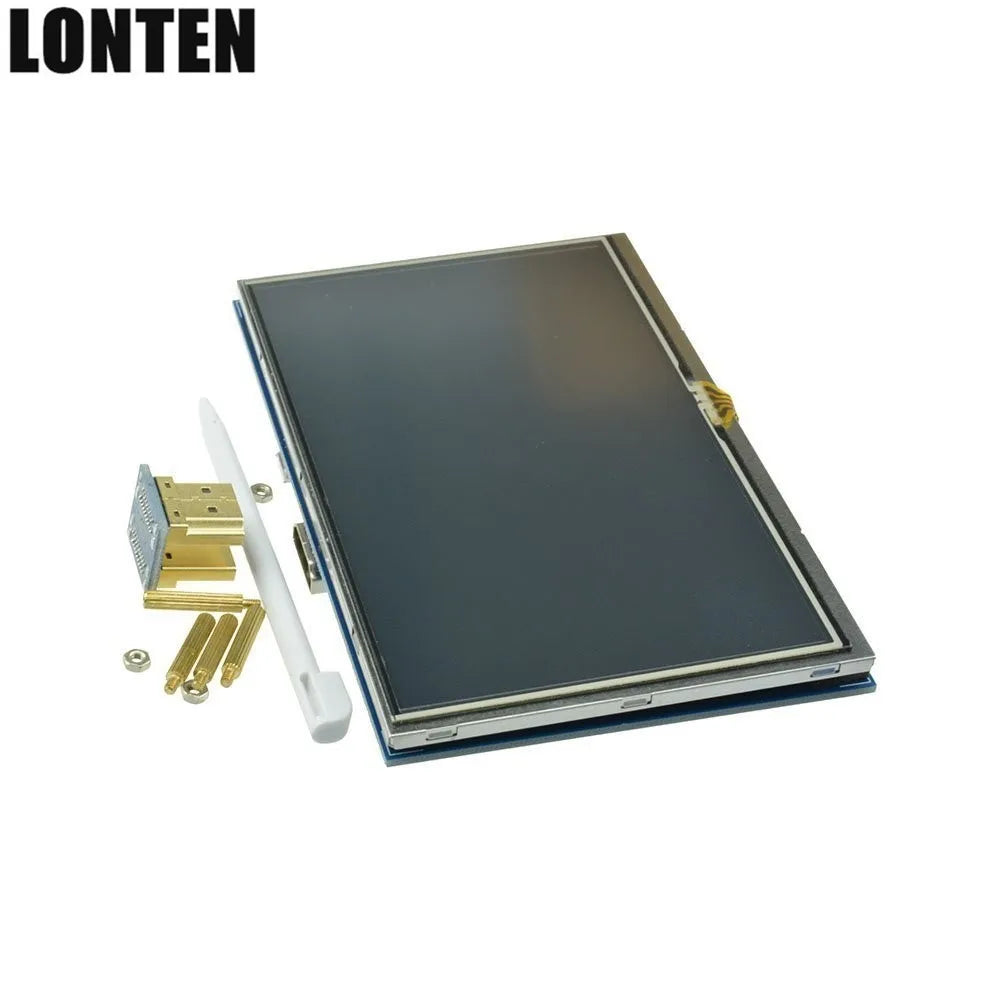

Package Included:

1 x 5 inch LCD

1 x connector

1 x Touch pen

Screws Pack (4pcs)

firmware with driver:http://www.lcdwiki.com/5inch__Display

Packaging Details

Unit Type:piece
Package Weight:0.25kg (0.55lb.)
Package Size:10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
