Lonten Tech

Custom 5 In 1 FTTH Fiber Optic Tool Kit with FC-6S Fiber Cleaver and Double port Miller stripping + pliers Wire stripper Use Ftth Fttx Manufacturer

Custom 5 In 1 FTTH Fiber Optic Tool Kit with FC-6S Fiber Cleaver and Double port Miller stripping + pliers Wire stripper Use Ftth Fttx Manufacturer

Regular price $14.95 USD
Regular price $14.95 USD Sale price $14.95 USD
Sale Sold out

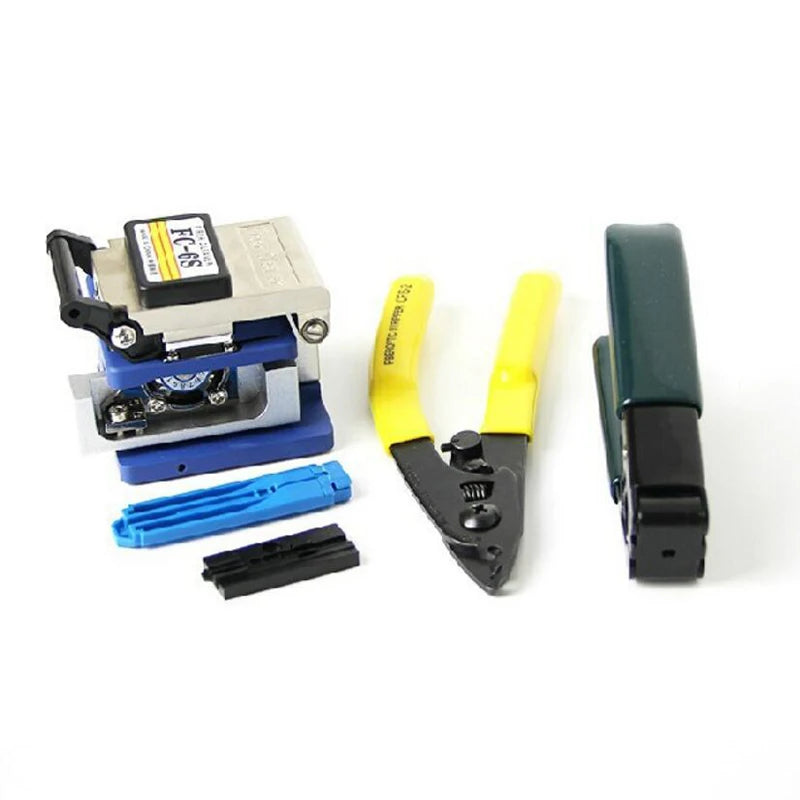

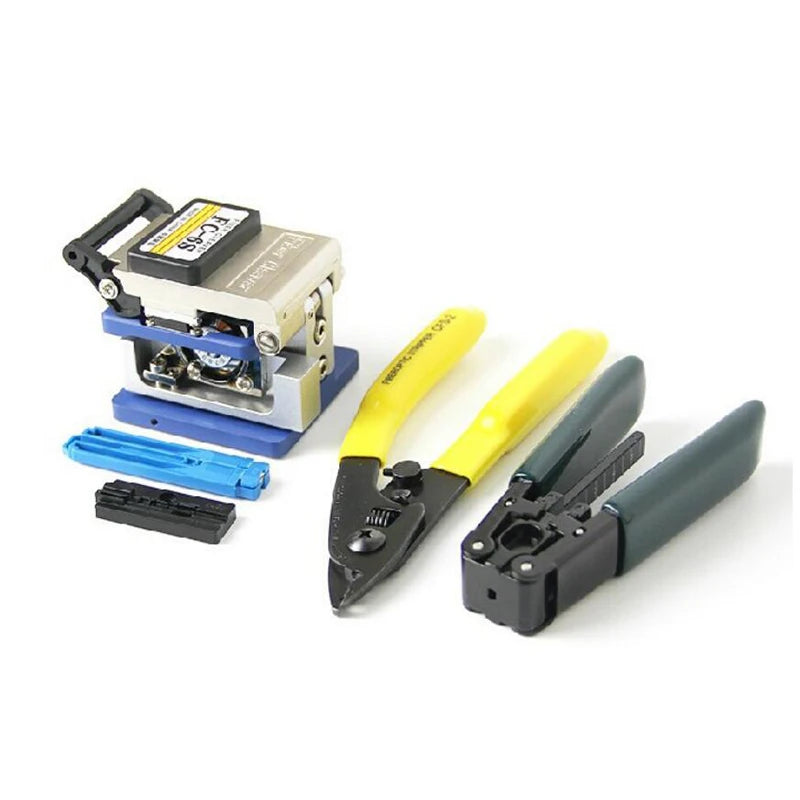

5 In 1 FTTH Fiber Optic Tool Kit with FC-6S Fiber Cleaver and Double port Miller stripping + pliers Wire stripper Use Ftth Fttx

I assure you that the quality of our products to ensure that we give you the best service to ensure the fastest shipping,  most secure way to deliver the goods to your hands!  If you have any questions after receiving the product,  or have quality problems,  please do not panic,  do feel to submit disputes, please contact our customer service,  we will give you the most satisfactory answer!  Happy shopping, thank you very much

Product Attributes


1 x Fiber Cleaver FC-6S

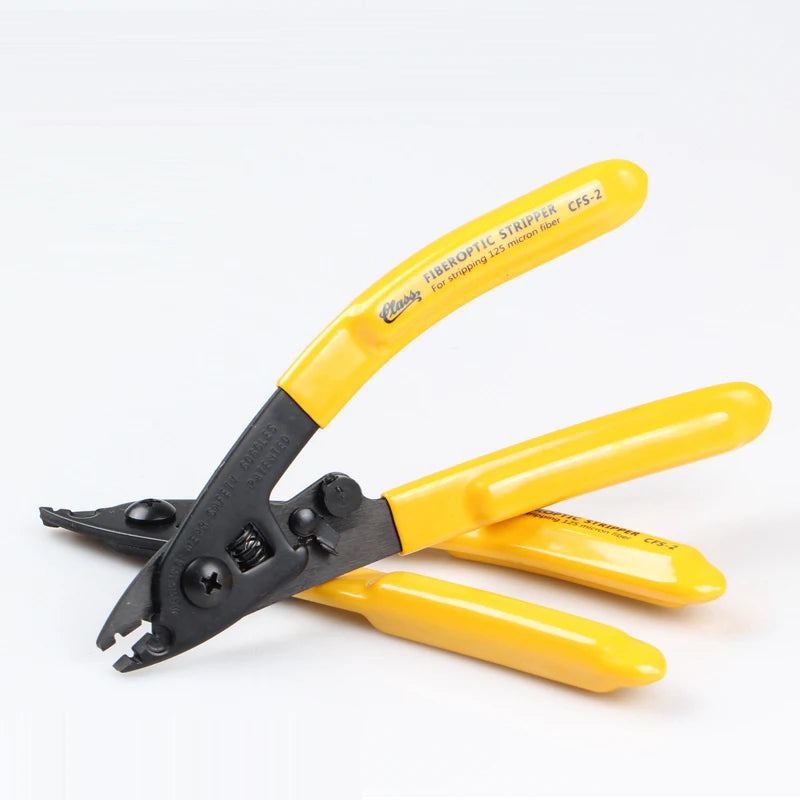

1 x CLAUSS Fiber Optic Stripper/Model: CFS-2

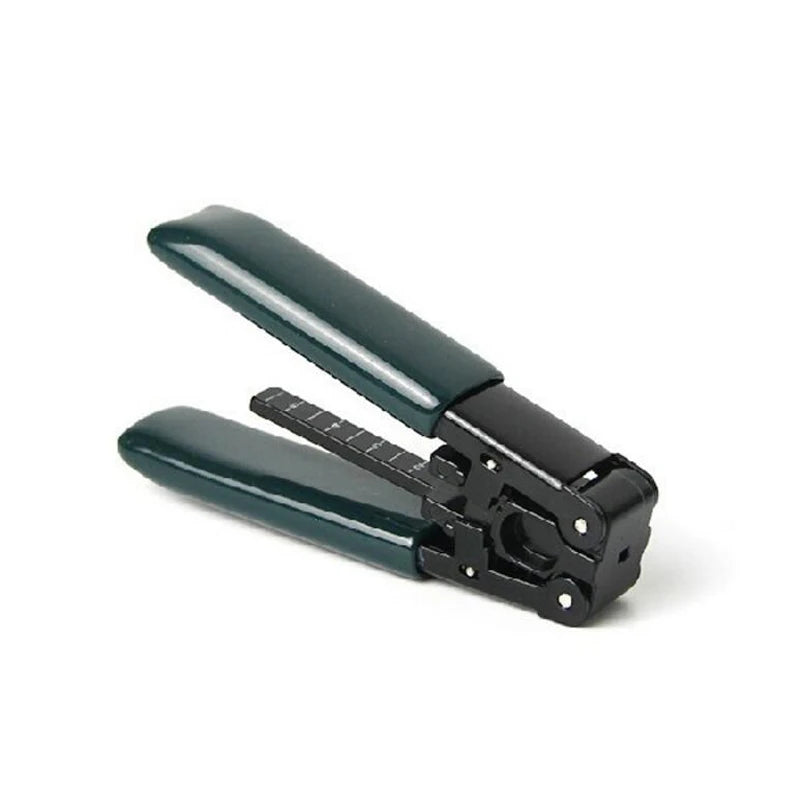

1 x Fiber Optic Stripping Tool
1 x Wire Stripper
1 X Guide rail

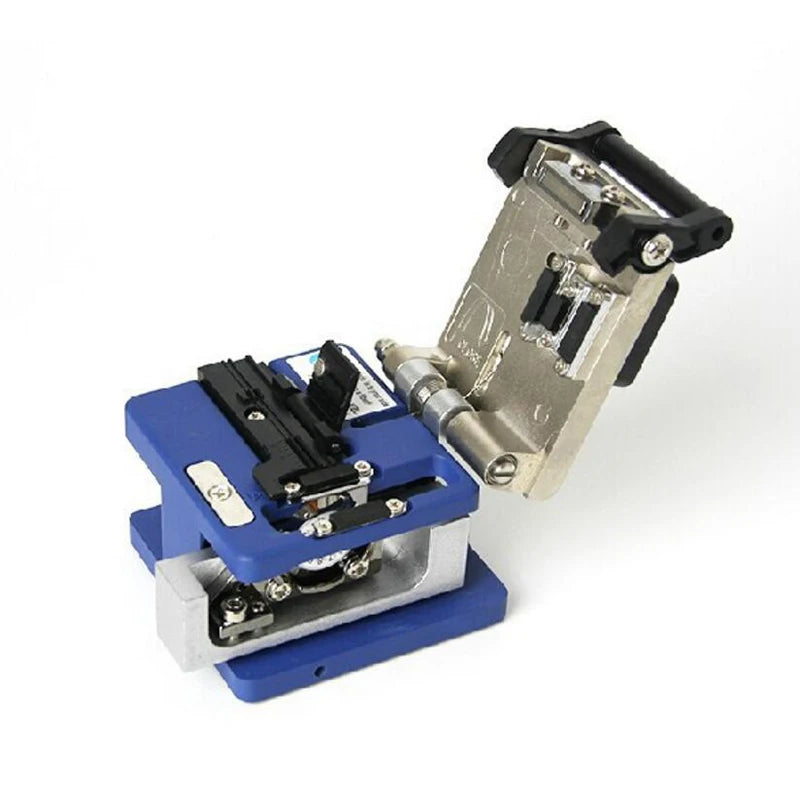

High reliability FC-6S
-Provides approximately 36,000 cleaves
-Compact body& light weight
-High Precision Cleaves
-250um Coated or 900um Buffer fiber
-Single mode Use
-12 Position Rotatable and Replicable Blade
The FC6S cleaver is designed for field use alongside the splicing units. By using a rotating blade for multiple scoring positions enables a blade life of 36, 000 cleaves with a cleave angle better than 0. 5 degrees. The unit is constructed to be robust and field serviceable and has options such as tripod mount to enable secure platform mounting. The FC-6S is the latest cleaver. Integral to the unit is a cleave length scale which helps facilitate exact lengths during cleaving.

•Used for Single Fiber Cleaving;
•Utilizes an Automatic Anvil Drop for Fewer Required Steps and Better Cleave Consistency;
•Prevents Double Scoring of the Fibers;
•Has Superior Blade Height and Rotational Adjustment;
•Available With Automatic Fiber Scrap Collection;
•Can Be Operated With Minimal Steps.
Model: FC-6M FC-6M-C FC-6S FC-6S-C
Fiber diameter 125um
Fiber count / size  Single fiber (0.25 & 0.9mm) Single fiber
and up to 12-fiber ribbon    (0.25 & 0.9mm)
Cleave length:   10mm      9 ~16mm (0.25)
10~16mm (0.9 )
Typical cleave angle: 0.5°
Dimensions / Weight:    63(W) x 76(D) x 63(H)mm / 430g with outer box (FC-6M/FC-6S)
 100(W) x 81(D) x 63(H)mm / 480g with outer box (FC-6M-C/FC-6S-C)
Blade life:    36,000 fibers
 (1,000 fibers x 12 edge positions x 3-step edge height)
Option:
 (Standard installation with the FC-6S/FC-6S-C)






123456
2
3 5
