Product description

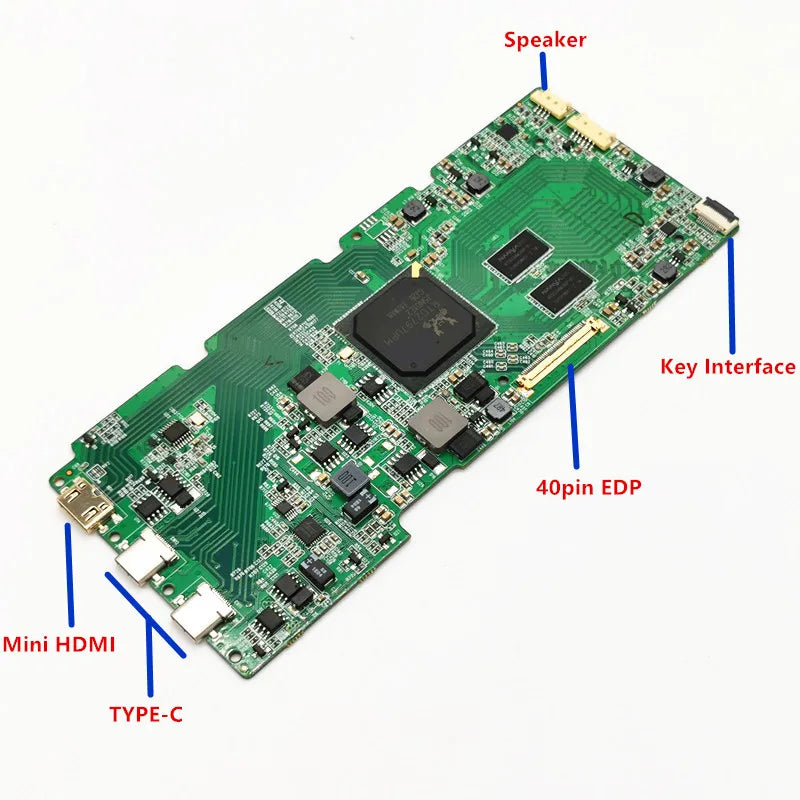

Drive motherboard Functions overview This motherboard can complete HDMI signal or Type-C output from PC to LIQUID crystal module. It is designed to be used in connection with TFT LCD PANEL. It realizes the reproduction of input signal with the highest resolution up to 4096x2160@60Hz, color reproduction can support up to 32BIT and up to 16.7 million pixels. And with DCR(dynamic contrast adjustment), color enhancement, color engine and other special functions, so that the color reproduction more realistic, more vivid, while supporting HDCP function, with exquisite OSD interface style, a variety of optional OSD language. The board supports PD power input (5-20V), the screen voltage is 3.3V, the key port supports earphone input 0 output, the power amplifier output with 2 channels and 4 watts, and the direction of the screen is adjusted by gravity induction. Type-c interface can support data transmission, external charging and image display functions. Smarsmarts (Nut R1, Nut Pro 2S), macbook Pro (Apple), Xiaomi Notebook Pro, huawei mobile phone (Mate10, Mate10 Pro, P20,P20 Pro,Mate RS, Mate20 Pro, Mate20 Pro,Mate 20X, Mate20 RS,P30,P30 Pro,Mate30 Pro, P40), and other devices, support the same screen display and computer interface. Through the connection of USB port, mouse, keyboard and touch screen can control the system operation of signal source. Type-c port also supports external power supply of 5V with a maximum of 3A. The unique design supports the product's gravity sensing function. The screen can rotate at 90/180/270/360 degrees. 14-inch LCD screen

prompt

1.Please pay attention to the negative and positive pole. 2. when you connect power please don't hot plug, which may break the main IC 3.don't touch the driver board, and keep it insulation, don' let metal touch it. 4.please take care of the flat cable

contenido del paquete

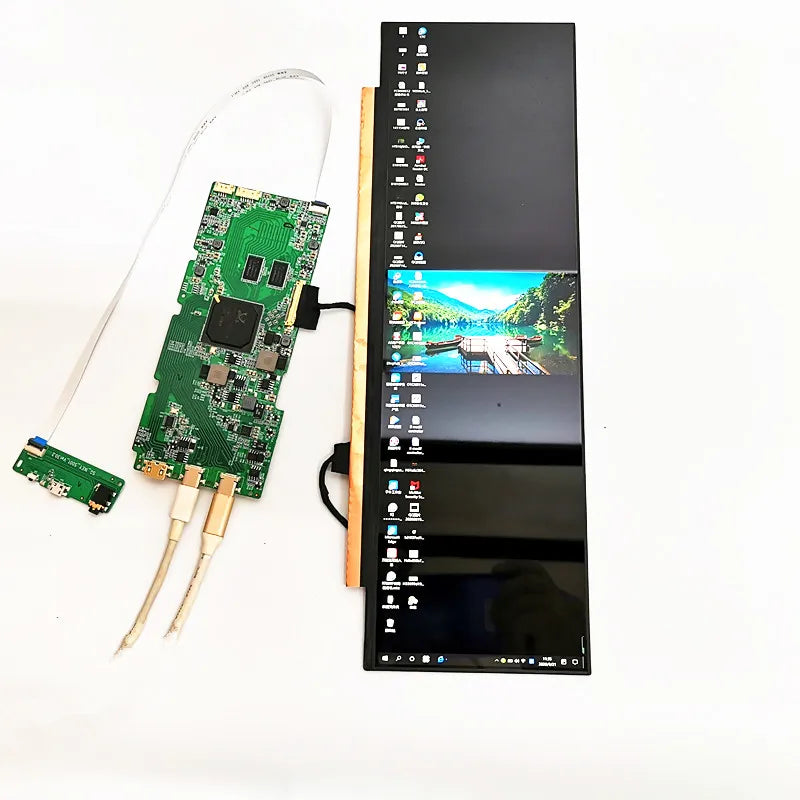

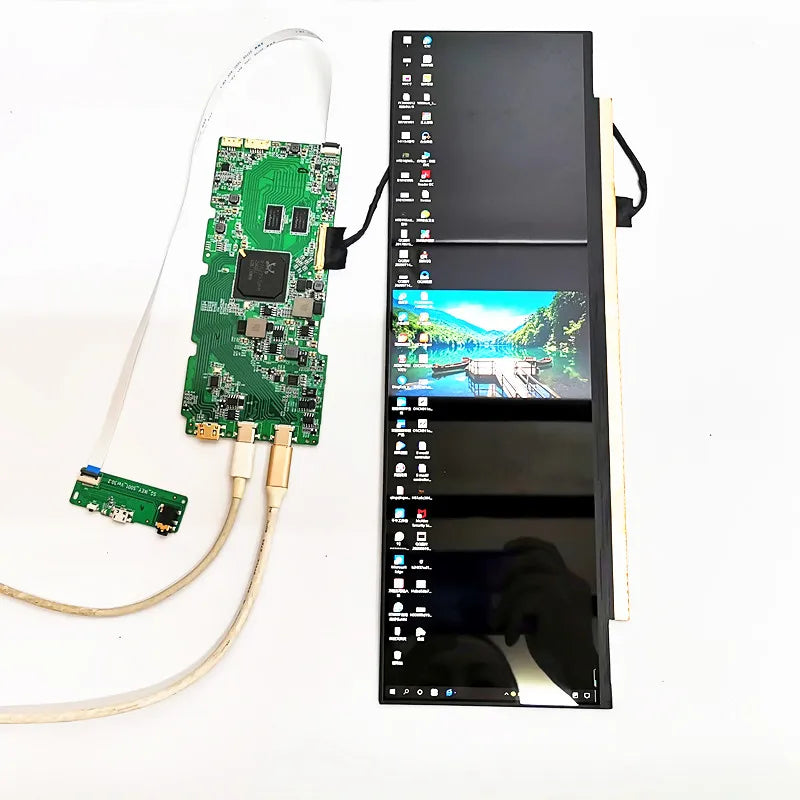

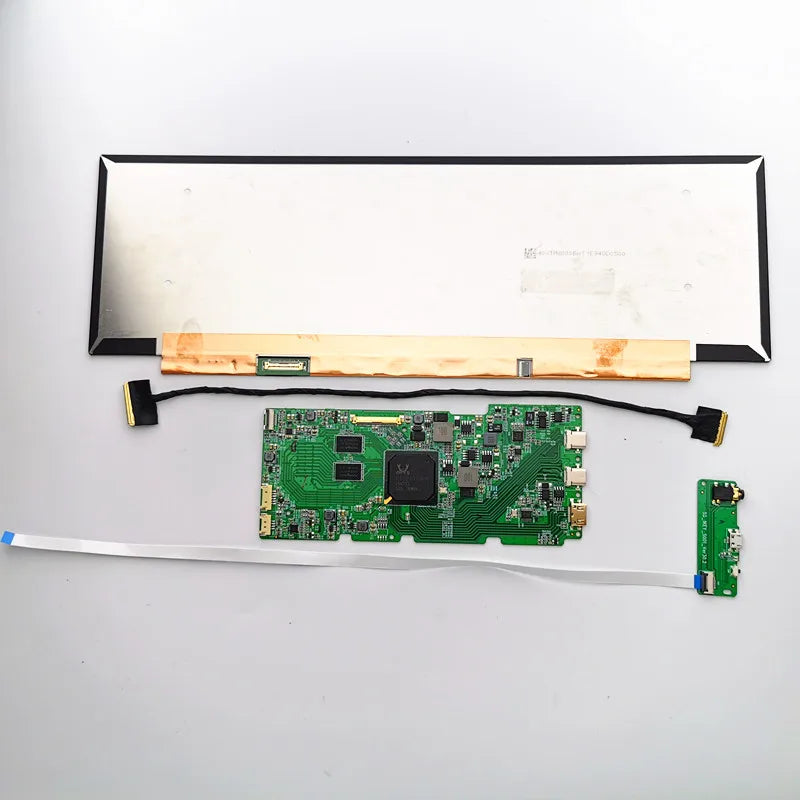

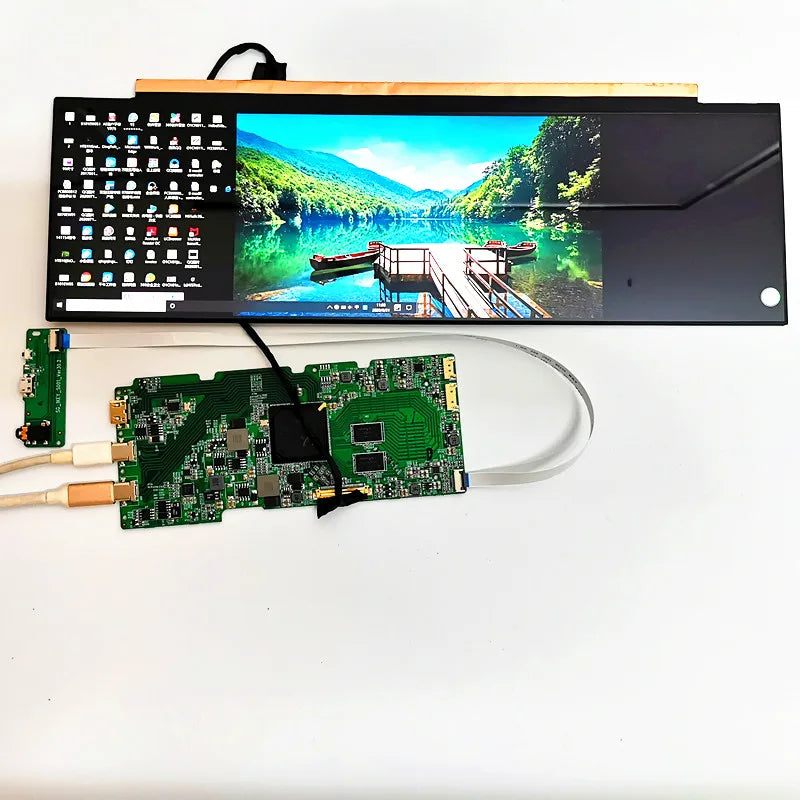

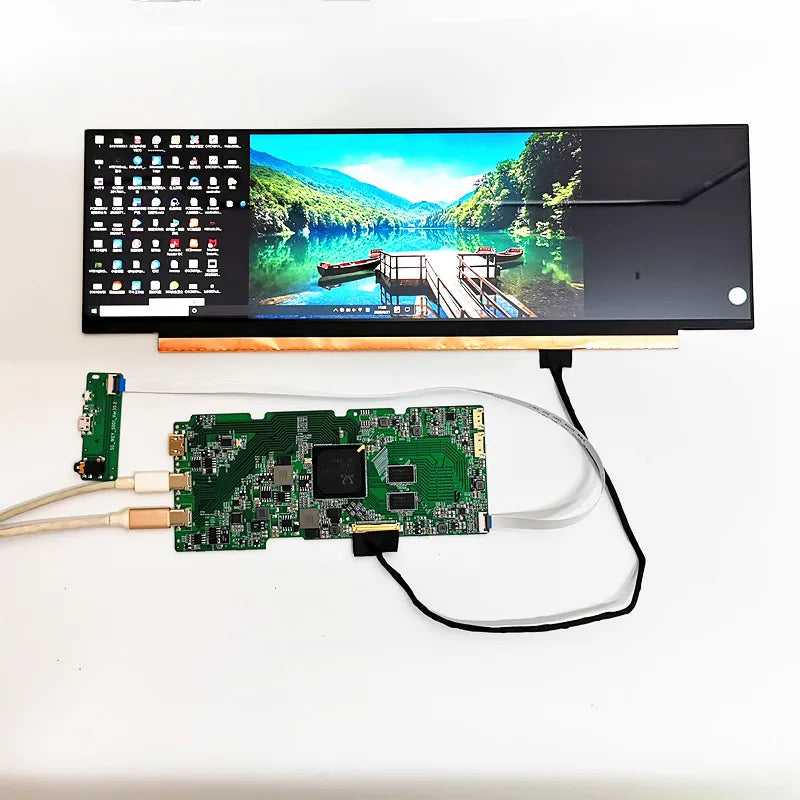

1 *14 inch 4K LCD 1 * Driver board 1 * EDP cable 1 * teclado OSD
