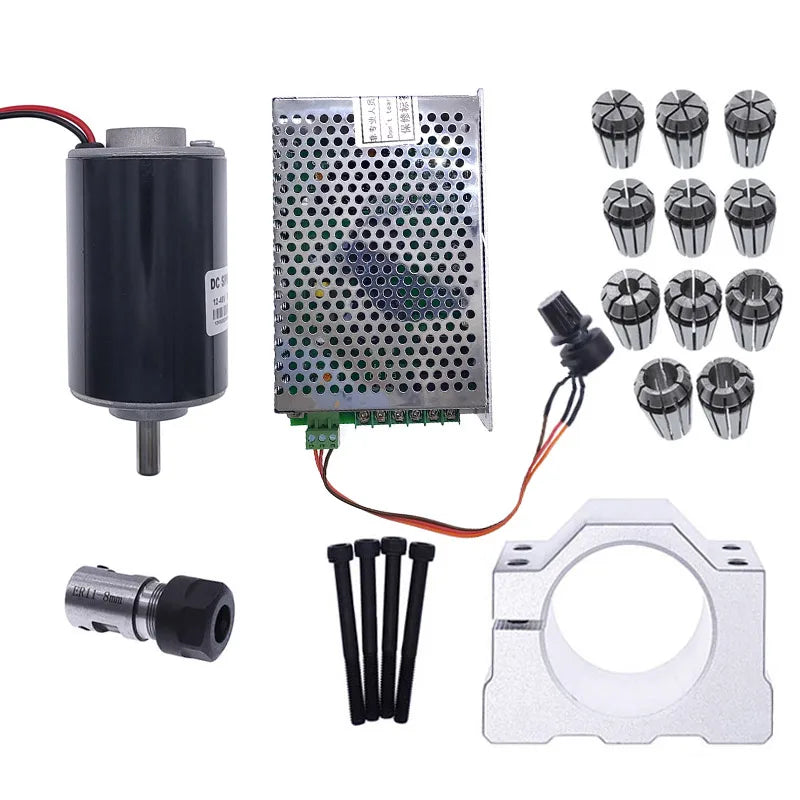

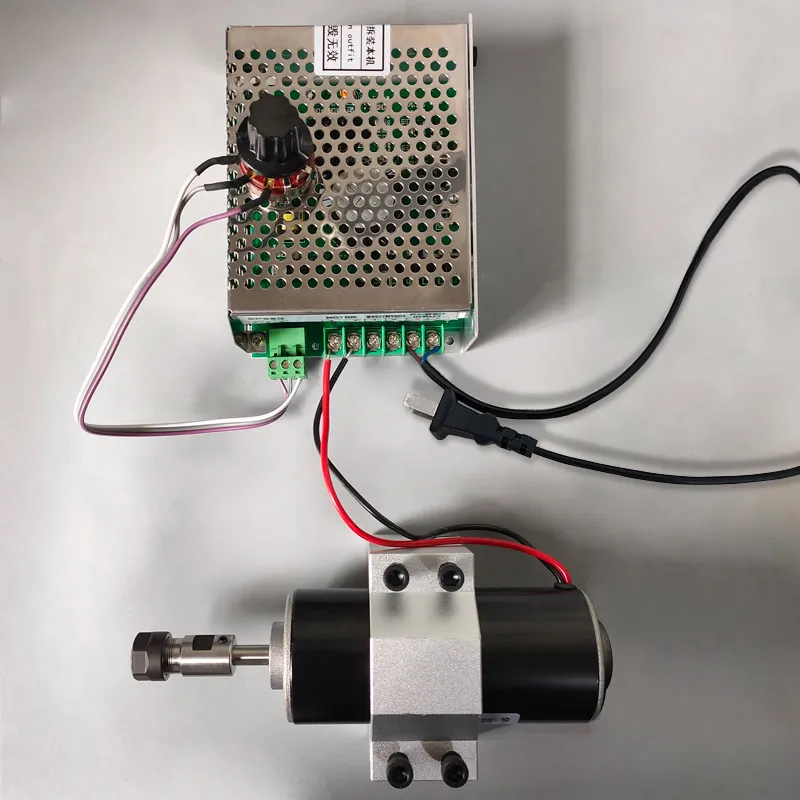

Custom 48V 200W Dc Spindle Set 0~60V Adjustable speed Governor Power Supply both 110VAC & 220VAC for Engraving machine Manufacturer

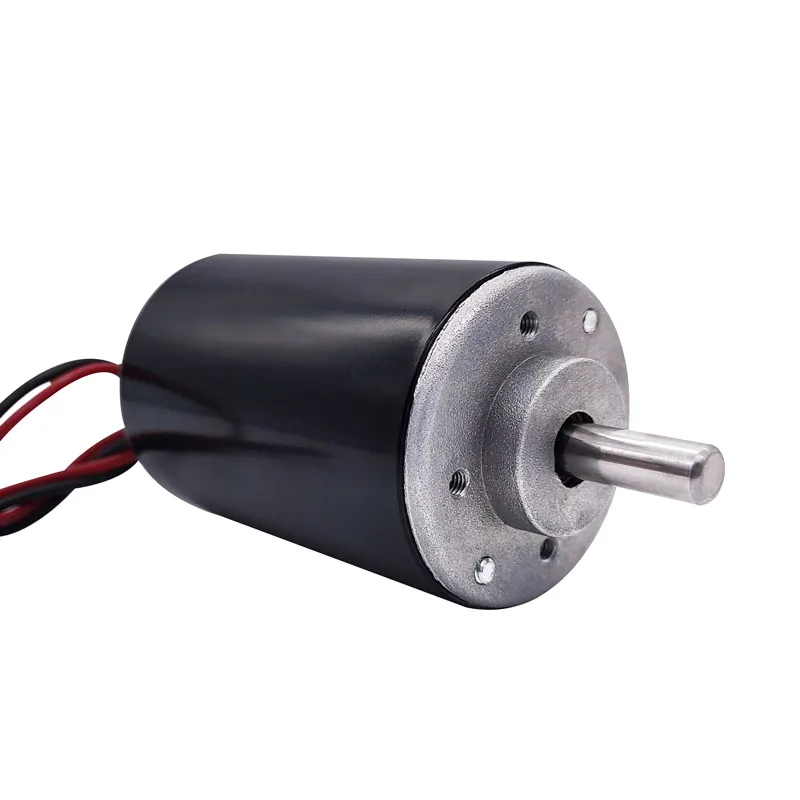

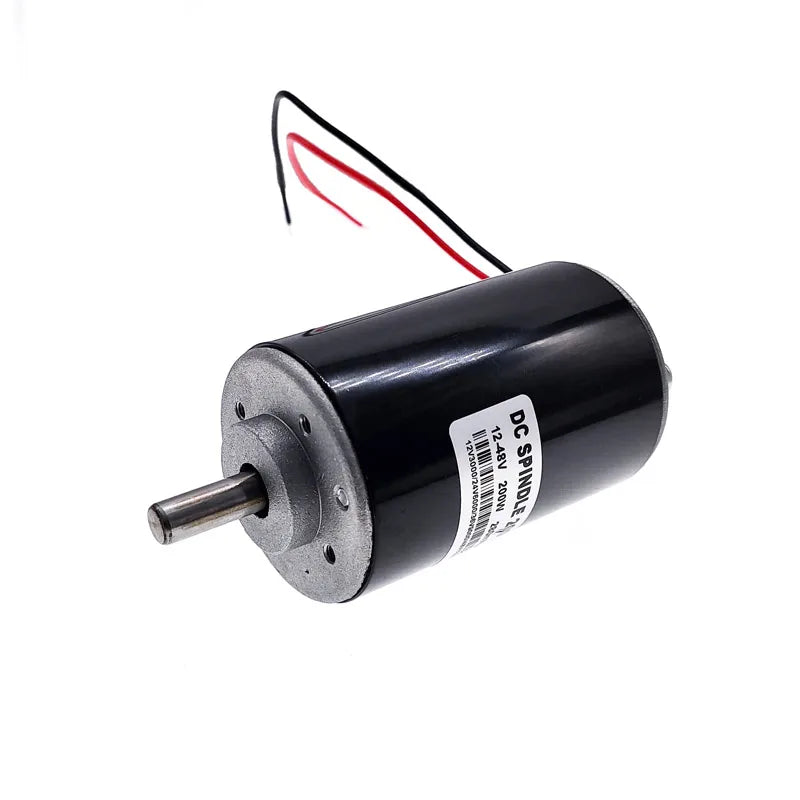

①DC SPINDLE MOTOR



Work Voltage:48VDC      Starting Current: 5A         POWER: 200W

Toque: 280mN.m                Speed: 12000rpm                Diam: 52mm

Note: Pure copper wire is used in the motor

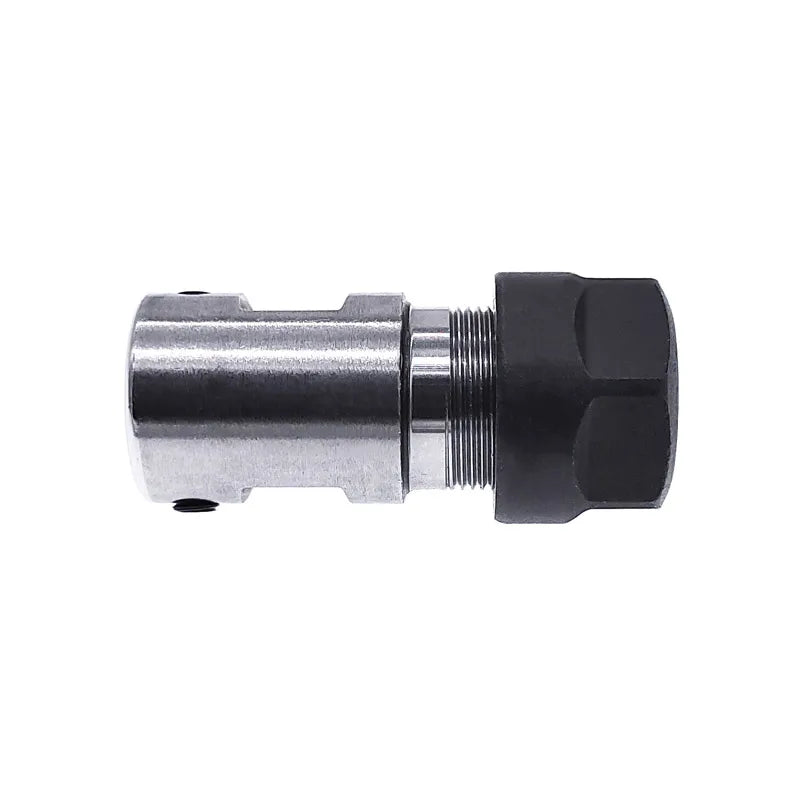

②ER11-8 CHUCK



ER11 chuck (fit for ER11 collet 1-7mm)

End aperture: 8mm (fit for φ8 motor shaft)

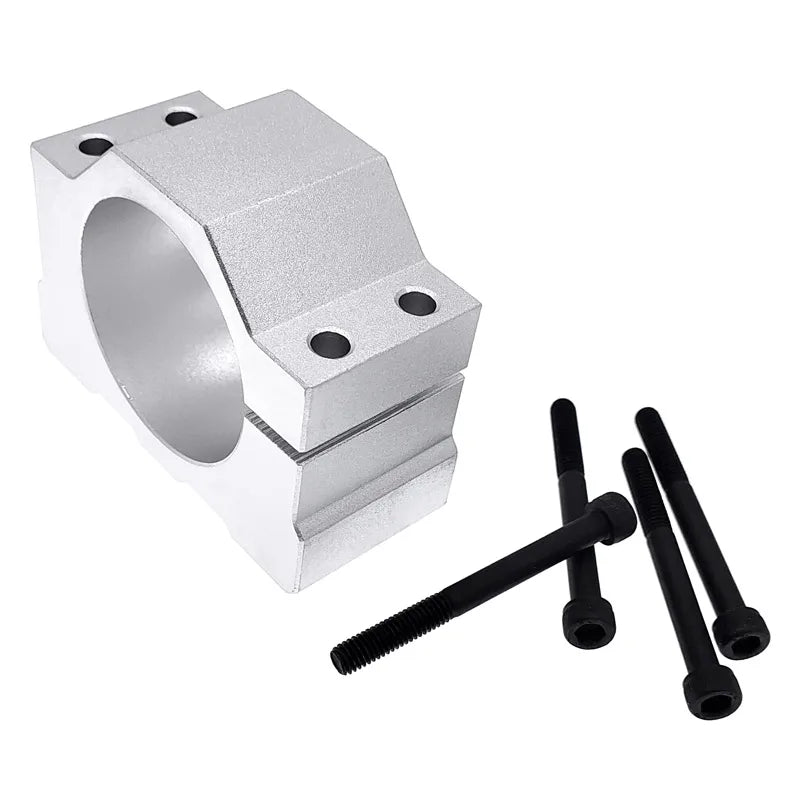

③52mm Spindle Fixed Mounting Base



Material: aluminum alloy

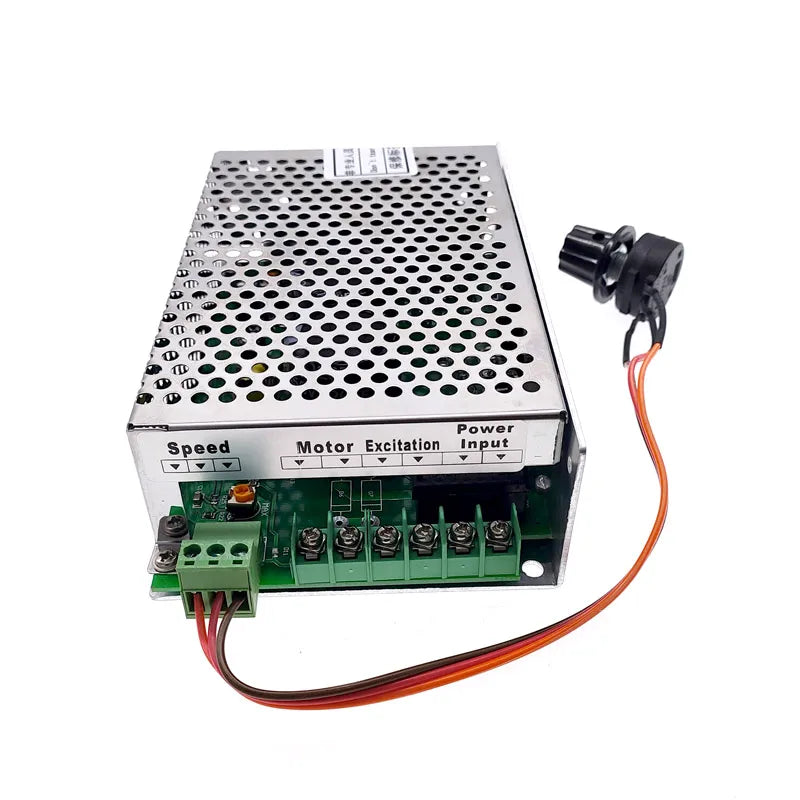

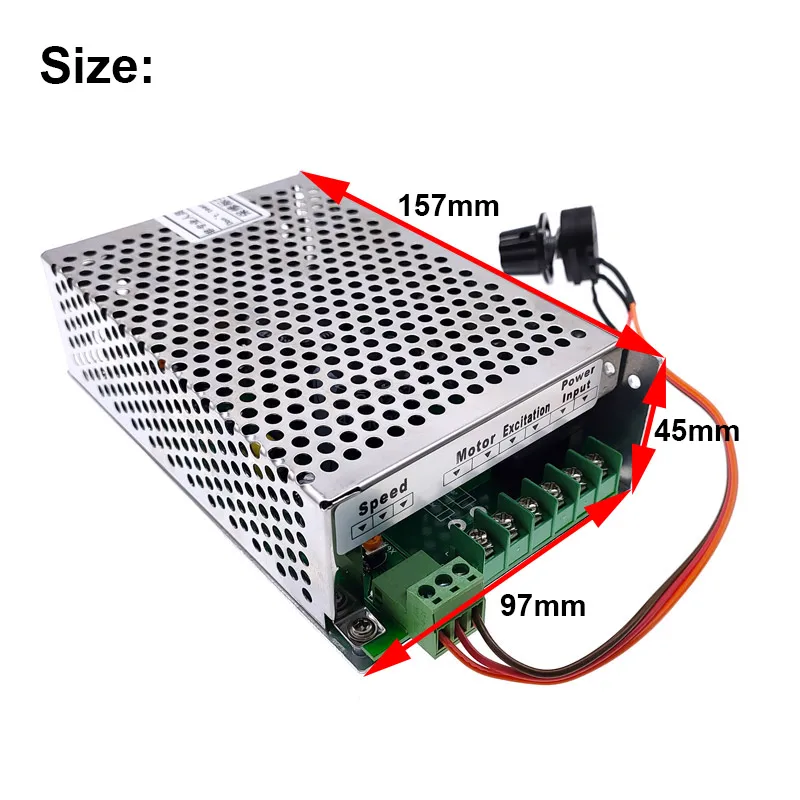

④500W Adjustable Speed Power Switch



Model : WK608                      Input voltage: 110-220VAC                       Output voltage: 0-60VDC

Current : 8A                           Excitation：1A                                         Max POWER: 500W

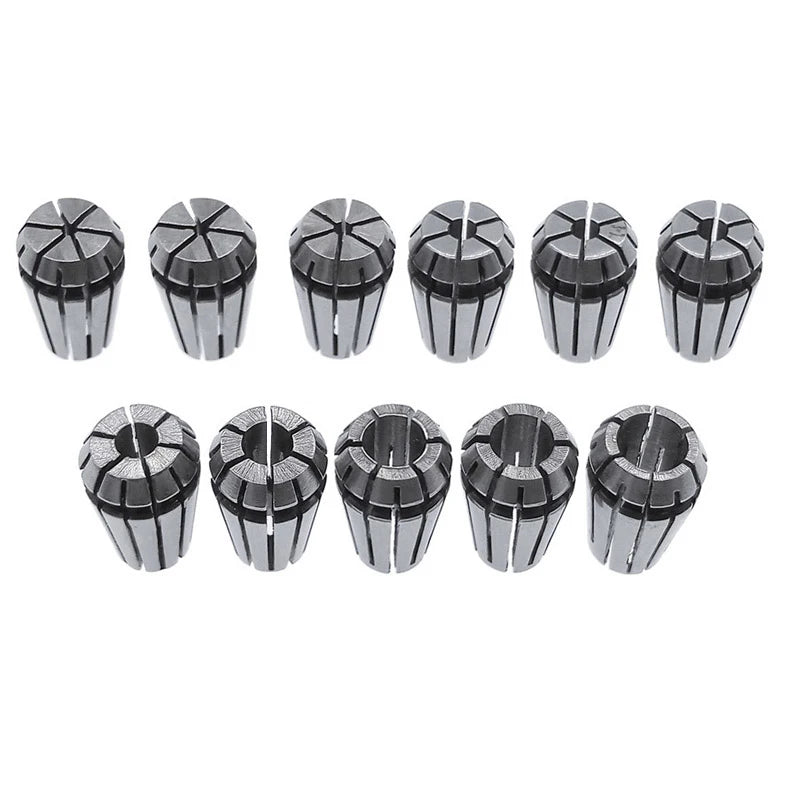

⑤ER11 Collet



ER11 collet set (1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/4mm/5mm/6mm/6.35mm/7mm)

tips:3.175=1/8        6.35=1/4



 Welcome Customize Order!
