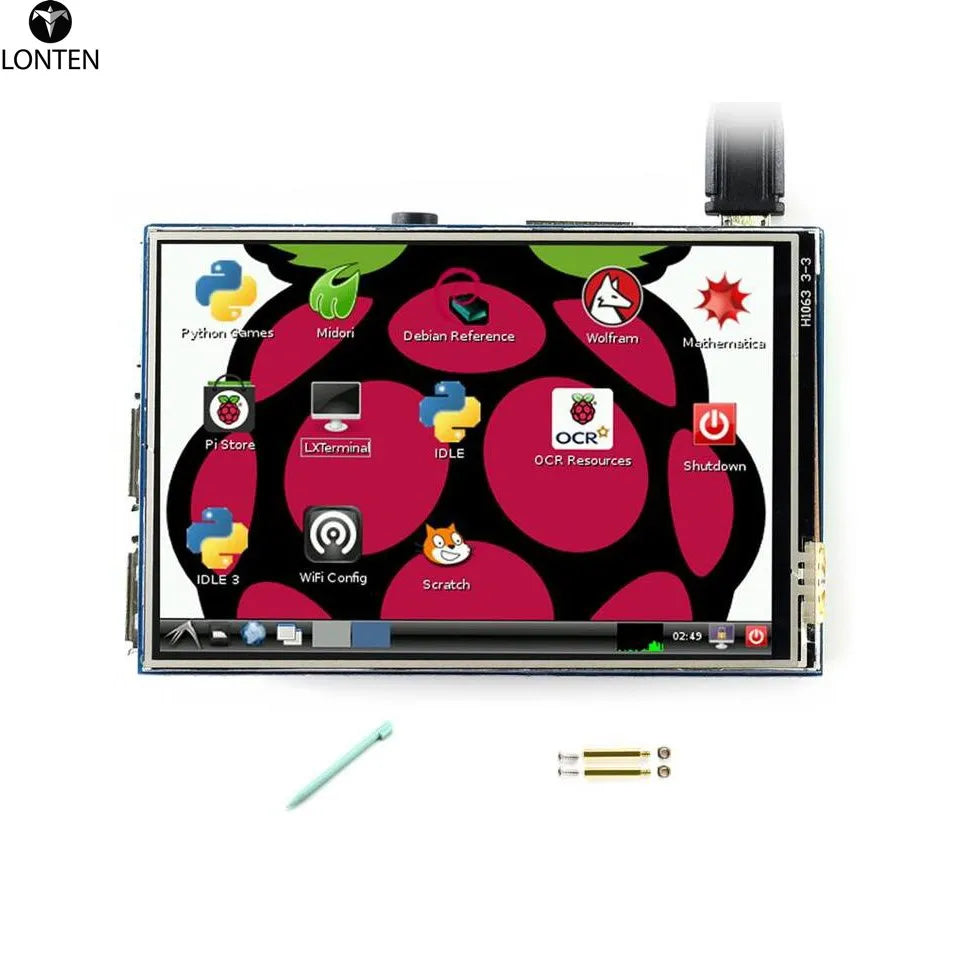

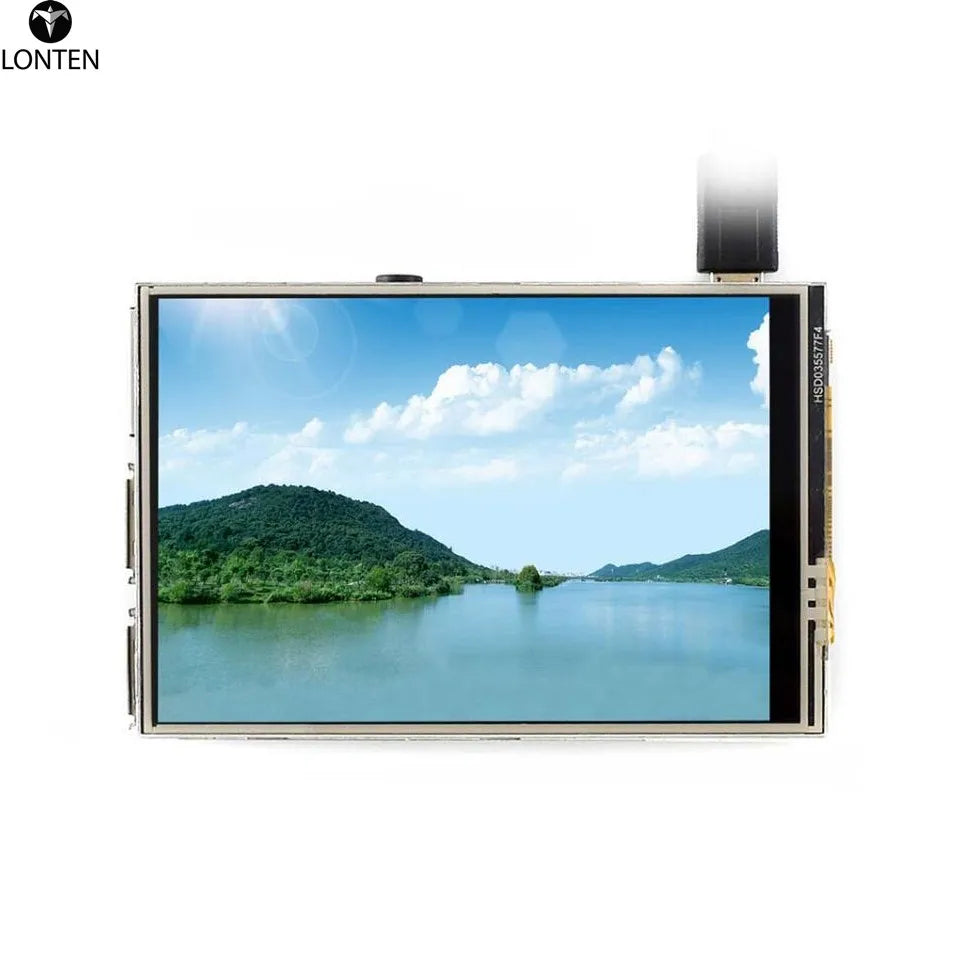

Custom 480x320, 3.5 inch Touch Screen Tablet TFT LCD Designed for Raspberry Pi, 125MHz High-Speed SPI Manufacturer

Name: Custom 480x320, 3.5 inch Touch Screen Tablet TFT LCD Designed for Raspberry Pi, 125MHz High-Speed SPI Manufacturer
Brand: Lonten Tech
Price: 27.66 USD
Availability: InStock

$27.66 USD

~~$27.66 USD~~ $27.66 USD

Sale Sold out

Quantity

The price is only for Bundle(optiona)1, provide electronic component ,welcome OEM ,ODM,for more please contact.

480x320, 3.5 inch Touch Screen TFT LCD Designed for Raspberry Pi, 125MHz High-Speed SPI

Features

● 480x320 hardware resolution
● Resistive touch control
● Supports any revision of Raspberry Pi (directly-pluggable)
● 125MHz High-Speed SPI signal transmission, clear & stable display effect
● Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)
● Supports FBCP software driver as well, allows to config software resolution and set up dual-display
● Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+)
● High quality immersion gold surface plating
● Combined with the Raspberry Pi (refresh rate up to 50Hz), allows you to:
- Watch videos (multi formats like MP4)
- Play video games (RetroPie, take a bite)
- Take photos by touching (up to 17 camera modes)
- Use software keyboard (system interaction without keyboard/mouse)

Key Parameters

QQ20181130172923

Interface

PIN NO.	SYMBOL	DESCRIPTION
1, 17	3.3V	Power positive (3.3V power input)
2, 4	5V	Power positive (5V power input)
3, 5, 7, 8, 10, 12, 13, 15, 16	NC	NC
6, 9, 14, 20, 25	GND	Ground
11	TP_IRQ	Touch Panel interrupt, low level while the Touch Panel detects touching
18	LCD_RS	Instruction/Data Register selection
19	LCD_SI / TP_SI	SPI data input of LCD/Touch Panel
21	TP_SO	SPI data output of Touch Panel
22	RST	Reset
23	LCD_SCK / TP_SCK	SPI clock of LCD/Touch Panel
24	LCD_CS	LCD chip selection, low active
26	TP_CS	Touch Panel chip selection, low active
