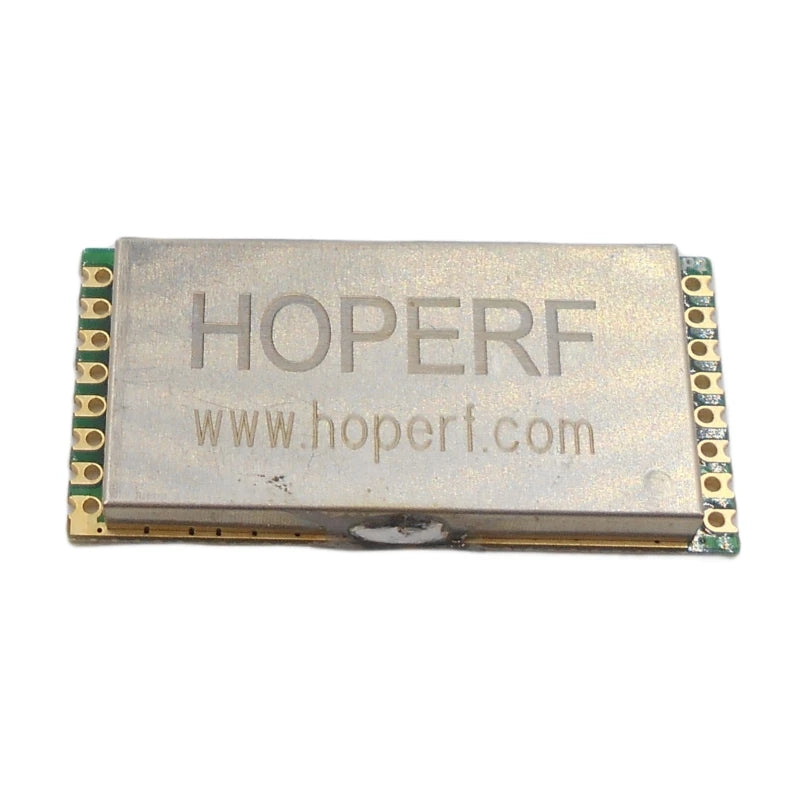

Custom 470/433mhz Long Range Transceiver Module

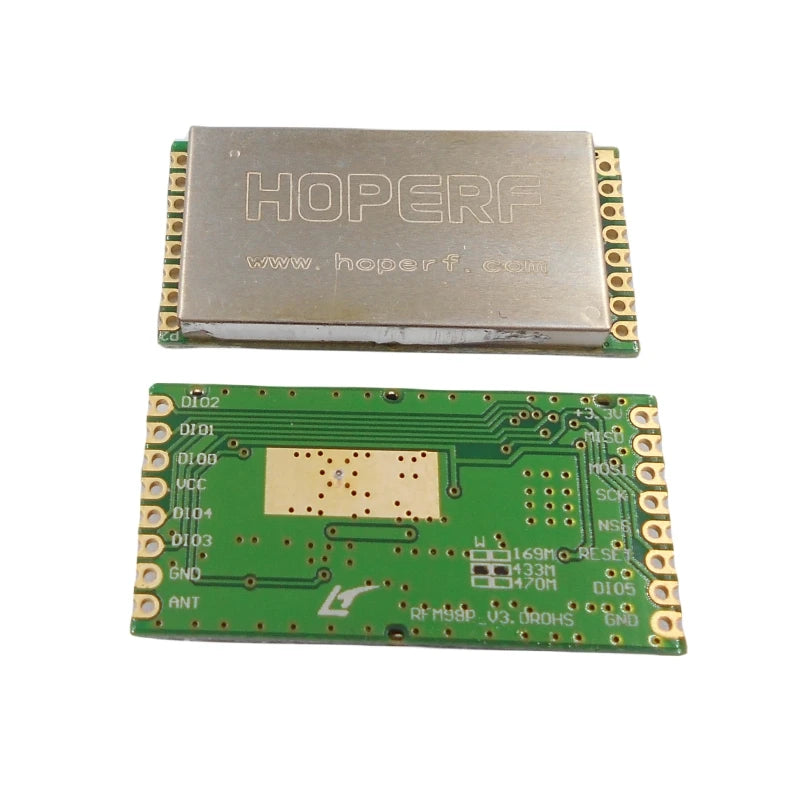

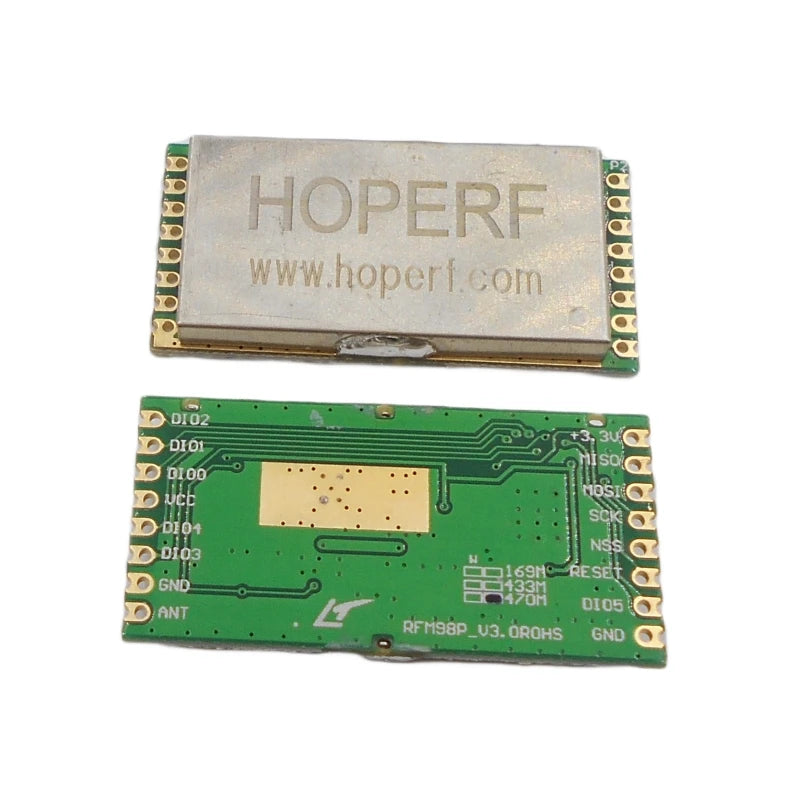

1. Descriptions of RF LoRa Transceiver Module RFM95PW:

RFM98PW/RFM95PW RF LoRa Transceiver module series’ design is based on the high performance LoRaTM modulation technique RF98/RF96 chip, It operate at 169/433/470MHz (RFM98PW)  and 868/915MHz(RFM95PW) ISM band , The low receive sensitivity(–136dBm) coupled with Enhanced +30dBm output power ensures extended range and improved link performance.

2. Features of RF LoRa Transceiver Module RFM95PW:

● LoRaTM Modem.

● 166dB maximum link budget.

● +30 dBm output power @433/470MHz band; +27 dBm output power @169 /868/915 MHz band.

● Programmable bit rate up to 300 kbps.

● High sensitivity: down to -136dBm.

● Low RX current of 13mA.

● FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.

● Built-in bit synchronizer for clock recovery.

● Automatic RF Sense and CAD with ultra-fast AFC.

● Packet engine up to 256 bytes with CRC.

● Built-in temperature sensor and low battery indicator.

● SMD Package (35.4x18X3.85mm)

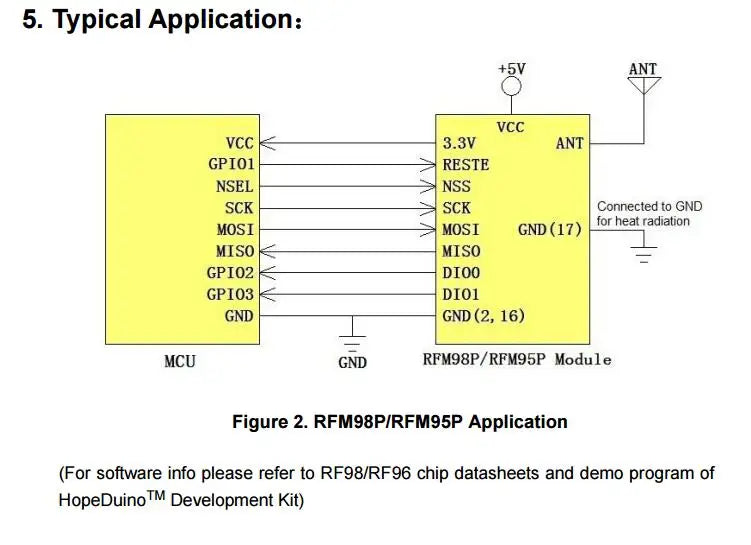

3. Typical Application of RF LoRa Transceiver Module RFM95PW:

● Long Range system

● Meter Reading

● Wireless data collection

● Automobile security system

● Home automation and security system
