Custom 40AJSB*5 5pcs DC/DC non-isolated regulated converter 5-40 wide input 1-30V OUT for Smart Home Wireless Modules Wifi wireless Manufacturer
Custom 40AJSB*5 5pcs DC/DC non-isolated regulated converter 5-40 wide input 1-30V OUT for Smart Home Wireless Modules Wifi wireless Manufacturer
Regular price
$10.92 USD
Regular price
$10.92 USD
Sale price
$10.92 USD
Unit price
per
Couldn't load pickup availability
Lonten provide electronic component ,welcome OEM CUSTOM ,ODM,for more please contact.
|

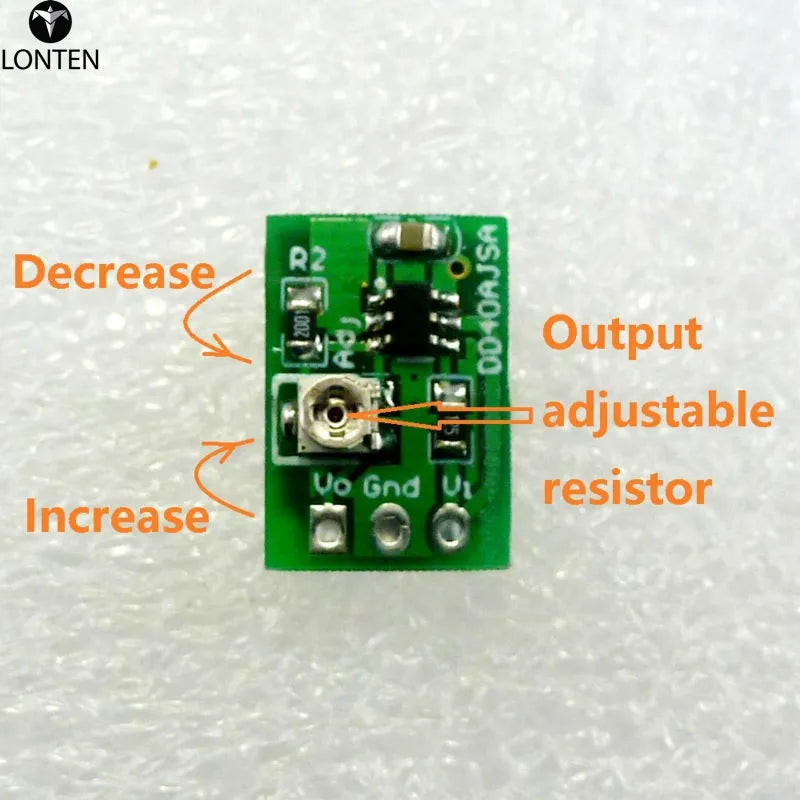

| Note: Adjustable resistors (potentiometers) are components that are easily damaged. Use a suitable screwdriver to slowly rotate. Click here to buy a screwdriver. |
|---|
Applications:
12V 5V TO 3.7V lithium battery- systems
12V 9V 6V 5V 3.3V Motor
WIFI esp8266 Module
Bluetooth Board HC-05 HC-06
CCTV camera
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
315M 433M Wireless remote controller
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
DSL Modems
Product Name : 5pcs DC/DC non-isolated regulated converter 5-40 wide input 1-30V OUT 40AJSB for Smart Home Wireless Modules Wifi Bluetooth Packing list:

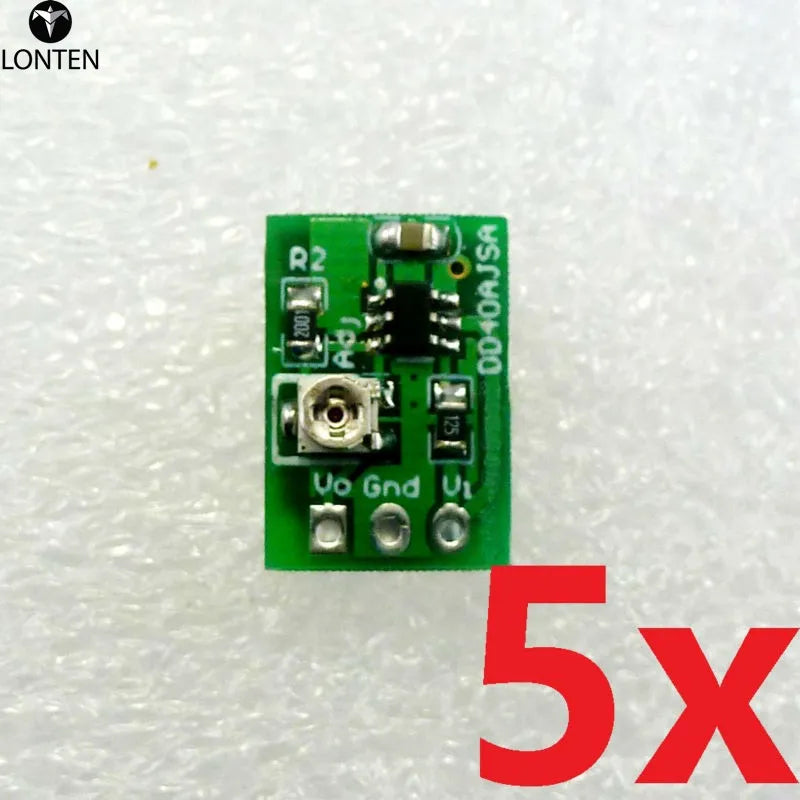

5 PCS 40AJSB mini 5W DC DC Converter Step Down 4.75V-40V to 0.8-30V Adjustable output Module
Description:

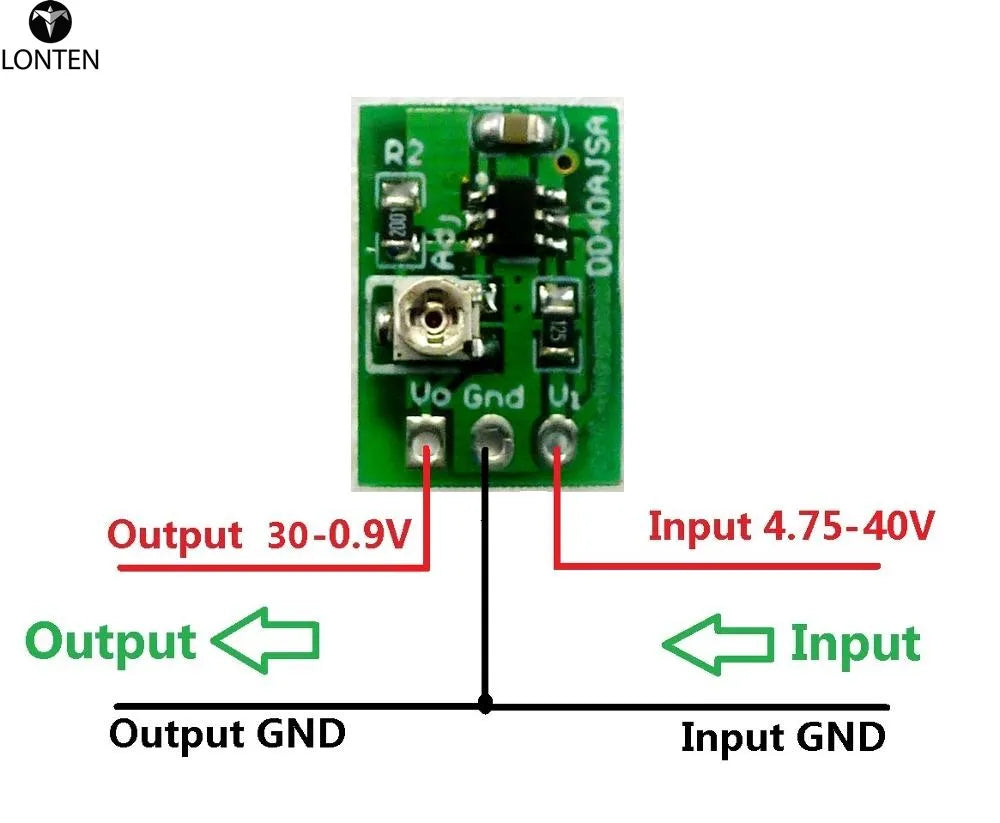

Input voltage 4.75~40V,Adjustable output 0.9~30V
Long time maximum output current 0.8A(12V to 5V)
Short time maximum output current 1A(12V to 5V)
Quiescent current: about 1.5MA
DC-DC Step-Down Converter module working frequency 550KHz. efficiency is 75-90% .
Overtemperature shutdown, input under-voltage protection, BS-voltage protection, and short circuit protection.

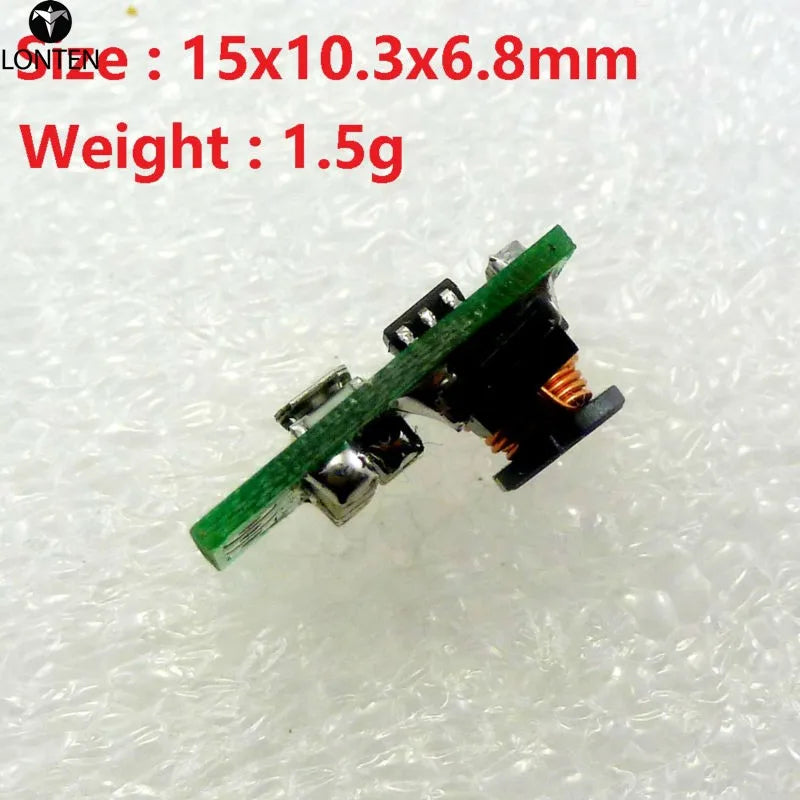

Excluding Pin Size 15mm x 10.3mm x 6.8mm(Very small)
Weight : about 1.5g(Very light)
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
