Custom 4012SA_5V*3 3pcs 5W 9V 12V 24V to 5V DC DC Step-Down Buck Converter Module replace TO-220 7805 lm2596 for Pro Mini UNO stm32 Manufacturer
Custom 4012SA_5V*3 3pcs 5W 9V 12V 24V to 5V DC DC Step-Down Buck Converter Module replace TO-220 7805 lm2596 for Pro Mini UNO stm32 Manufacturer
Regular price
$4.74 USD
Regular price
$4.74 USD
Sale price
$4.74 USD
Unit price
/
per
Couldn't load pickup availability
Lonten provide electronic component ,welcome OEM CUSTOM ,ODM,for more please contact.
Product Name : 3pcs 5W 9V 12V 24V to 5V DC DC Step-Down Buck Converter Module replace TO-220 7805 lm2596 for Pro Mini UNO stm32
Packing list(Does not include L7805):

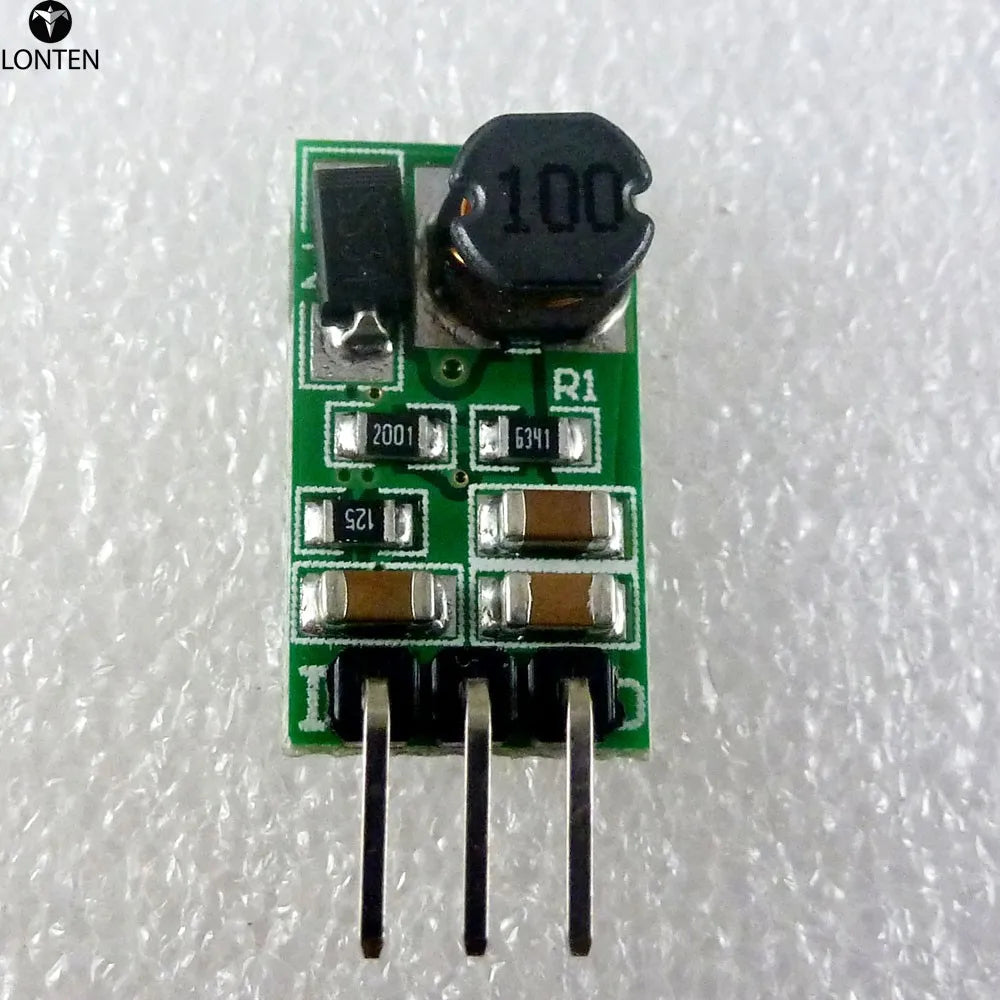

3 PCS 4012SA_5V 6.5V-40V to 5V 1A DC DC Buck Converter Module
Description:

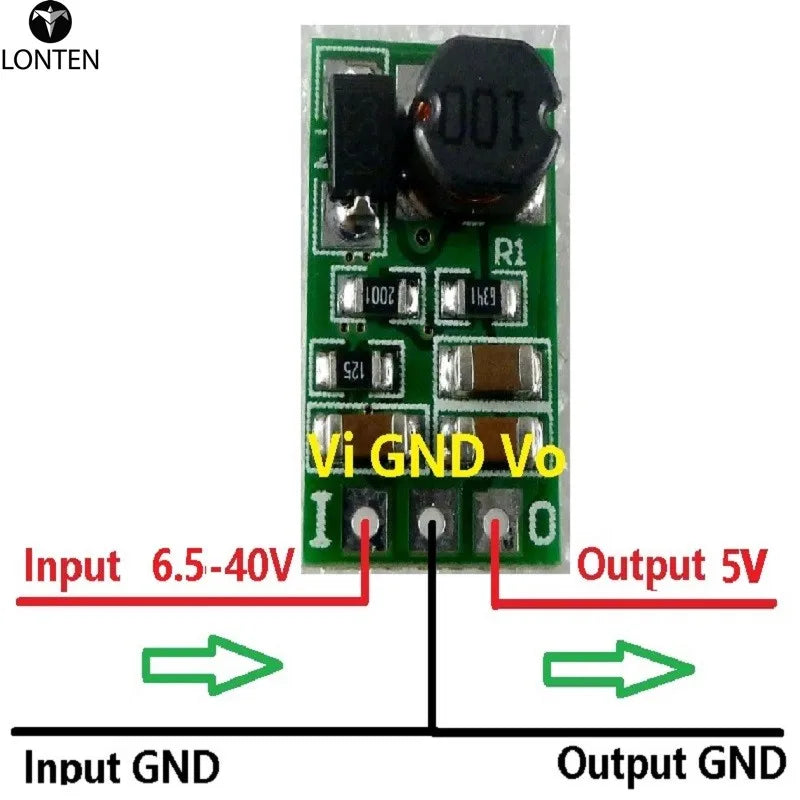

Input voltage 6.5~40V,output 5V
Maximum output current 1A
DC-DC Step-Down Converter module working frequency 550KHz. efficiency is 76-90% .
Quiescent current: about 1.5MA
Overtemperature shutdown, input under-voltage protection, BS-voltage protection, and short circuit protection.

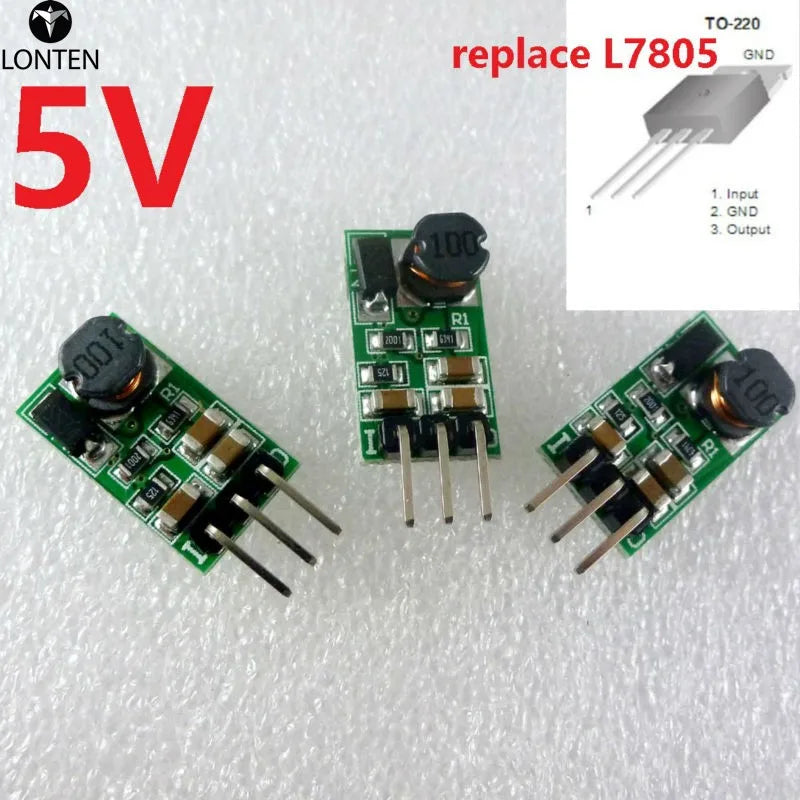

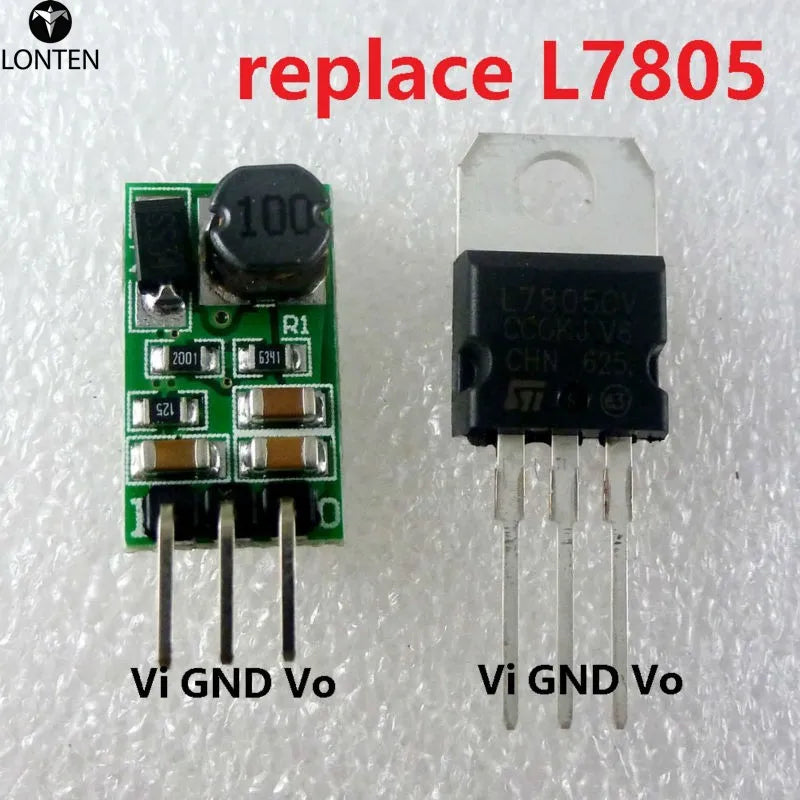

2.54mm pin pitch,Can directly replace the L78XX LM78XX TO-220 IC
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Applications:
5V MCU ARM STM32 CPU FPGA/CPLD
5V Motor
CCTV camera
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
replace AMS1117-5.0 LM7805 LDO
