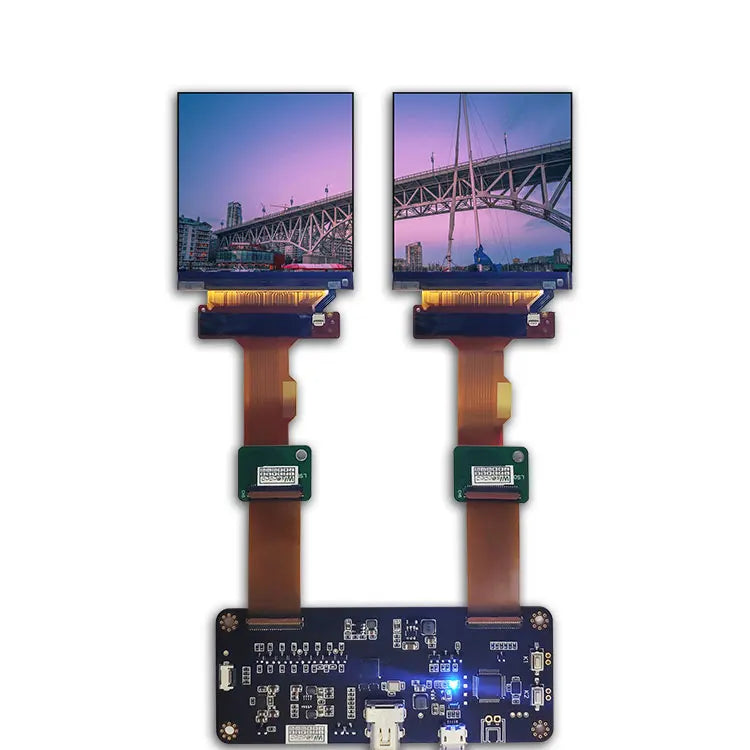

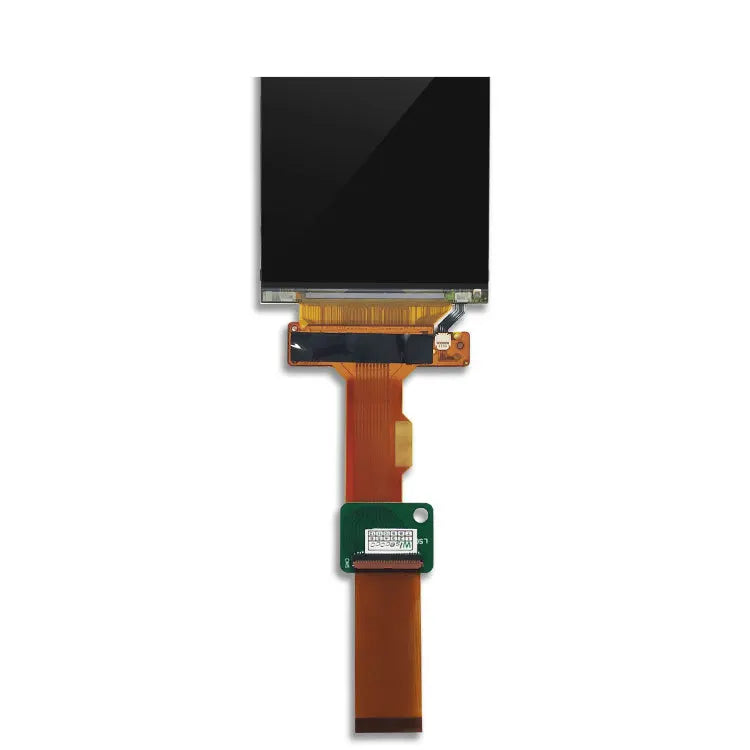

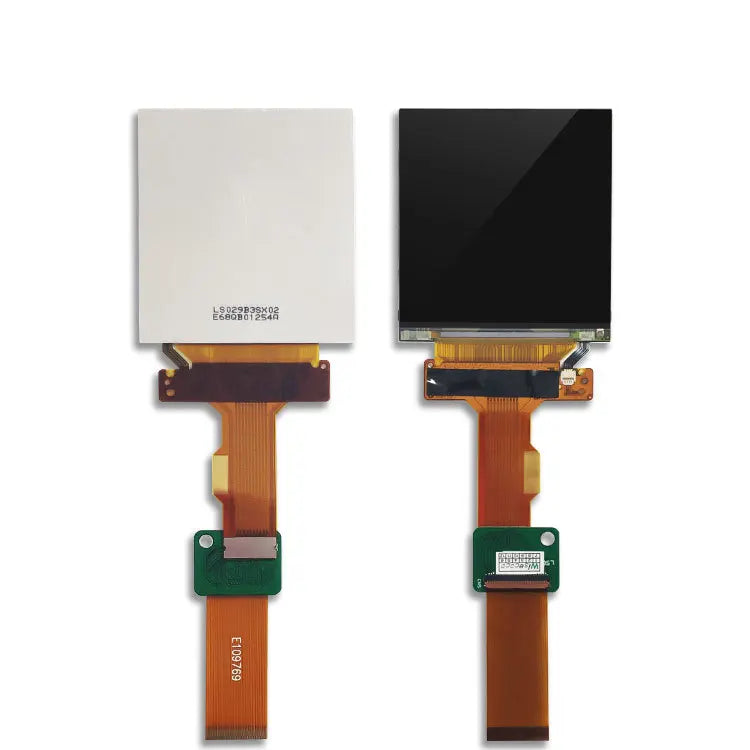

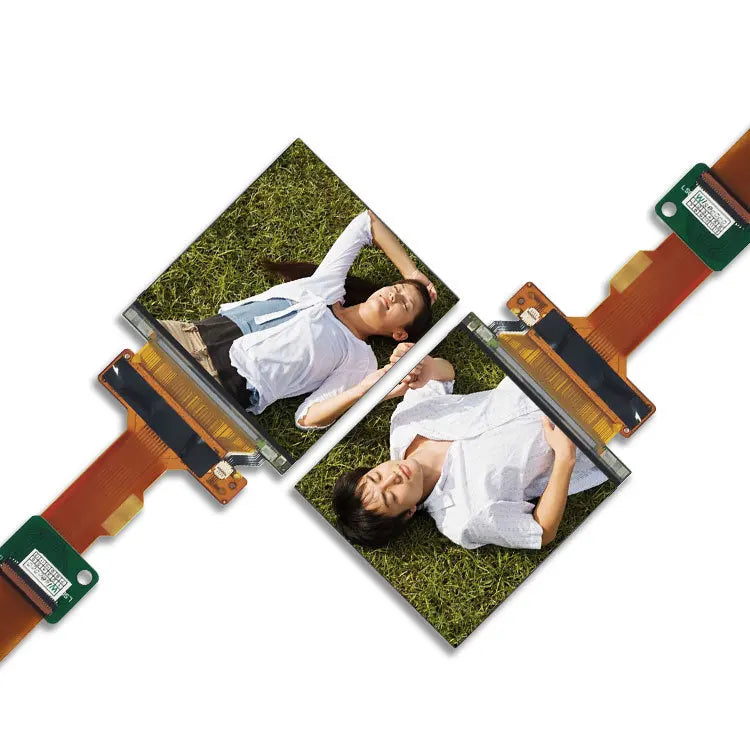

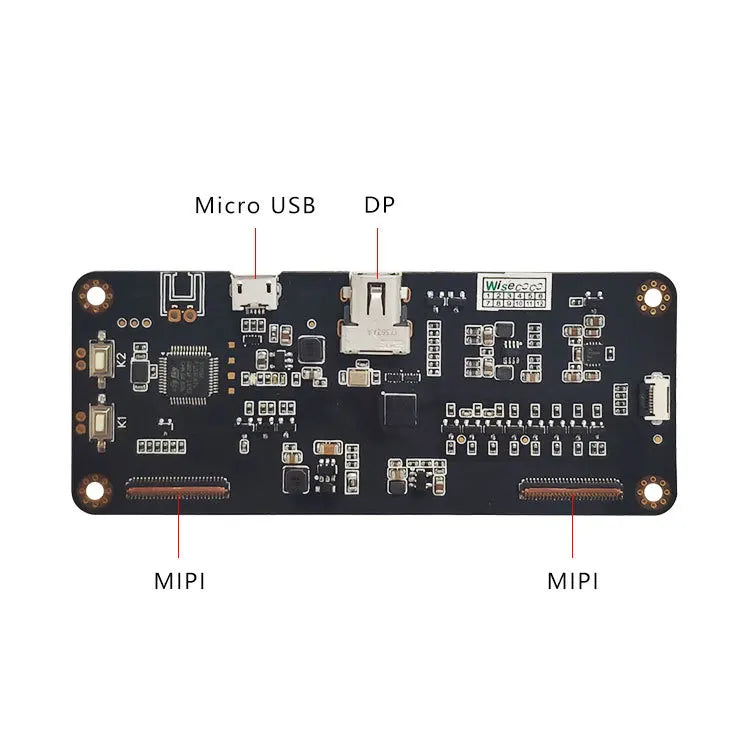

Custom 40 pins 2.9 inch 2k TFT lcd Module Dual screen 1440x1440 120Hz DP to MIPI controller board for VR AR Manufacturer

General Features

Diagonal Size

2.9 inch

Type

CG-Silicon , LCM

Pixel Format

1440(RGB)×1440

Configuration

RGB Vertical Stripe

Active Area

51.84(H)×51.84(V) mm

Outline Dim.

54.24(W)×59.02(H) ×1.51(D) mm

Bezel Area

-

Treatment

10 (Typ.)(Tr+Td)

Luminance

300 cd/m2 (Typ.)

Contrast Ratio

800:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

1100:1 (Typ.) (TM)

Viewing Angle

80/80/80/80 (Min.)(CR≥10)

Operating Mode

New Mode2, Normally Black, Transmissive

Support Color

16.7M   75% (CIE1931)

Light Source

4S2P WLED , Without Driver

Weight

7.00g (Typ.)

Designed For

VR/AR

Frame Rate

120Hz

Touch Panel

optional

Interface Type

MIPI (2 ch, 4 data lanes) , 40 pins , Connector

Power Supply

1.8/5.5/-5.5V (Typ.)(VDDI/VSP/VSN)

Environment

Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C
