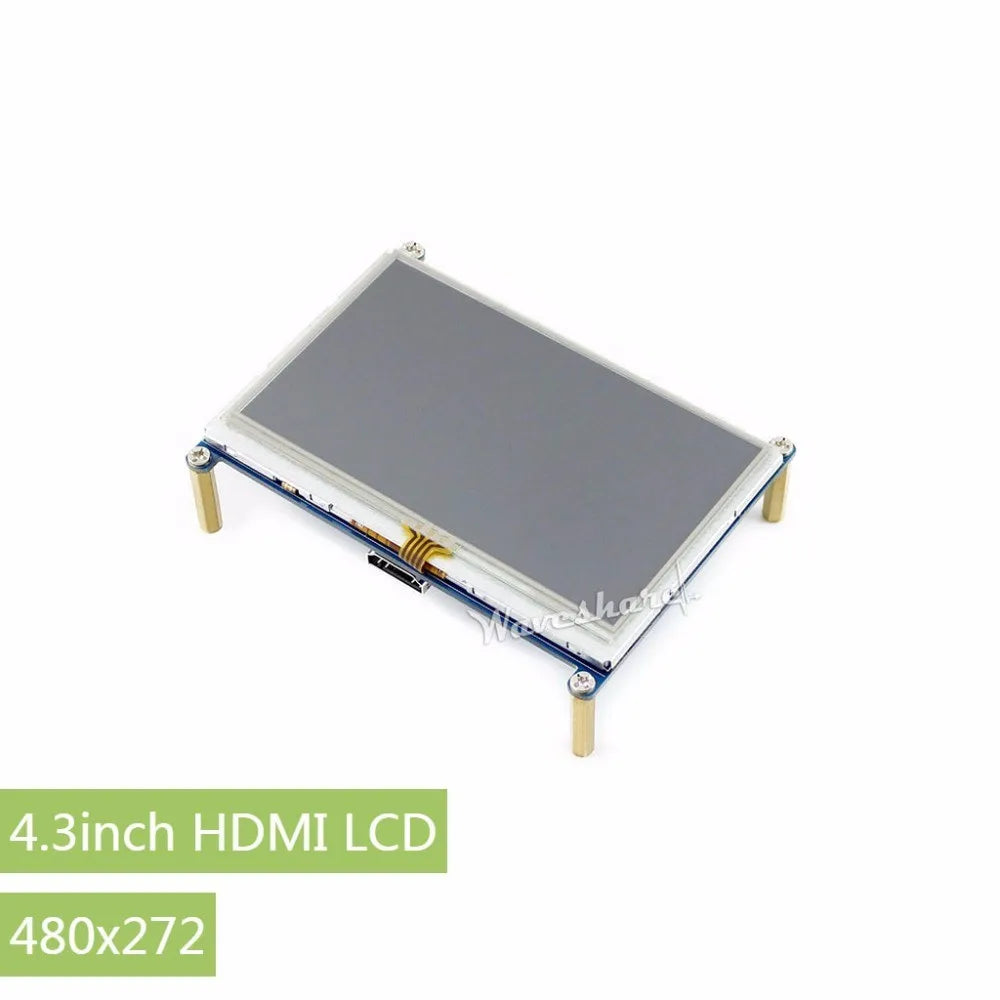

Custom 4.3inch LCD Resistive Touch Screen Tablet 480 *272 Designed for all Raspberry Pi ,with Back light control Manufacturer

Custom 4.3inch LCD Resistive Touch Screen Tablet 480 *272 Designed for all Raspberry Pi ,with Back light control Manufacturer

$33.05 USD
$33.05 USD $33.05 USD
Sale Sold out

Item specifics
  • :
  • Demo Board Type:ARM
  • Model Number:4.3inch LCD
  • Resolution:480 X272 high resolution
  • Touch Panel Type:Resistive touch control
  • Feature3:Cost effective
  • Drivers provided:works with your own Raspbian/Ubuntu directly
  • LCD Interface:
  • Touch Panel Interface:I/O
  • For use with:Pi
  • Dimension (mm):106 *68
  • Feature1:Back light control to lower power consumption
  • Feature2: interface for displaying, no I/Os required (but touch panel needs
Product Description

DESCRIPTION

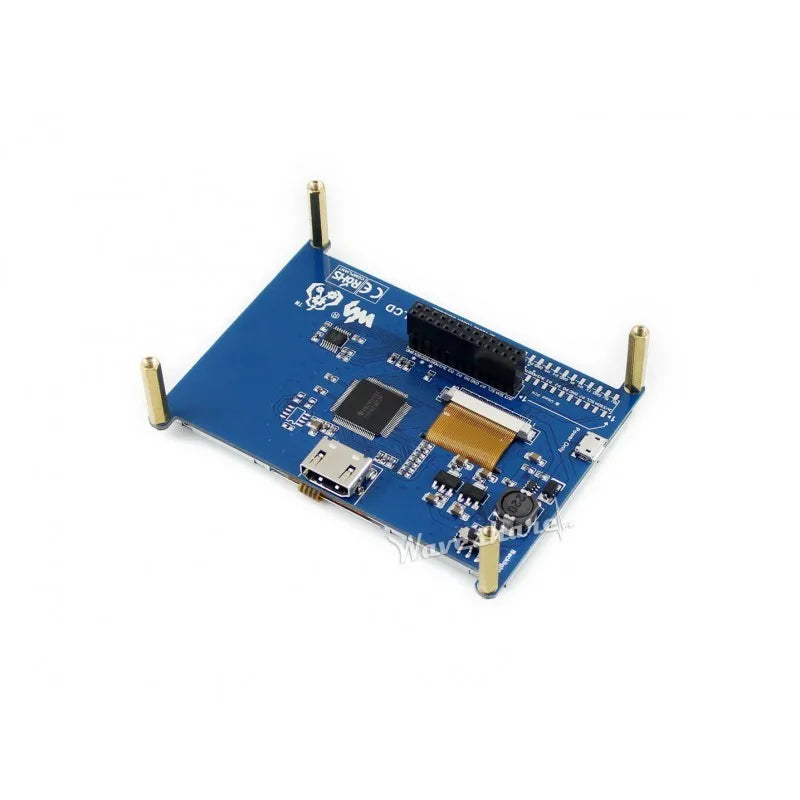

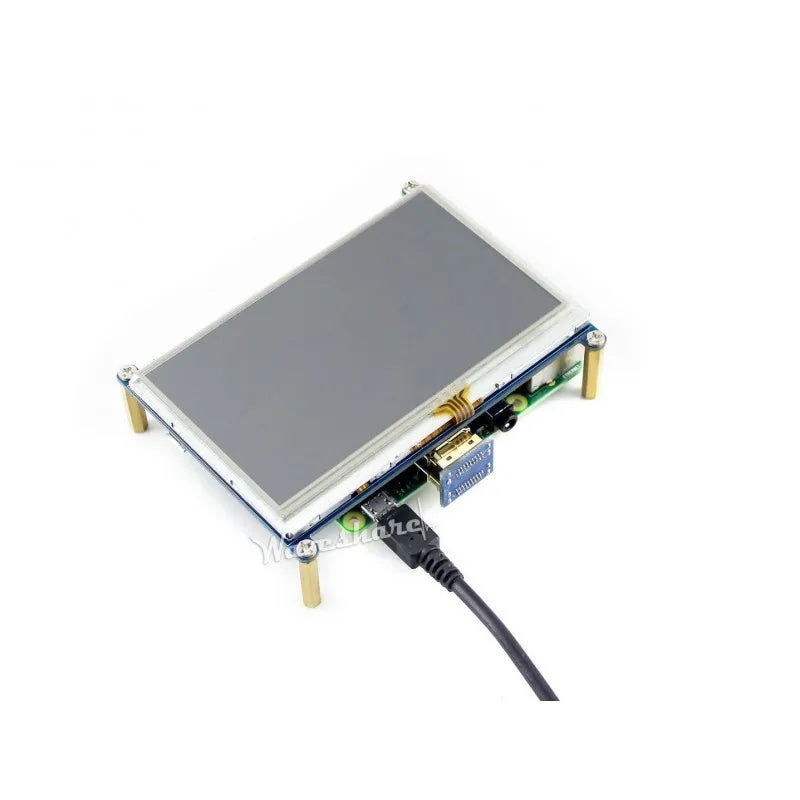

4.3inch Resistive Touch Screen LCD, interface, Designed for Raspberry Pi

Features

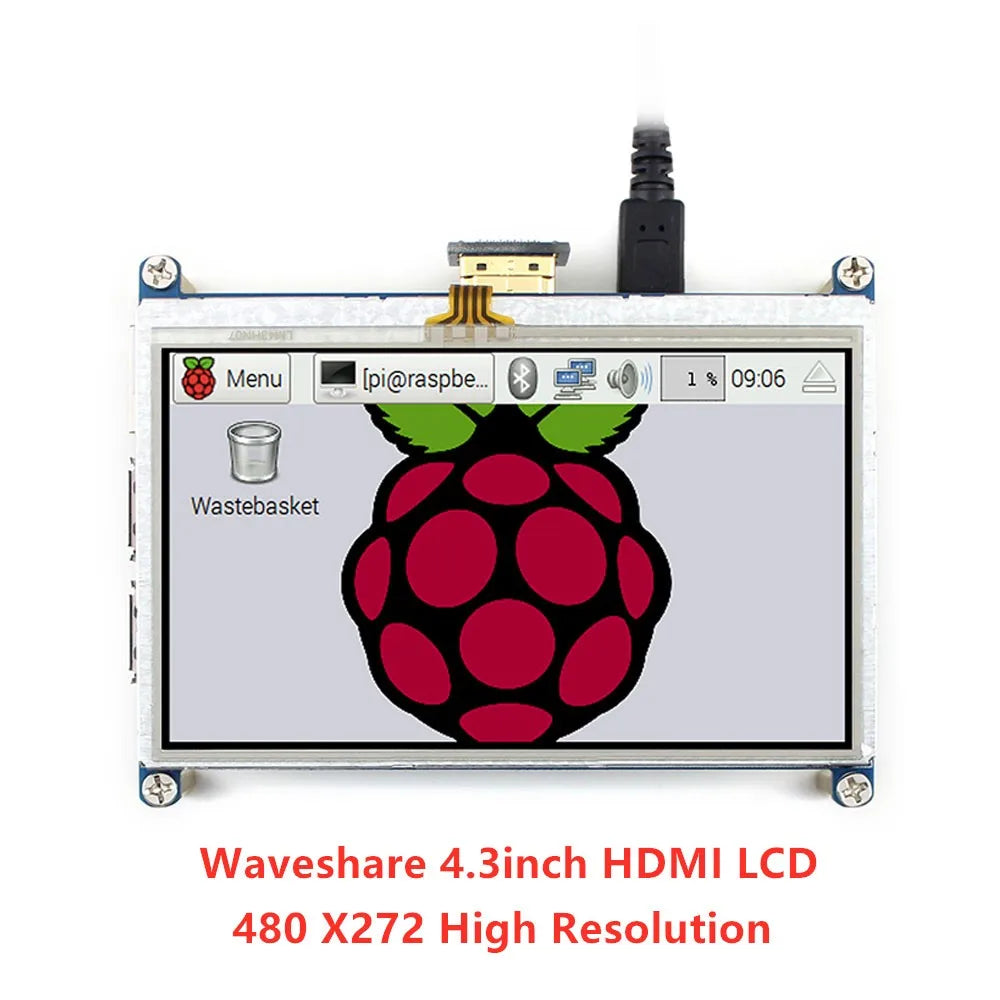

  • 480×272 high resolution
  • Resistive touch control

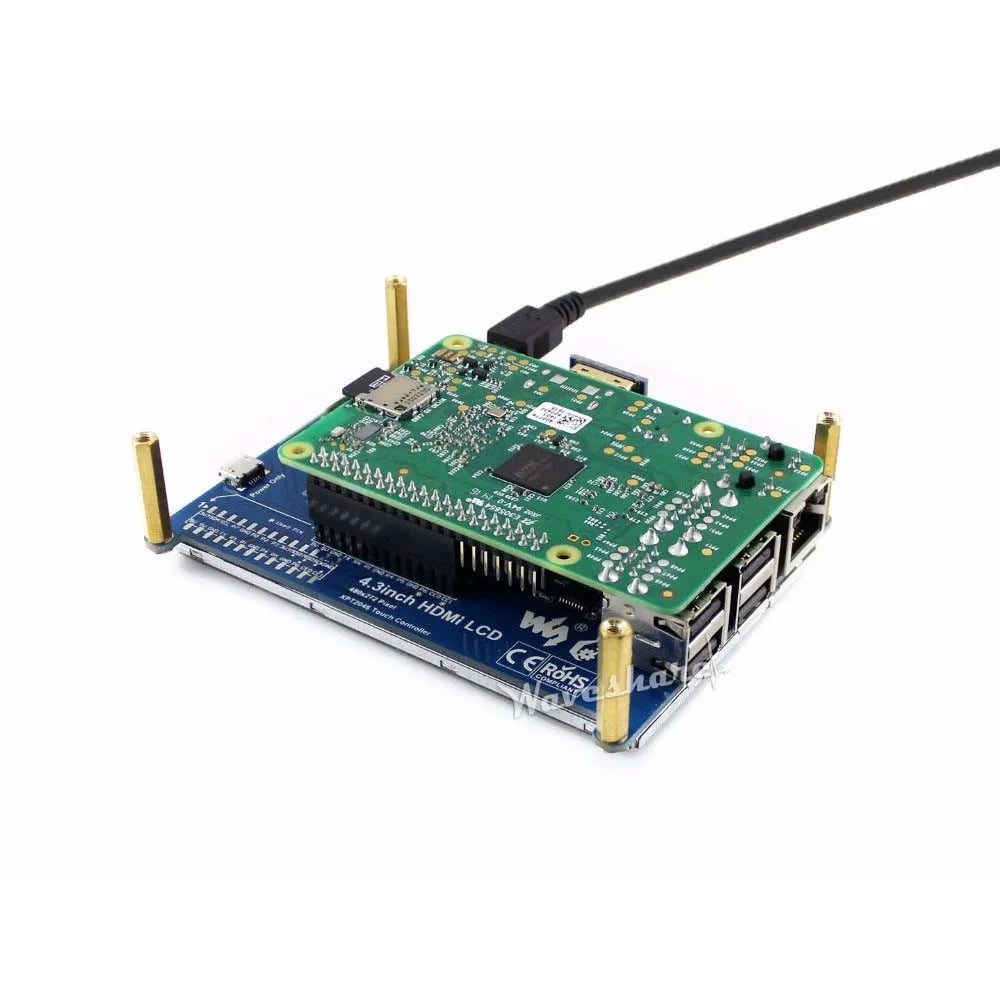

  • Supports Raspberry Pi Zero/Zero W/Zero WH/A+/B+/2B/3B (the Pi 1 model B or Pi Zero requires an cable)

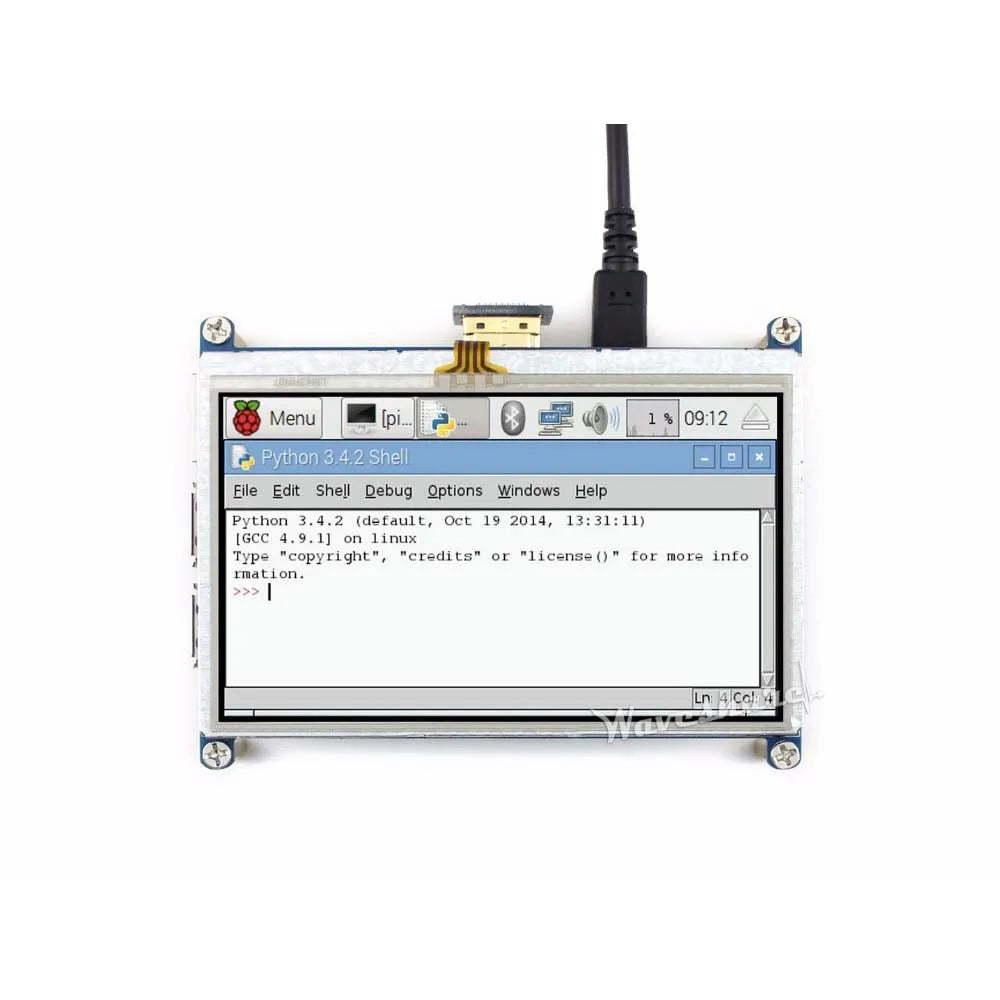

  • Drivers provided (works with your own Raspbian/Ubuntu directly)
  • interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
  • Backlight can be turned off to lower power consumption


4.3inch--LCD-14.3inch--LCD-24.3inch--LCD-34.3inch--LCD-4

Interface

PIN NO. SYMBOL DESCRIPTION
1, 17 3.3V Power positive (3.3V power input)
2, 4 5V Power positive (5V power input)
3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24 NC NC
6, 9, 14, 20, 25 GND Ground
19 TP_SI SPI data input of Touch Panel
21 TP_SO SPI data output of Touch Panel
22 TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching
23 TP_SCK SPI clock of Touch Panel
26 TP_CS Touch Panel chip selection, low active

External Dimension

4.3inch--LCD-size

Development Resources

:4.3inch__LCD

FAQ

FAQ

Selection Guide

Part Number Resolution LCD Interface Touch Panel Interface For use with Dimension (mm) Touch Panel Type Toughened Glass Cover IPS Sound Multi Systems Display Multi Systems Touch Popular Game Consoles How you feel
2.8inch RPi LCD (A) 320×240 I/O I/O Pi As the Pi 3B+ Resistive × × × × × ×
3.2inch RPi LCD (B) 320×240 I/O I/O Pi As the Pi 3B+ Resistive × × × × × ×
3.5inch RPi LCD (A) 480×320 I/O I/O Pi As the Pi 3B+ Resistive × × × × × × /span>
3.5inch RPi LCD (B) 480×320 I/O I/O Pi As the Pi 3B+ Resistive × √ × × × ×   3.5inch LCD 480×320   I/O Pi As the Pi 3B+ Resistive × √ √ √ × √ /span>
4inch RPi LCD (A) 480×320 I/O I/O Pi 94 × 61 Resistive × √ × × × × /span>
4inch LCD 480×800   I/O Pi 99 × 58 Resistive × √ × √ × ×
4.3inch LCD 480×272   I/O Pi 106 × 68 Resistive × × × × × × /span>
5inch LCD 800×480   I/O Pi 121 × 78 Resistive × × × × × ×
5inch LCD (B) 800×480   USB Not only Pi 121 × 76 Resistive × × × √ √ × /span>
5inch LCD (G) 800×480   USB Not only Pi 121 × 76 Resistive × × √ √ √ √
5inch LCD (H) 800×480   USB Not only Pi 121 × 76 Capacitive × × √ √ √ √ pan>
7inch LCD 1024×600   I/O Pi 165 × 107 Resistive × × × √ × ×   7inch LCD (B) 800×480   USB Not only Pi 165 × 107 Capacitive × × × √ √ ×
7inch LCD (C) 1024×600   USB Not only Pi 165 × 107 Capacitive × √ × √ √ ×
7inch LCD (H) 1024×600   USB Not only Pi 165 × 107 Capacitive   √ √ √ √ √
10.1inch LCD 1024×600   I/O Pi 235 × 144 Resistive × × × √ × ×
10.1inch LCD (B) 1280×800   USB Not only Pi 274 × 187 Capacitive √ √ × √ √ ×
10.1inch LCD (D) 1280×800   USB Not only Pi 258 × 177 Capacitive √ √ √ √ √ ×
