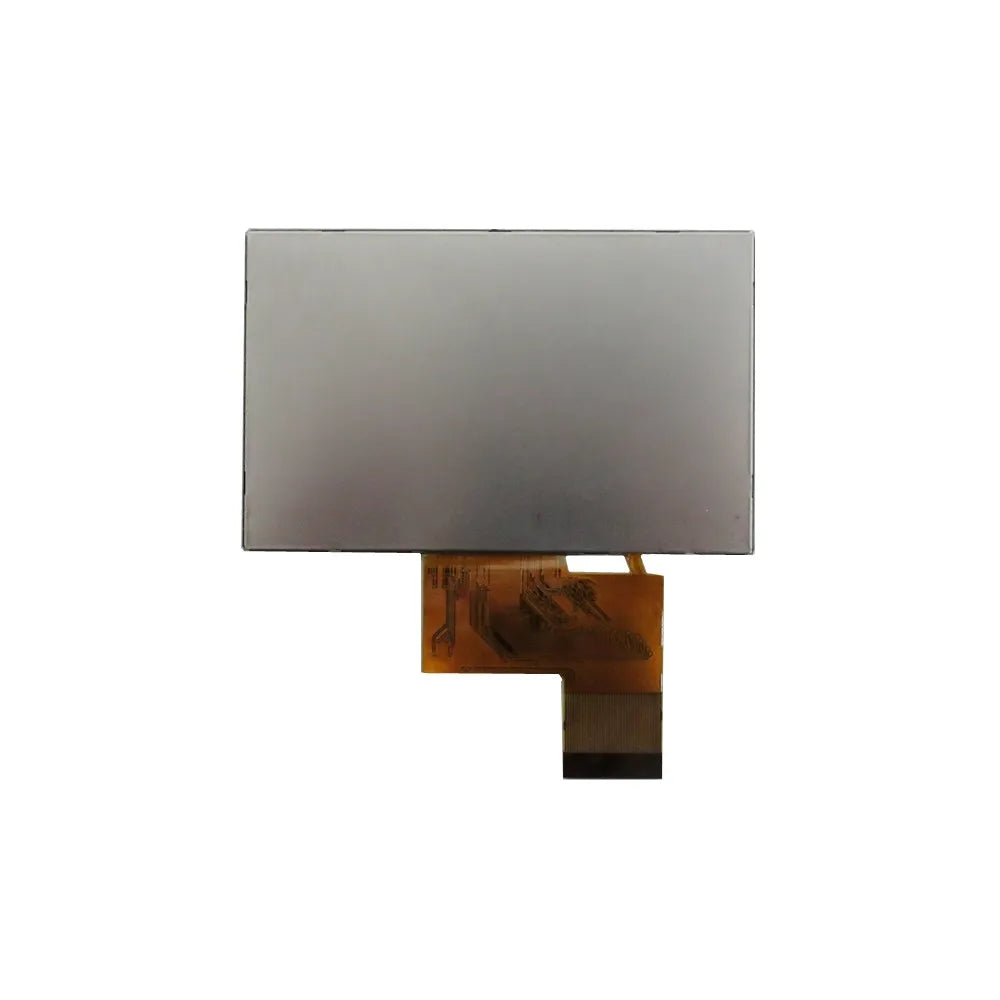

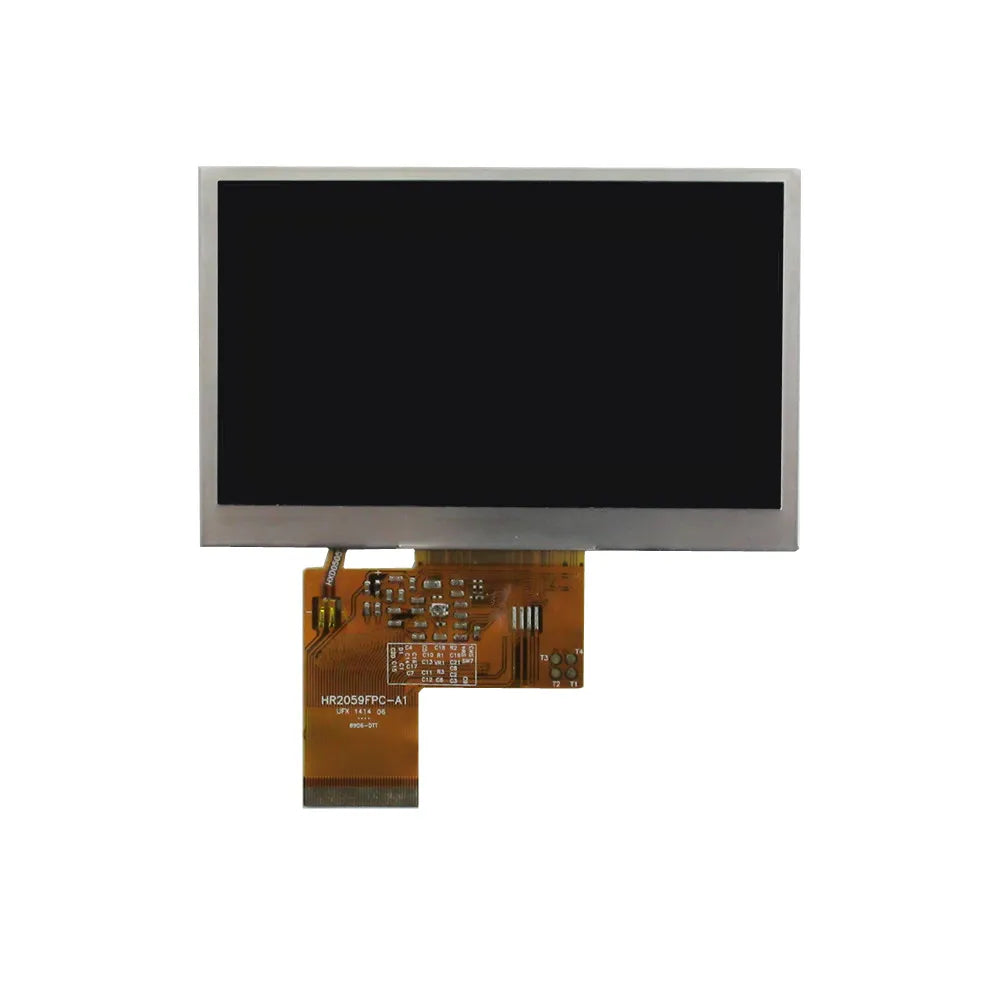

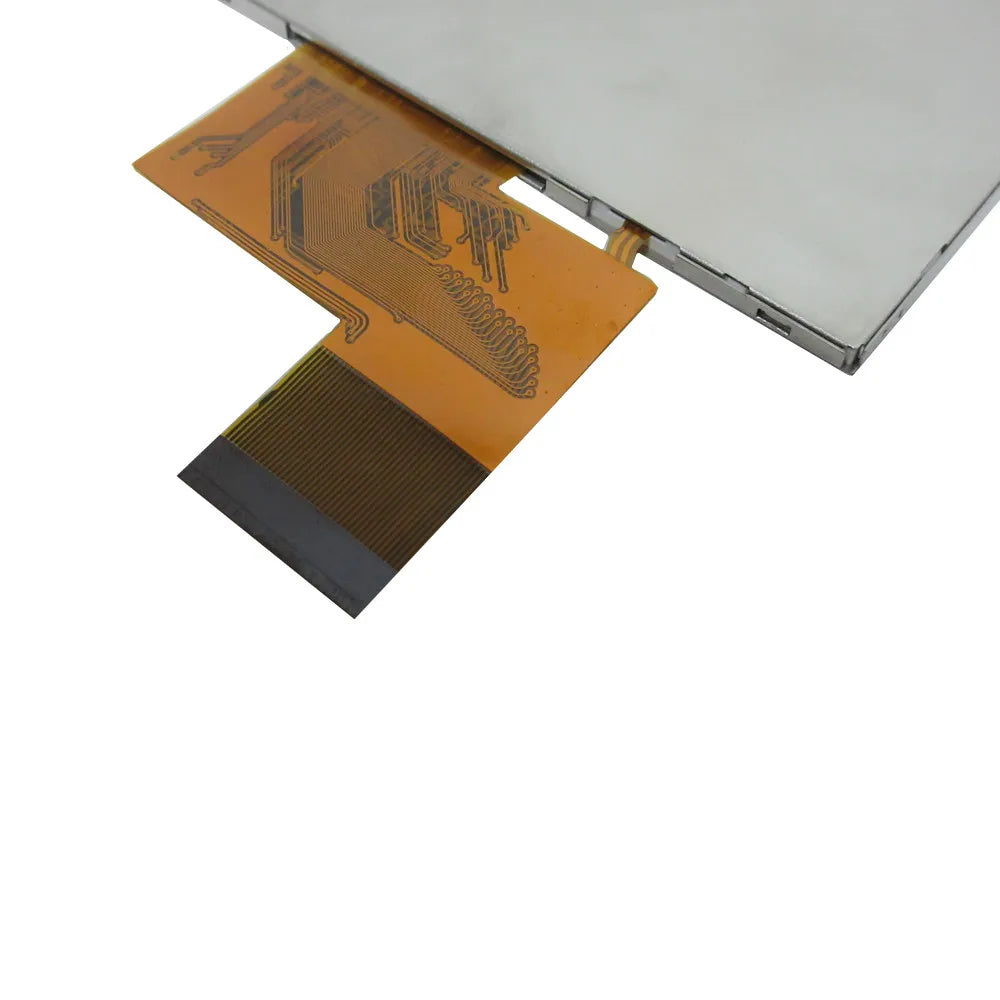

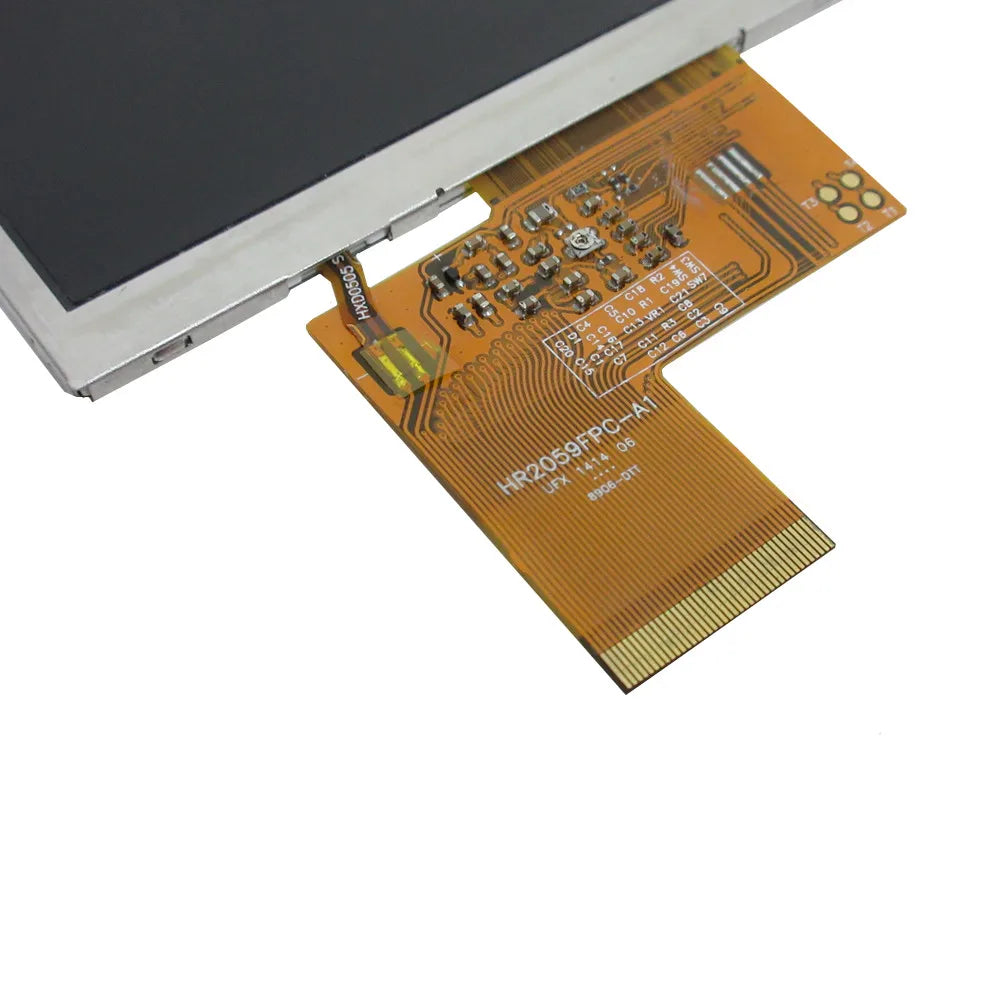

Custom 4.3 Inch Universal LCD Display Screen Digitizer Touchscreen For Navigation Multimedia Replacement Parts Manufacturer







When you choose to buy "Only Control Board", please make sure that your screen interface is 50Pin and the resolution is 1024x600. It is not compatible with other specifications of the screen



Interface introduction:

1-HD-Compatibl Signal Input Interface

2-Mirco USB Power Supply Interface

3-4Pin Power Extension Interface

4-LED Display Backlight Power Supply

5-50Pin TTL Screen Interface

6-Button Board Interface





Adapt to 5V 2A Power supply





style 1：

7 inches LCD X1

LCD driver board X1

remote control X1

keyboard X1

Button board connection cable X1

USB power cord X1



style 2：

LCD X1



style 3：

The compatible resolution is: 1024 * 600. Interface: 50pin LCD screen

LCD driver board X1

remote control X1

keyboard X1

Button board connection cable X1

USB power cord X1



style 4：

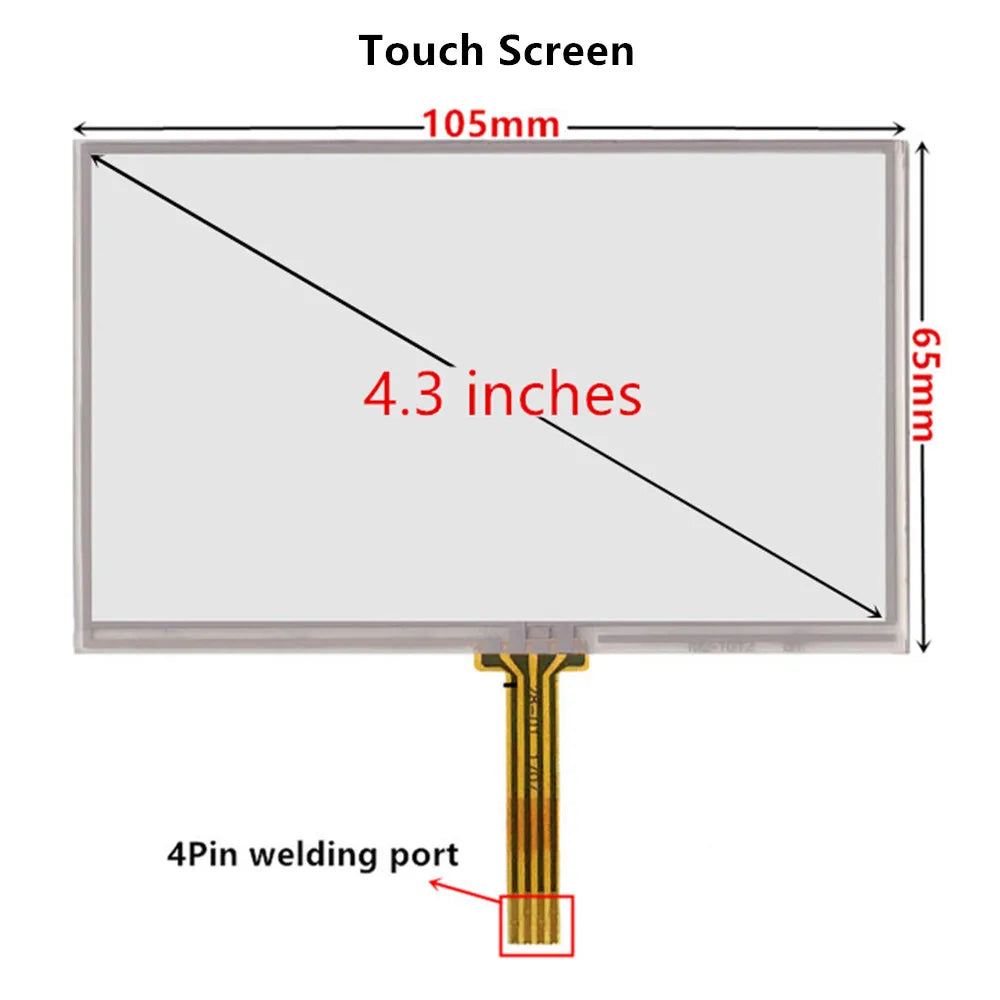

Capacitive touch screen X1

Touch screen cable X1

Touch screen driver board X1

USB cable X1

When you buy the touch screen and the display at the same time, we will install the touch screen on the front of the screen for you. If you do not need to install, please leave a message in the order



















Specifications

PCB-800168Driver board



1. Product description:

This driver board uses SIXTHHD-HD1 main control IC

The power supply adopts AMS1117-3.3V, AMS1117-1.8V



This driver board can

1，1 HD signal input, and this IC supports HD1.2

2，Support 5V DC voltage input, you can also use USB or mobile power supply, but the positive and negative poles cannot be reversed to avoid damage to the circuit board

3，Driver board integrated LCD screen LED backlight driver board

4，Standard button board interface, and supports dual-color LED indicator display

5，Support TTL signal output

Compatible General 50PIN 1024*600 resolution interface TTL LCD screen

6，This drive board has four positioning holes



 Interface function description

Tag	Function Description	Remarks
HD	HD input	HD standard is 1.2
J3	power input
J7	LED backlight seat
CON1	TTL-50PIN signal output
J6	Buttons, remote control, LED indicator interface
J5	Upgrade program interface	For factory upgrade



J6 key board, remote control input interfaceJ6 key board, remote control input interface

Serial number	definition	Explanation
1	5V	Remote control power supply, actually 3.3V
2	GND	GND
3	IR	Remote input
4	POWER	Switch function
5	MENU	Menu display function
6	+	plus
7	_	Less
8	SOURCE	Source conversion
9	LED-R	LED indicator
10	LED-G	LED indicator



J3-DCIN power connector

1	+5V	Positive power input
2	+5V	Positive power input
3	GND	GND
4	GND	GND



HD interface

1

HD standard interface

Standard wire available



J5, upgrade interface

1	SCL	SCL Upgrade port
2	SDA	SDA Upgrade port
3	GND	GND
4	NC	NC



 Welcome Customize Order!
