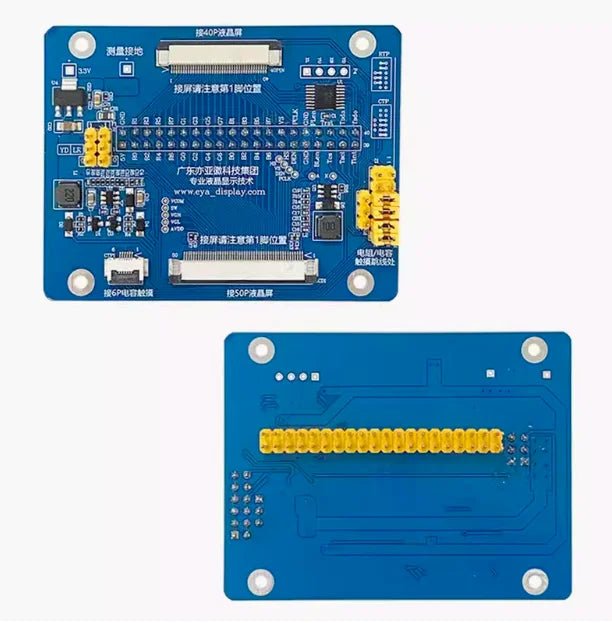

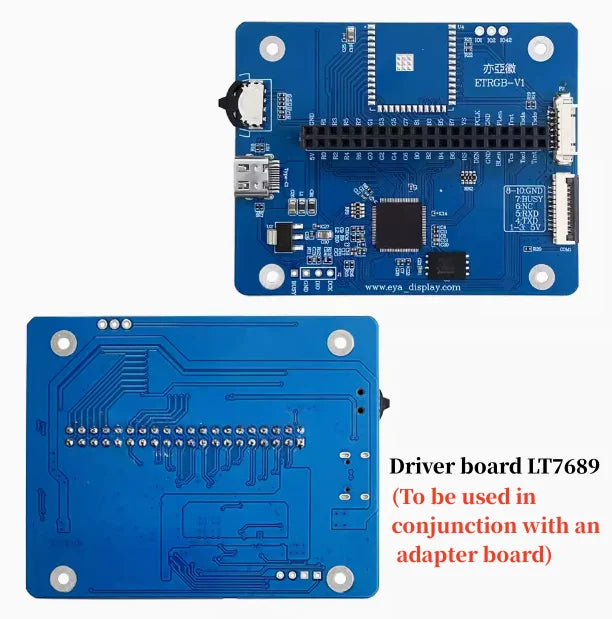

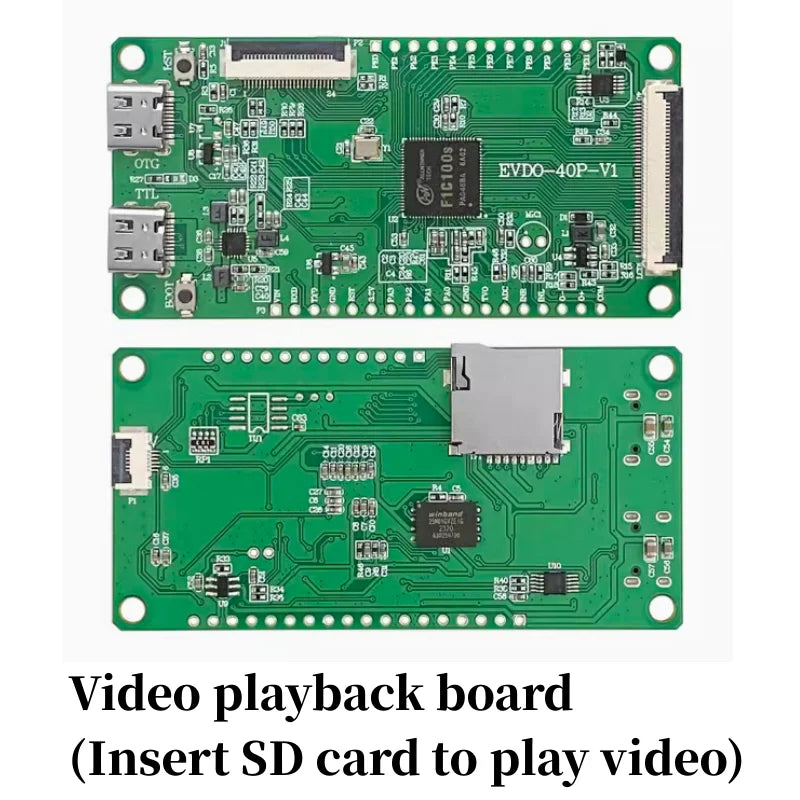

Custom 4.3-inch display ESP32-S3 800 * 480 480 * 272 40PIN driver board adapter board

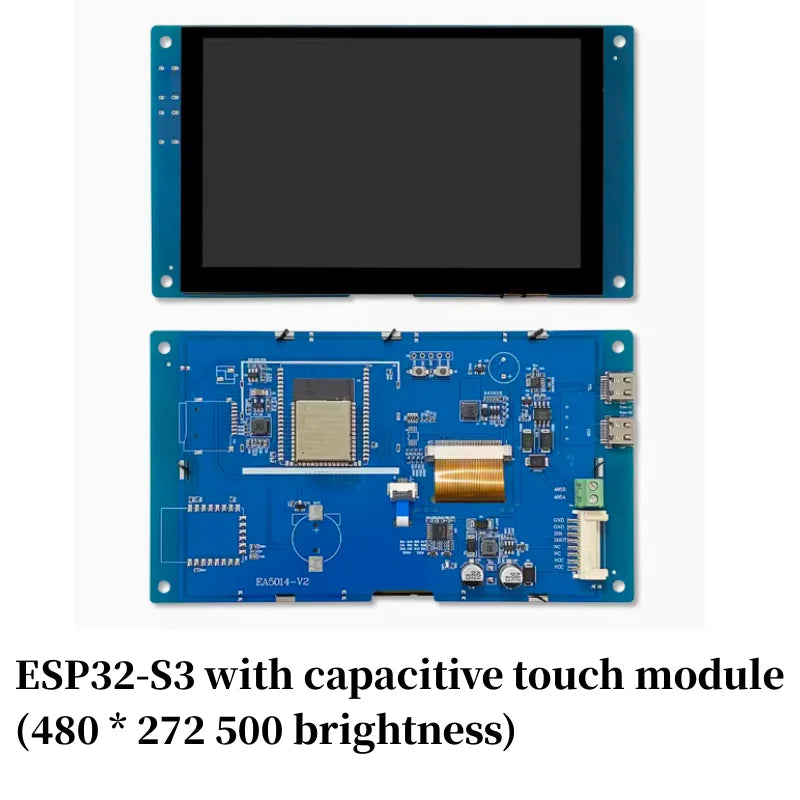

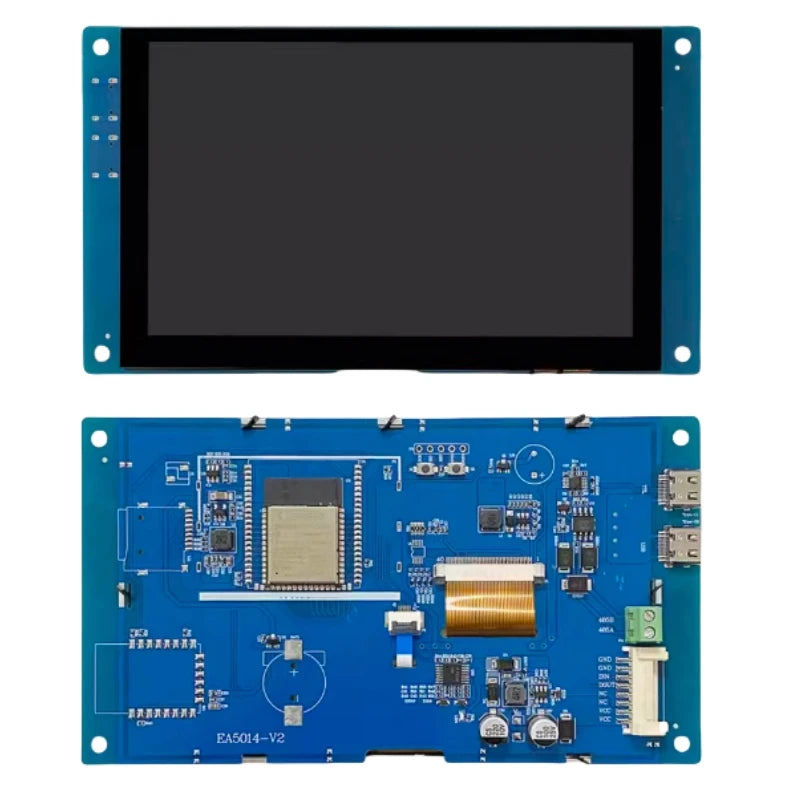

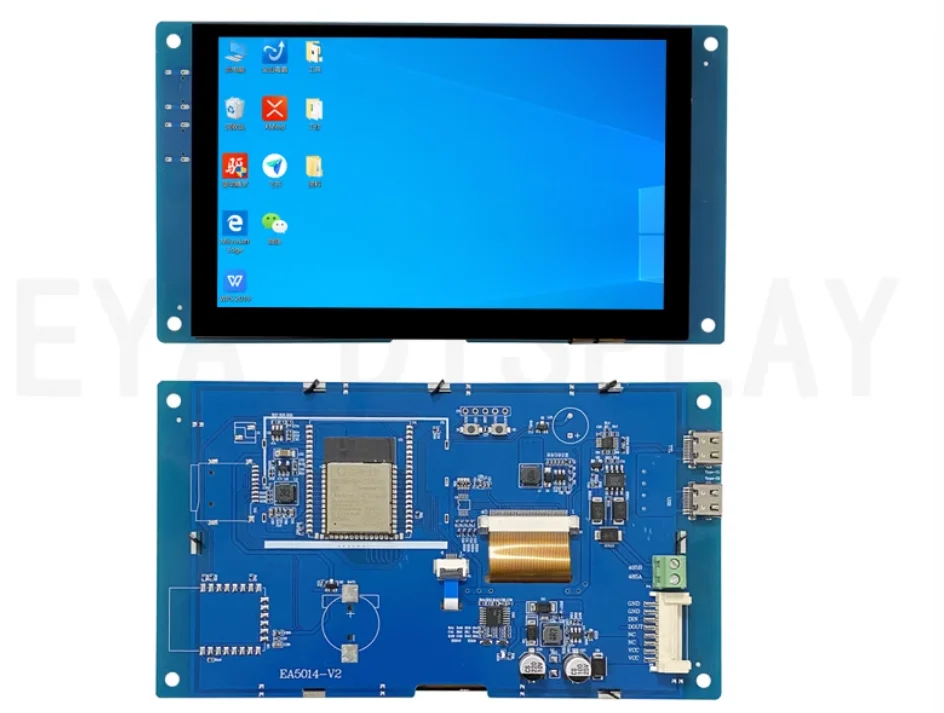

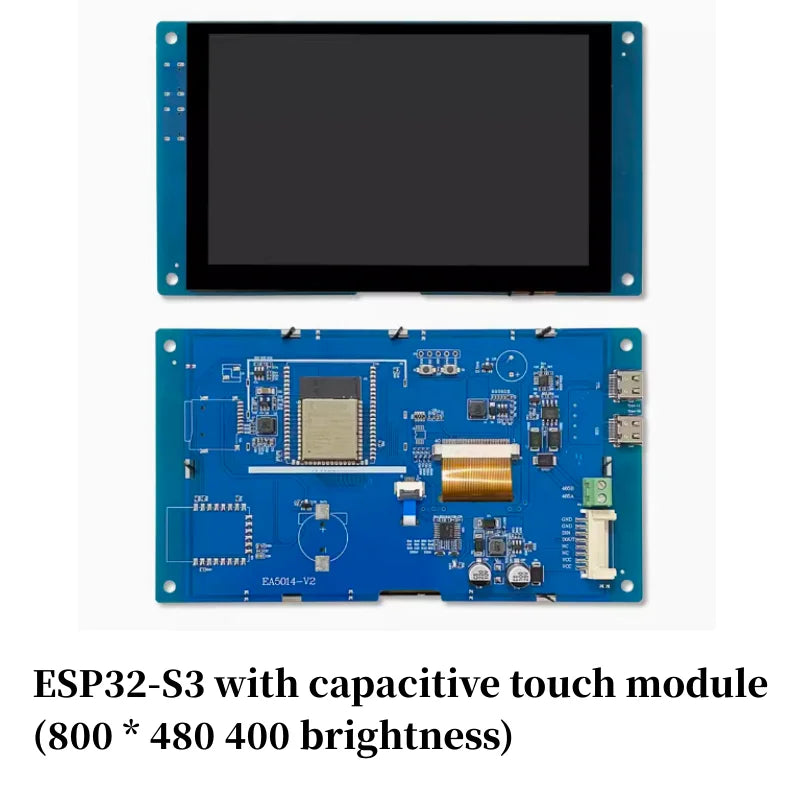

Introduction to EPS32-S3-WROOM-1-N16R8 motherboard

ESP32=MCU+WIFI+Bluetooth

The ESP32-S3-WROOM-1-N16R8 module has 16MB FIash and 8MB PSRAM, which can store more code and data. The ESP32-S3 chip equipped in the module has powerful neural network computing and signal processing capabilities, suitable for projects such as image recognition and speech recognition

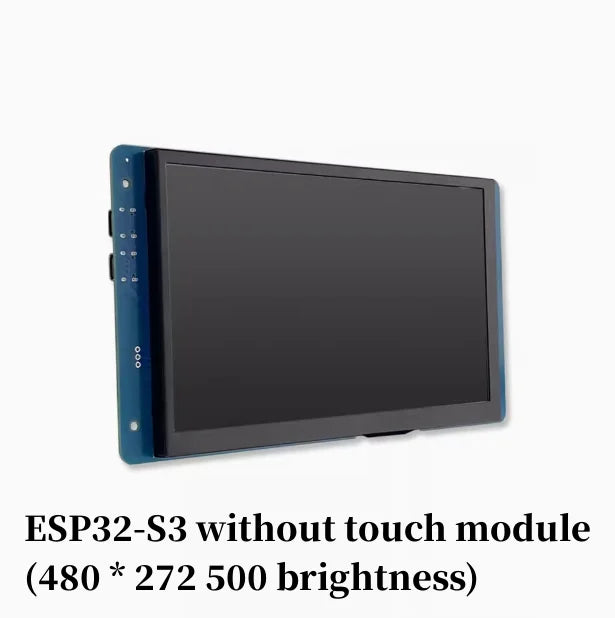

Product Name: 4.3-inch TFT Display Screen with 480 * 272 Resolution (1 Type)

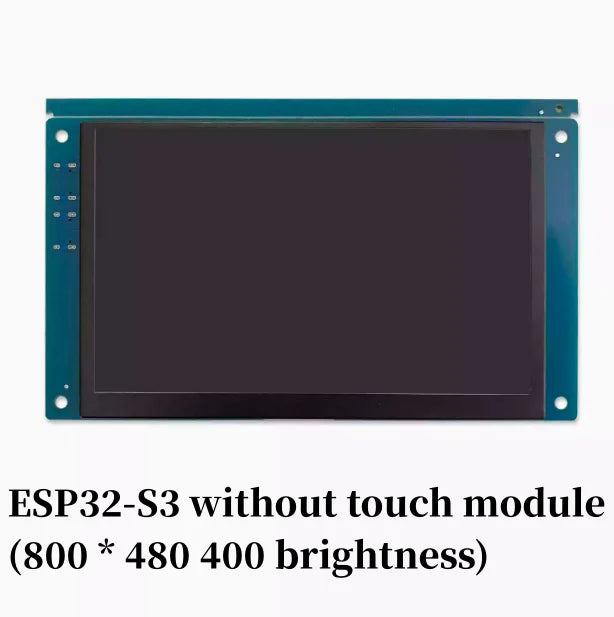

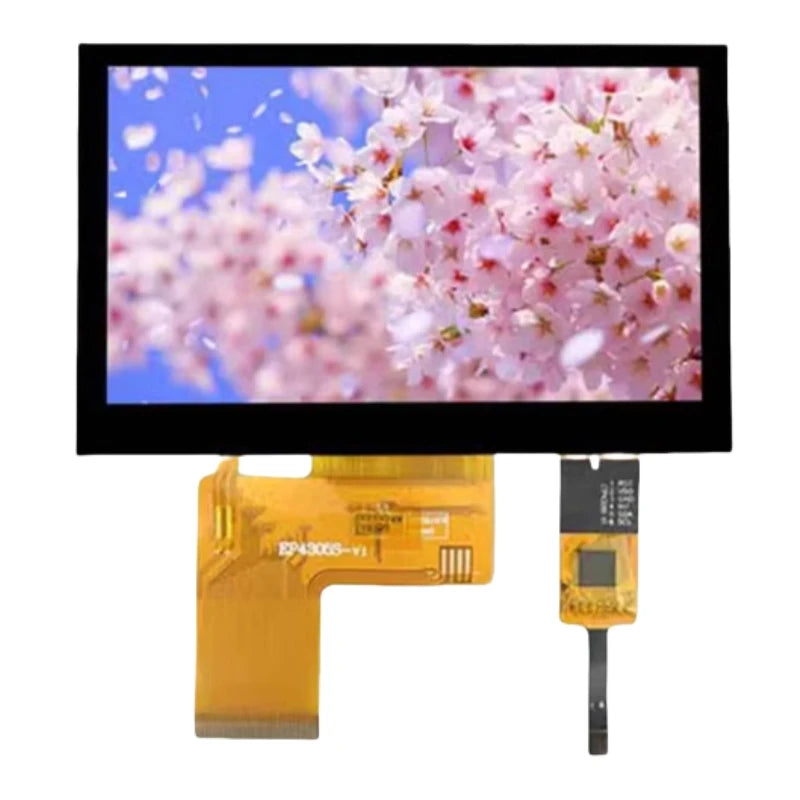

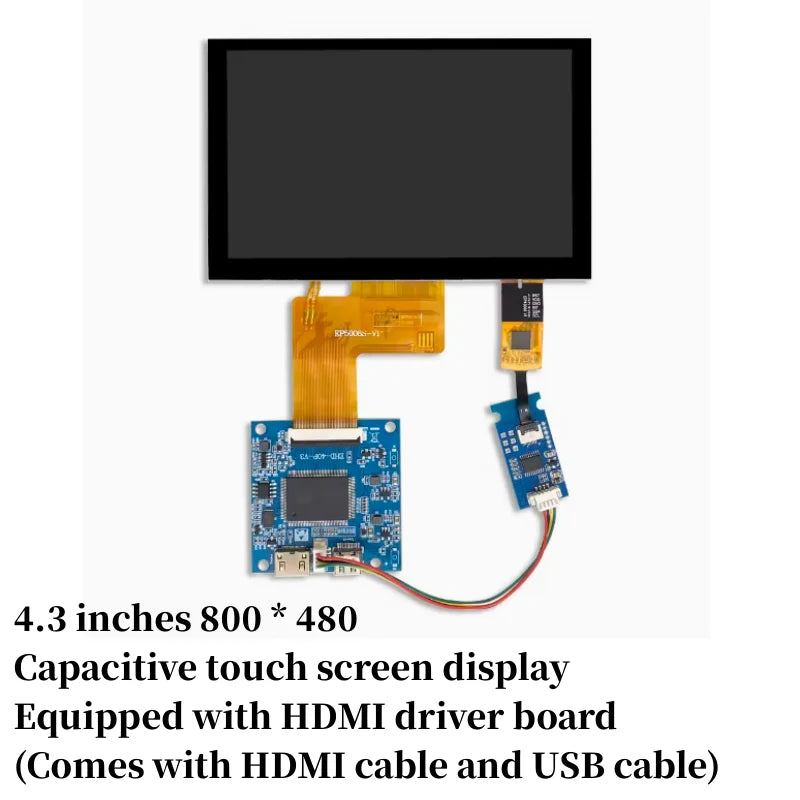

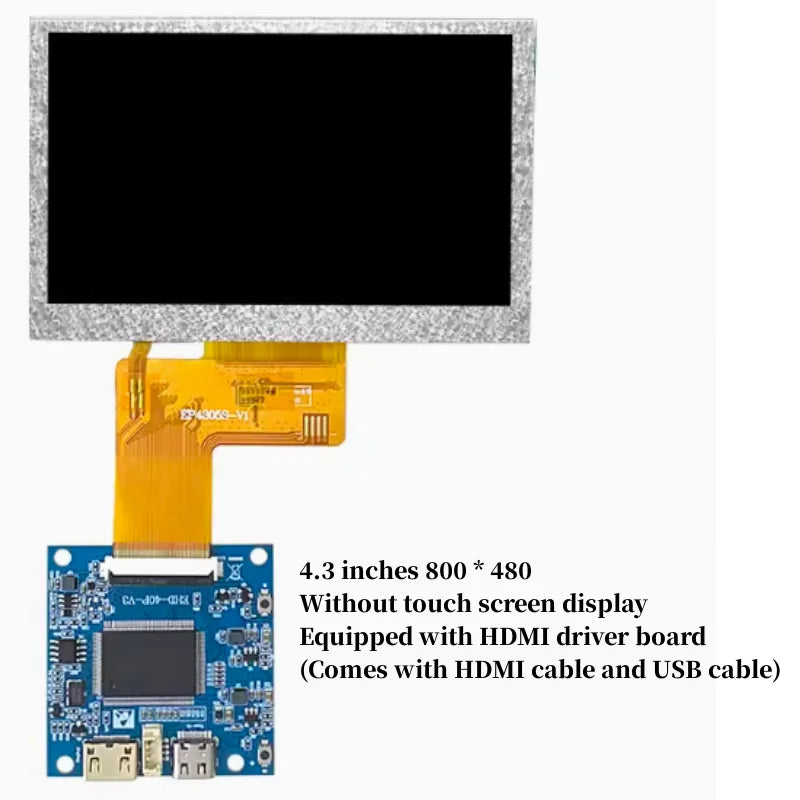

Product Name: 4.3-inch TFT Display Screen with 800 * 480 Resolution (2 Models) Full Transparency

Display mode: Full transparency (2 models) 480XRGBX272 (1 model)/800XRGBX480

Resolution: 480XRGBX272 (1 model)/800XRGBX480 (2 models)

Data format: RGB556/RGB666/RGB888

Display interface type: RGB interface

PIN pin spacing: 0.5mm (plug-in version)

Display driver chip: ST7625 chip (1 type)

Display driver chip: NV3047 chip (2 types)

Capacitive touch chip: GT911

Capacitive touch can support up to 5 touch points

1 display screen size: 105.42 (width) * 67.07 (length) * 3.0 (thickness)

1 display screen size+electric touch: 105.42 (width) * 67.07 (length) * 4.2 (thickness)

1 display screen+capacitive touch size: 105.42 (width) * 67.07 (length) * 4.2 (thickness)

2 display screen sizes: 105.46 (width) * 67.11 (length) * 3.0 (thickness)

2 display screens+capacitive touch size: 105.46 (width) * 67.11 (length) * 4.2 (thickness)

Perspective: IPS Full View

Touch: Three versions to choose from: no touch, resistive touch, and capacitive touch

Connection type: plug-in type
