Custom 4.3 inch display capacitive touch module kit 480x272 HD LCD Module for Raspberry Pi 3B 4B Car Raspberry Pi 3 Micro USB 5V Manufacturer

parameters and description

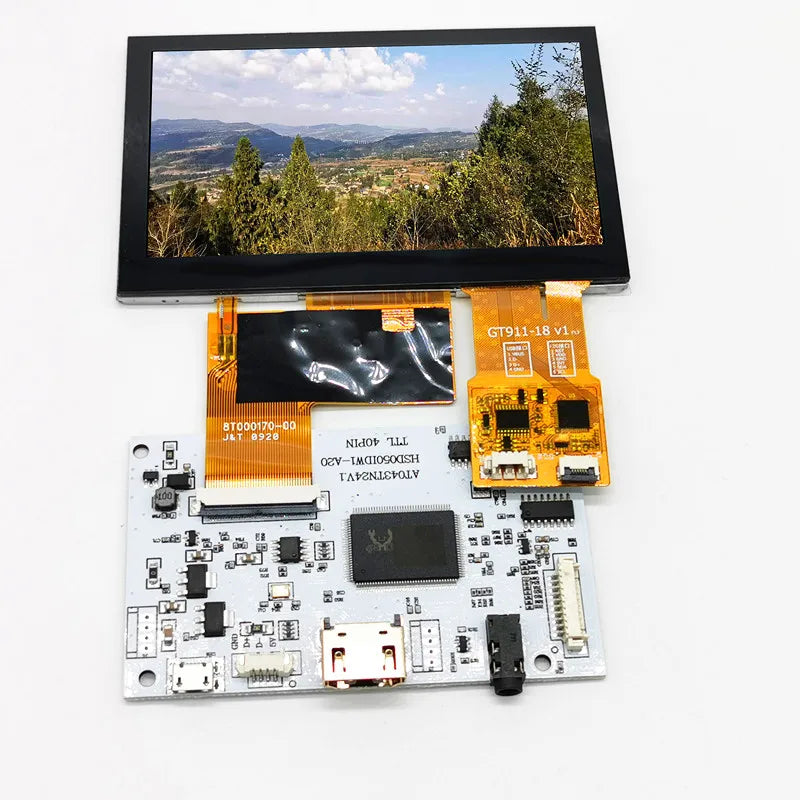

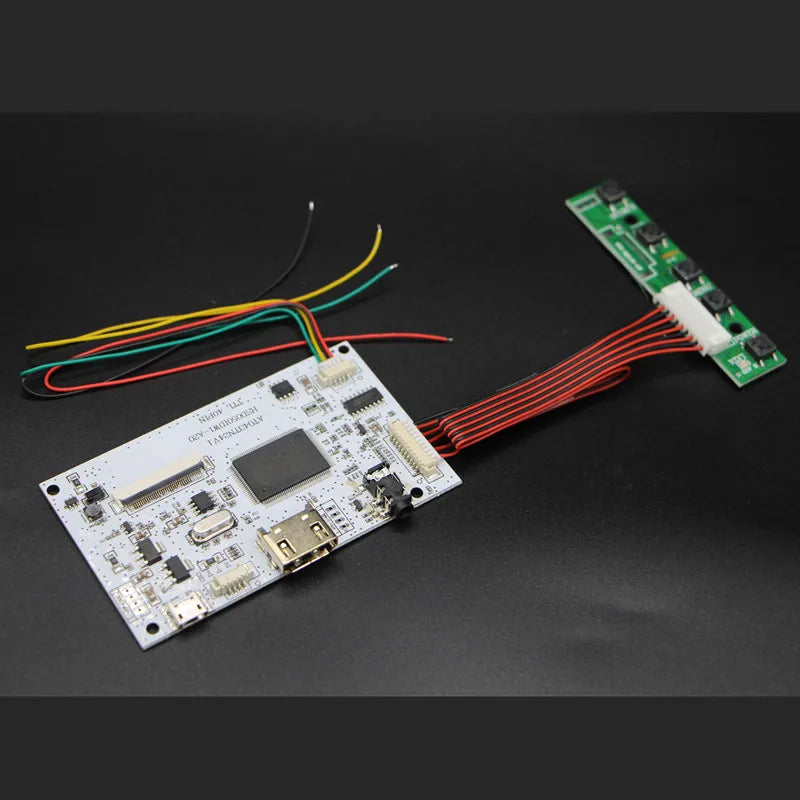

Drive motherboard specifications: (main features)



1. HDMI Board Work for 40Pin RGB LCD Screen

2. Input: HDMI

3. Output PANEL interface 0.5mm pitch 40PIN Flip-flop FFC connector

4. Output Headphone output Support horizontal socket

5. Power Input: Micro USB 5V

OSD menu; brightness, contrast, auto correction, phase, clock, line position, function settings, reset, etc.; OSD language Chinese, English,French German etc.

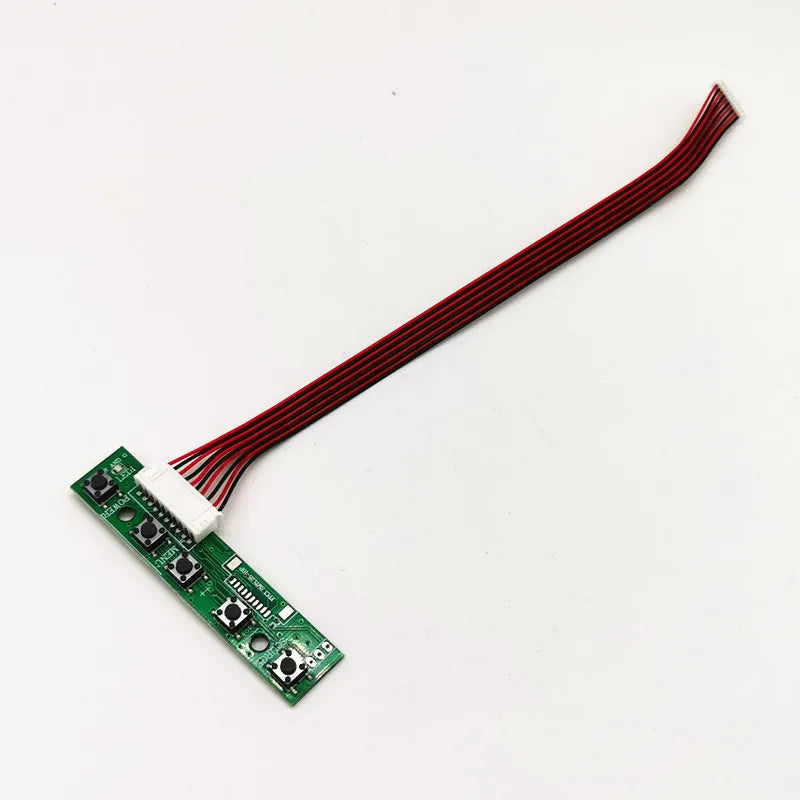

key :POWER/ ENTER /MENU/ UP/ DOWN 5 button



LCD Specification:



4.3" LCD Screen:

Display New Mode ADS, Normally Black, Transmissive

Resolution 480RGB)×272

Outline Size 105.5(H)×67.2(V) mm

Display Area 95.04(H)×53.856(V) mm

Brightness 400 cd/m² (Typ.)

Contrast Ratio 500:1 (Typ.) (TM)

Viewing Angle 770/70/50/70 (Typ.)(CR≥10)

Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins FPC

Backlight WLED

Input Voltage 3.3V (Typ.)



prompt



1.Please pay attention to the negative and positive pole.

2. when you connect power please don't hot plug, which may break the main IC

3.don't touch the driver board, and keep it insulation, don' let metal touch it.

4.please take care of the flat cable



Capacitive Touch Screen parameters and description

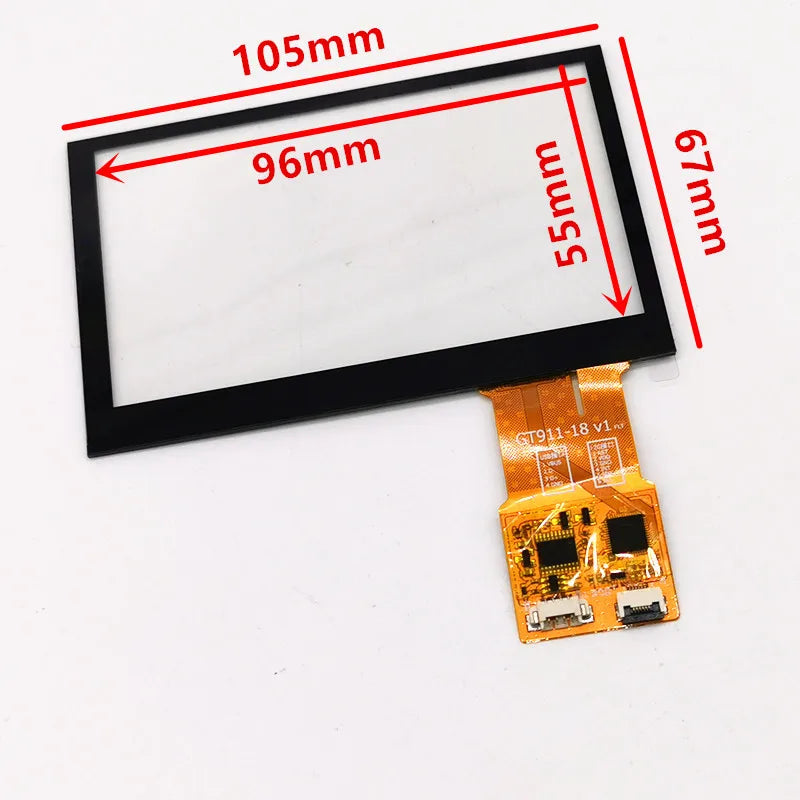

4.3 inch multi-point capacitive touch



Android kernel 3.1 system 5.1 or above; linux kernel version 3.5 or above are plug and play.



Capacitive touch screen linuxWIN7810 and Android system plug and play



LCD Display module contenido del paquete



1 *4.3 inch LCD

1 * Driver board

1 * teclado OSD



Touch display module contenido del paquete

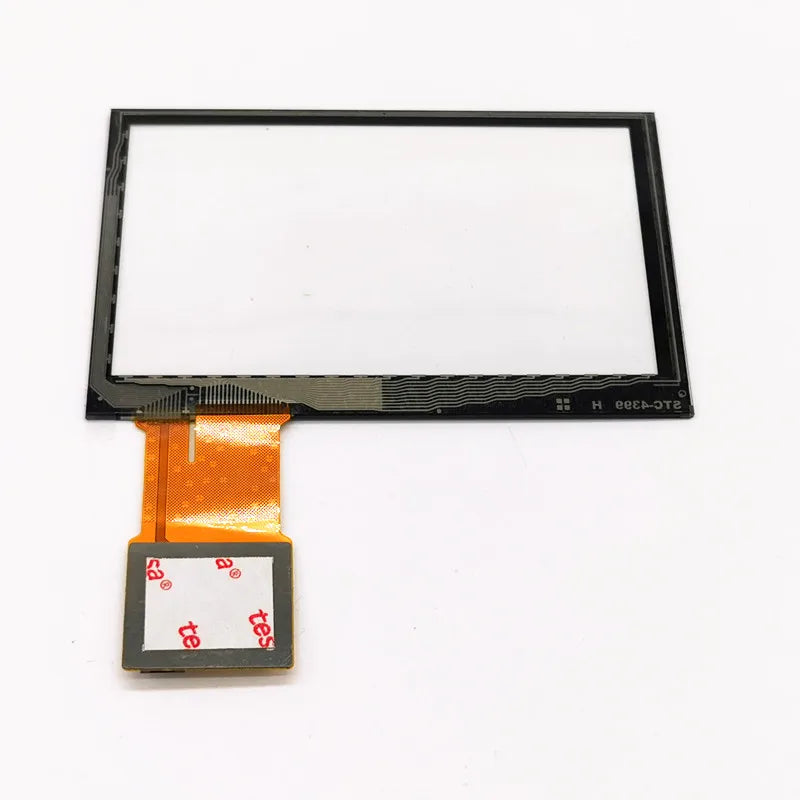

1 * Capacitive Touch Panel

1 * CTP driver board (Capacitive Touch Panel Driver board)

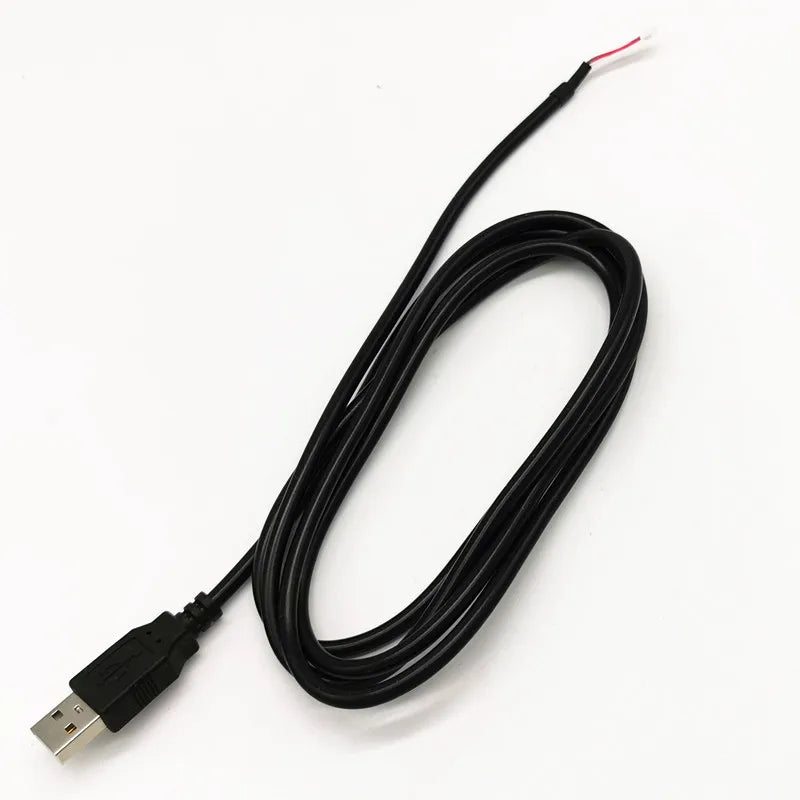

1 * USB touch screen cable wire

1 *4.3 inch LCD

1 * Driver board

1 * teclado OSD

 Welcome Customize Order!
