Custom 4.2 Bluetooth Module Serial Port Transmission 5.0 Master Slave Integrated Small Base Station Test

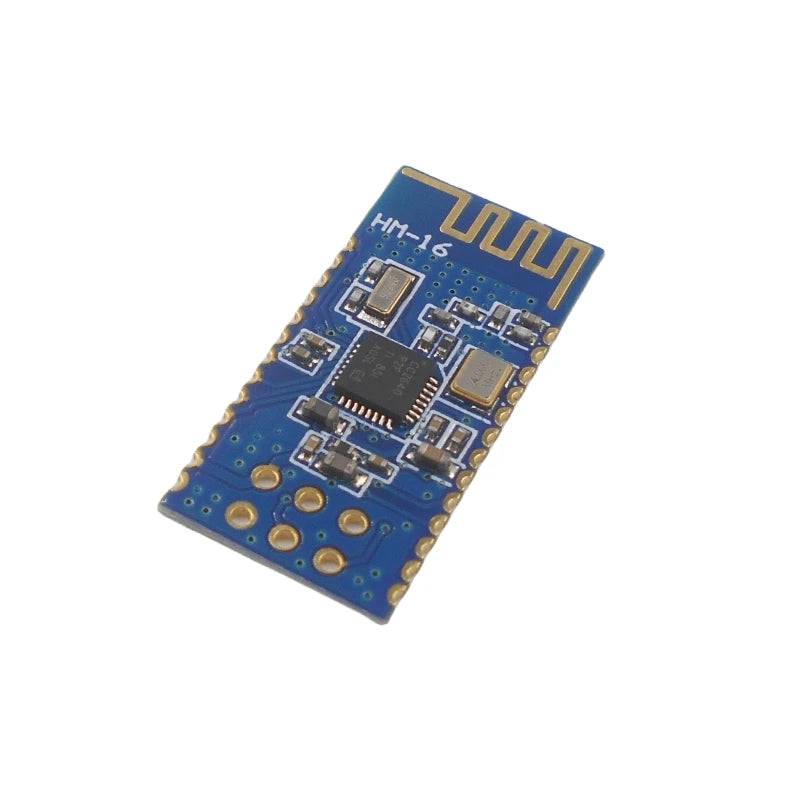

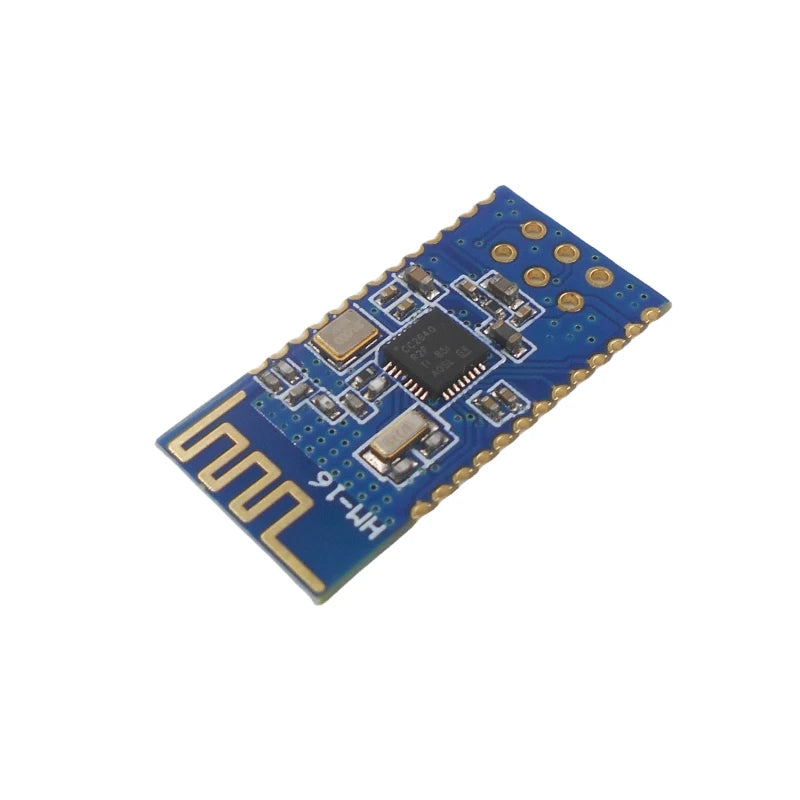

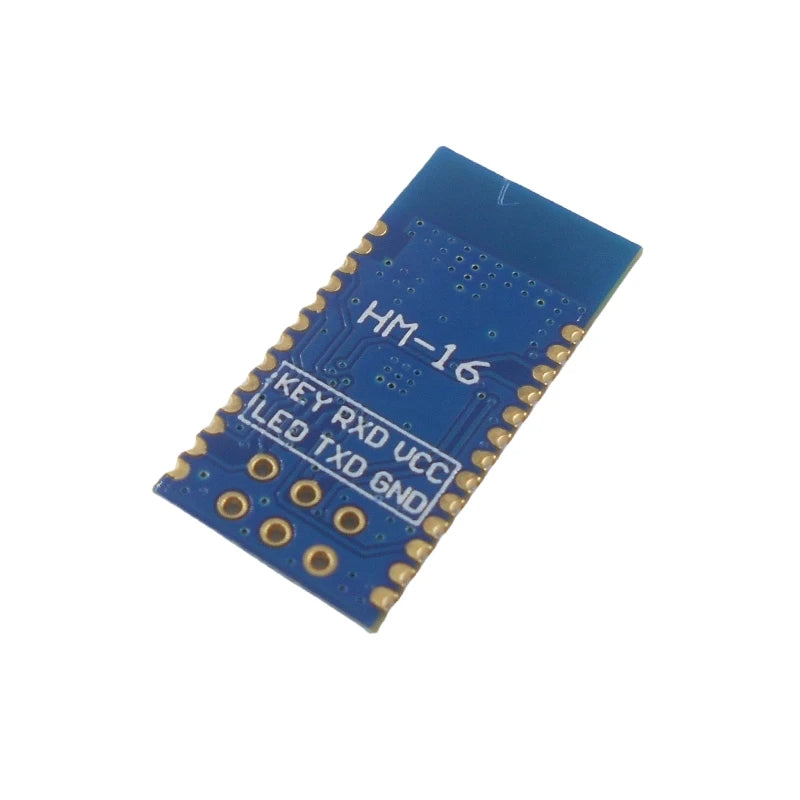

The HT-16/HM-18 Bluetooth module adopts TI's 2640 chip, supports the BLE4.2/5.0 Bluetooth protocol, is configured with 128KB space, supports AT commands, and allows users to change roles (master and slave modes), serial port baud rate, device name, pairing password, and other parameters as needed, making it flexible to use.

1. Product parameters

Bluetooth protocol: Bluetooth Specification V4.2 BLE

The default configuration serial port transceiver has no byte limit

Can achieve 60 meters ultra-long-distance communication in an ideal environment

Working frequency: 2.4GHz ISM band

Modulation method: GFSK (Gaussian Frequency Shift Keying)

Transmit power: -23dbm, -6dbm, 0dbm, 6dbm, can be modified by AI command

Sensitivity: ≤-84dBm at 0.1% BER

Security features: Authentication sand eneryption

Support Service: Central & Peripheral

FFEO is service UUID (You can use AT+UUID command to set)

FFE1 is Chae1 UUID (You can use AT+CHAR command to set)

FFE2 is Chae2 UUID (can be opened with AT+FFE2 command)

Power consumption: sleep current 50uA^400uA, normal standby current 3mA, 3.6mA during transmission

Power supply: 2.5^3.7V 50mA

Working temperature: -20 ~ +105 Centigrade

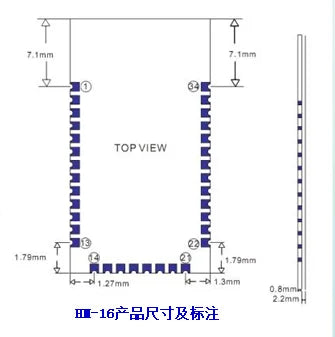

Appearance size: HM-16 27mm * 13mm * 2.2mm

Support serial port firmware upgrade function

2. System function:

The module factory default configuration: default baud rate 9600, N, 8, 1, slave mode, no sleep, transparent transmission + remote control mode.

The HM-16 pin is compatible with our HM-09,

HM-10, HM-10C, HM-12C, HM-18, old customers do not need to change the PCB, directly and easily upgrade.

The main functions are as follows

1. Master and slave

2. Transparent transmission function

3. Transparent transmission + remote control function

4. Large transmission unit (MTU) 256Bytes/Package

5. Rich AT command control system

6. Support to modify service UUID

7. Support to modify the communication method

8. Support iBeacon

9. Support sleep standby

10. Ultra-long-distance communication, up to 60 meters

11. Faster transmission speed, 2~8KB/S

12. The AT command system is compatible with HM-10/HM-11

The difference between HM-10/11 and HM-16/17/18/19

1. MCU
   HM-10/11 MCU is 8051 32MHz 8bit
   HM-16/17 MCU is Cortex-M0 48MHz 32bit
HM-18/19 MCU is Cortex-M0 48MHz 32bit
2. Bluetooth core version
   HM-10/11 is BLE 4.0
   HM-16/17 is BLE 4.2
   HM-18/19 is BLE 5.0
3. MTU Size
   HM-10/11 MTU size always is 20Bytes
   HM-16/17 Default MTU size is 253Bytes
   HM-16/17 work with iOS MTU size 158Bytes(if iOS8 and higher), 135Bytes(if <iOS8)
   HM-16/17 work with another HM-16/17 MTU size is 256Bytes
   HM-16/17 work with HM-10/11 MTU size is 20Bytes
   HM-16/17 work with android MTU size is 253Bytes (almost)
   HM-18 and HM-19 as same as HM-16/HM-17
4. Speed
   HM-10/11 speed is about 2KB/seconds
   HM-16/17 speed is about 3-8KB/seconds
HM-18/19 speed is about 3-8KB/seconds
5. Power
   HM-10/11 support 2.7~3.5V
   HM-16/17 support 2.2~3.7V
HM-18/19 support 2.2~3.7V
5. Power consumption
   HM-10/11 in automatic sleep mode 0.5~400uA
   HM-10/11 in active mode 8.5mA
   HM-16/17 in automatic sleep mode 0.1~100uA
   HM-16/17 in active mode 2.8mA
   HM-18 and HM-19 as same as HM-16/17
6. Size
   HM-10/11 as same as HM-16/17
   HM-10/11 as same as HM-18/19
