Custom 4.2 Bluetooth Module Serial Port Transmission 5.0 Master Slave Integrated Small Base Station Test

1. Product parameters

●Bluetooth protocol: Bluetooth Specification V4. 2BLE

●There is no byte limit for serial port sending and receiving

●It can achieve 100m ultra-long-distance communication in an open environment

●Working frequency: 2.4GHz ISM band

●Modulation: GFSK (Gaussian Frequency Shift Keying)

●Transmitting power: -23dbm, -6dbm, 0dbm, 6dbm, can be modified by AI command

●Sensitivity: ≤-84dBm at 0.1% BER

●Security features: Authentication and eneryption

●Support services: Central & Peripheral UUID FFE0, FFE1

Power consumption: sleep current 50uA^400uA, normal standby current 6mA, 10mA during transmission

●Power supply: 1.9^5.5V 50mA

●Working temperature: -40 ~ +85 Centigrade

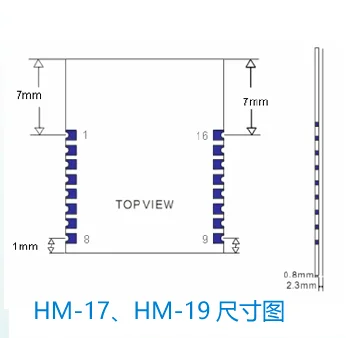

●Appearance size: HM-17 18mm * 13mm * 2.2mm

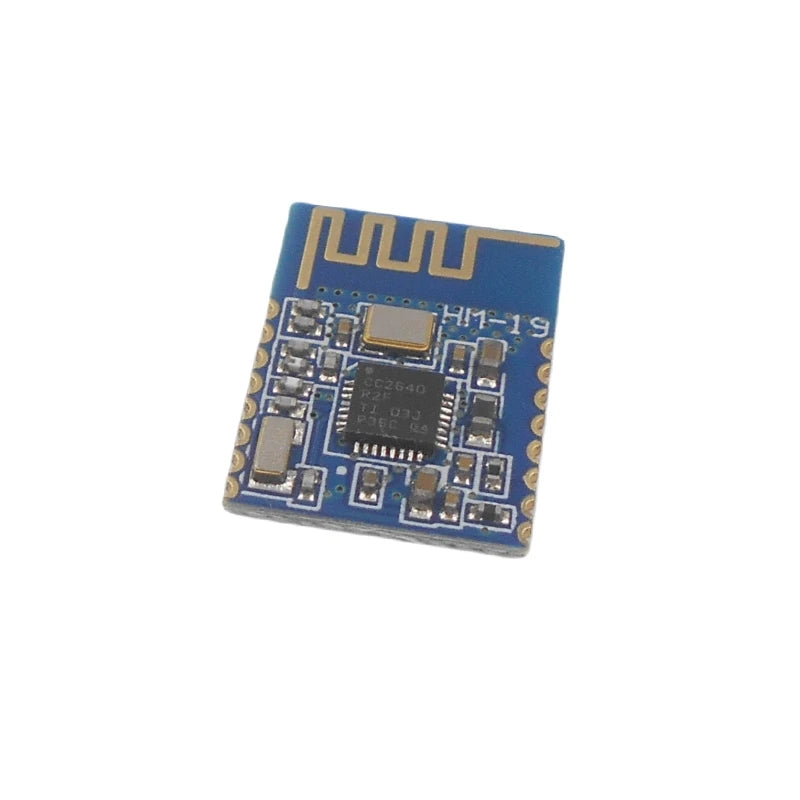

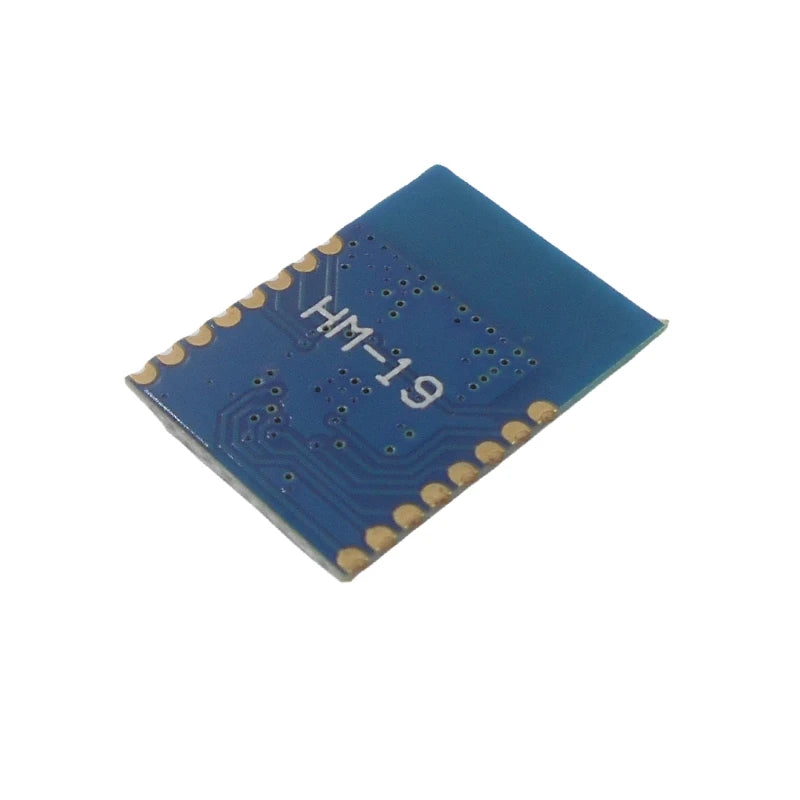

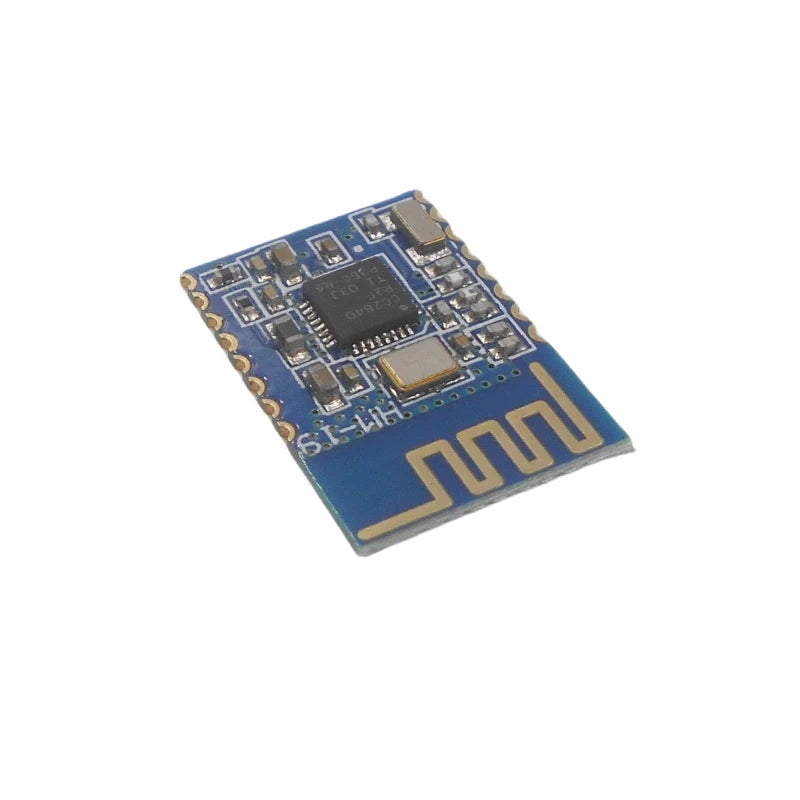

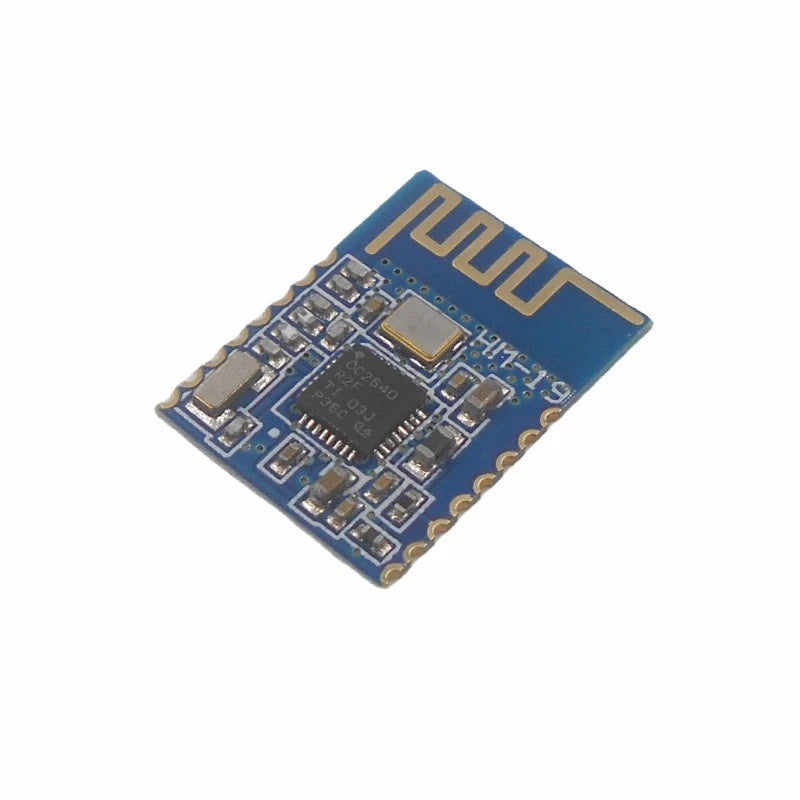

Both HM-17 and HM-19 use TI's CC2640R2F chip, the hardware circuit is the same, but the firmware protocol part of the programming is different, HM-17 is BLE (4.2) protocol,HM-19 is BLE (5.0) protocol.

The size of the two modules is 13*18* 2mm. The module has the characteristics of fast speed, small size and low power consumption. The pins are compatible with HM-06, HM-11, HM-13. No need to change the hardware circuit, just replace it directly , The use is simple, convenient and fast.
